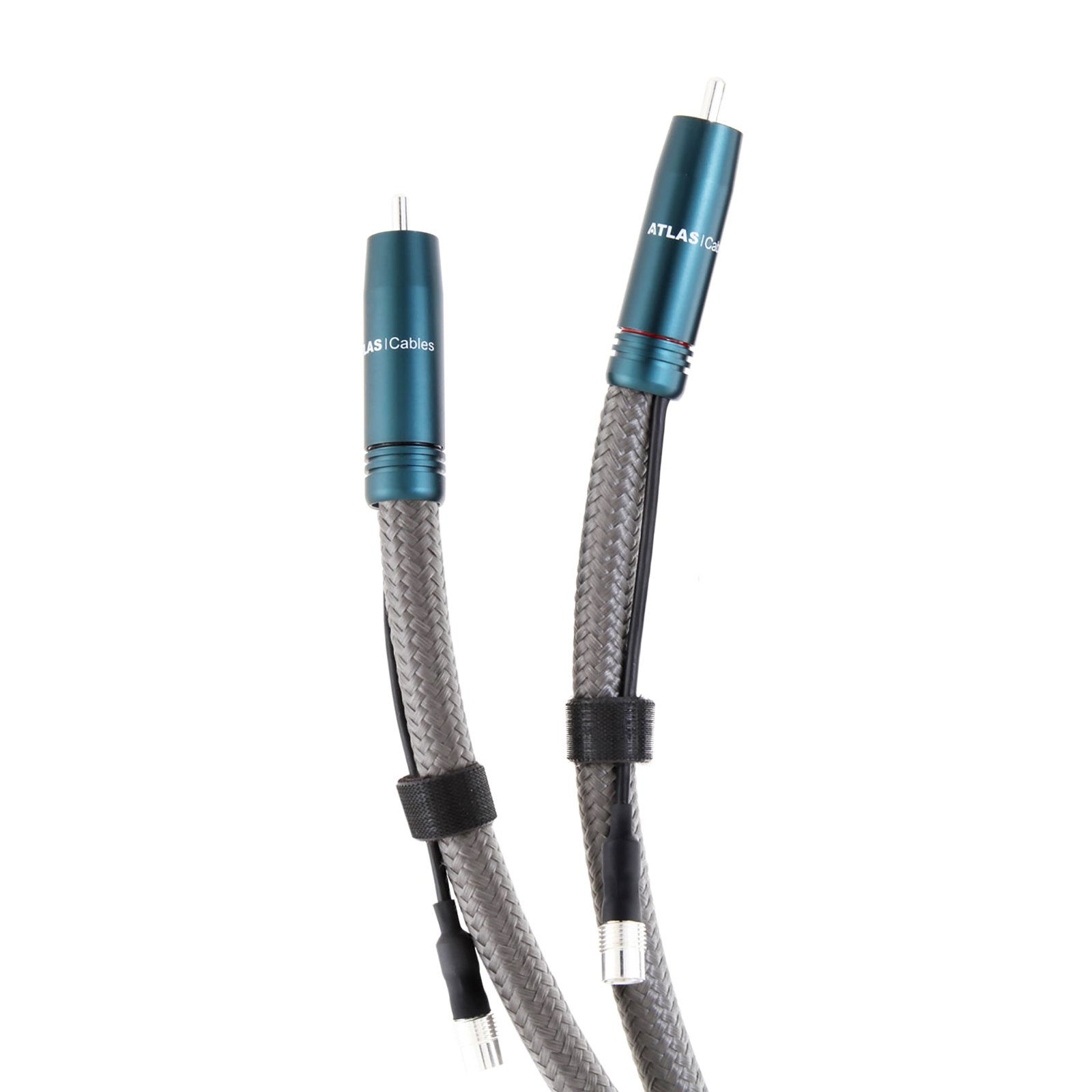

Atlas Ascent Ultra Stereo RCA Interconnects

Ascent Ultra RCA is a high-resolution stereo RCA interconnect cable using much of the technology developed for the Atlas Cables highly acclaimed Mavros & Asimi premium ranges.

Designed to maximise the performance of high performance audio systems, Ascent Ultra uses separate send and return conductors together with a woven copper/Mylar™ screen maximising resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable, resulting in a loss of low level detail.

Two separate high purity OCC (Ohno Continuous Casting) copper conductors with a high-efficiency/low impedance PEF dielectric are wired in a pseudo-balanced fashion again with the objective of reducing noise. Ascent is fitted with Altas's low-mass wide-bandwidth Ultra RCA connectors.

Available Lengths

Ascent Ultra RCA is available as a Stereo RCA Pair in the following lengths:

• 0.50 metres
• 0.75 metres
• 1.00 metres
• 1.50 metres
• 2.00 metres
• 3.00 metres
• Custom lengths available - please call us!

Technology

• Ultra RCA Connector - Ultra is a wide-band, OCC copper, constant impedance, self-cleaning, solder-free construction RCA plug.
• OCC Copper Conductor - The Ohno Continuous Casting process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.
• PEF (Foamed Polyethylene) Dielectric - The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• Twin Multi-Core Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
• Grun Coherent Earthing System - An independent system earth which eliminates low-level RFI, EMI and noise on the signal ground. Read more...

Specifications

• Construction: Twin multicore plus screen
• Material: OCC
• Dielectric: PEF
• Screen: Braid + Mylar™, 100%
• Capacitance: 98.45 pF/m
• Inductance: 0.562 µH/m
• Resistance: 0.0288 Ohms/m
• VOP: 0.72
• Outside Diameter: 9.0mm

More Information

• www.atlascables.com/ic-ascent-ultra.html
