Atlas Element Achromatic Stereo RCA Interconnects

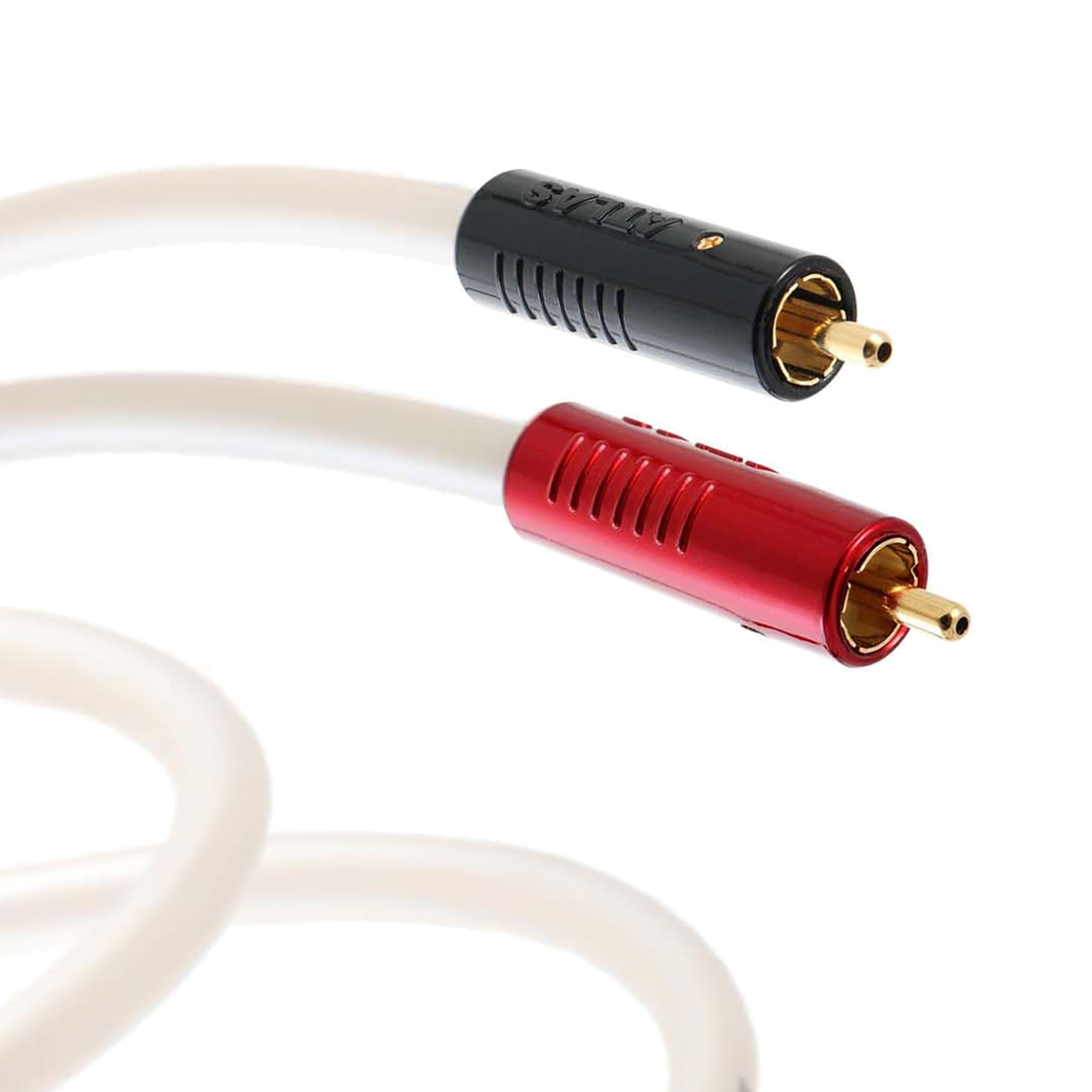

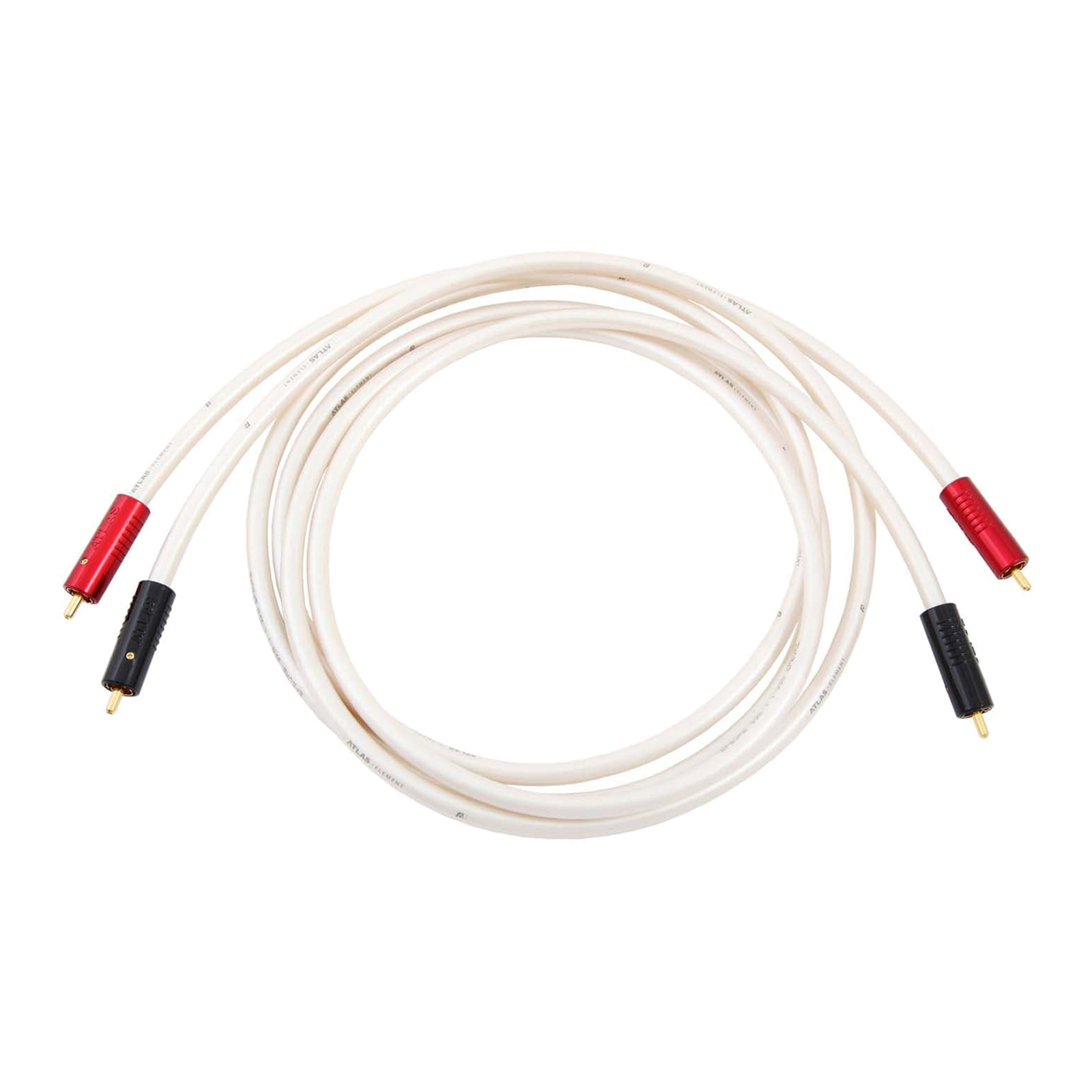

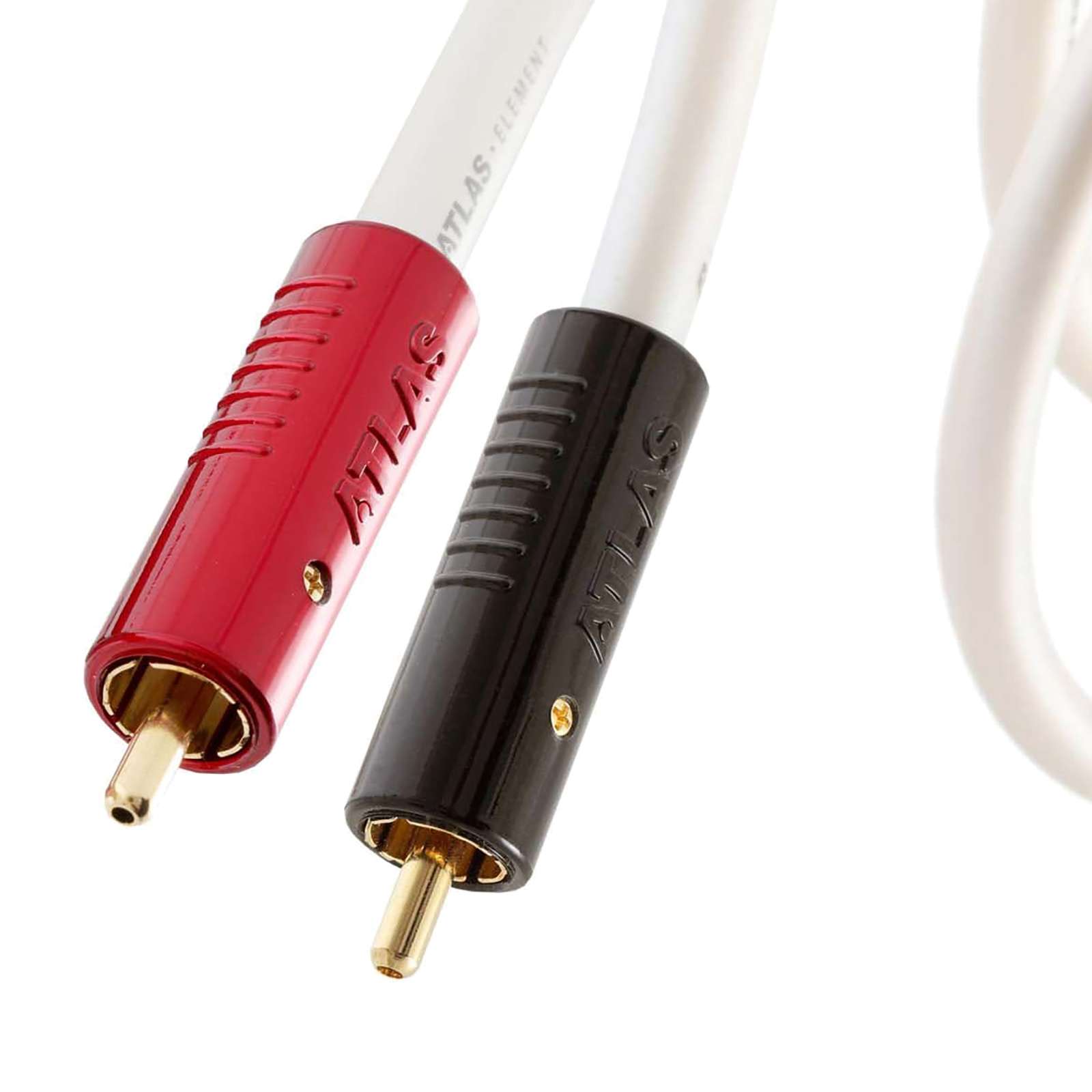

Element Achromatic Stereo RCA Interconnect Cable, by Atlas Cables.

Benefitting from Atlas's ongoing research and development, the Element is fitted with the Achromatic non-magnetic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path. The signal conductor is a fully shielded high quality OCC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable.

The result is a cable which offers a large three dimensional soundstage and fine levels of detail without the artificial brightness which affects many budget cables. The Element Achromatic offers a neutral, relaxing sound and has proven to be an excellent foundation for further system improvements.

The Element range by Atlas Cables also includes other analogue termination options, complementary USB and digital interconnects and speaker cables.

Length Options

Element Achromatic RCA is available as a Stereo RCA Pair in the following lengths:

• 0.50 Metre
• 0.75 Metre
• 1.00 Metre
• 1.50 Metre
• 2.00 Metre
• 3.00 Metre
• Custom lengths available - please contact us!

Technology

• Achromatic RCA Connector - low-mass, non-compression, constant impedance, self-cleaning, solder-free construction plug.
• OCC Copper Conductor - OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.
• PEF Dielectric - Foamed Polyethylene. The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• Coaxial Construction - Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.

Specifications

• Construction: 4-core plus screen
• Material: OCC
• Dielectric: PEF
• Screen: Braid OFC, 85 %
• Capacitance: 83.34 pF/m
• Inductance: 0.512 µH/m
• Resistance: 0. 0810 Ohms/m
• Outside Diameter: 7.0 mm
