Atlas Element DIN to Achromatic RCA 1:2 Interconnects

Element DIN to Achromatic RCA 1:2 by Atlas Cables is a symmetrical interconnect with a wide-band, neutral sound, designed to be an excellent upgrade cable for equipment utilising DIN socketry.

Based on the multi-award winning Atlas Element Achromatic I/C, the Element DIN interconnect utilises a shielded four-core construction providing excellent immunity to interference and noise.

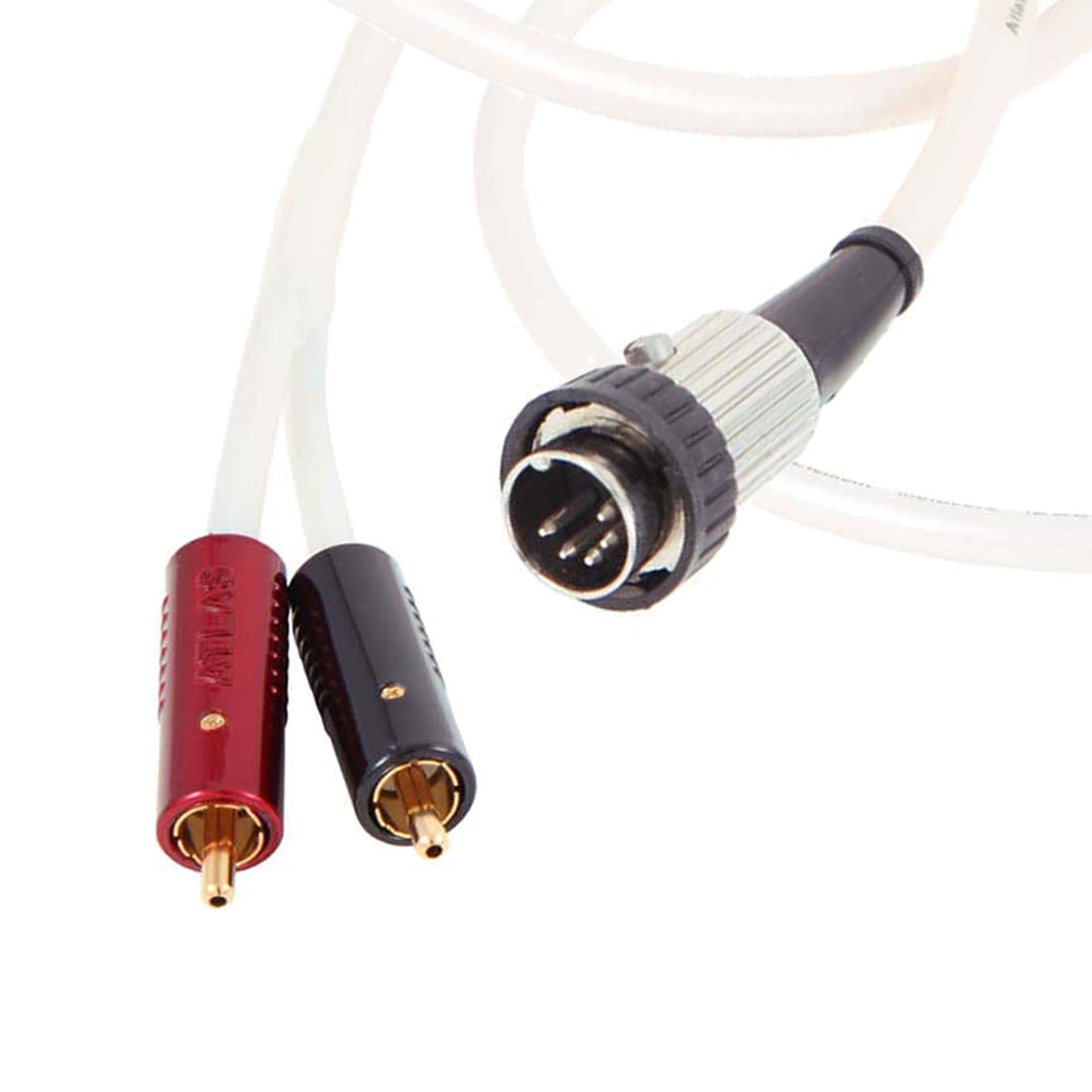

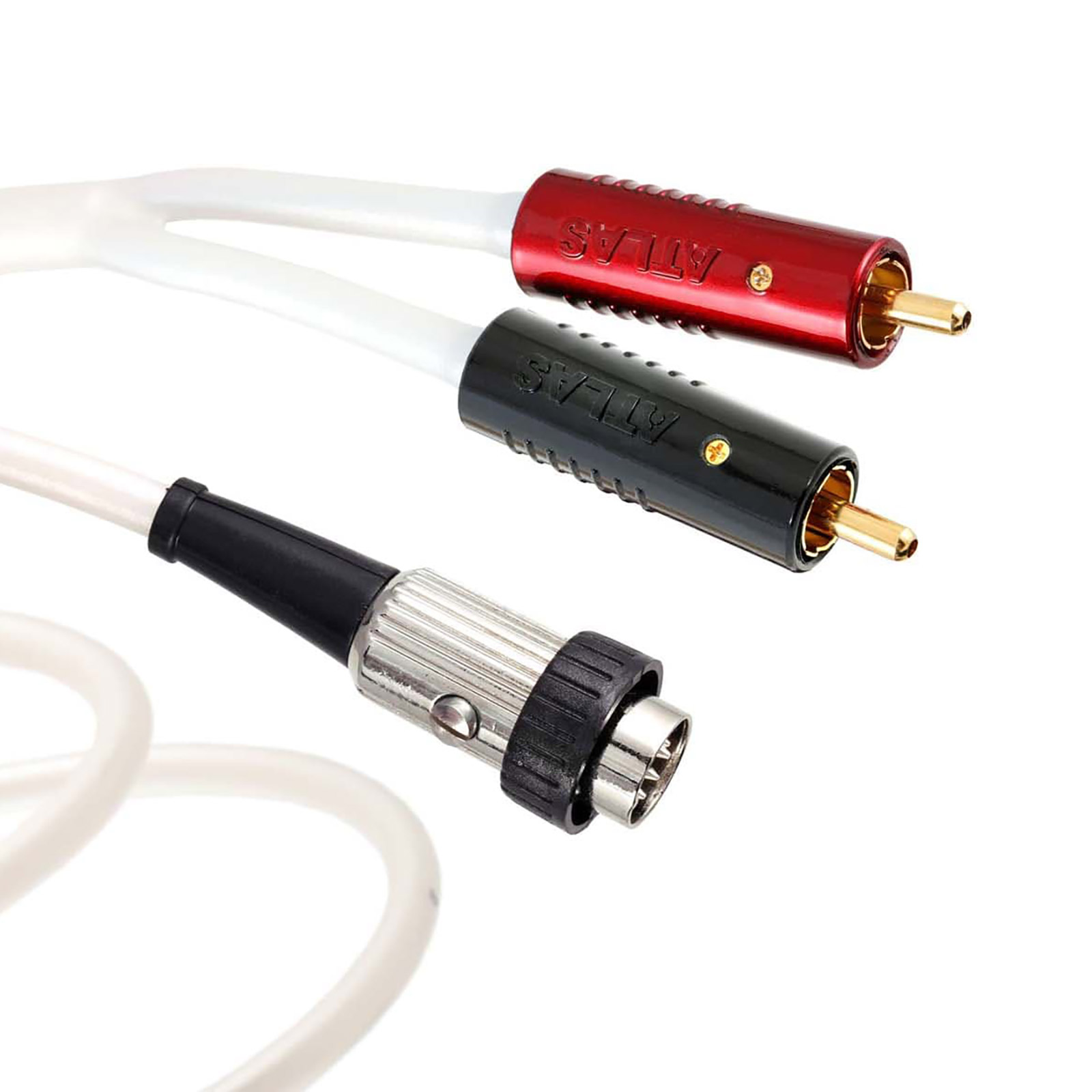

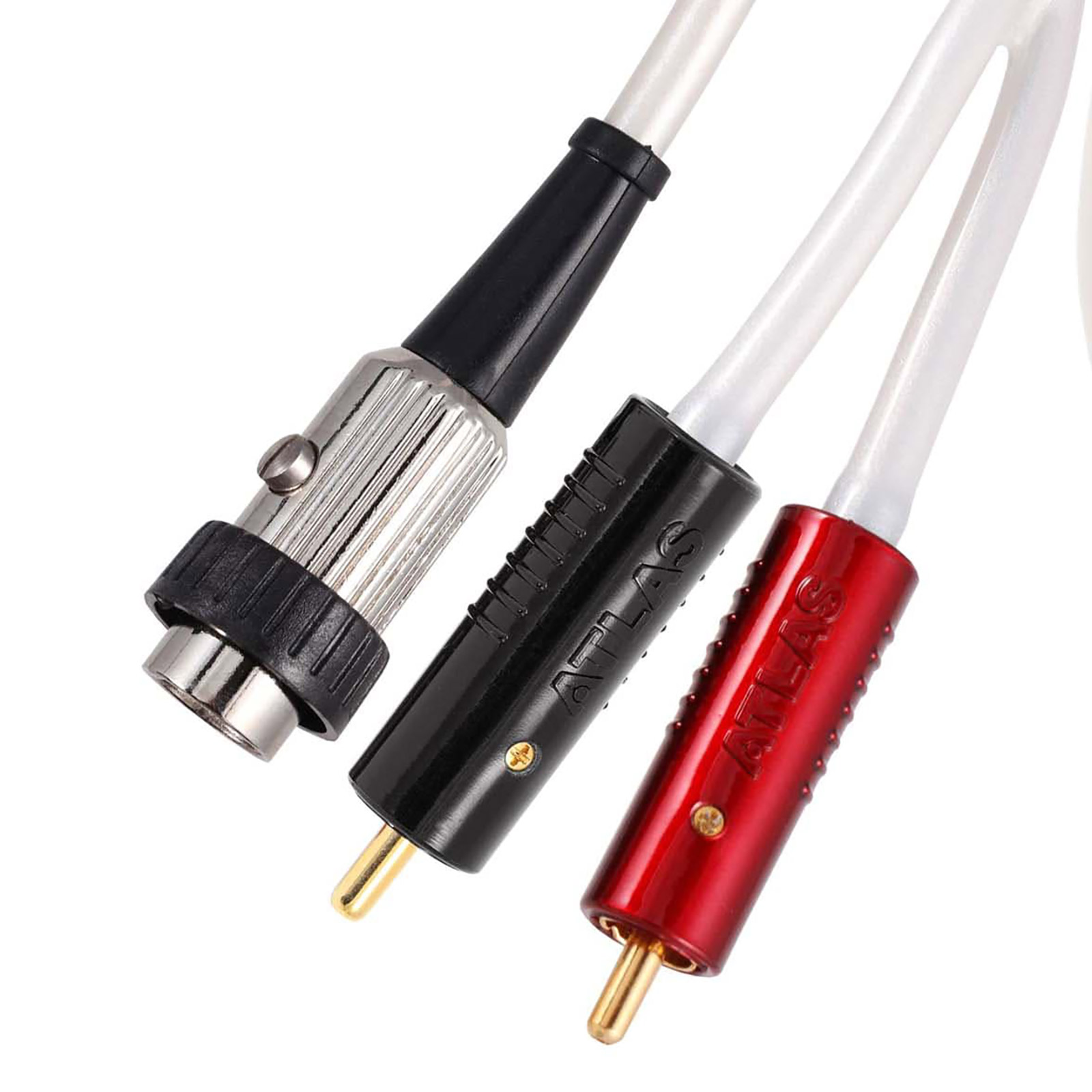

The Element DIN to Achromatic RCA is fitted with a 5-Pin locking DIN connector. Please note that Atlas 180-degree DIN plugs are wired as follows by default: Pin 2 = Ground; Pin 3 = Left, Pin 5 = Right. Other connectors are also available.

Atlas also offer 4-Pin and 5-pin variants suitable for Naim equipment. If you require one of these variations please contact us for manufacture lead times.

The Atlas Cables Element range also includes other analogue interconnects, complementary USB, digital interconnects and speaker cables too.

Length Options

Element DIN to Achromatic RCA 1:2 is available with 5-Pin DIN, Stereo RCA or Stereo XLR connectors in the following lengths:

• 0.50 Metre
• 0.75 Metre
• 1.00 Metre
• 1.50 Metre
• 2.00 Metre
• 3.00 Metre
• Custom lengths available - please contact us!

Technology

• DIN Plug - Atlas high quality 5 pin DIN plug. Die-cast metal, multi-pole precision audiophile connector.
• OFC Conductor - OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.
• PEF Dielectric - Foamed Polyethylene. The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• 4-Core + Screen Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.

Specifications

• Construction: 4-core plus screen
• Material: OFC
• Dielectric: PEF
• Screen: Braid OFC, 85 %
• Capacitance: 83.34 pF/m
• Inductance: 0.512 µH/m
• Resistance: 0. 0810 Ohms/m
• Outside Diameter: 7.0 mm

More Information

• Element DIN to Achromatic RCA 1:2 Interconnects, by Atlas Cables
