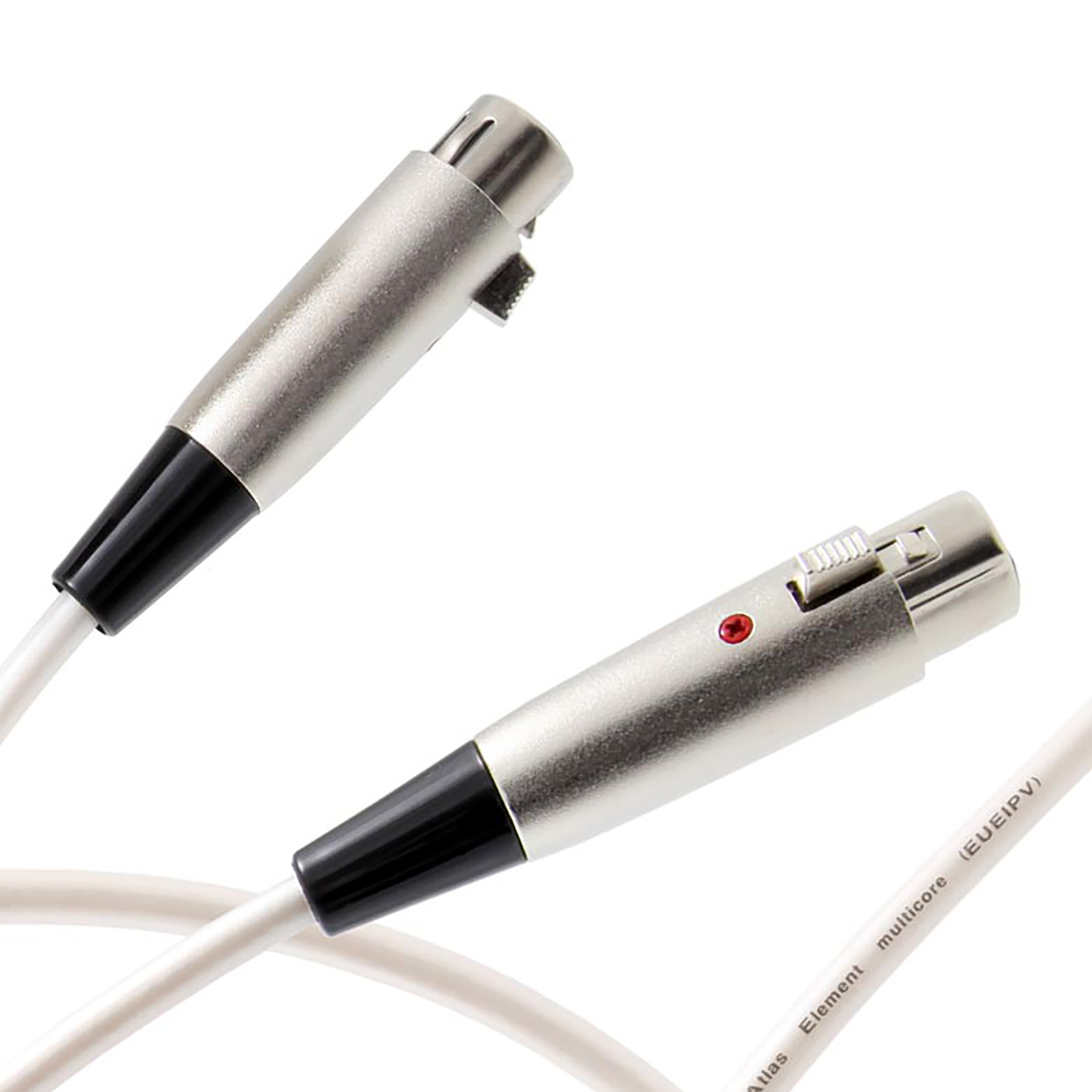

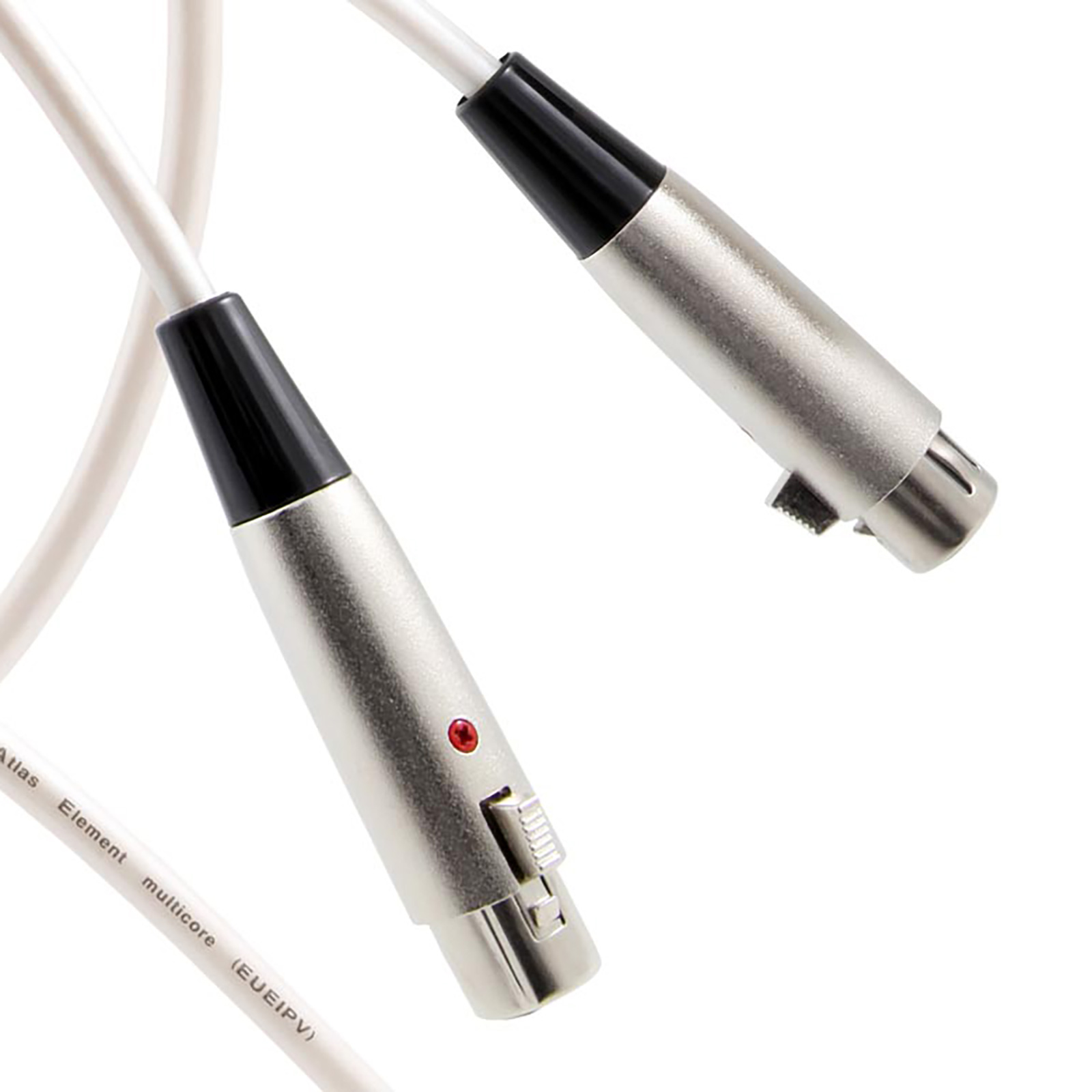

Atlas Element Mezzo Stereo XLR Interconnects

A very well-screened interconnect for this price point, with excellent resistance to RFI (Radio Frequency Interference), helping to ensure low noise levels and a neutral sound.

Based on the highly-regarded Element XLR interconnect, the Element Mezzo XLR by Atlas Cabls has been designed to meet the increasingly popular requirement for a cost-effective balanced cable with very little compromise in performance. The actual cable itself is identical, but the Mezzo uses a copper alloy body and gold-plated pins as opposed to the high-purity OFC pins and aluminium alloy-bodied plug of the Element XLR.

Atlas XLR plugs are wired as follows by default: Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us. Always check your equipment manufacturer instructions before ordering.

Available Lengths

Element Mezzo XLR is available in the following lengths:

• 0.50 metres
• 0.75 metres
• 1.00 metres
• 1.50 metres
• 2.00 metres
• 3.00 metres
• Custom lengths available - please call us!

Technology

• Copper Alloy XLR - The Mezzo XLR combines a copper-alloy bodied plug with with copper-alloy connectors and crimped (solder-free) construction.
• OFC Conductor - OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.
• PEF (Foamed Polyethylene) Dielectric - The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• 4-Core Construction - Individually matched conductors, one pair for Hot (+), the other pair Cold (-) enclosed within a protective woven screen.

Specifications

• Construction: 4 core plus screen
• Material: OFC
• Dielectric: PEF
• Screen: Braid OFC, 85%
• Capacitance: 83.34 pF/m
• Inductance: 0.512 µH/m
• Resistance: 0.0810 Ohms/m
• Outside Diameter: 7.0 mm

More Information

• Element Mezzo XLR Interconnect, by Atlas Cables
