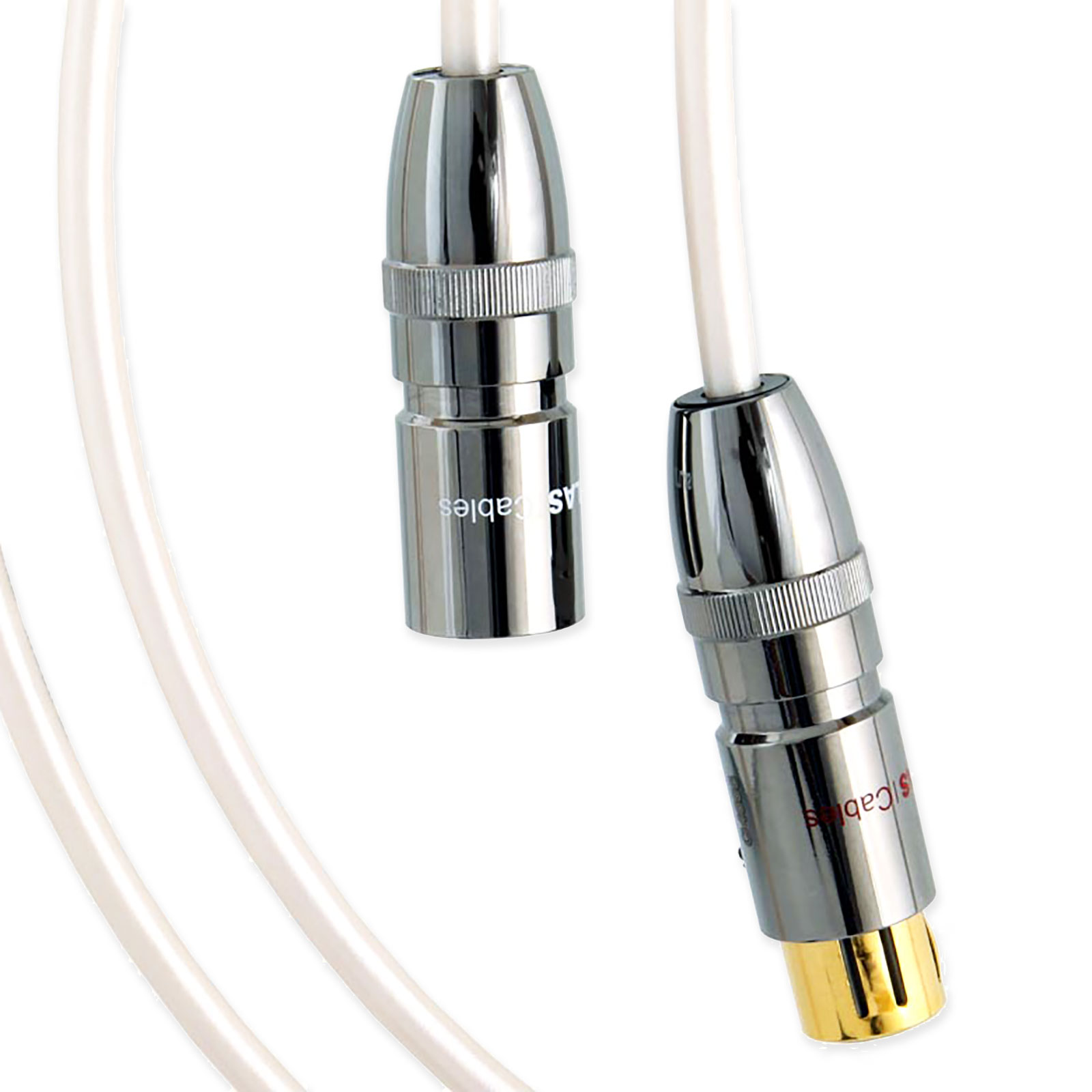

Atlas Element OFC XLR Interconnects

Element OFC XLR is a symmetrical analogue interconnect with a neutral sound, designed to be an excellent foundation for balanced system configurations.

Based on the multi-award winning Element Acromatic RCA interconnect, the Element OFC XLR utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to longer cable runs.

Atlas use cold-weld terminations wherever possible, including their current generation Dark Chrome XLR connectors. By reducing the number of materials and break points in the signal path, the objective is to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.

Atlas XLR plugs are wired as follows by default: Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us, and remember to always check the equipment manufacturers instructions before ordering.

Available Lengths

Element OFC XLR is available in the following lengths:

• 0.50 metres
• 0.75 metres
• 1.00 metres
• 1.50 metres
• 2.00 metres
• 3.00 metres
• Custom lengths available - please call us!

Technology

• OFC XLR Connector - Atlas XLR combines a lightweight aluminium alloy body with precision-fit OFC/OCC connectors and solder-free construction.
• OFC Conductor - OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.
• PEF (Foamed Polyethylene) Dielectric - The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• 4-Core + Screen Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.

Specifications

• Construction: 4 core plus screen
• Material: OFC
• Dielectric: PEF
• Screen: Braid OFC, 85%
• Capacitance: 83.34 pF/m
• Inductance: 0.512 µH/m
• Resistance: 0.0810 Ohms/m
• Outside Diameter: 7.0 mm
