Atlas Equator Achromatic Stereo RCA Interconnects

Equator Achromatic Stereo RCA Interconnect Cable, by Atlas Cables.

A consistent award winner for over a decade (winning What HiFi’s Best Interconnect Award FOUR times), the latest generation Equator Achromatic builds on the strengths of its predecessors to deliver an even greater price-to-performance ratio.

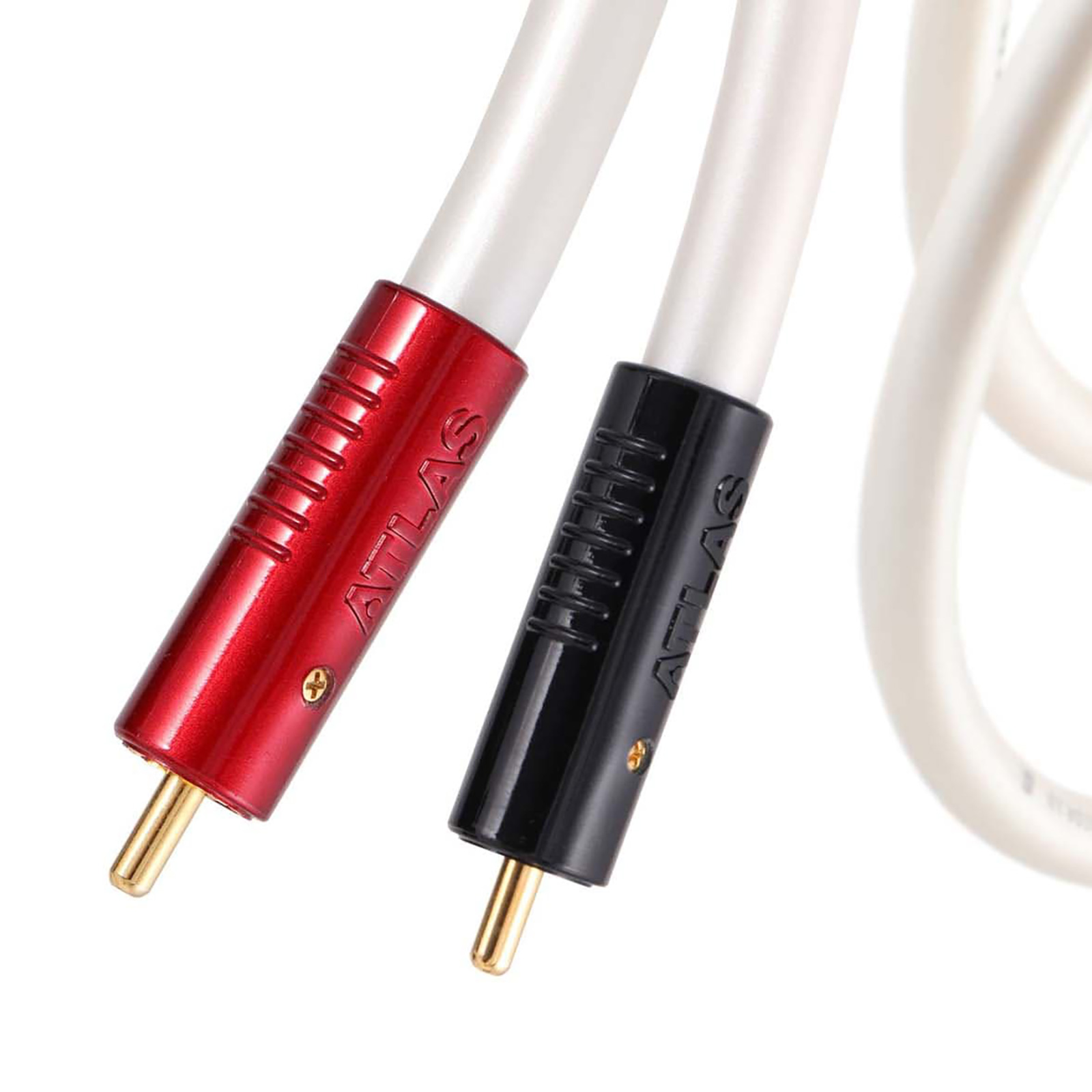

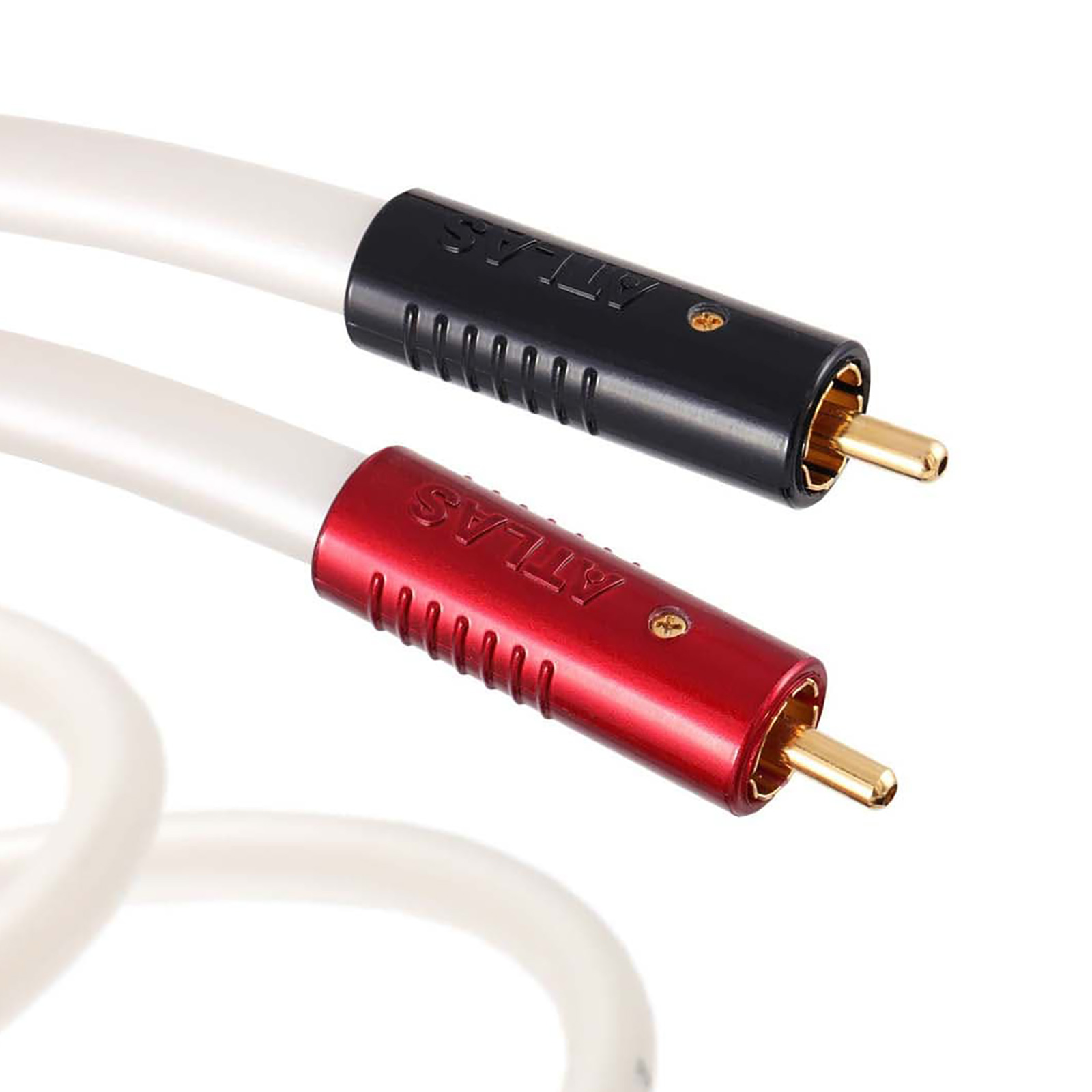

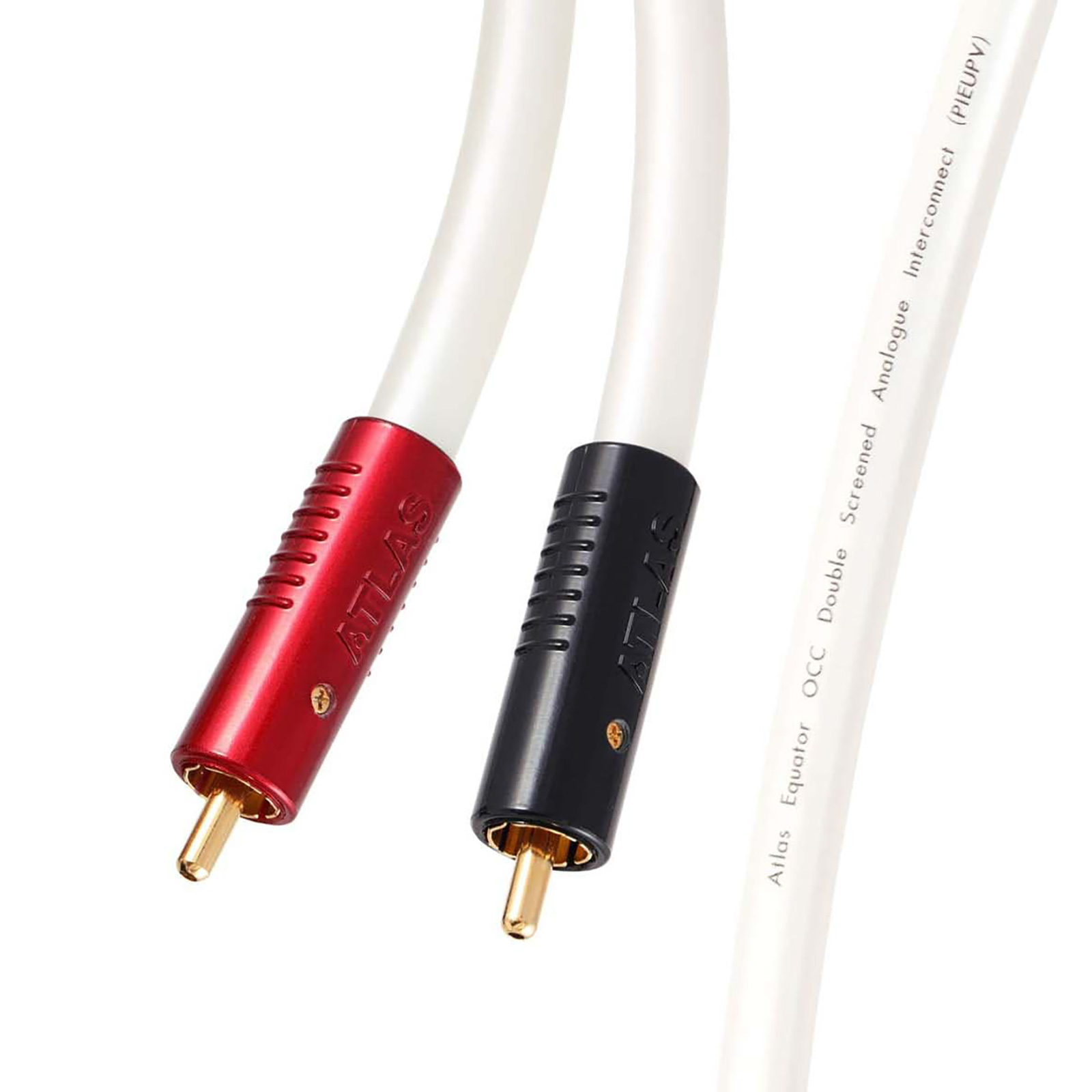

The Equator Achromatic is fitted with Atlas Achromatic non-magnetic RCA plugs. The low-mass Achromatic connector features a precision calibrated cold-weld connection, creating a coherent, continuous signal path. The signal conductor is now high purity OCC (Ohno Continuous Casting) copper encased with a superbly constructed double screen to provide maximum resistance to RFI (Radio Frequency Interference), which can raise noise levels in a poorly shielded cable.

The result is a beautifully balanced interconnect which offers a large three dimensional soundstage and fine levels of resolution without any sense of exaggerated detail, which is superficially impressive but quickly fatiguing to listen to.

The Atlas Equator range also includes subwoofer, interconnect, streaming and speaker cables.

Length Options

Equator Achromatic RCA is available as a Stereo RCA Pair in the following lengths:

• 0.50 Metre
• 0.75 Metre
• 1.00 Metre
• 1.50 Metre
• 2.00 Metre
• 3.00 Metre
• Custom lengths available - please contact us!

Technology

• Achromatic RCA Connector - low-mass, non-compression, constant impedance, self-cleaning, solder-free construction plug.
• OCC Copper Conductor - OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.
• PEF Dielectric - Foamed Polyethylene. The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• Coaxial Construction - Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.

Specifications

• Construction: Double-screened coaxial
• Material: OCC
• Dielectric: PEF (Foamed PE)
• Screen: OFC, 95 % (double OFC braid)
• Capacitance: 53.27 pF/m
• Inductance: 0.40 µH/m
• Resistance: 0. 027 Ohms/m
• Outside Diameter: 8.5 mm
