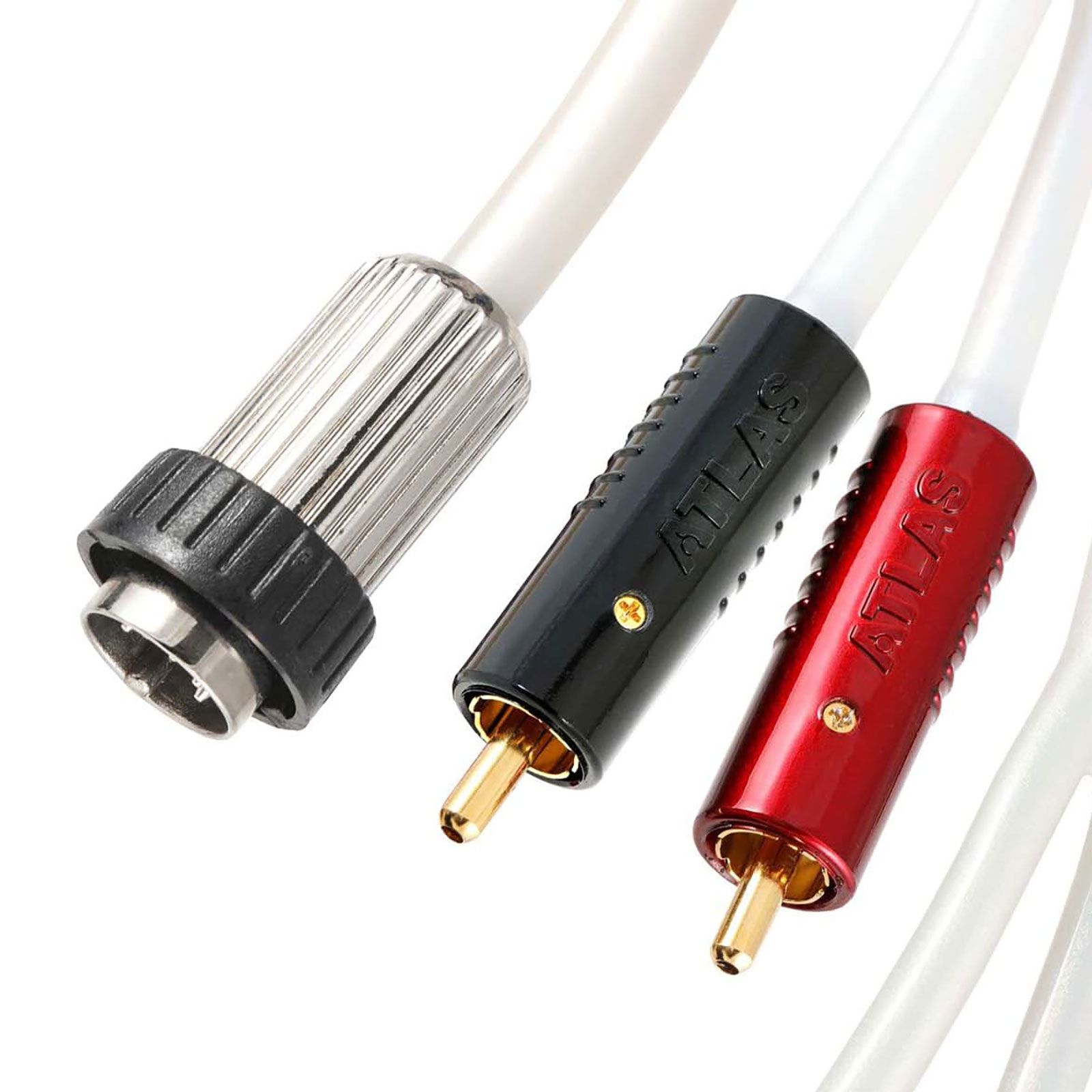

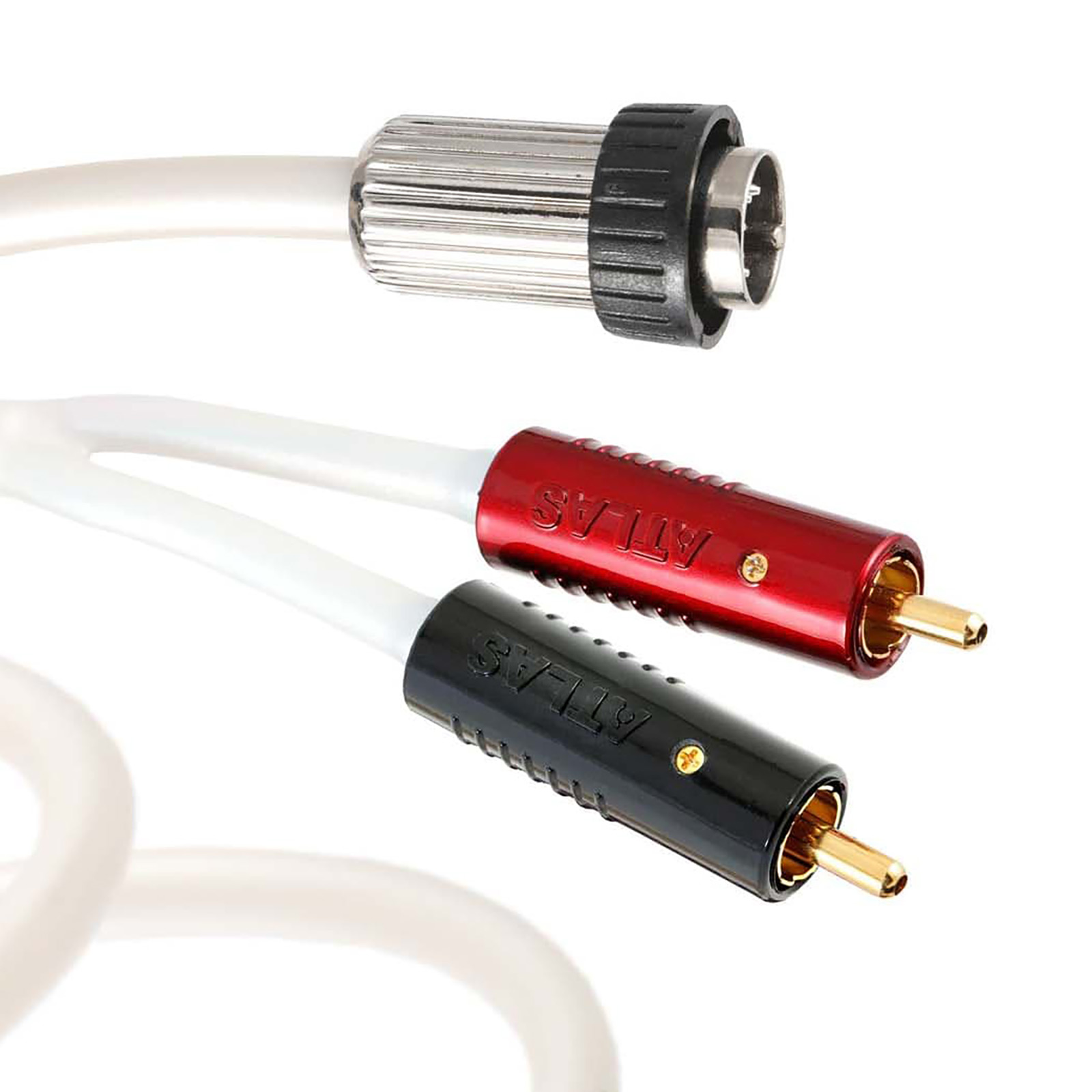

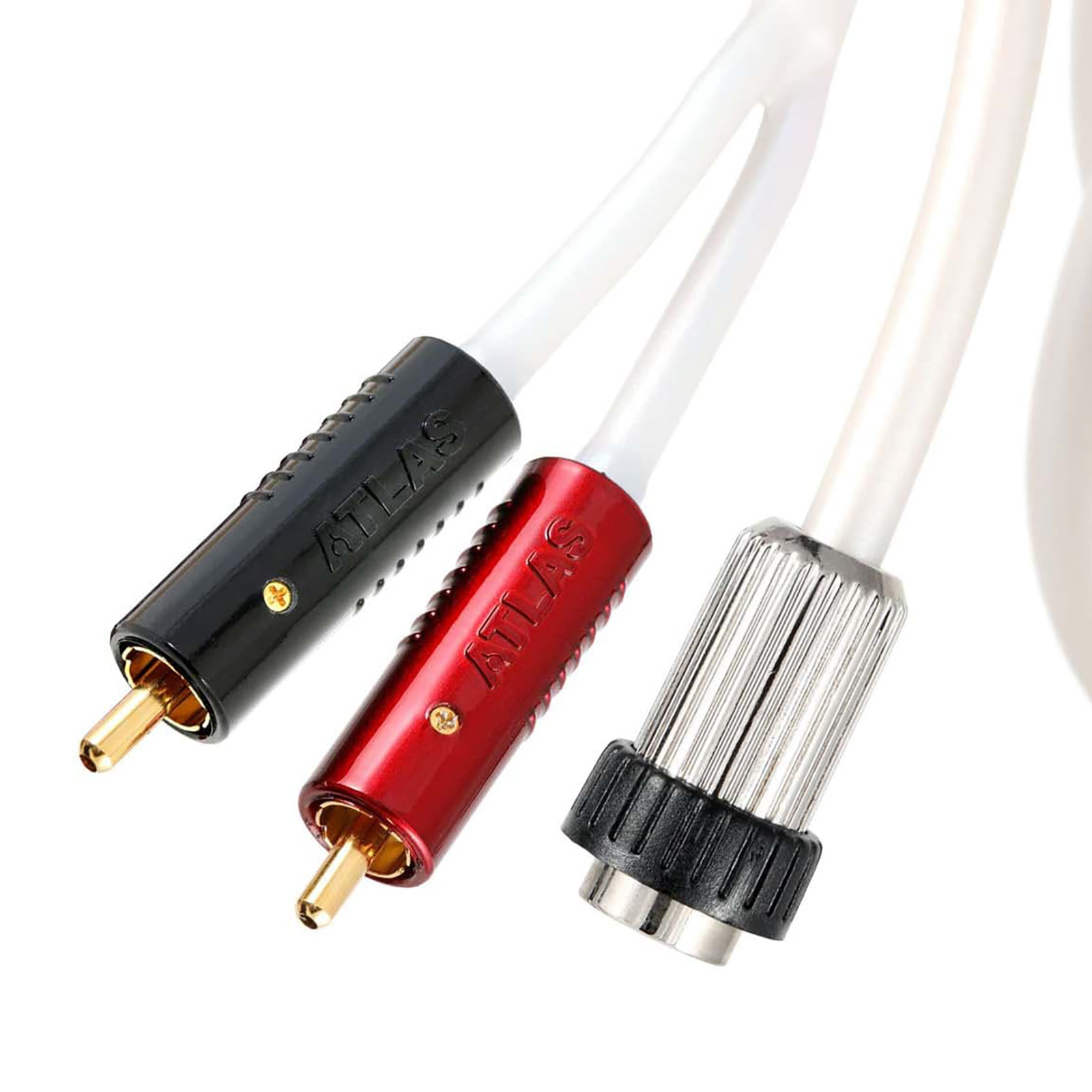

Atlas Equator DIN to Achromatic RCA 1:2 Interconnects

The Equator DIN to Achromatic RCA interconnect by Atlas Cables utilises a shielded four-core construction, providing excellent immunity to interference and noise.

The humble DIN plug continues to be a popular choice among European manufacturers, with manufactures such as Naim continuing to champion its cause. Atlas Equator DIN-RCA has been introduced to meet increasing demand for a cable at this performance level. Based on the critically acclaimed Equator Achromatic RCA, this latest cable offers a superb price/performance ratio.

RCA termination is with the Achromatic non-magnetic RCA plug. This low-mass Achromatic connector features a precision calibrated cold-weld connection, creating a coherent, continuous signal path. The signal conductor is now high purity OCC (Ohno Continuous Casting) copper encased with a superbly constructed double screen to provide maximum resistance to RFI (Radio Frequency Interference), which can raise noise levels in a poorly shielded cable.

The result is a beautifully balanced interconnect conveying a large three dimensional soundstage and high levels of resolution in a cable designed to off excellent resistance to the EMI and RFI which potentially degrades performance.

The Equator DIN to Achromatic RCA is fitted with a 5-Pin locking DIN connector. Please note that Atlas 180-degree DIN plugs are wired as follows by default: Pin 2 = Ground; Pin 3 = Left, Pin 5 = Right. Other connector options are also available.

Atlas also offer 4-Pin and 5-pin variants suitable for Naim equipment. If you require one of these variations please contact us for manufacture lead times.

The Atlas Cables Equator range includes subwoofer, interconnect, streaming and speaker cables.

Length Options

Equator DIN to Achromatic RCA 1:2 is available with 5-Pin DIN, Stereo RCA or Stereo XLR connectors in the following lengths:

• 0.50 Metre
• 0.75 Metre
• 1.00 Metre
• 1.50 Metre
• 2.00 Metre
• 3.00 Metre
• Custom lengths available - please contact us!

Technology

• DIN Plug - Atlas high quality 5 pin DIN plug. Die-cast metal, multi-pole precision audiophile connector.
• OCC Copper - OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.
• PEF Dieletric - Foamed Polyethylene. The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• 4-Core + Screen Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.

Specifications

• Construction: Co-Ax, Double Screened
• Material: OCC
• Dielectric: PEF (Foamed PE)
• Screen: OFC, 95 %, Double OFC Braid
• Capacitance: 74.36 pF/m
• Inductance: 0.497 µH/m
• Resistance: 0. 0776 Ohms/m
• Impedance: 78.25 Ohms @ 1 Mhz
• Outside Diameter: 7.0 mm
