Atlas Hyper 2.0 Speaker Cables

Engineered with neutrality, speed and a wide dynamic range as primary design objectives, Atlas Hyper 2.0 is a superb speaker cable ideally suited for continuous listening over a prolonged period without causing listener fatigue.

Featuring very high purity (99.9999%) OFC (Oxygen Free Copper) and larger 2.0mm conductors with an advanced PTFE (Teflon™) dielectric. Hyper 2.0 speaker cables present a combination most unusual at this price point, meaning the cable offers an exceptional performance well suited to considerably more expensive systems. The increased diameter conductors on Hyper 2.0 offer improved bass performance over the thinner 1.5 version.

The conductor quality and high-efficiency dielectric allow Hyper 2.0 to reveal more of the performance level your equipment is capable of, being fast and dynamic without suffering the ruthlessly analytical character sometimes mistaken for extra detail.

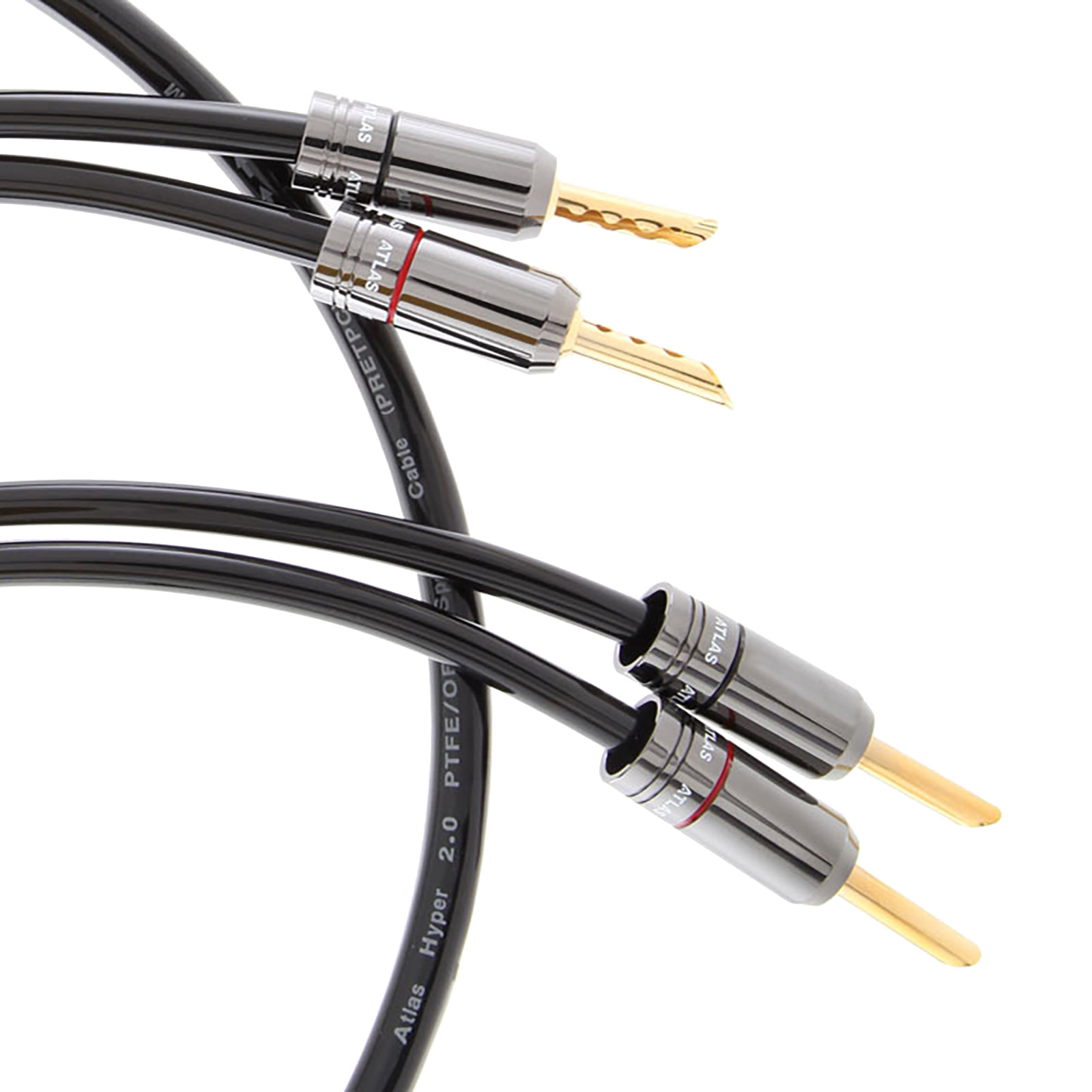

Standard termination is via Atlas proprietary Z-plug, a low mass, self-cleaning, solder free construction speaker connector. These cables are also available terminated with Atlas cold-weld high quality OFC spade connectors.

Available Lengths

Hyper 2.0 is available with 4.0mm Z-Plug (BFA) or OFC Spade terminations in the following lengths:

• 2.00 metres
• 3.00 metres
• 5.00 metres
• 7.00 metres
• 10.00 metres
• Custom lengths available - please call us!

Technology

• Z-Plug (BFA) Connectors - Tin cobalt finished metal Z plug. This non-magnetic aluminium alloy Z plug body is a low-mass, self-cleaning, solder-free construction speaker plug. These cables can also be supplied with a spade tag option at one or both ends, please specify when ordering.
• OFC Copper Conductor - OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.
• PTFE Dielectric - PTFE (Teflon™) is usually applied at higher temperatures and in combination with OFC conductors. OCC materials don’t like high temperatures (soldering, applying the dielectric etc) so application of a low temperature PTFE (Teflon™) or FEP work best with OCC conductors. This is especially critical at smaller conductor sizes.
• Multi-Core Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.

Specifications

• Construction: Multi-Core
• Material: OFC
• Dielectric: PTFE (Teflon™)
• Screen: None
• Capacitance: 73.42 pF/m
• Inductance: 0.5178 µH/m
• Resistance: 0.0088 Ohms/m
• VOP: 0.72
• Outside Diameter: 7.0mm
