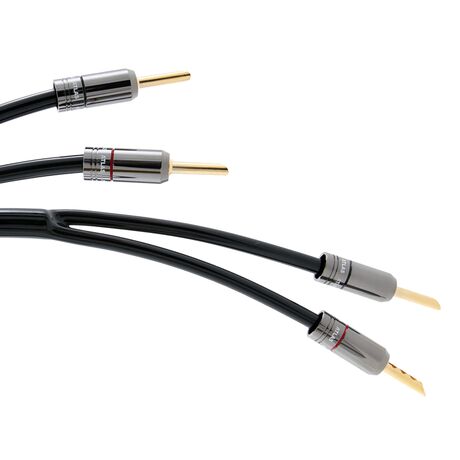

Atlas Hyper 3.5 Speaker Cables

Developed by Atlas in consultation with a number of leading audio manufacturers, Hyper 3.5 is a sophisticated speaker cable engineered to offer a higher level of transparency than products typically supplied in single-brand hi-fi systems.

All Atlas cables are designed to impose as little of any inherent character as possible, achieved through careful selection of materials and construction methods, but Atlas feel this latest-generation Hyper cable is exceptionally transparent, allowing the equipment characteristics to be conveyed intact.

The cable employs conductors comprising x72 high-purity OFC (Oxygen Free Copper) strands encapsulated within a carefully selected high-efficiency PTFE (Teflon™) dielectric coating. The resultant conductor is embedded within an anti-vibration filler and finished in the Hyper gloss black sleeve.

Standard termination is via Atlas proprietary Z-plug, a low mass, self-cleaning, solder free construction speaker connector. These cables are also available terminated with Atlas cold-weld high quality OFC spade connectors.

This cable can be optionally supplied with the Atlas Transpose Modular Termination System, which allows easy switching between expanding 4.0mm connectors, spade tags and Z-plugs as your requirements change. Please call us to order this option.

Available Lengths

Hyper 3.5 is available with 4.0mm Z-Plug (BFA) or OFC Spade terminations in the following lengths:

• 2.00 metres
• 3.00 metres
• 5.00 metres
• 7.00 metres
• 10.00 metres
• Custom lengths available - please call us!

Technology

• Z-Plug (BFA) Connectors - Tin cobalt finished metal Z plug. This non-magnetic aluminium alloy Z plug body is a low-mass, self-cleaning, solder-free construction speaker plug. These cables can also be supplied with a spade tag option at one or both ends, please specify when ordering.
• OFC Copper Conductor - OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.
• PTFE Dielectric - PTFE (Teflon™) is usually applied at higher temperatures and in combination with OFC conductors. OCC materials don’t like high temperatures (soldering, applying the dielectric etc) so application of a low temperature PTFE (Teflon™) or FEP work best with OCC conductors. This is especially critical at smaller conductor sizes.
• Multi-Core Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.

Specifications

• Construction: Multi-Core
• Material: OFC
• Dielectric: PTFE (Teflon™)
• Screen: None
• Capacitance: 73.42 pF/m
• Inductance: 0.5178 µH/m
• Resistance: 0.0088 Ohms/m
• VOP: 0.72
• Outside Diameter: 7.0mm
