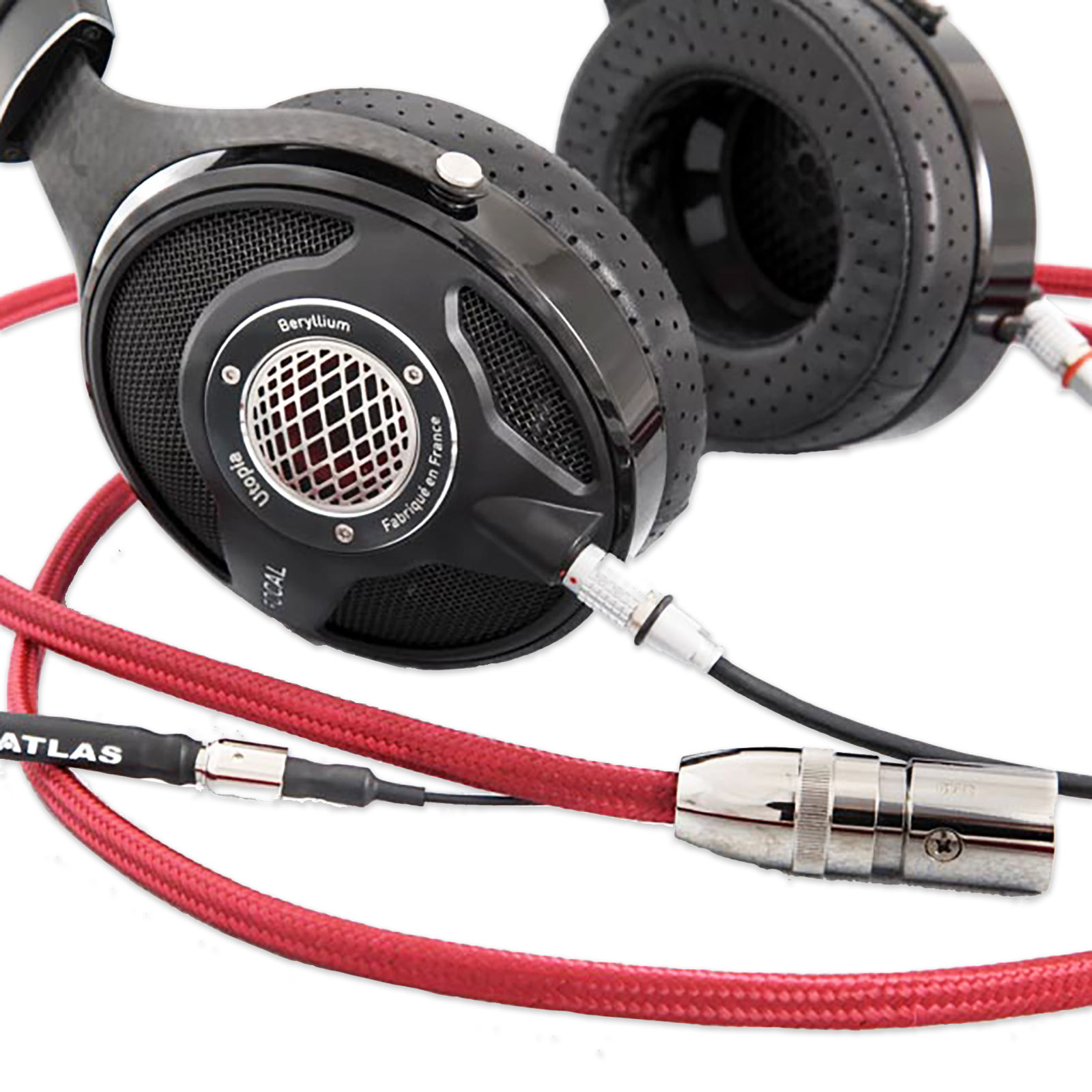

Atlas Zeno Harmonic SC 1:2 Grun XLR Replacement Custom Headphone Cables

Zeno replacement earphone cables by Atlas Cable are designed to offer a significant upgrade over the standard cables bundled with even very expensive premium in-ear monitors or IEM earphones.

This Zeno Harmonic SC 1:2 Grun variant is for headphones with cables connecting to BOTH earpieces. Consider the Zeno 1:1 variant if your cable plugs into just ONE earpiece.

The Zeno Harmonic SC 1:2 Cable combines high-purity OCC copper conductors in a true dual-balanced design, with the unique Grun Coherent Earthing System. This provides a reference earth point when attached to either your amplifier or mains ground.

This results in a reduction of EMI-induced background noise levels, often to an unprecedented level in a headphone system, revealing the true dynamic range of your headphones.

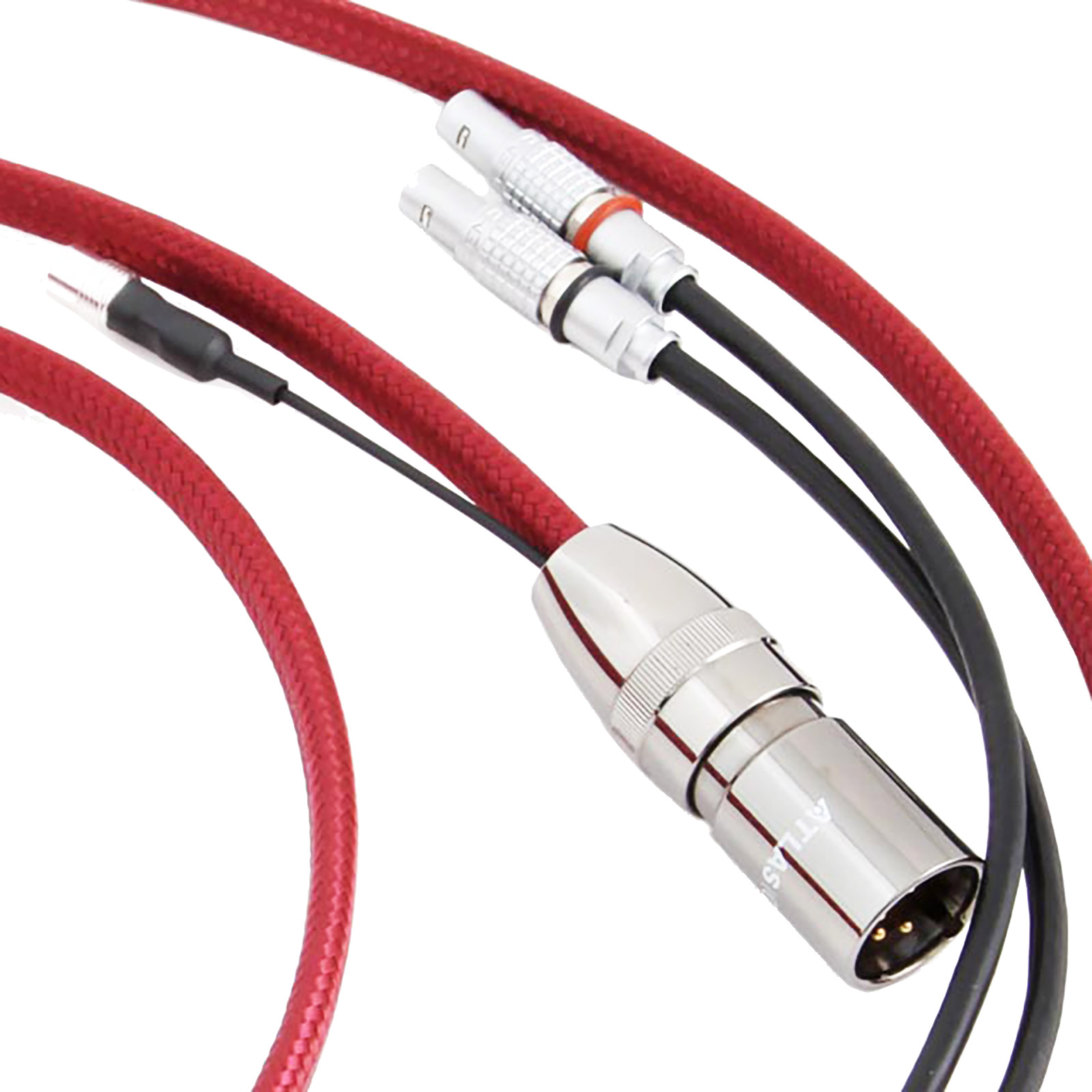

Zeno Harmonic also features a low-mass, wide bandwidth 4 (OCC) pin XLR connector with the proven cold-weld (precision-crimped) solder-free construction methods. This produces a continuous high-integrity signal path, avoiding the breaks in material continuity which degrade ultimate fidelity.

Zeno is supplied as standard with a 1m Grun cable and spade tag adapter for connection to the ground post on your amplifier. A still higher level of performance can be obtained via an optional Grun mains adapter, typically used in a spare socket on your mains distribution block. A high quality XLR–6.3mm jack-plug adaptor is also included with each Zeno Harmonic cable.

Available Lengths

Zeno Harmonic SC 1:2 Grun replacement headphone cables are available in the following standard lengths:

• 2.00 metres
• 2.50 metres
• 3.00 metres
• Custom lengths available - please call us!

Luxe Finish Options

Atlas Cables offer a range of special Luxe finish options for this premium replacement headphone cable. Four standard leather colours plus optional finishes available in contrasting or self-colour stitching options. Bespoke colour matching options (RAL or Pantone) are also available.

Please contact Audio Sanctuary to discuss your requirements if you would like to pursue the Luxe options.

Technology

• 4-Pin OCC XLR Connectors - Low-mass OCC XLR with cold-weld terminations, reducing the number of materials and break points in the signal path, resulting in more consistent construction and improved audio performance
• OCC Copper Conductor - OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.
• FEP Dielectric - FEP (Fluorinated Ethylene Propylene) has a big advantage over PTFE in that it can be applied to sophisticated conductors at lower temperatures, preserving the integrity of the base material.
• Construction - Dual-Symmetrical Balanced.
• Grun Coherent Earthing System - An independent system earth which eliminates low-level RFI, EMI and noise on the signal ground. Read more...

Specifications

• Construction: Dual Symmetrical
• Material: OCC Copper
• Dielectric: PEF
• Screen: Braid + Mylar™
• Conductor Resistance: 0.0859 Ohms/m
• Capacitance: 95.08 pF/m
• Inductance: 0.43 µH/m
• Outside Diameter: 7.6mm
