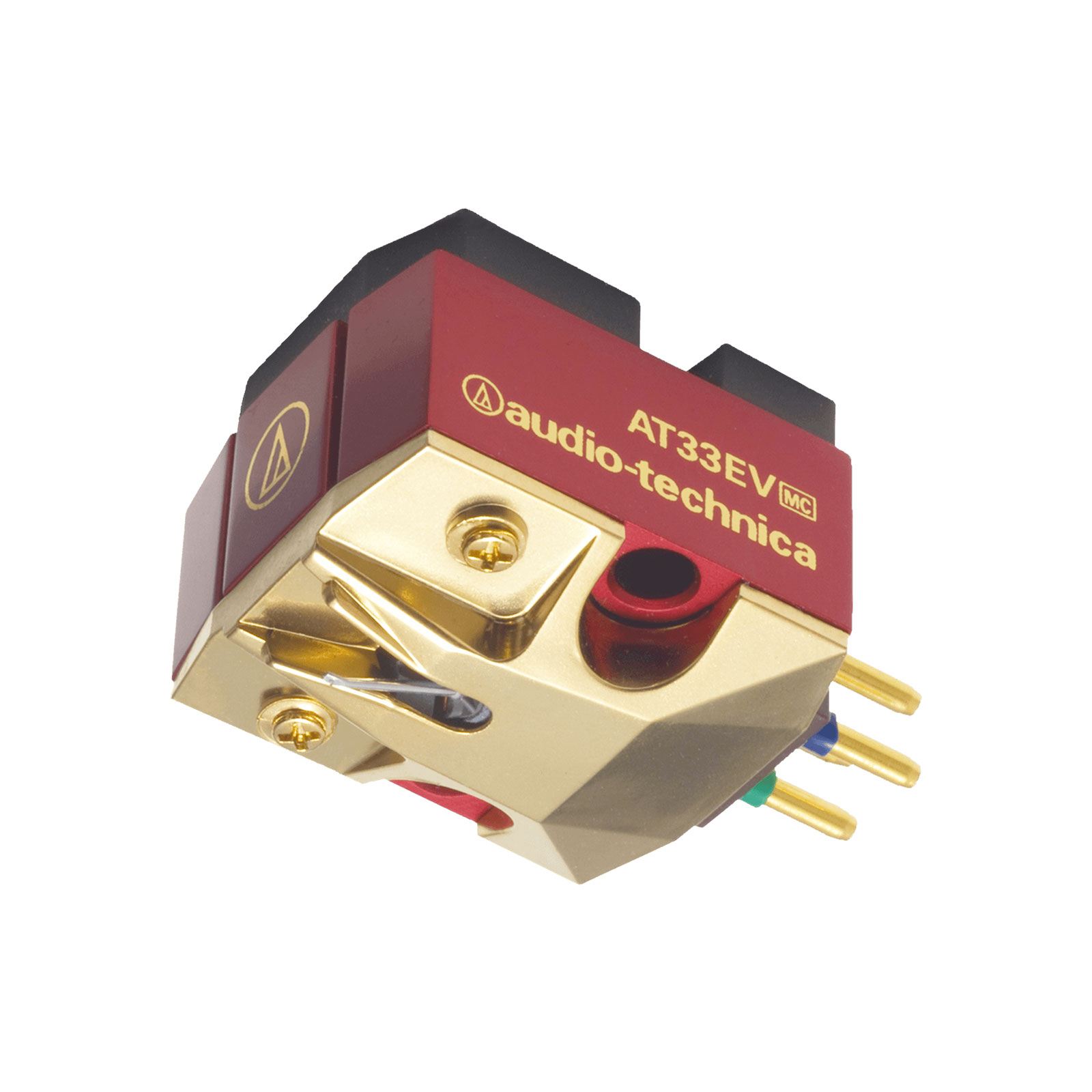

Audio Technica AT33EV Moving Coil Stereo Cartridge

AT33EV Dual Moving Coil Stereo Cartridge, with Nude Square Shank Elliptical Stylus, by Audio Technica.

The original model of this stereo cartridge is the AT33ANV, which was available as a special release to celebrate the 45th anniversary of Audio-Technica. The A33ANV was the first in the AN33 series to feature a Duralumin cantilever, which received wide acclaim for its sound quality. Retaining the basic specification, AT now present a further improved and evolved model.

The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.

Hanenite is used in the housing interior and the cantilever fulcrum support to minimize unnecessary vibration, to allow the outstanding basic performance of the dual moving coil to fully express itself.

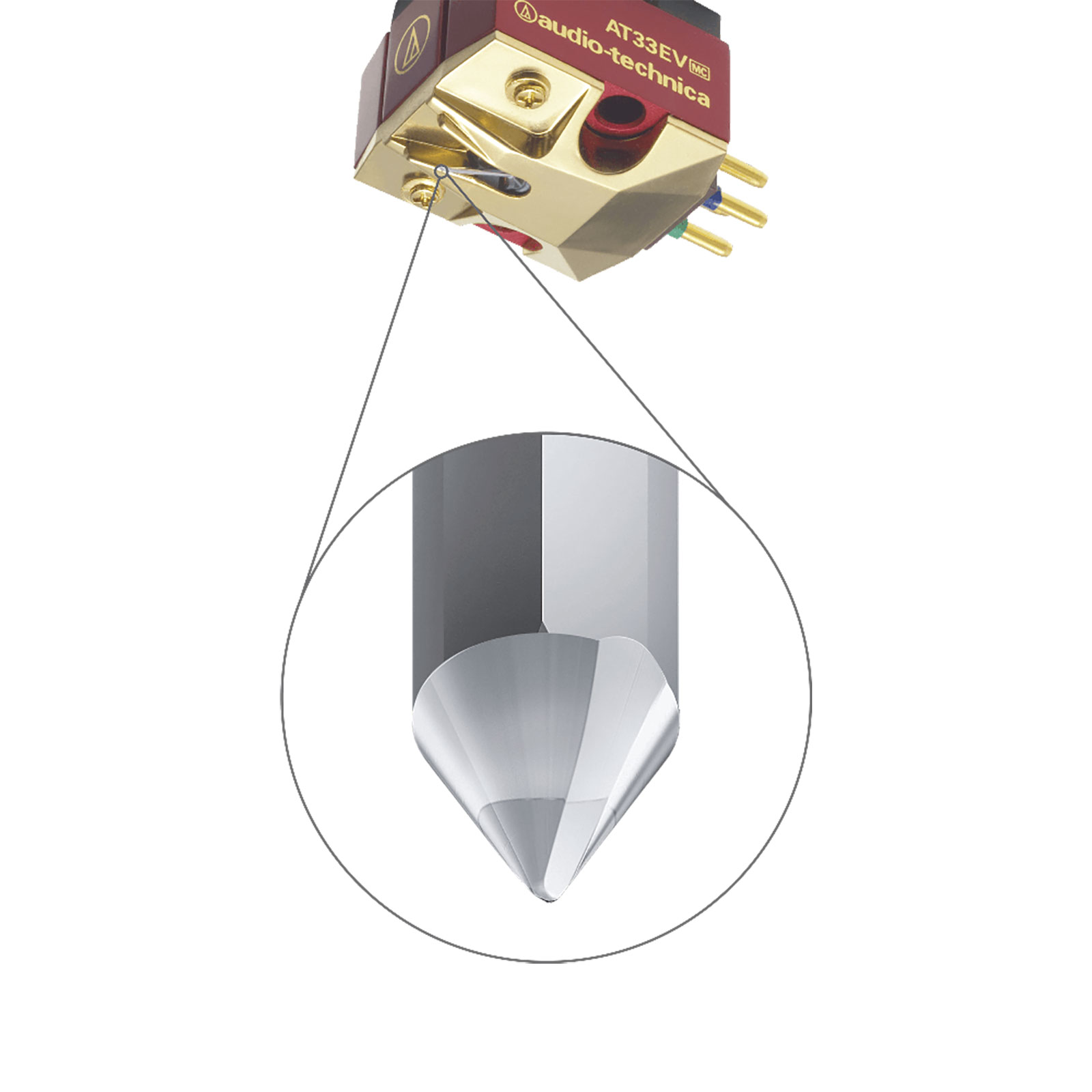

An elliptical stylus chip, embedded into a hard duralumin tapered pipe cantilever, has the ability to richly reproduce sounds in the medium and low ranges. With its outstanding machine strength, the duralumin cantilever is tough enough for the job and produces natural sounds without distortion.

Features

• Elliptical stylus chip and durable duralumin tapered pipe cantilever.
• 10 Ω mid impedance specifications.
• Dramatically increased magnetism with neodymium magnets and PCOCC as the coil.
• High separation, wide-response dual moving coil.
• VC Mold eliminates unnecessary vibrations.
• Hanenite anti-vibration rubber eliminates unwanted vibrations.

Specifications

• Frequency Response: 15 - 50,000 Hz
• Channel Separation: 30 dB (1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8 - 2.2 g (standard 2.0 g)
• Stylus Construction: Nude Square Shank
• Recommended Load Impedance: More than 100 Ω (when head amplifier connected)
• Coil Impedance: 10 Ω (1 kHz)
• DC Resistance: 10 Ω
• Coil Inductance: 22 µH (1 kHz)
• Output Voltage: 0.3 mV (1 kHz and 3.54 cm/sec)
• Output Channel Balance: 0.5 dB (1 kHz)
• Stylus Shape: Elliptical
• Cantilever: Duralumin
• Static Compliance: 40 x 10 - 6 cm/dyne
• Dynamic Compliance: 10 x 10 -6 cm/dyne (100 Hz)
• Mounting: 1/2-inch centres
• Dimensions (H x W x D): 16 x 16.6 x 26.5 mm
• Body Material: Aluminium / Synthetic Resin
• Stylus Curvature Radius: 0.3 x 0.7 mil
• Terminal Pins: Brass
• Type: Dual Moving Coil
• Weight: 6.9 g

Included

• 1 x AT33EV Cartridge.
• 1 x Non-Magnetic Screwdriver.
• 2 x Washers.
• 1 x Protector.
• 4 x Cartridge Fastening Screws (2 x 13 mm / 2 x 19 mm / 2 x Nut).
• 1 x Brush.
• 1 x PCOCC Lead Set.
