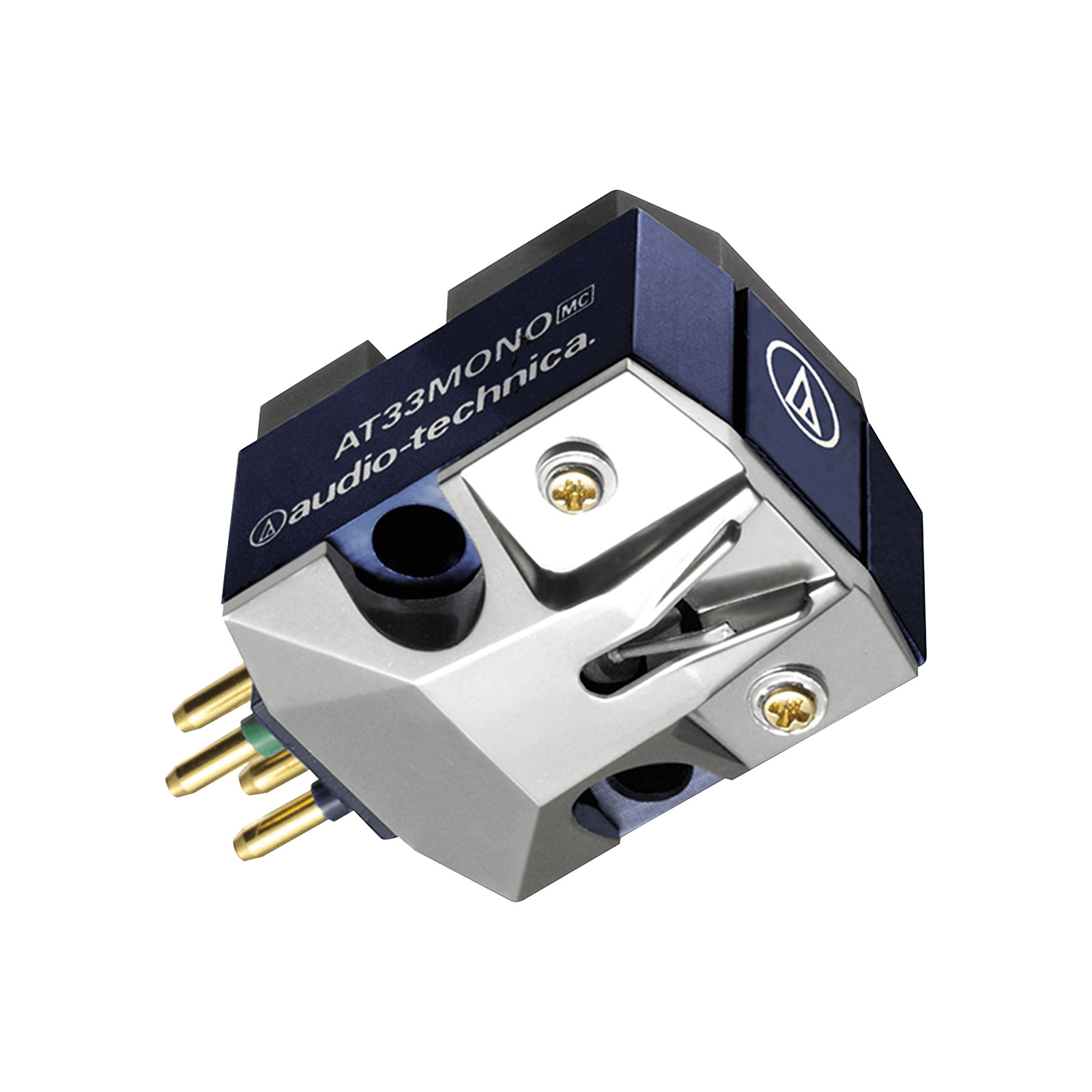

Audio Technica AT33MONO Moving Coil Mono Cartridge

AT33MONO Moving Coil Mono Cartridge, with conical stylus, by Audio Technica.

Made specifically for use on mono systems, the AT33MONO has a horizontal coil, and so in principle only generates electricity horizontally.

The AT33MONO produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records, producing audio that you couldn't possibly get from a stereo cartridge.

Audio Technica AT33MONO also has appropriate compliance in the vertical direction, so will not cause damage to stereo records. Enjoy those well-known classic mono records of yesteryear with your AT33MONO cartridge.

Features

• Mono cartridge compatible with stereo playback systems.

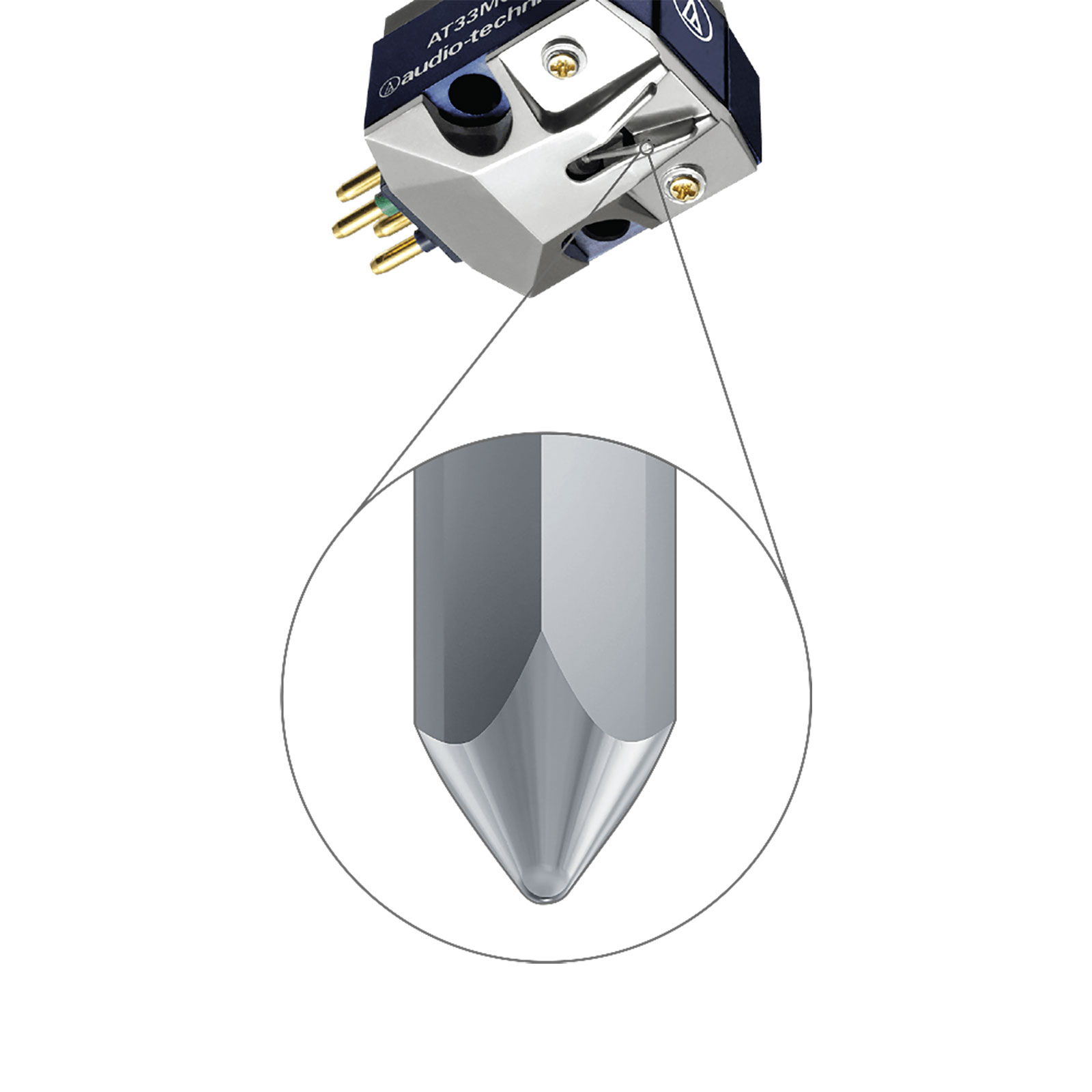

• Conical stylus chip and hard duralumin cantilever.
• 10 Ω middle impedance specification.
• PCOCC coil prevents crystal gain boundary formation (in transmission direction).
• Strong body stabilized by a rigid body set-up.
• Hanenite anti-vibration rubber eliminates unnecessary vibrations.
• High-quality sound / Brass fastening screw.

Specifications

• Frequency Response: 20 - 20,000 Hz
• Channel Separation: 30 dB (1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 2.3 - 2.7 g (standard 2.5 g)
• Recommended Load Impedance: More than 100 Ω (when head amplifier connected)
• Coil Impedance: 10 Ω (1 kHz)
• DC Resistance: 10 Ω
• Coil Inductance: 28 µH (1 kHz)
• Output Voltage: 0.35 mV (1 kHz and 5 cm/sec, horizontal signal)
• Output Channel Balance: 1.0 dB (1 kHz)
• Stylus Shape: Conical
• Cantilever: Duralumin pipe
• Static Compliance: 20 x 10 - 6 cm/dyne
• Dynamic Compliance: 6 x 10 -6 cm/dyne (100 Hz)
• Mounting: 1/2-inch centres
• Dimensions (H x W x D): 16 x 16.6 x 26.5 mm
• Body Material: Aluminium / Synthetic Resin
• Stylus Size: 0.65 mil
• Weight: 6.9 g

Included

• 1 x AT33MONO Cartridge.
• 1 x Non-Magnetic Screwdriver.
• 2 x Washers.
• 1 x Protector.
• 4 x Cartridge Fastening Screws (2 x 13 mm / 2 x 19 mm / 2 x Nut).
• 1 x Brush.
• 1 x PCOCC Lead Set.

More Information

• AT33MONO Moving Coil Cartridge, by Audio Technica
