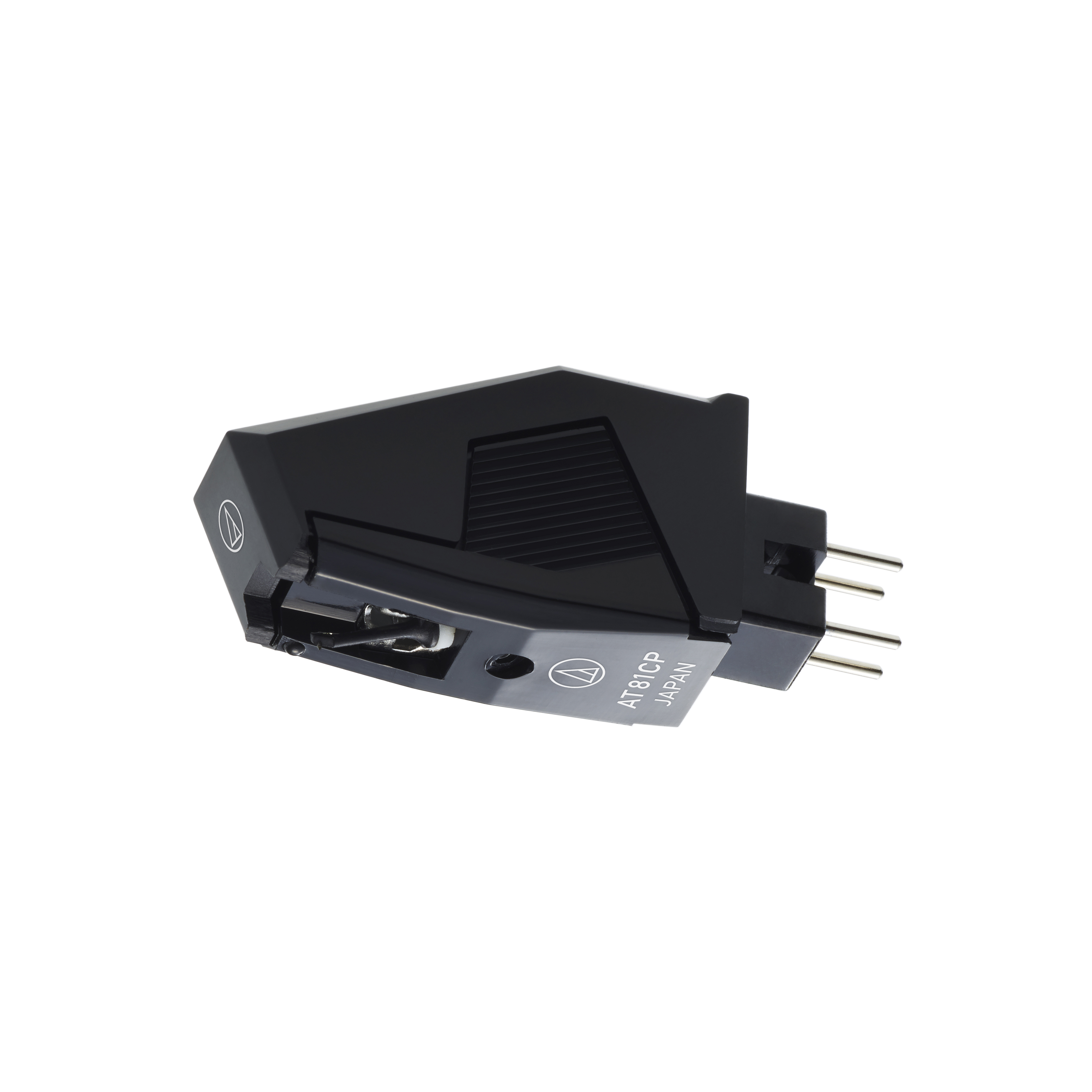

Audio Technica AT81CP P-Mount Moving Magnet Cartridge
AS-AT-AT81CP
Description
This 0.6 mil conical cartridge fits P-mount turntables.
| Frequency Response | 20-20,000 Hz |
| Channel Separation | 18 (dB at 1 kHz) |
| Vertical Tracking Force | 1.0-1.5 g (1.25 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Output | 3.5 mV (1 kHz, 5 cm/sec.) |
| Channel Balance | 2.5 dB (1 kHz) |

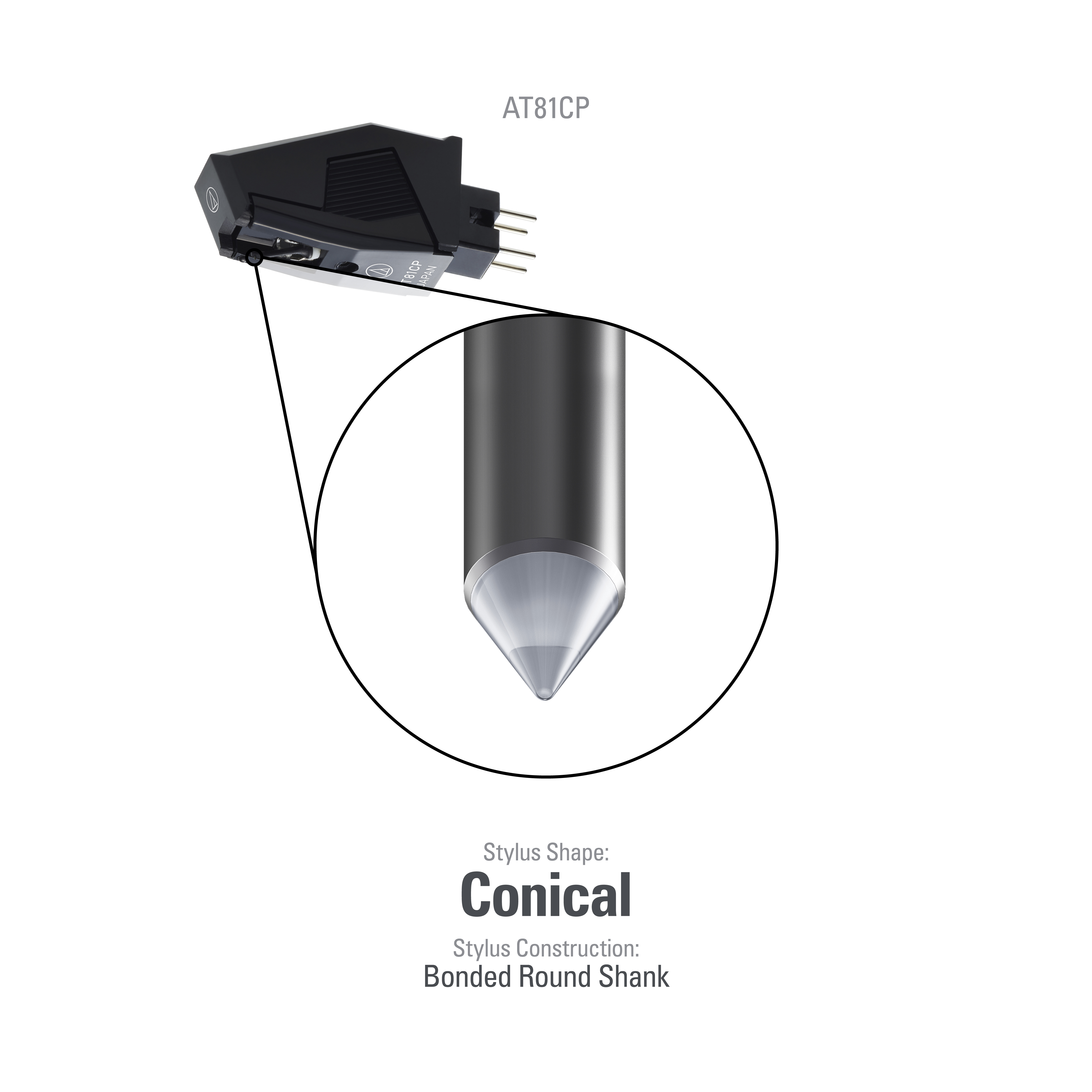

| Stylus Shape | 0.6 mil conical |
| Cantilever | Carbon fiber-reinforced ABS |
| Mount | P-mount |
| Replacement Stylus | ATN81CP |
- Coil impedance: 2.8 k ohms (1 kHz)
- DC resistance: 410 ohms
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 400 mH (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
- Weight: 6.0 g (0.21 oz)
