AudioQuest Dragon BASS Speaker Cable (Factory Terminated)

Dragon BASS Speaker Cable with ZERO-Tech and RF/ND-Tech for Midrange and Bass, by AudioQuest.

Dragon BASS with RF/ND-Tech is an ideal cable for the Bass and Midrange inputs of a Bi-Wirable or Tri-Wireable loudspeaker when used in combination with Dragon ZERO Full-Range cable on the treble input.

AudioQuest BASS and GND-Tech (patented Ground-Noise Dissipation) attracts RF energy away from the amplifier’s output. When properly implemented, Bi-Wiring has always been a cost-effective way to get better performance for the same or less money. With GND-Tech, the advantage of Bi-Wiring is much more dramatic.

Dragon BASS cable is ideal for the Bass input of a Bi-Wire-able speaker in combination with a Dragon ZERO on the treble input. A Bi-Wire COMBO with BASS and ZERO cables joined together at the amplifier is usually the most convenient. When Tri-Wiring, use BASS cables on the Midrange and on the Bass inputs.

Caution: Do not Bi-Wire with two ZERO cables. Two or more ZERO cables in-parallel can create a very high-Frequency resonant peak (ringing), and resulting poor sound. On a Bi-Wired speaker, only use ZERO in combination with a BASS cable, otherwise us a single ZERO cable with jumpers.

Features

Solid Perfect-Surface Silver (PSS) and Solid Perfect-Surface Copper+ (PSC+) Conductors - Perfect-Surface Technology applied to extreme-purity silver provides unprecedented clarity and dynamic contrast. Perfect-Surface Silver (PSS) is AudioQuest's highest-quality metal. Solid conductors prevent strand interaction, a major source of cable distortion. Extremely high-purity PSS minimizes distortion caused by the grain boundaries that exist within any metal conductor, nearly eliminating harshness and greatly increasing clarity compared to OFHC, OCC, 8N and other coppers.

Carbon-Based Linear Noise-Dissipation System - AQ’s comprehensive Linearized Noise-Dissipation System combines multiple shields and a carbon-based linearized resistive network that turns most of this noise into heat. By "linearized," we mean that the system is equally effective across extremely wide bandwidth, rather than at selected frequencies only, as is more common. The remaining bad energy is effectively drained away from the sensitive amplifier circuits via directionally controlled signal and shield conductors.

ZERO-Tech - The only complete way to eliminate characteristic-impedance mismatches between a cable and the attached source and load is for the cable not to have any fixed characteristic-impedance value. ZERO-Tech accomplishes this by eliminating interaction between the insulation (dielectric) and the cable’s conductors—enabling uncompressed current transfer. All-important transient current is unrestricted, and RF Noise-Dissipation is linearized (consistent octave to octave).

RF / ND-Tech - Though a cable’s ground leads are integral to a component’s signal transmission, they also act as an antenna. Thus, they are subject to induced Radio-Frequency (RF) noise. RF noise is a parasitic signal that is typically coupled directly into a system’s most sensitive audio/video circuits. AudioQuest’s RF-on-ground Noise-Dissipation (RF/ND-Tech) greatly reduces resulting distortion and signal masking, yielding unprecedented levels of Noise-Dissipation across the widest bandwidth (range) of radio frequencies possible. Our unique circuit topology uses a common-mode phase-cancelling array, providing linear noise dissipation across the entire length of the cable (US Patent # 8,988,168).

72v Dielectric-Bias System (DBS) with Level-X RF Noise-Trap - Insulation is also a dielectric that acts like a shunt-filter. Properly biasing the dielectric linearizes the filter, significantly improving the cable’s wide-bandwidth ability to dissipate induced noise. The DBS pack’s Level-X Noise-Trap “pulls” RF Noise out of the cable, further reducing attached audio circuit misbehavior.

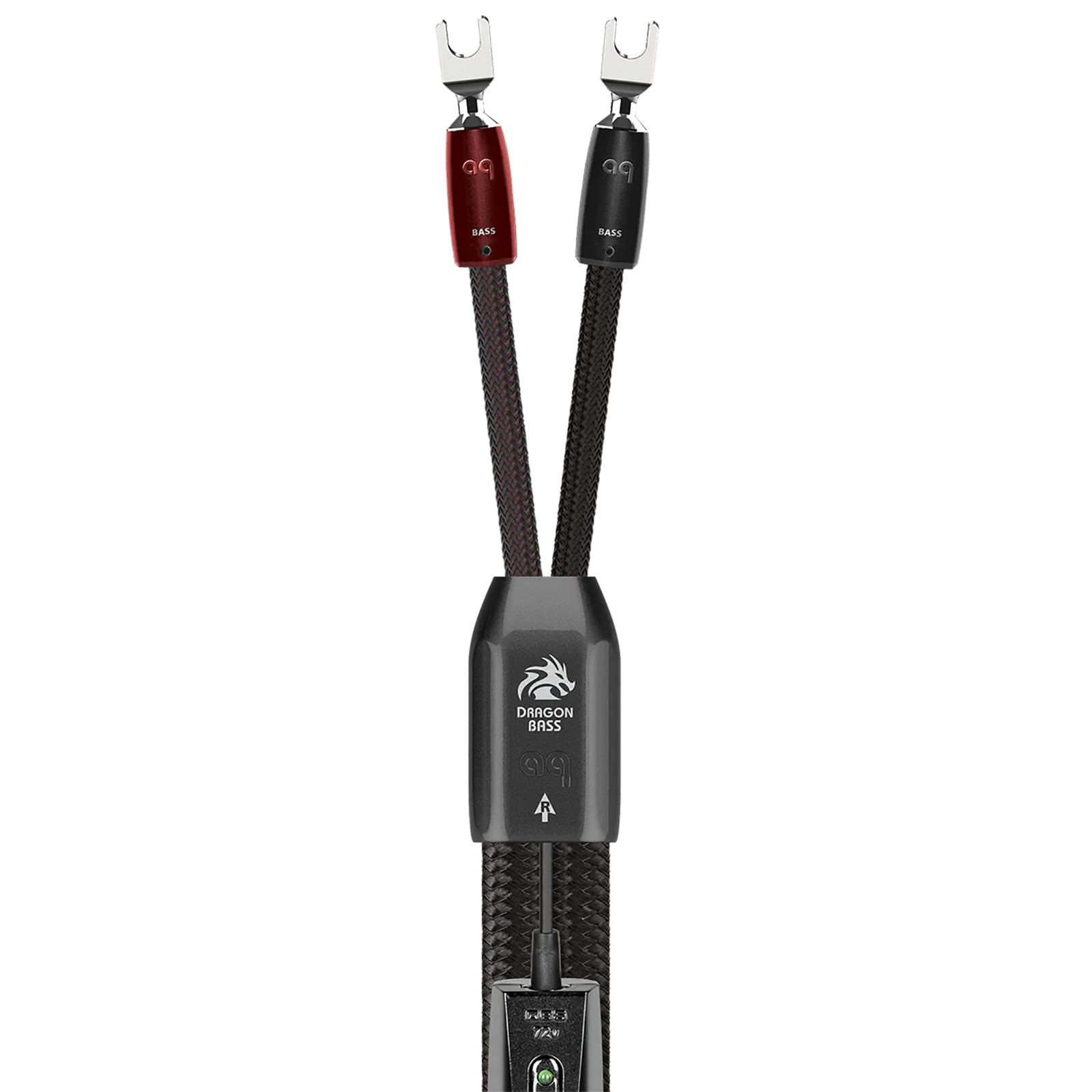

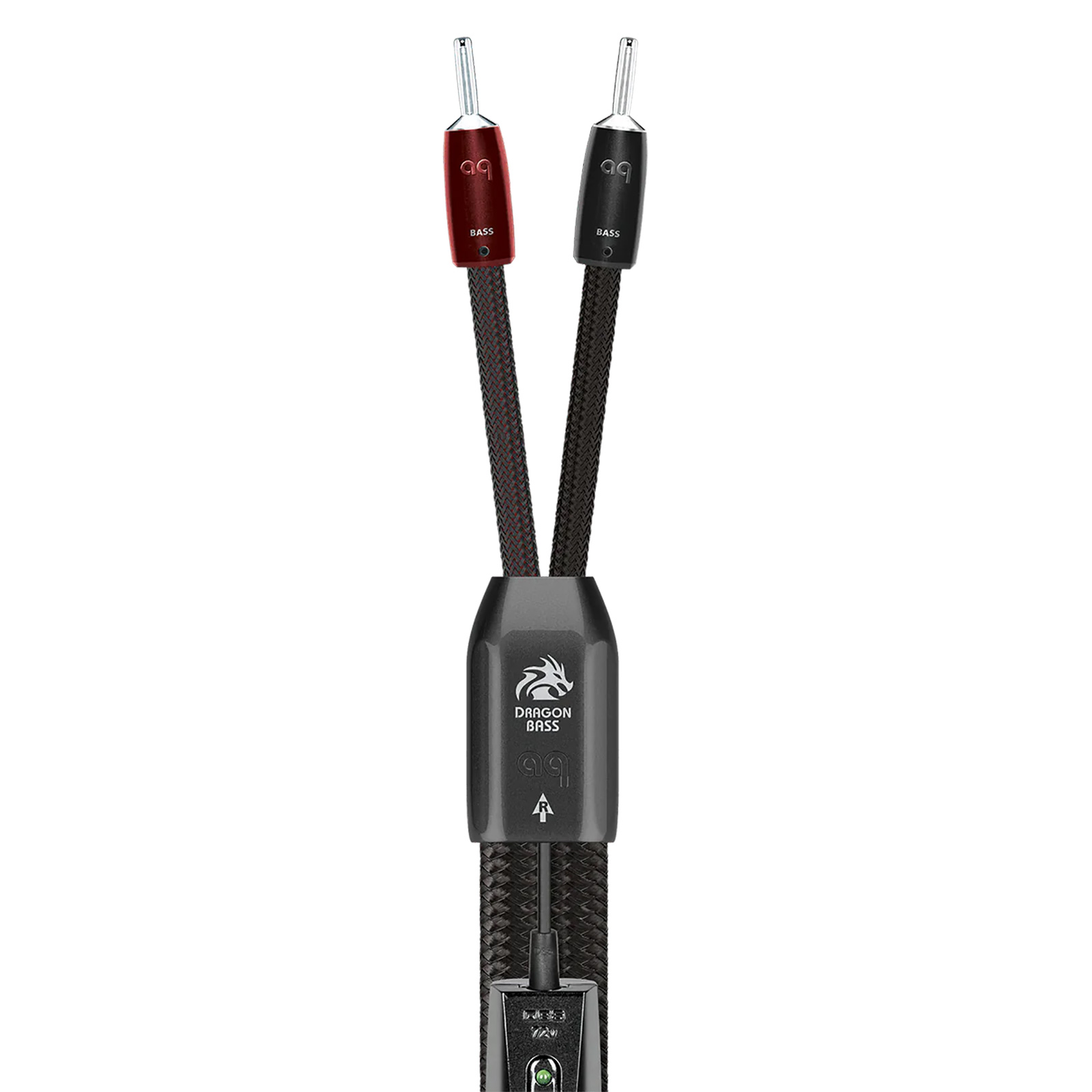

Terminations - Dragon cables are Cold-Welded to AudioQuest’s extremely pure Red Copper Spades or Bananas. The bare copper is submerged (hung) in a vat of pure silver instead of being tumbled in a lower-grade solution. AudioQuest speaker breakouts and plug casings are not metal in order not to induce RF Noise into the conductors.

Bi-Wiring - When possible, running separate cables to the treble and bass “halves” of a speaker considerably reduces distortion. Bi-Wiring keeps the large magnetic fields associated with bass energy out of the treble cable, allowing the delicate upper frequencies to travel a less magnetically disturbed path, like taking the waves out of the water when you swim.

Specifications

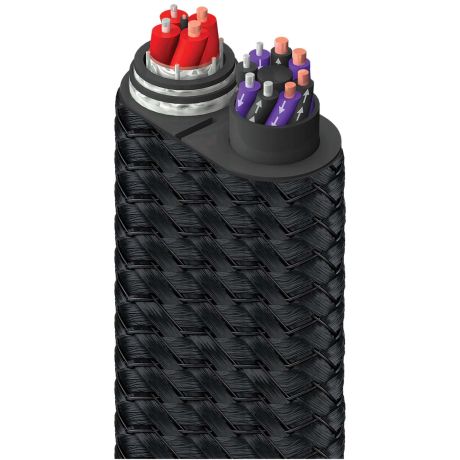

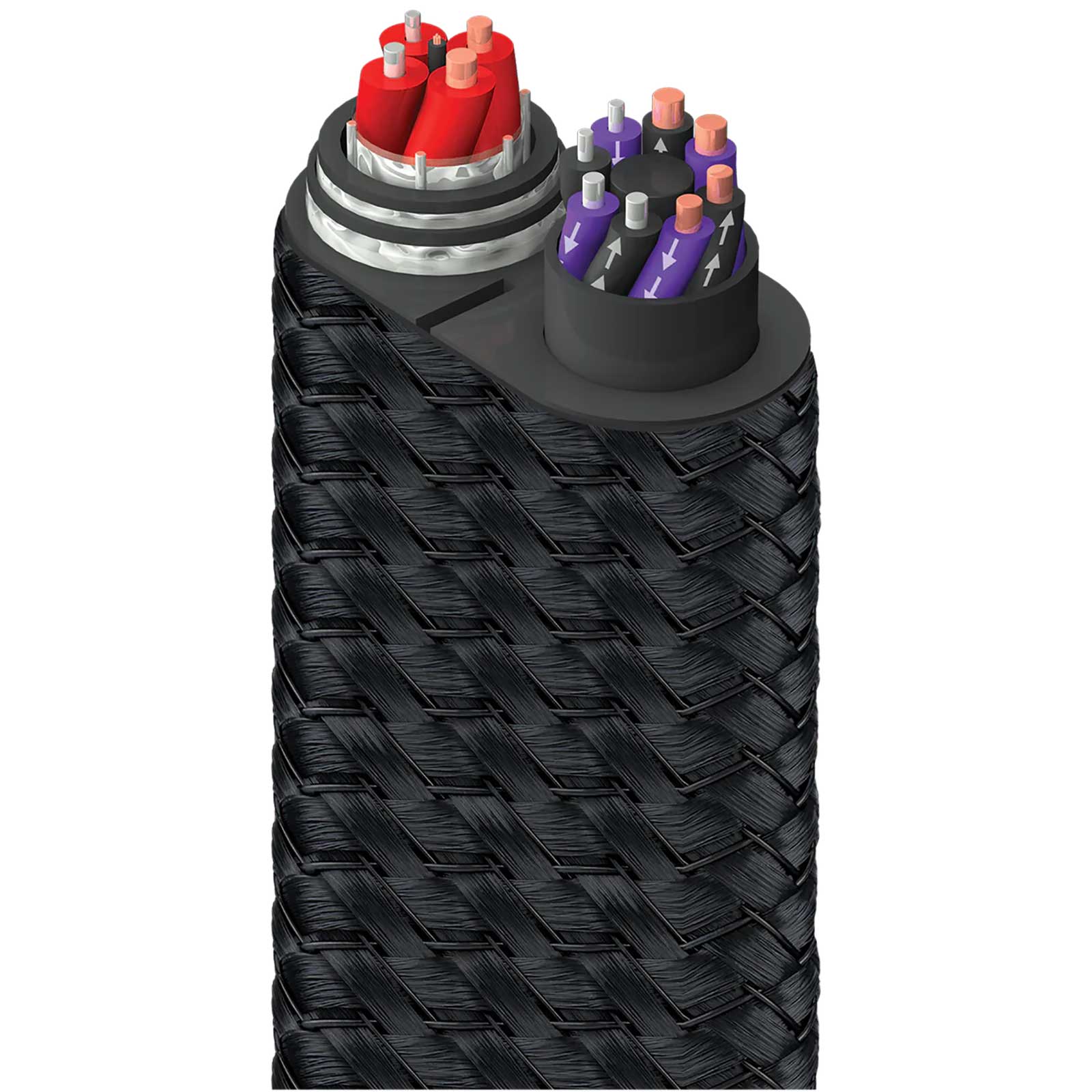

• Metal: Solid Perfect-Surface Silver (PSS) Sonic-Signature Conductors & Perfect-Surface Copper+ (PSC+)
• Noise Dissipation: RF / ND-Tech
• Geometry: ZERO-Tech (No Characteristic Impedance)
• Gauge: 5.26 mm²
• Signal Type: Analog
• Jacket: Black Braid

More Information

• Dragon BASS Midrange / Bass Cable, by AudioQuest
