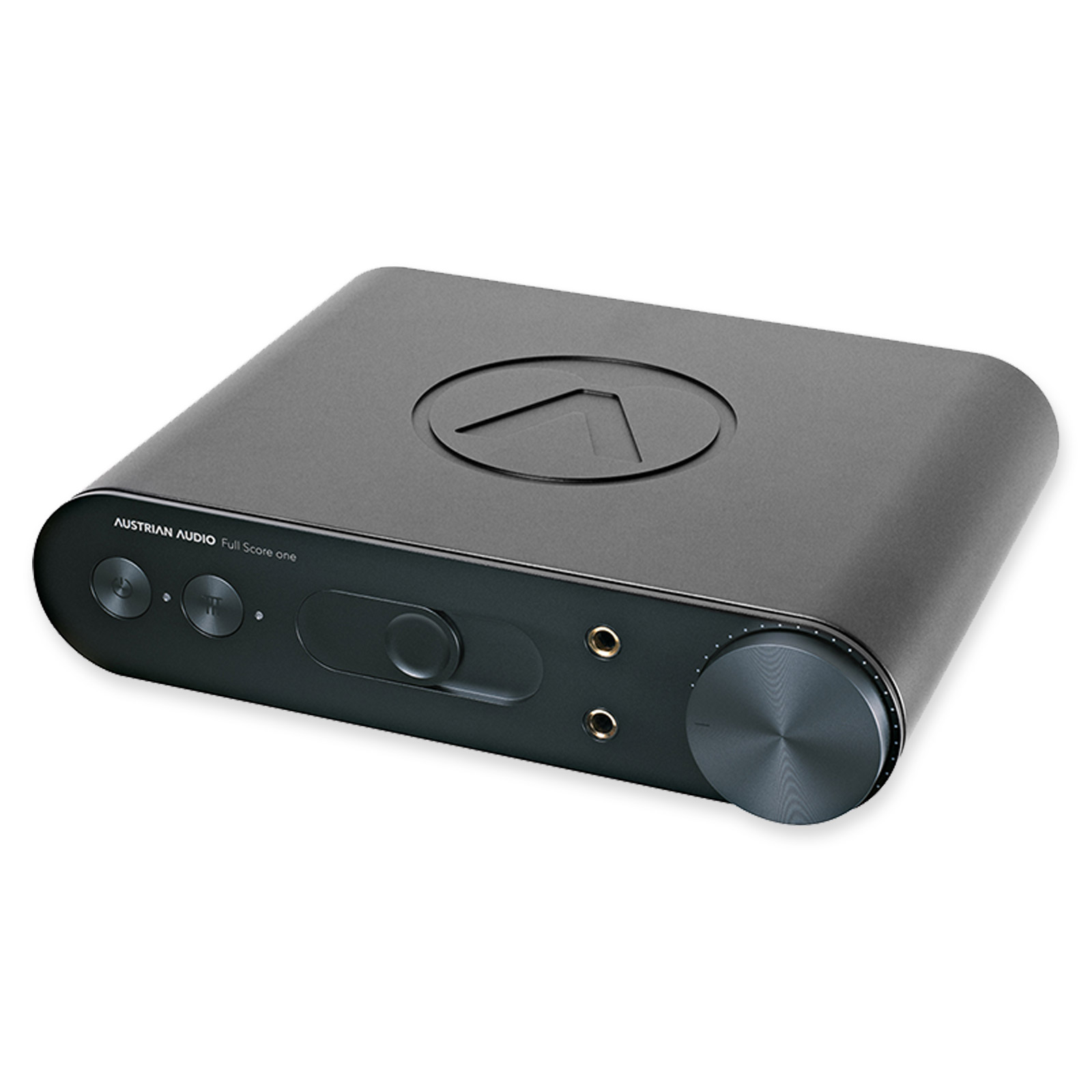

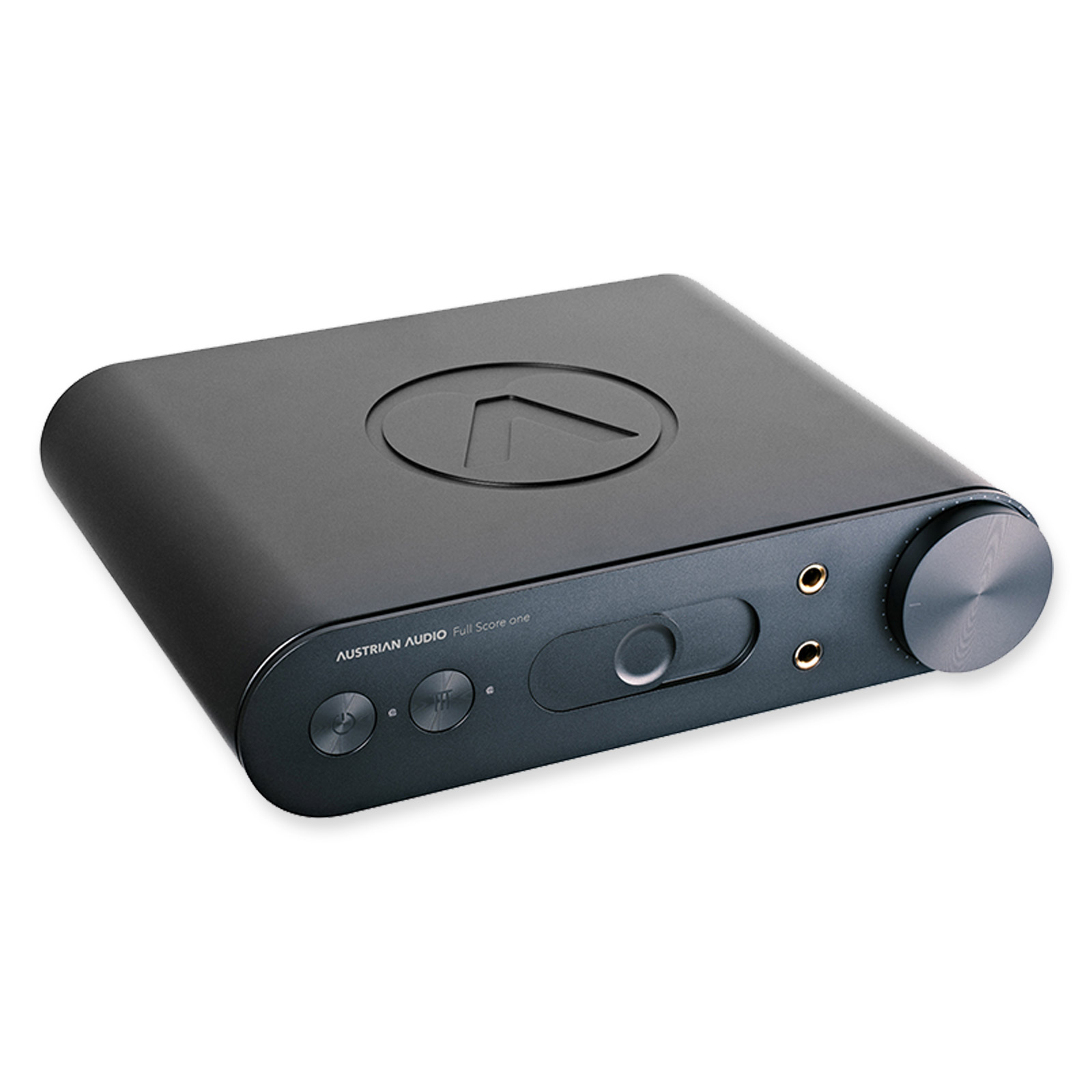

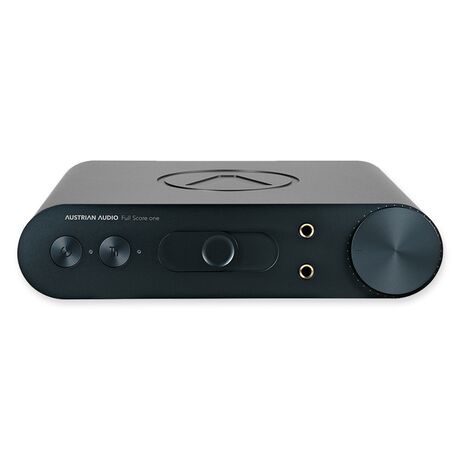

Austrian Audio Full Score One Premium Headphone Amplifier

Full Score One Premium Headphone Amplifier, by Austrian Audio.

The Full Score one is Austrian Audio’s debut headphone amplifier, applying the same meticulous approach to its design as with its family of award-winning headphones and microphones.

Created with both home listeners and high-end mixing and mastering engineers in mind, the Full Score one takes headphone performance to new levels, revealing a new world of listening pleasure and precision to all users, from those unfamiliar with the world of premium audio to the already committed audiophile.

Beautifully built and employing only high-end and military-grade components, the Full Score one looks as assured as it sounds. Integrate the Full Score one into a sound system, pair it with capable headphones, and you revel in fast and accurate performance.

The new model features Austrian Audio’s proprietary True Transient Technology (TTT), which helps deliver the most jaw-dropping transients, such as the snap of a kickdrum or the delicate pluck of a guitar string in unaltered detail. The analogue amplifier design is as clean as a whistle: Fully discrete, no ICs in the signal path, and low noise. Lovely.

The Full Score one handles low-impedance headphones down to 10 Ohms as well as high-impedance, low-sensitivity headphones with over 300 Ohms.

Thanks to innovative design – the amplifier comprises a wide band, fully symmetrical voltage feedback circuit with a triple emitter follower output stage biased in class B, a high-speed complementary push-pull gain stage and a cascaded parallel differential input stage – the Full Score one secures very low THD (Total Harmonic Distortion) at every output level and over a wide frequency range.

Features

• Suitable for high-end home listening, high-end mixing and mastering.
• Made in Austrian, built to last.
• Military-grade components.
• Proprietary TTT (True Transient Technology)
• Fully analogue, fully discrete design.

Specifications

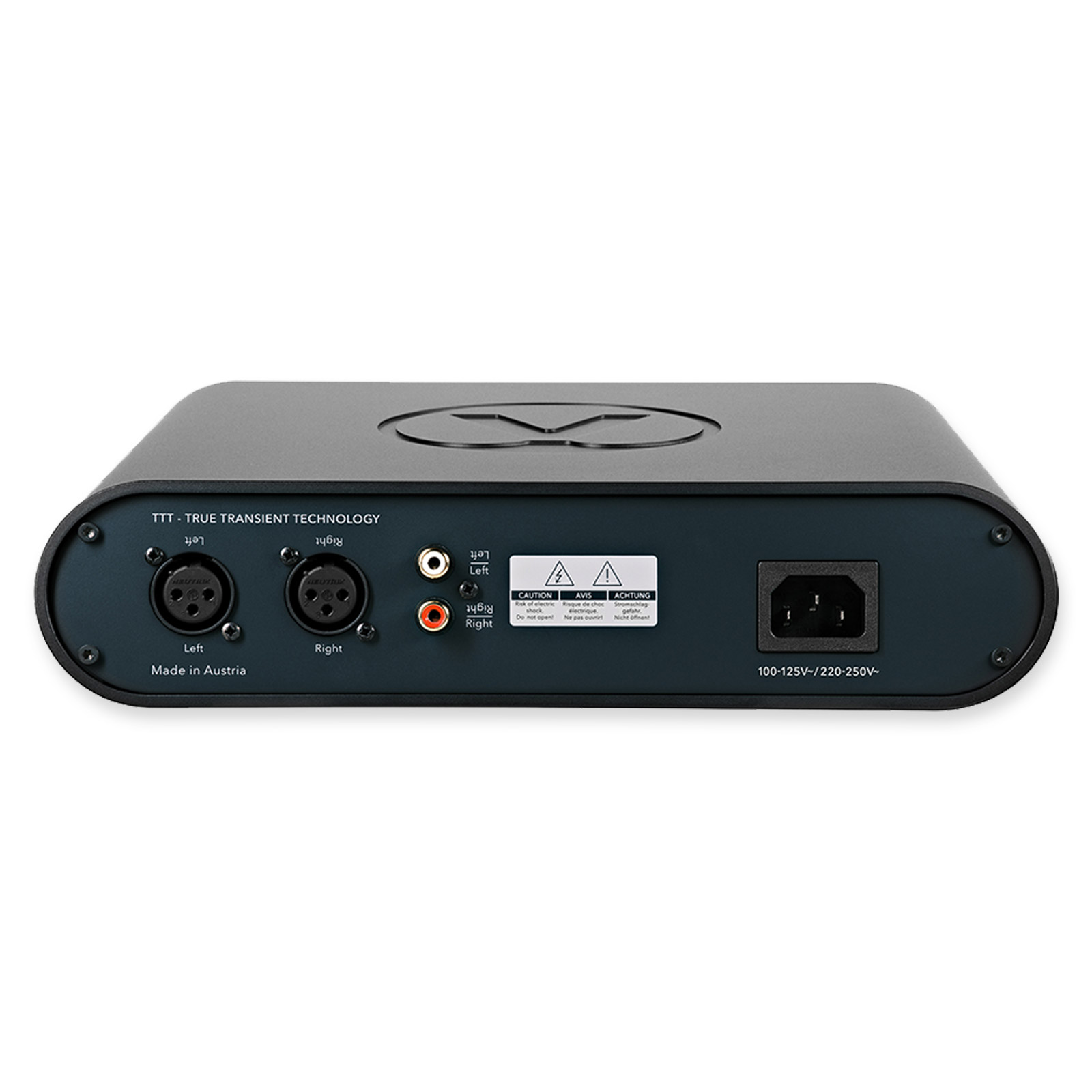

• Inputs: 2 x XLR, 2 x RCA, parallel
• Outputs: 2 x 6.35 mm jack, 1 x XLR4
• Recommended input voltage: 0 dBV, 1 Vrms
• Input Impedance: 100 kΩ
• Recommended Load: 10 Ω – 600 Ω, max. 150 nF
• THD + N @ 1 kHz, 22 kHz bandwidth: 0.0005 %, @ 10 Ω, 1.0 W
• Max. Output Voltage, 5 Hz – 20 kHz: 19 dBV, 9 Vrms @ 0,01% THD
• Self-Noise: EIN = 136 dB(A) / 1,5 µVrms(A)
• SINAD @ 1 kHz, 22 kHz bandwidth, 10 Ω: 86 dB @ 50 mVrms / 107 dB @ 3Vrms
• Power bandwidth (-3 dB): 5 Hz – 2 MHz
• Max. Slew Rate: 200 V/µs
• Rise Time: 0.25 µs, TTT on
• Line Voltage Rating: 220-250 V / 110-125 V, 50 / 60 Hz
• Dimensions: 220 x 265 x 65 mm
• Weight: 2.8 kg

More Information

• Full Score One, by Austrian Audio
