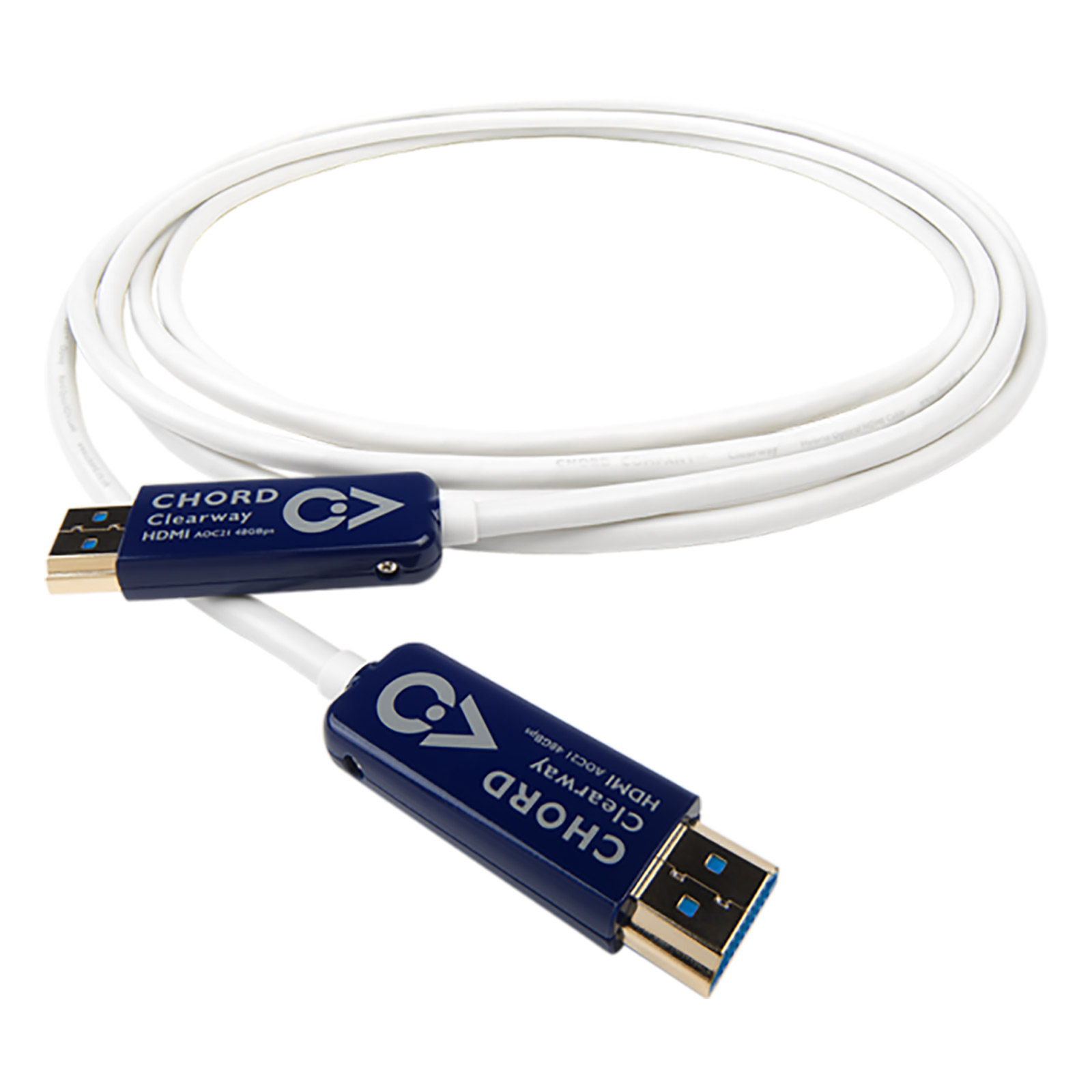

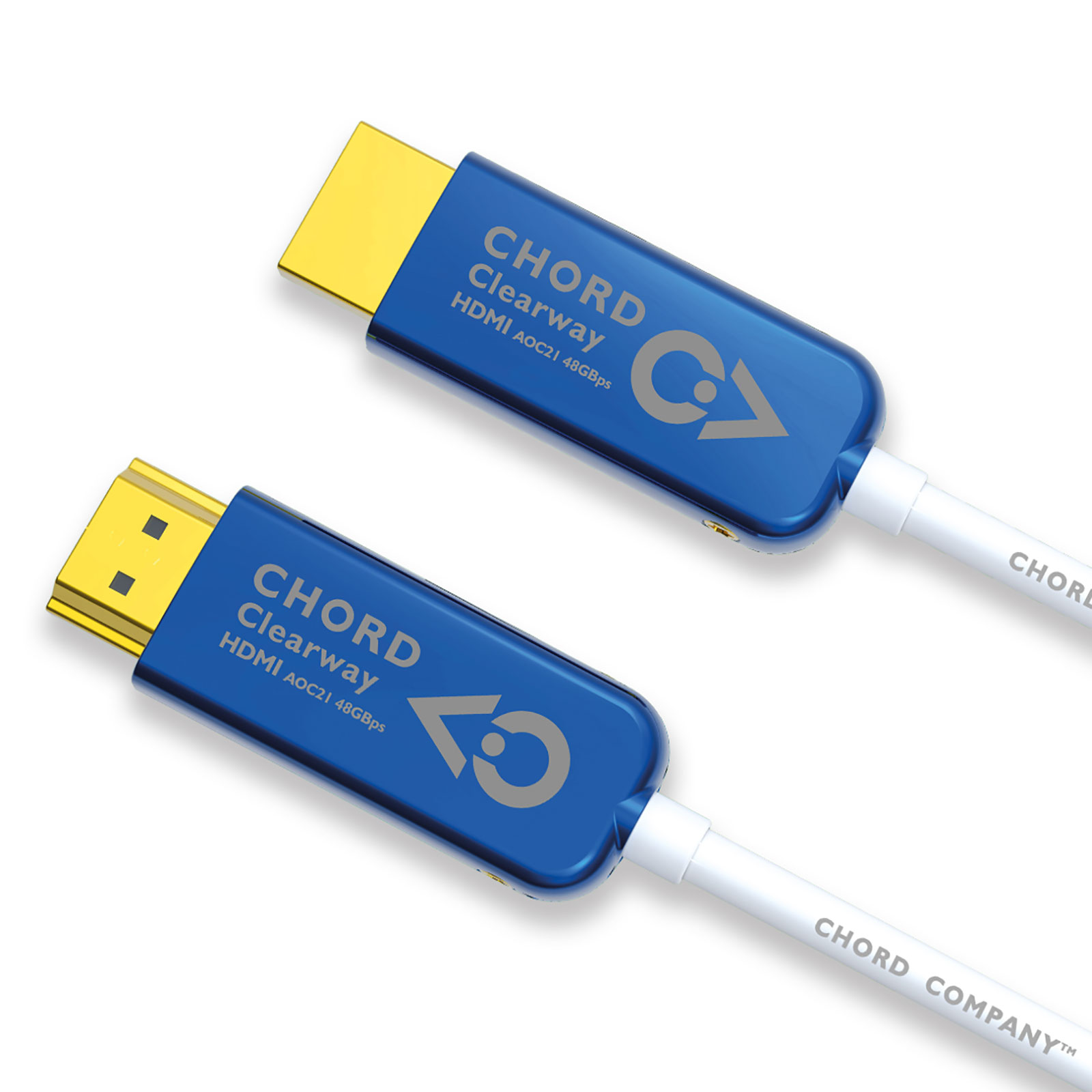

Chord Company Clearway HDMI AOC Cable

Clearway HDMI AOC Cable, by The Chord Company

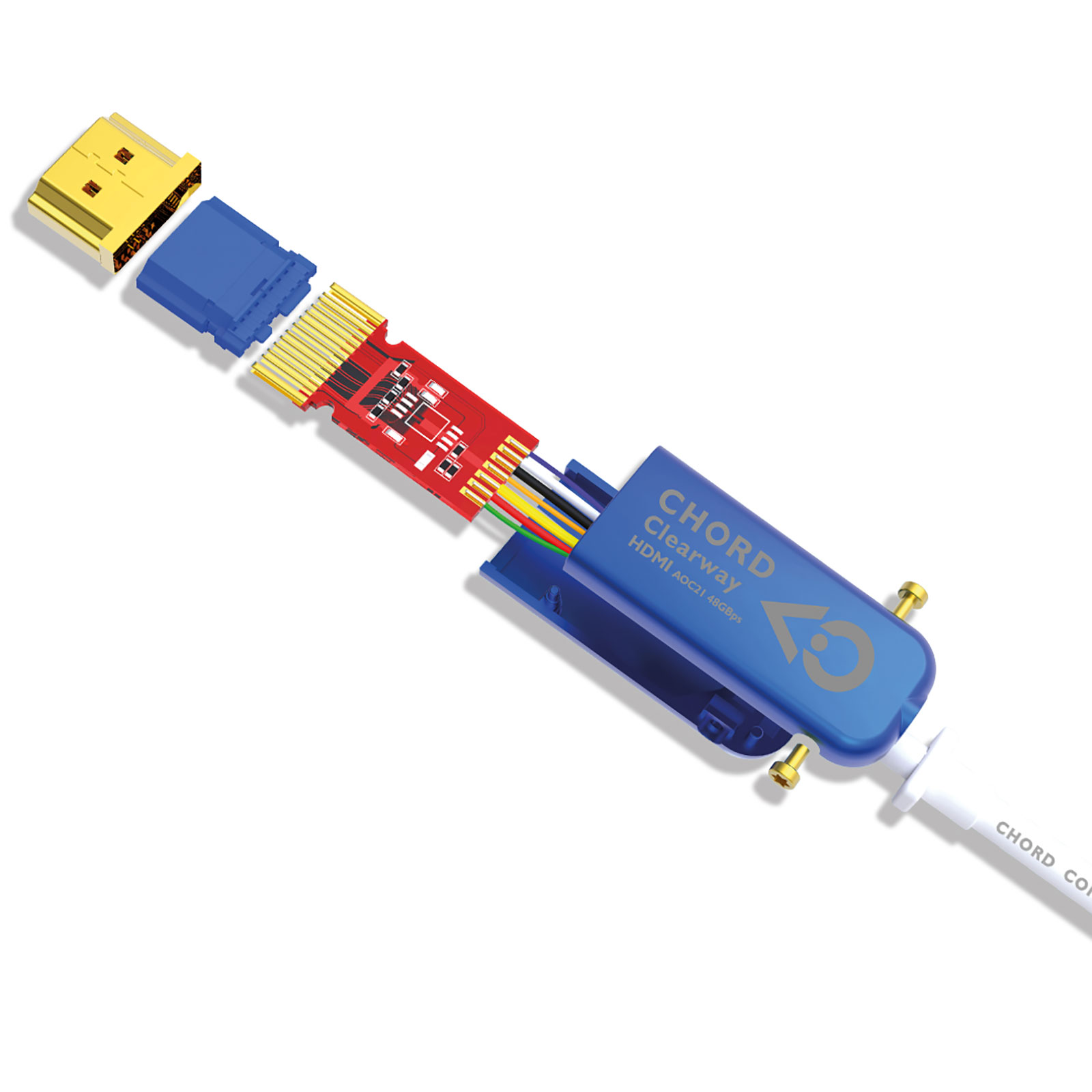

Clearway HDMI AOC uses a high-quality chipset at both ends of the cable and the highest OM3 grade (over 10 Gigabit bandwidth) glass fibres rather than the typical OM2 (up to 1 Gigabit bandwidth).

Alongside the full 4K/8K HDR picture quality, this ultra high-speed cable benefits from improved audio performance and is heavily shielded against HF noise.

Clearway HDMI AOC supports:

• Source-based Tone Mapping (SBTM)
• Variable Refresh Rate (VRR)
• Auto Low Latency Mode (ALLM)
• Quick Frame Transport (QFT)
• Quick Media Switching (QMS)

Lengths

Chord Clearway HDMI AOC is available in the following factory terminated length options:

• 3.00 Metre
• 5.00 Metre
• 8.00 Metre
• 10.00 Metre
• 12.50 Metre
• 15.00 Metre
• 20.00 Metre

Specifications

• Bandwidth: UHS 48 GBps+
• Resolution: 8K / 60 Hz or 4K / 120 Hz
• Dynamic Range: Dynamic HDR
• Operating Distance: 20 m
• Primary Conductors: 4 Fibre + 7 Wire
• Insulation: Foam PE
• Shielding: Dual AL foil
• Cable Jacket: PVC
• HDMI Connector Shell: Gold-Plated Copper
• HDMI Connector Pins: 19-pin Gold-Plated Copper
• Termination: Hand Soldering & Fabrication
• HDMI Connector Backshell: Zinc Alloy
• Cable Diameter: 4.8 mm
