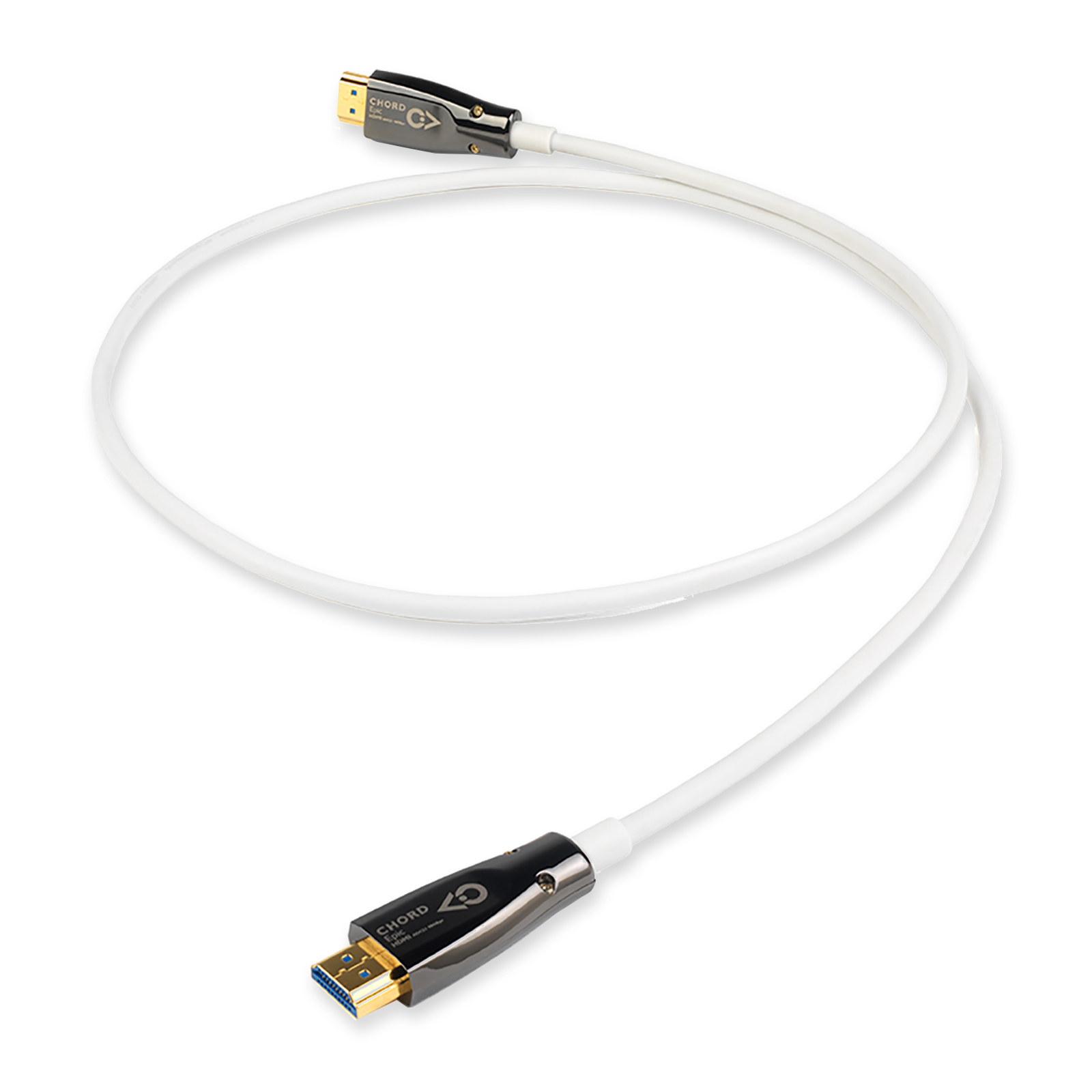

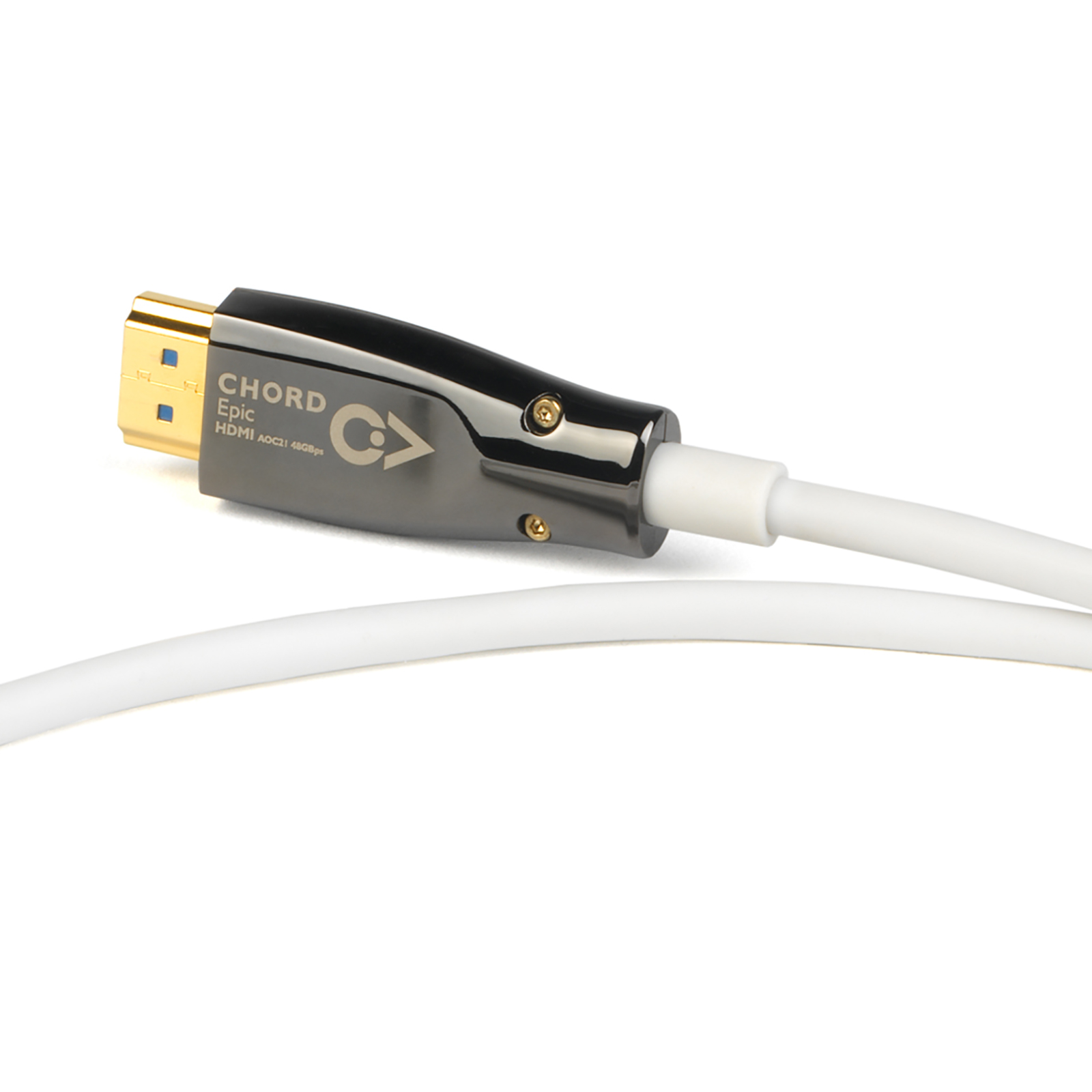

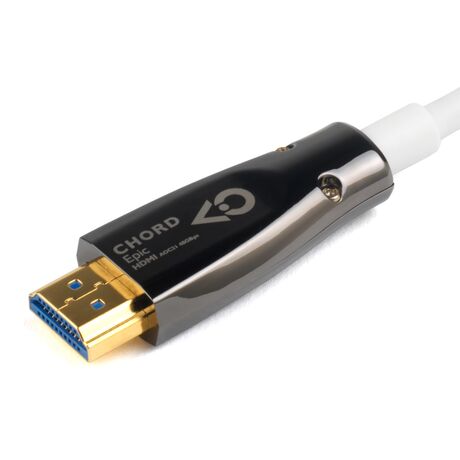

Chord Company Epic HDMI AOC Active Optical Cable

Epic HDMI AOC 8K Active Optical Cable, by The Chord Company.

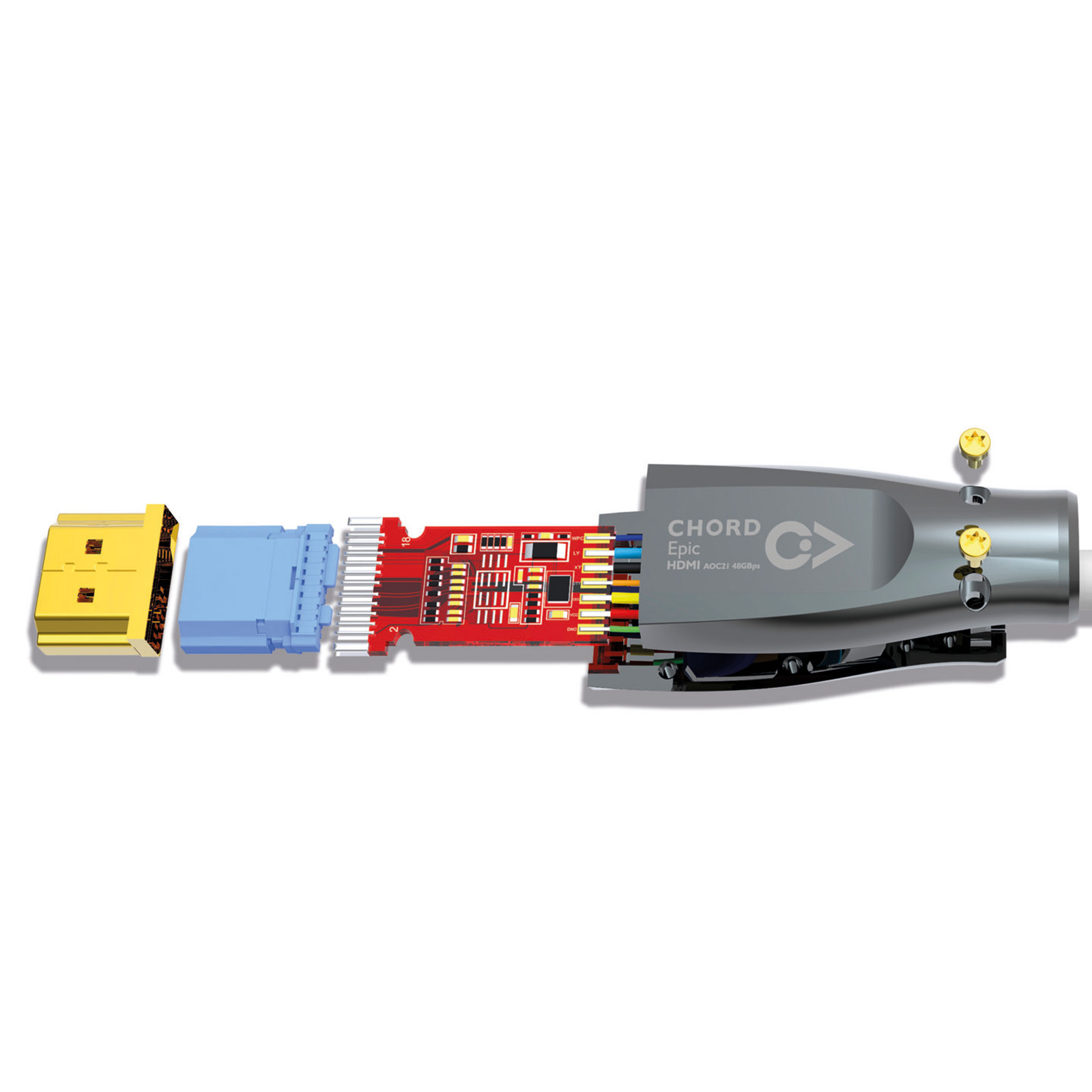

Epic HDMI AOC is Chord's highest-performance HDMI cable. An optical/copper hybrid with HF noise protection. The copper elements have been uprated for improved mechanical isolation, but the most noticeable difference is the advanced chipset.

Epic HDMI AOC is capable of full 8K performance at 60Hz or 4K at 120Hz. While 8K content is still limited it will become more widely available, making this the perfect choice for any installation which doesn’t allow swapping-out cables at a later stage.

Epic HDMI AOC guarantees the best results from current 4K sources but with added peace of mind for the next major video upgrade/s down the line. Alongside the upgraded mechanics, picture quality and high frame rate, the optical cables provide better audio performance and are immune to HF noise. It can process image quality up to 10K at 60 Hz: something that should be of great interest to demanding gamers and virtual reality applications.

Following concerns that copper-only cable is being stretched to the limit of its capability, for several years, Chord have been exploring optical technology for carrying the ever-more demanding signals required by the latest (and future) players, processors and screens.

Unlike TOSLINK cables, where the entire signal is carried down optical fibres, HDMI AOC cable is a hybrid of 7 copper cables and 4 optical fibres. The advantage of optical fibre is that it doesn’t pick up HF noise. The same cannot be said for the copper cables! This potential weakness, coupled with the longer cable lengths involved, means that HF noise on the signal earth is inevitable.

Even though this is a digital ‘optical’ cable, care must be taken to ensure that the copper cables are fully protected from external HF noise pollution, so beneath the external PVC jacket Chord have incorporated a double aluminium foil shielding system.

Specifications

• Brand: The Chord Company
• Range: Epic
• Bandwidth: UHS 48 GBps+
• Resolution: 8 K
• Dynamic Range: Dynamic HDR
• Operating Distance: 20+ m
• Primary Conductors: 4 fibre + 7 wire
• Insulation: PE
• Shielding: AL foil
• Cable Jacket: PVC
• HDMI Connector Shell: Gold-plated copper
• HDMI Connector Pins: 19-pin gold-plated copper
• Termination: Hand soldering + fabrication
• HDMI Connector Backshell: Zinc Alloy
• Cable Diameter: 4.8 mm

Length Options

Chord Epic HDMI AOC Cable is available starting at £333.33 for 1.00 Metre (ex-VAT).

Lengths of 1.00 - 20.00 metres may be ordered directly using the purchase options above. Custom lengths of up to 100 m are available by special order, so for all other lengths please contact us to discuss your requirements.

Termination Options

Chord Epic HDMI AOC Cable can be supplied with the following connection options:

• HDMI - HDMI
