Chord Company LeyLine 2X Speaker Cable (2 Core)

LeyLine 2X 2-Core Speaker Cable, by The Chord Company.

Leyline2X has been designed to bring out the best performance from today’s increasingly sophisticated yet affordably priced electronics and loudspeakers and provide consistent and reliable service in environments where cables may be non-removable.

This latest XLPE dielectric brings a huge improvement over the previous (and more commonly used) PVC. This move follows the successful introduction of Taylon® as a phase-stable insulation material in the flagship SarumT and ChordMusic speaker cables and the subsequent roll-out of XLPE across the Chord Company speaker cable ranges.

The original Leyline was always our high-performance, low-cost offering. Using a 16/2 conductor construction, Leyline was ahead of other 16/2 narrow gauge cables from launch, thanks to tin-plated copper conductors which performed two roles: preventing oxidisation (crucial for non-removeable cables where long-term performance is expected), plus improved high-frequency performance over longer runs; Leyline could deliver surprising results even over 100 m lengths.

Leyline2X builds on the time-proven Leyline platform and brings the advantages of XLPE technology to a new low price point, cementing its position as the market-leader in performance and value for hi-fi, home cinema and custom installations.

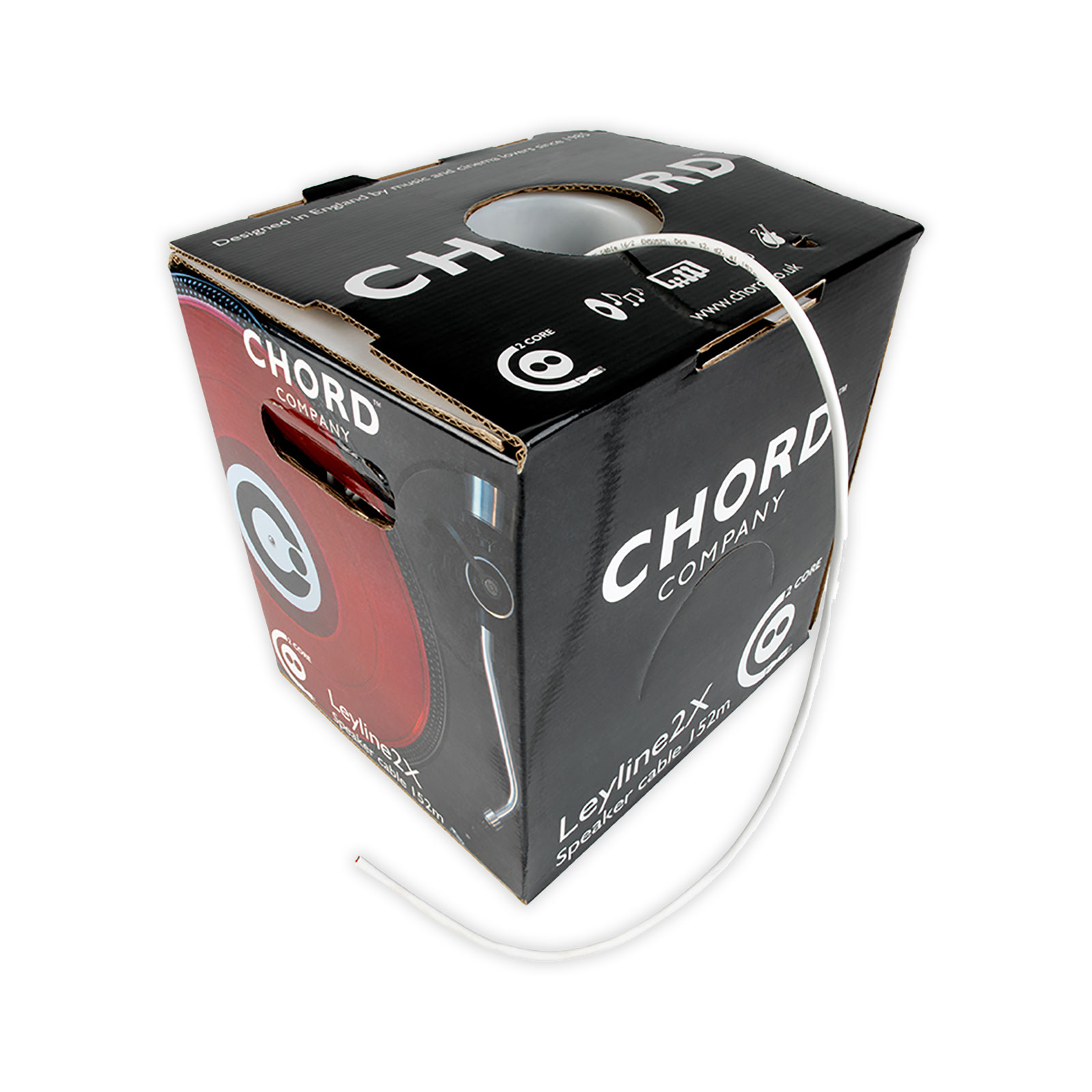

For installers, the cable is metre-marked and is supplied in an easy-access 152 metre pull-box; it comes with a EN50575 DCA-S2, D2, A1 CPR rating. It also features a rip-cord to aid stripping of the outer jacket.

Please note this is a SINGLE WIRE cable. For a stereo pair (left / right) of terminated or unterminated lengths, please order two (x2) units.

Specifications

• Conductor: Tinned Stranded Oxygen Free Copper
• Insulation: XLPE
• Configuration: Twisted pair
• Shielding: None. Low smoke, zero halogen, outer jacket
• AWG: 16AWG*1P, 19/29AWG
• mm2: 1.31
• Diameter: 6 mm

Length Options

Chord LeyLine2X is available at £4.17 per-metre (ex-VAT), in any length up to 152 metres.

Lengths of 1.00 - 20.00 metres, or an installer box of 152 metres may be ordered directly using the purchase options above. For all other lengths please contact us to discuss your requirements.

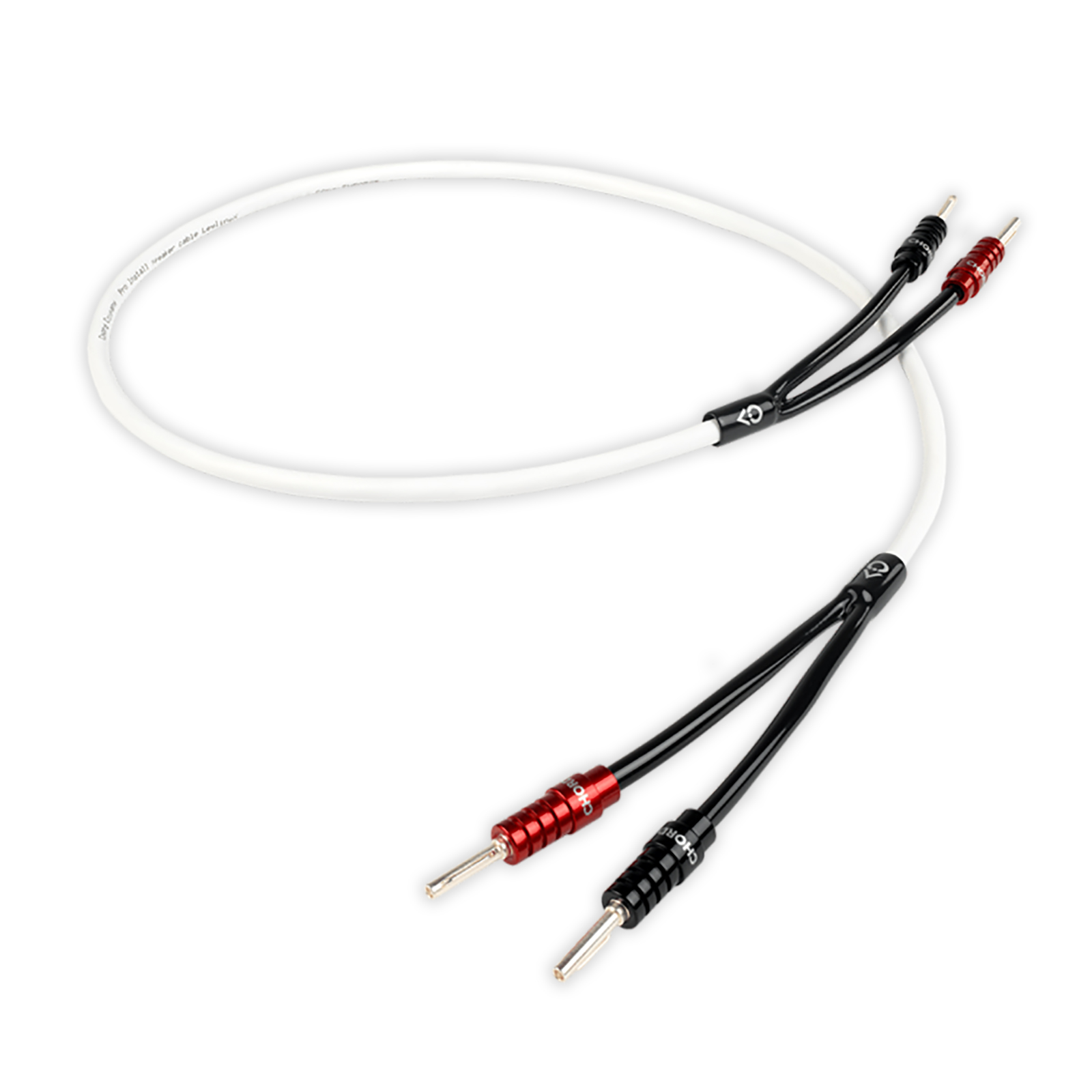

Termination Options

Chord LeyLine2X can be supplied unterminated, or we can terminate each end of your cable with any of the following connectors:

• CCS 4 mm Banana Plugs (Pair)
• CCS 8 mm Spade Connectors (Pair)
• CCS Combicon Connectors (Pair)
• Chord Ohmic 4 mm Banana Plugs (Pair)
• Chord Ohmic 8 mm Spade Connectors (Pair)

Termination Cost

The price for our professional termination service includes the cost of your chosen connectors, plus labour and materials.

If you wish to terminate this cable yourself, please select "None / Unterminated" for your amplifier / loudspeaker termination options, and order your required connectors from our wide range of termination options.

More Information

• Chord LeyLine2X Loudspeaker Cable
