Dynavector 10X5 MKII Moving Coil Cartridge (High / Low)

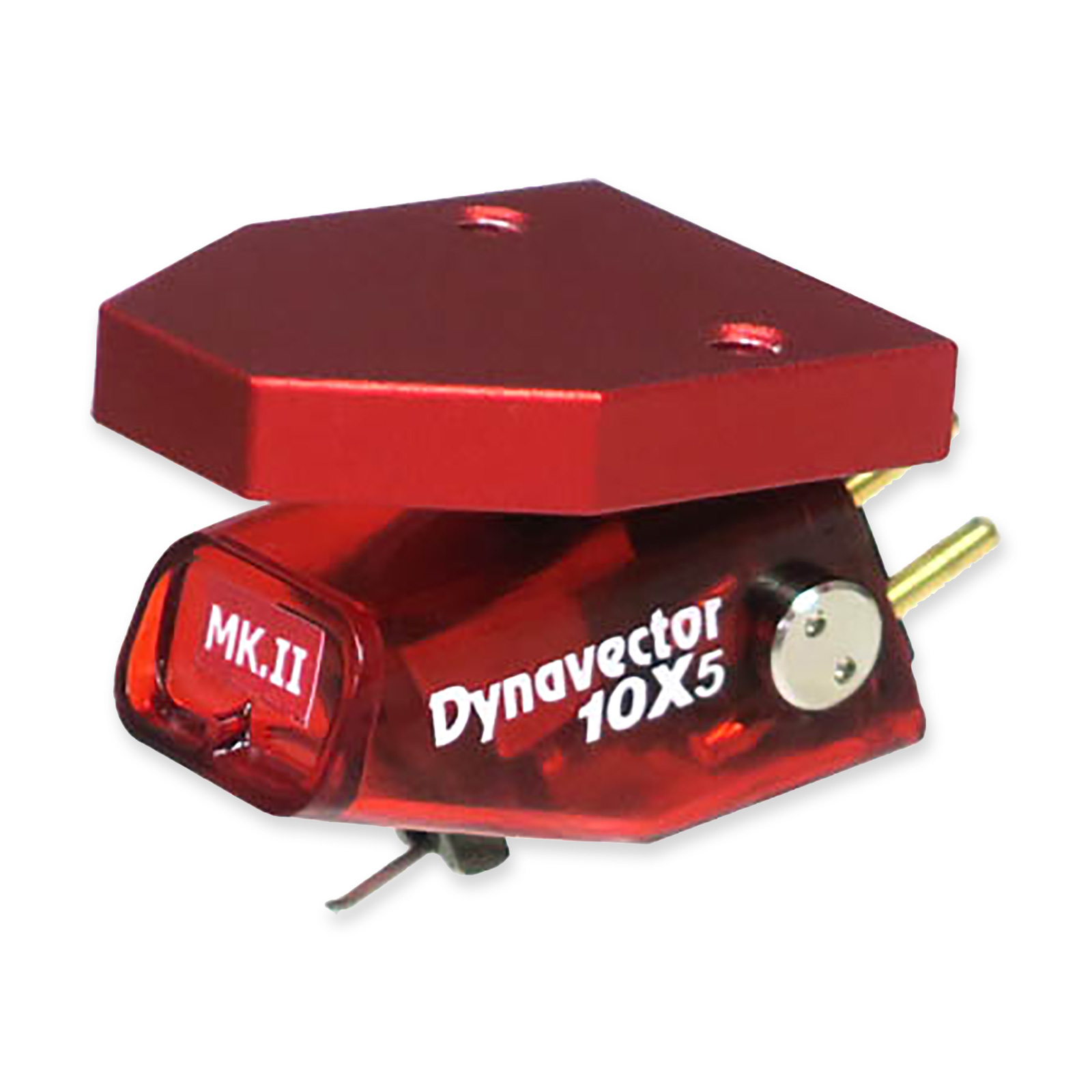

10X5 MKII Moving Coil Phono Cartridge, by Dynavector.

Available in High or Low output versions, for perfect system matching, Dynavector 10X5 MkII phono cartridge features an improved stylus assembly with the nude diamond "Shibata III" line contact stylus and improved hardened cantilever material.

These improvements ensure secure tracking ability over even the most torturous of record grooves whilst achieving extended high frequency response and enhanced musical resolution.

Along with several exclusive Dynavector technologies that include Magnetic Flux Damper (patent), Softened Magnetism (patent) and powerful neodymium magnets that provide the smooth treble response Dynavector are renowned for.

The legendary Dynavector coil winding technology using the finest of wire has enabled the Dynavector 10X5 MkII phono cartridge to minutely increase the coil windings and achieve a reduction in impedance to 150 ohms whilst retaining a healthy 2.8 mV output (for High Output version), and a robust 0.5 mV output for the Low Output version.

Mounting the cartridge to the tonearm is achieved by a rigid red aluminium head block that provides a stable platform for the cartridge along with easy and secure fixing to the tonearm.

Dynavector Exchange Scheme

For those with an existing Dynavector 10X5 MKII cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Nude diamond Shibata III line contact stylus.
• Hardened cantilever material.
• Powerful neodymium magnet.
• Aluminium head block.
• Available in High or Low output versions.

Specifications

• Type: High (Low) output moving coil cartridge, with flux damper & softened magnetism.
• Output Voltage (High): 2.8 mV @ 1 kHz, 5 cm/sec
• Output Voltage (Low): 0.5 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 25 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±2 dB）
• Compliance: 12 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (High): 150 Ohms
• Impedance (Low): 32 Ohms
• Recommended Load Impedance (High): > 1,000 Ohms
• Recommended Load Impedance (Low): > 1,00 Ohms
• Cantilever: 6.0 mm length, hardened aluminium pipe
• Stylus Tip: Nude Diamond Shibata III Line Contact
• Weight: 7.5 g

More Information

• 10X5 MKII Cartridge, by Dynavector
