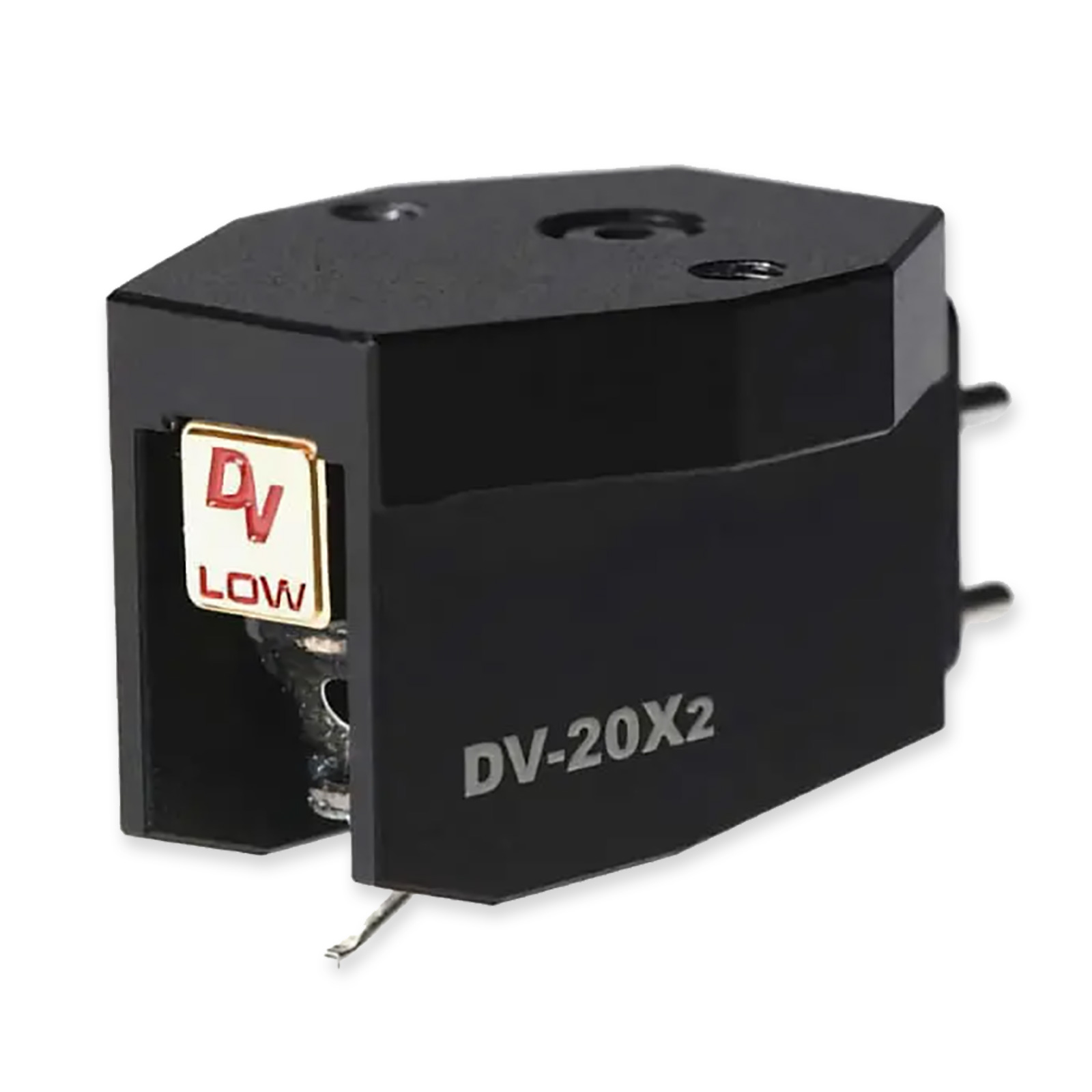

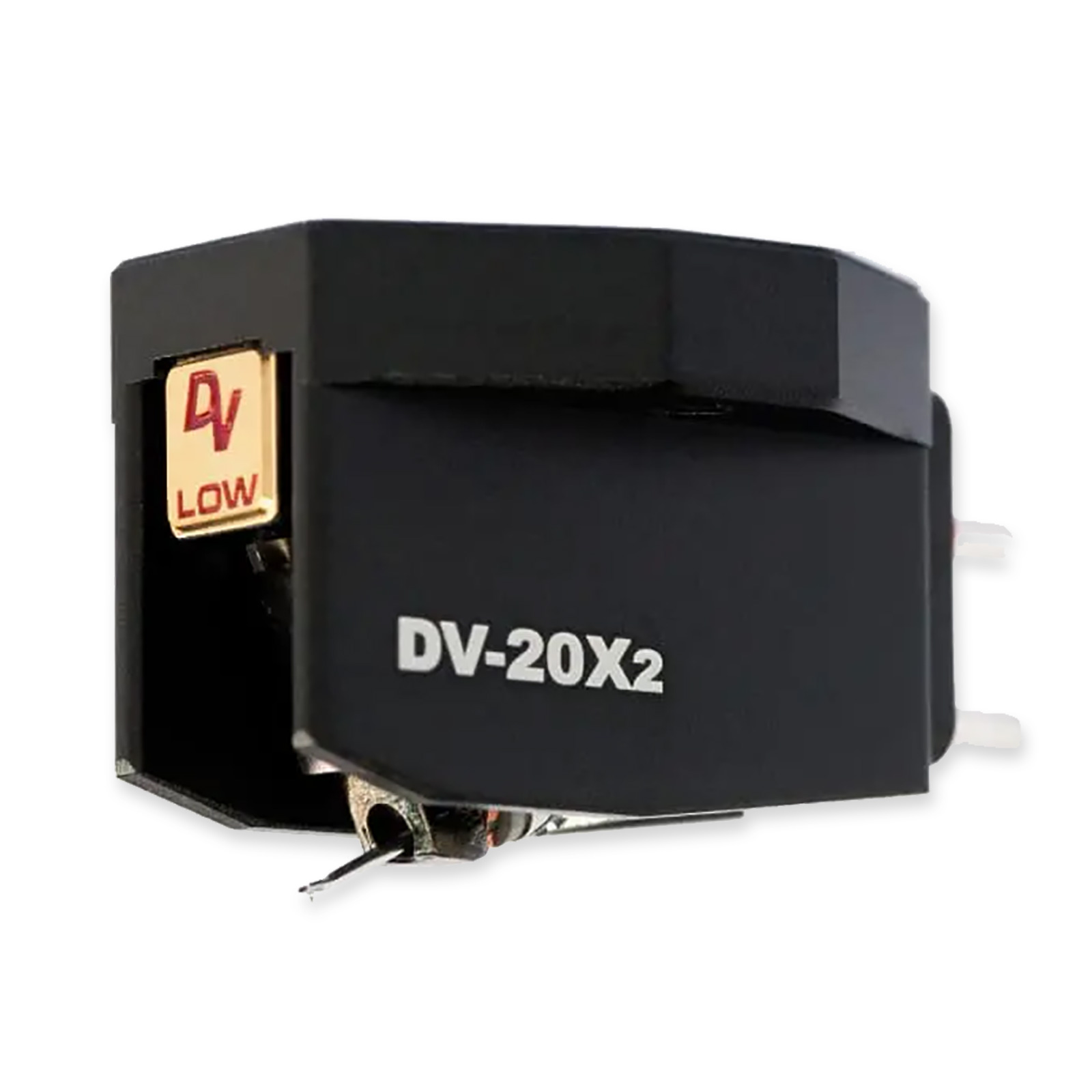

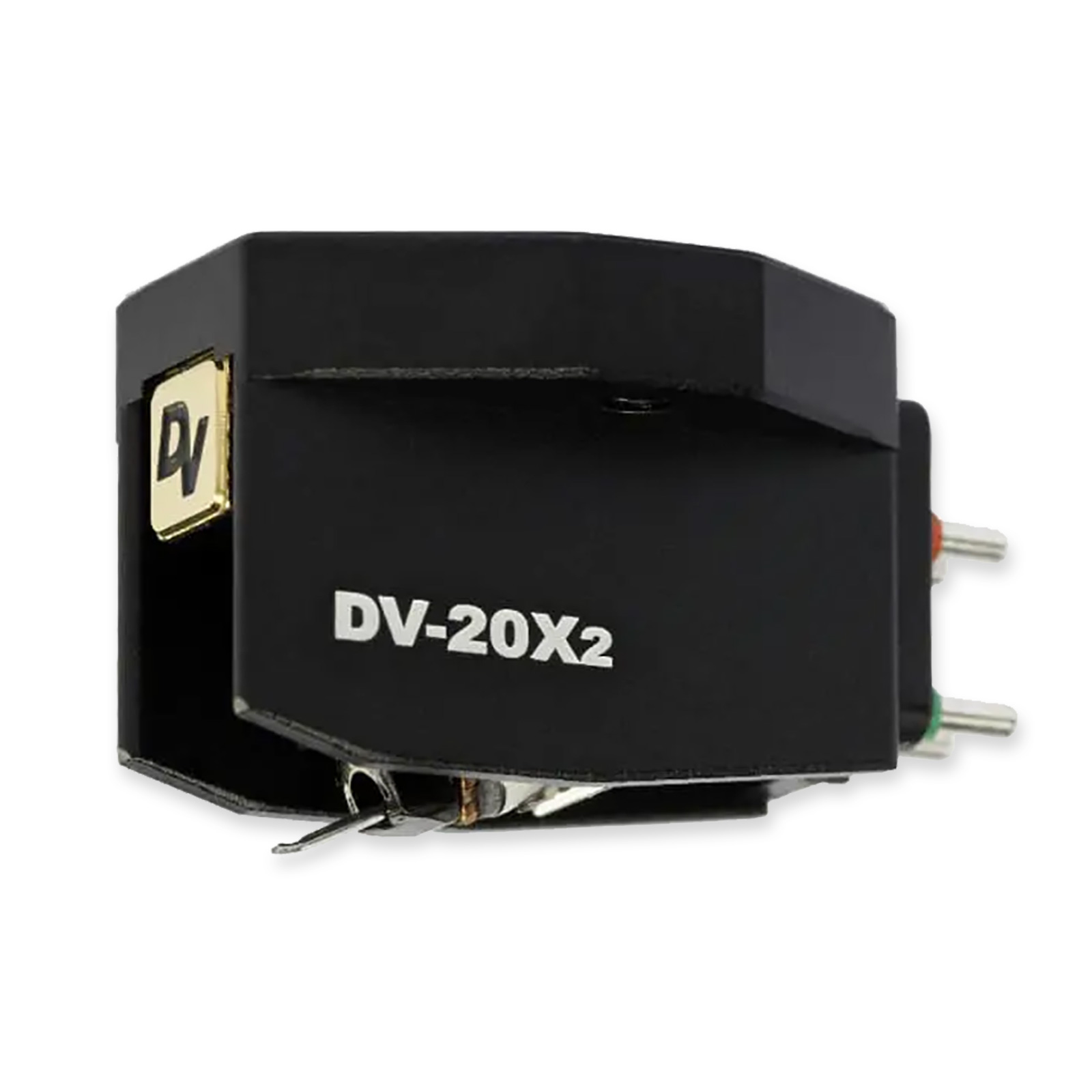

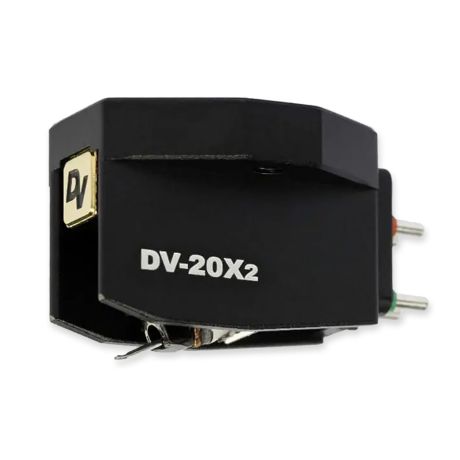

Dynavector 20X2 Moving Coil Cartridge (High / Low)

DV 20X2 High / Low Moving Coil Phono Cartridge, by Dynavector.

The Dynavector 20X2 phono cartridge has a solid aluminium alloy body and a rigid magnet construction similar to XX-2 MkII moving coil cartridge.

The cantilever is a 6mm length of hard aluminium pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2-H a healthy 2.8 mV output - suitable for most MM inputs. The 20X2-L has an output of 0.3 mV ideal for most MC phono stages.

Both high and low versions of their 20X2 phono cartridge are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.

Dynavector Exchange Scheme

For those with an existing Dynavector 20X2-H or 20X2-L cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Micro ridge nude diamond stylus.
• Hard aluminium cantilever material.
• Powerful neodymium magnets.
• Solid aluminium alloy body.
• Available in High or Low output versions.

Specifications

• Type: High / Low output moving coil cartridge, with flux damper & softened magnetism.
• Output Voltage (High): 2.8 mV @ 1 kHz, 5 cm/sec
• Output Voltage (Low): 0.3 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 25 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±2 dB）
• Compliance: 12 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (High): 150 Ohms
• Impedance (Low): 5 Ohms
• Recommended Load Impedance (High): > 1,000 Ohms
• Recommended Load Impedance (Low): > 30 Ohms
• Cantilever: 6.0 mm length, hard aluminium pipe
• Stylus Tip: Micro Ridge Nude Diamond
• Weight: 9.2 g

More Information

• DV 20X2 Phono Cartridge, by Dynavector
