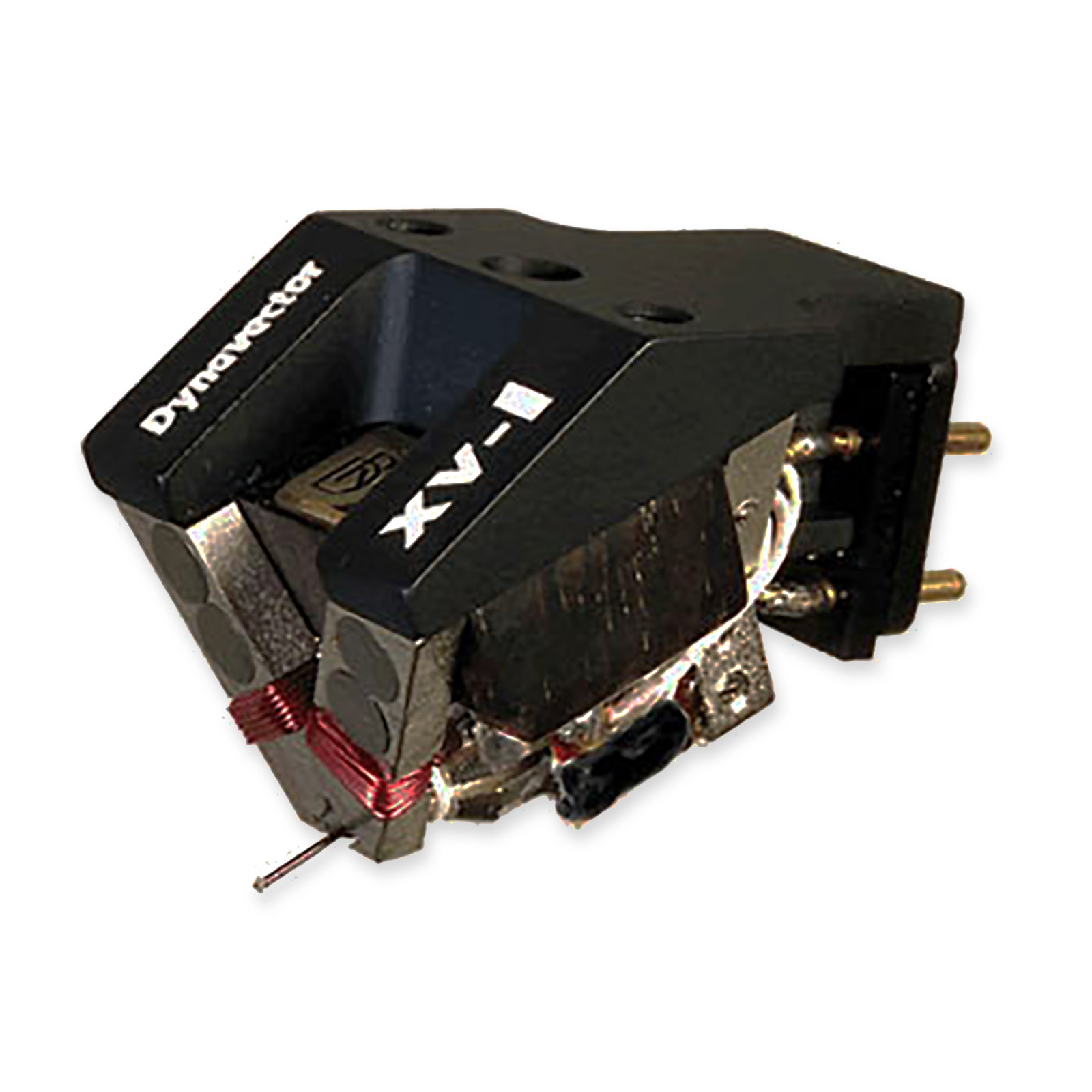

Dynavector DRT XV-1s Moving Coil Cartridge

DRT XV-1s Low Output Moving Coil Phono Cartridge, by Dynavector.

At a glance, the original XV-1 moving coil cartridge was always different from all cartridges that have gone before. Its magnetic circuit comprises 8 small ALNICO magnets. The magnetic path is divided into two - In the magnetic gap, a specially designed magnetic flux equalizing piece is placed.

On the front yokes, magnetic stabilizing coils are wound. By this special combination, the magnetic field becomes widely homogeneous and more linear than the conventional magnetic design that is common in existing MC cartridges.

XV-1s phono cartridge is the latest evolution of Dynavector design, featuring the advanced multi-magnet array to stabilize the magnetic flux density between front yoke and equalizer component, around the air gap.

The XV-1s phono cartridge also features a revolutionary square-shaped front aperture with a matching square shaped armature, which enables the moving coil wound armature to move in an equalized and stable magnetic flux.

Although slightly smaller in dimension the front yoke aperture is also square-shaped, matching the armature along with an identical counterbore to the equalizer component.

Dynavector Exchange Scheme

For those with an existing Dynavector DRT XV-1s cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Eight small, powerful alnico magnets.
• African ebony wood magnet stabilization.
• Updated 30-micron PCOCC copper wire coil windings.
• Pathfinder line contact stylus.
• Solid boron cantilever.
• Square-shaped armature + aperture design.
• Available in Low Output only.

Specifications

• Type: Low output moving coil cartridge, with multiple alnico magnets & flux damper.
• Output Voltage (Low): 0.3 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 30 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±1 dB）
• Compliance: 10 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (Low): 6 Ohms
• Recommended Load Impedance (Low): > 30 Ohms
• Cantilever: 6 mm length, solid boron
• Stylus Tip: PF Line contact shape, radius 7 x 30 microns
• Weight: 12.6 g
