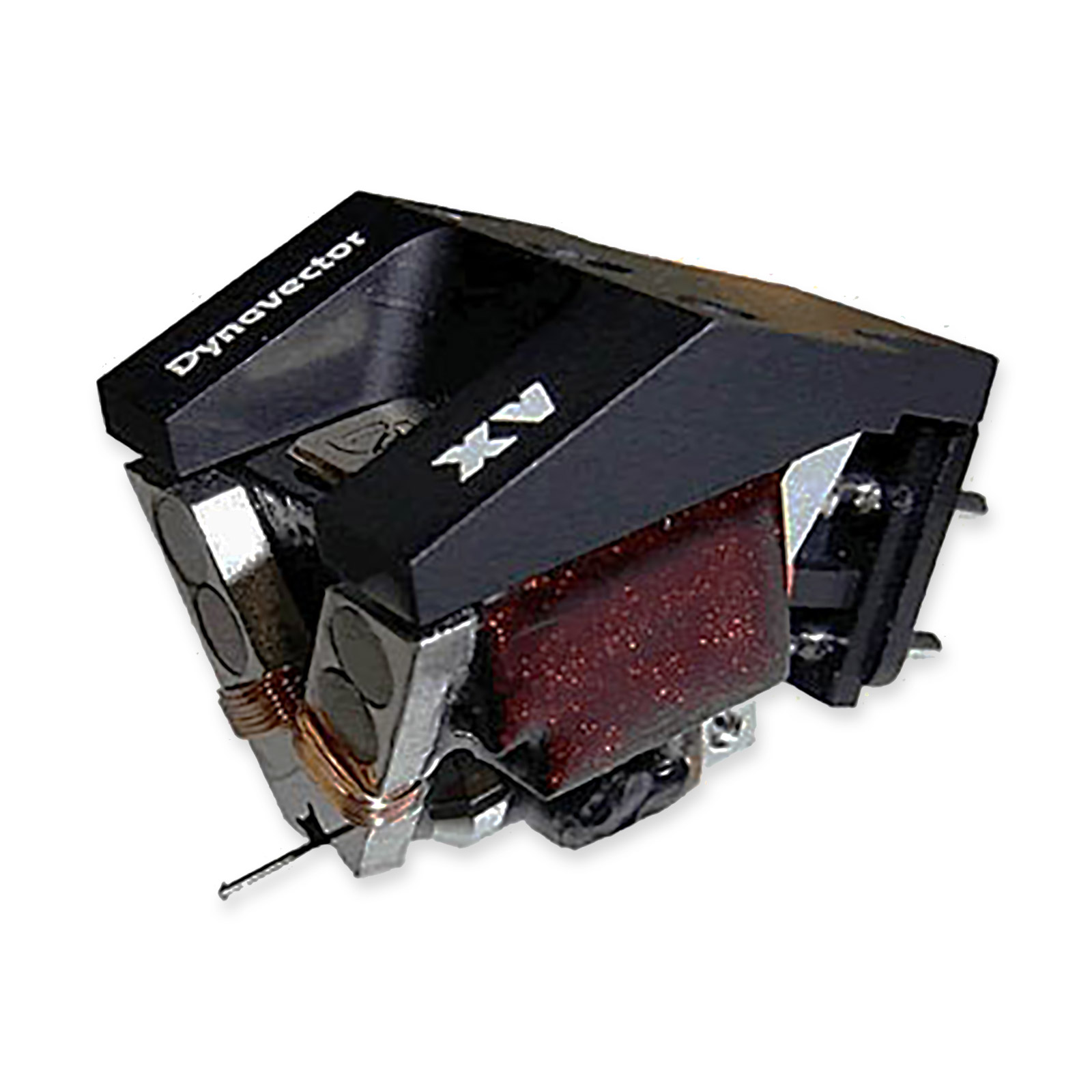

Dynavector DRT XV-1t Flagship Moving Coil Cartridge

DRT XV-1t Flagship Low Output Moving Coil Phono Cartridge, by Dynavector.

First inspection of the new DV XV-lt phono cartridge reveals that although it is unmistakenly Dynavector, the body is beautiful Urushi lacquer over a precision machined component of heat treated bamboo, assiduously selected for both design, elegance and acoustic performance.

Dynavector's patented Flux Damping process has been retained in concert with new ground-breaking innovations that will quickly establish the XV-1t as not only the Dynavector flagship but set the contemporary standards in analog music reproduction.

Technology abounds within the XV-lt phono cartridge but the Dynavector "raison d'etre" is making the technology invisible and allowing the music to emerge like never before.

A silky smoothness is added to the musical reality which the XV moving coil cartridges have previously exhibited and as a result each instrument, performer or group is clearly imaged with a warm and rich presence. Dynavector believe that this emotive musical experience cannot be achieved by a digital source and with the XV-1t they have created a "Super Analog World".

Dynavector Exchange Scheme

For those with an existing Dynavector DRT XV-1t cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

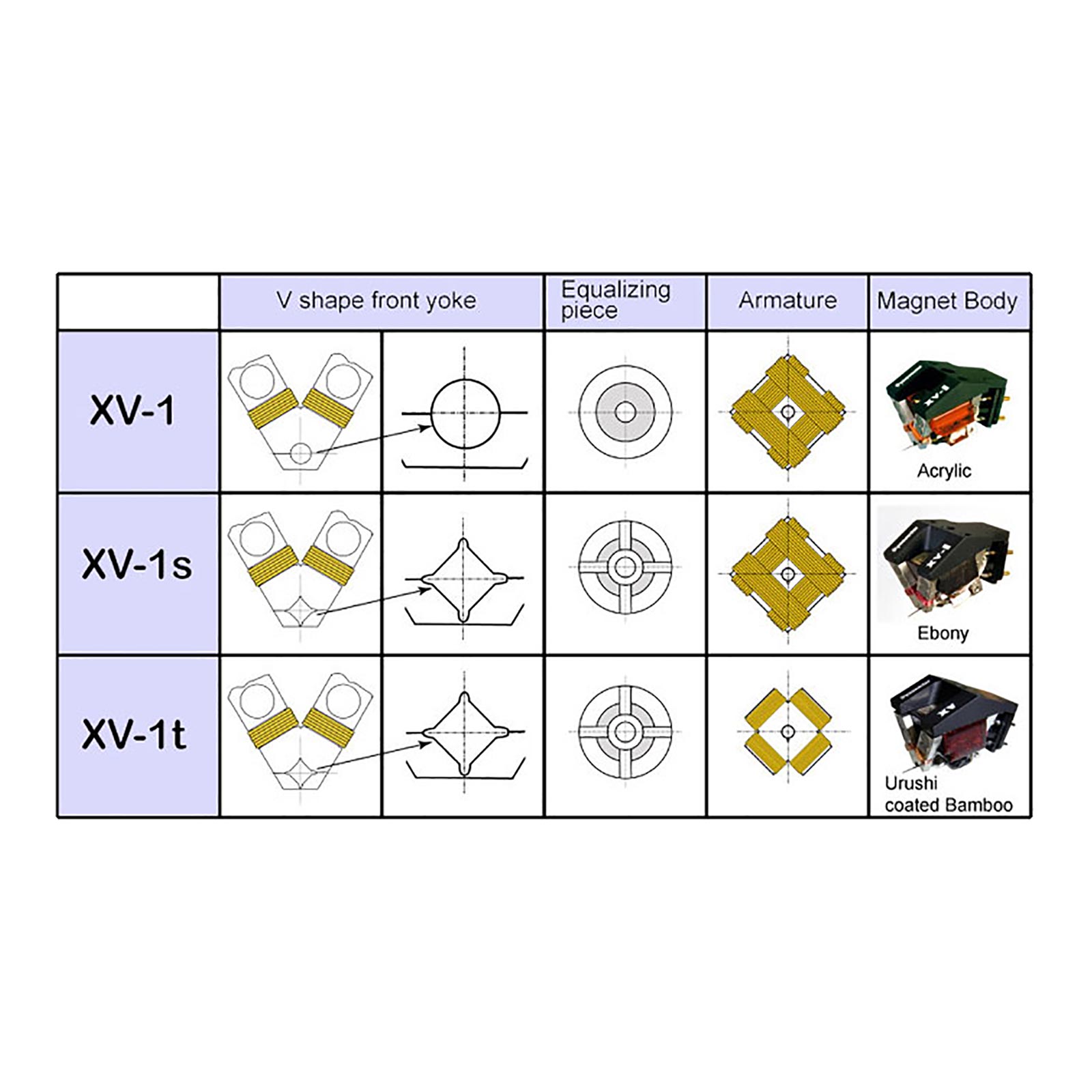

• Unique square-shaped armature, manufactured from a carefully-selected material that is both corrosion resistant and impervious to age deterioration.
• 16 micron coil windings that only Dynavector can manufacture, wound around square-shaped armature to match the square-shaped aperture in front yoke.
• Alnico column magnet array to stabilize the magnetic circuits, and increase linearity of the magnetic distribution within the air gap.

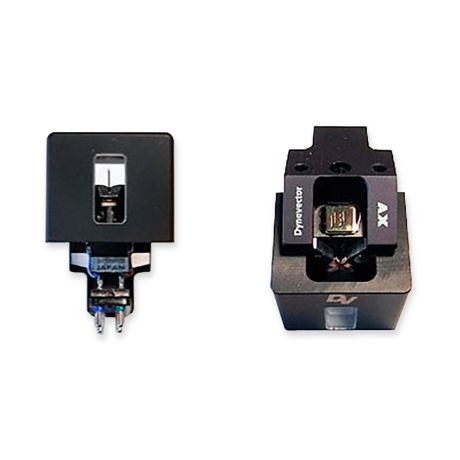

• Exclusive Walnut case.
• Available in Low Output only.

Specifications

• Type: Low output moving coil cartridge, with alnico magnet array & flux damper.
• Output Voltage (Low): 0.35 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 30 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±1 dB）
• Compliance: 10 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (Low): 24 Ohms
• Recommended Load Impedance (Low): > 75 Ohms
• Cantilever: 6 mm length, 0.3 mm diameter solid boron, with special armature
• Stylus Tip: PF Line contact shape, radius 7 x 30 microns
• Weight: 12.0 g
