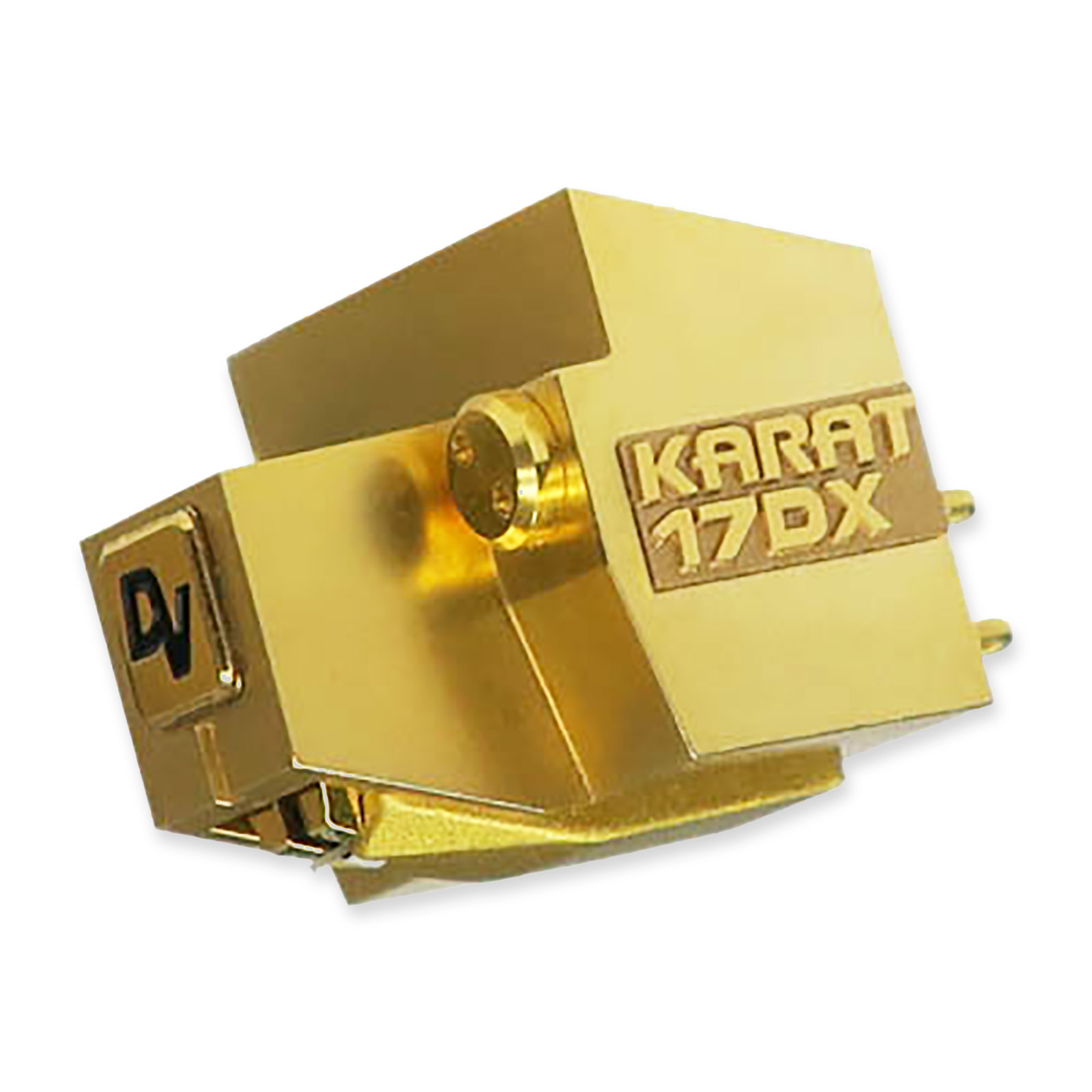

Dynavector KARAT 17DX Moving Coil Cartridge

KARAT D17DX Low Output Moving Coil Phono Cartridge, by Dynavector.

Drawing on Dynavector's dispersion theory that produced the original world first KARAT series, Dynavector are indeed proud to announce the entirely new 17DX KARAT Diamond phono cartridge.

As in the past KARAT series, the frequency response of the new KARAT 17DX at 20 to 20,000 Hz is ruler-flat, providing an extremely accurate groove tracking ability. However, several new features will ensure that the new 17DX phono cartridge will shortly gain the same legendary status and soon surpass its predecessors.

The rationale for the new KARAT 17DX phono cartridge was to significantly improve upon the now legendary original KARAT moving coil cartridge series.

After exhaustive listening and technical research, the decision was made to incorporate a body machined from solid brass, samarium-cobalt magnets for lower magnetic resistance, unmatched coil-winding techniques, the incredible 1.7 mm long cantilever with Micro Ridge stylus, all combining in a brand-new KARAT 17DX phono cartridge that will delight the listener, providing clear and articulate reproduction of analog recordings without a hint of harshness in the high frequency range.

Dynavector Exchange Scheme

For those with an existing Dynavector D17DX cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Micro ridge stylus tip.
• Solid diamond cantilever.
• Powerful samarium-cobalt magnets.
• Solid brass machined body.
• Available in Low Output only.

Specifications

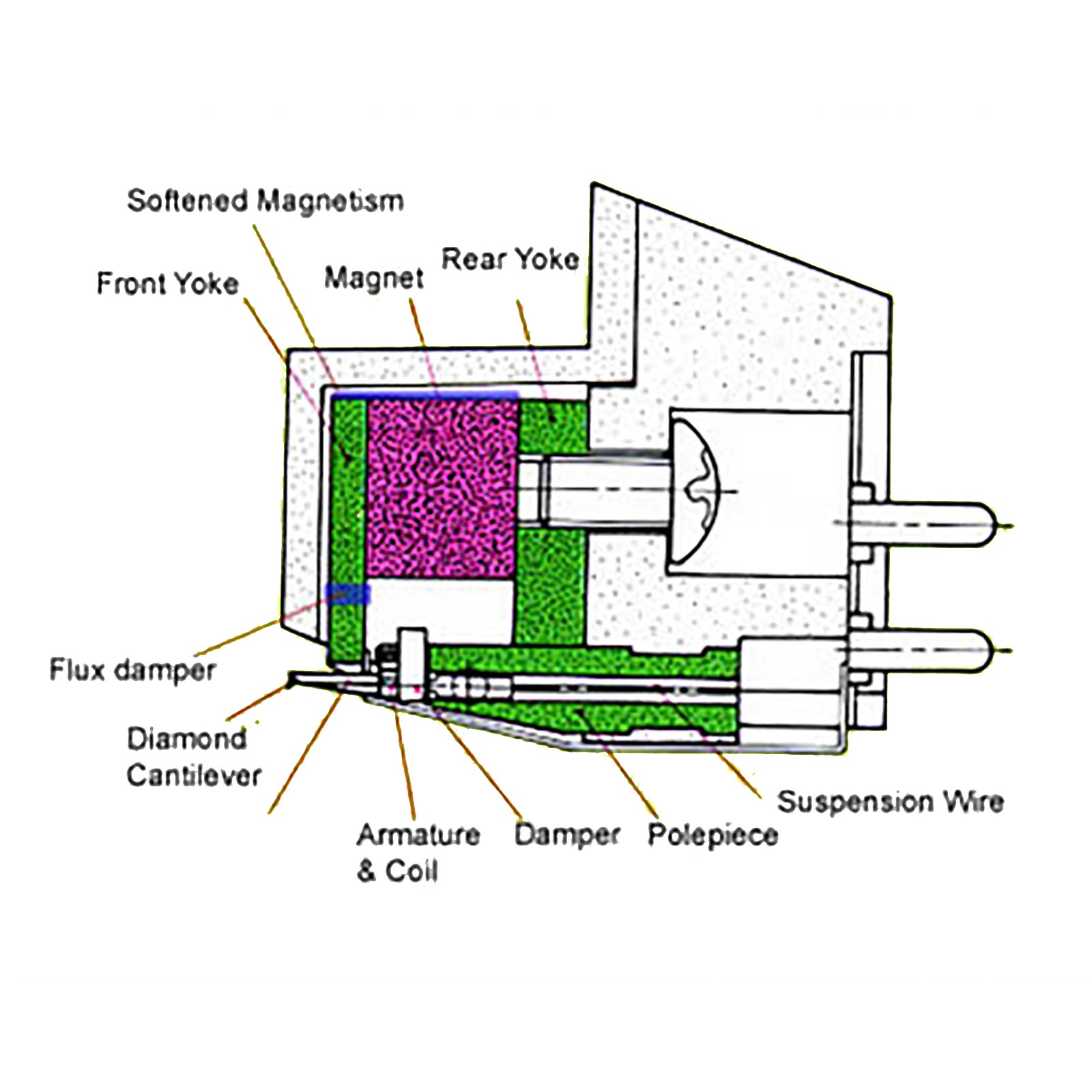

• Type: Low output moving coil cartridge, with flux damper & softened magnetism.
• Output Voltage (Low): 0.3 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 25 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±2 dB）
• Compliance: 15 mm/N
• Tracking Force: 1.8 - 2.0 g
• Impedance (Low): 32 Ohms
• Recommended Load Impedance (Low): > 100 Ohms
• Cantilever: 1.7 mm length, solid diamond
• Stylus Tip: Micro Ridge
• Weight: 11.0 g

More Information

• KARAT D17DX Phono Cartridge, by Dynavector
