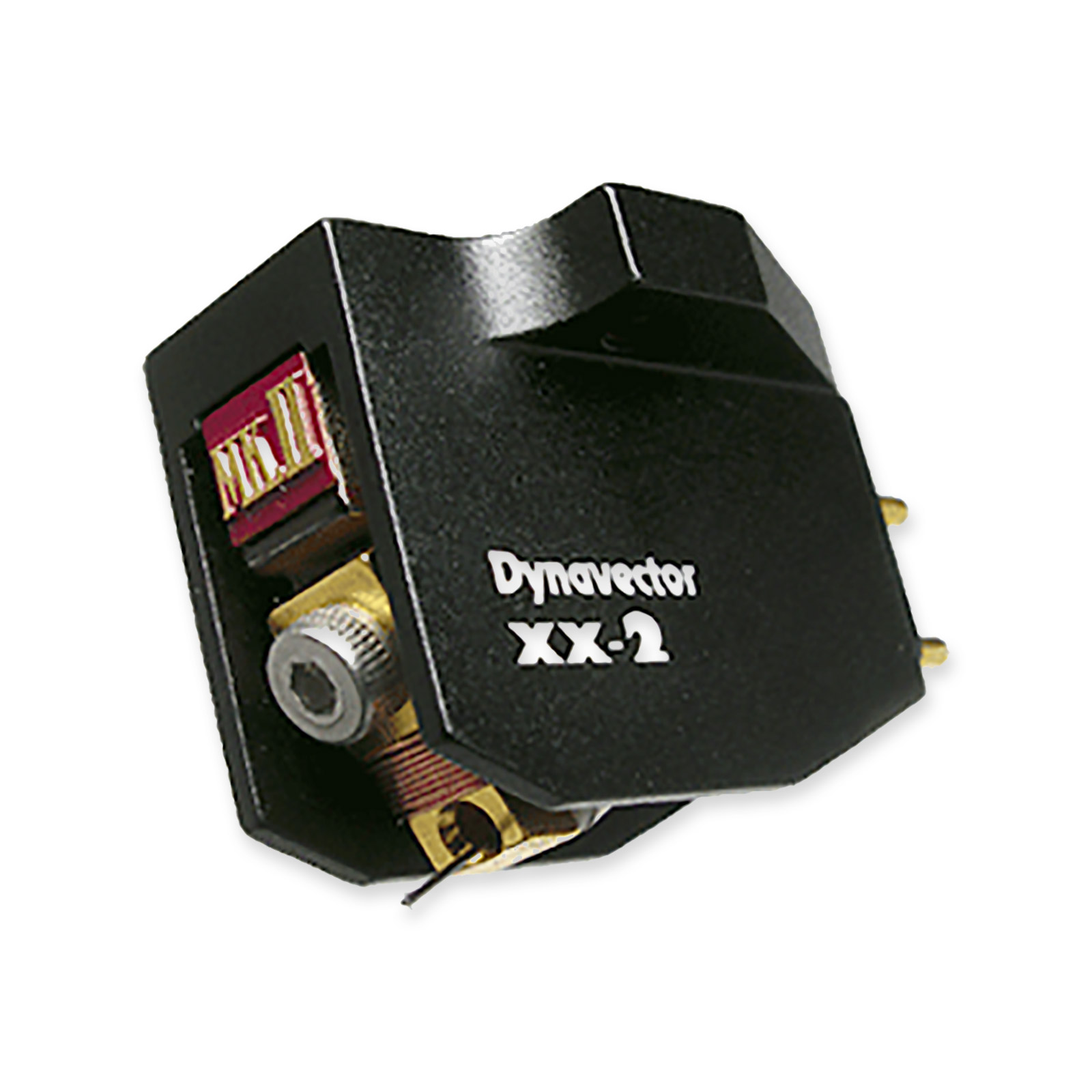

Dynavector XX-2 MKII Moving Coil Phono Cartridge

XX-2 MKII Low Output Moving Coil Phono Cartridge, by Dynavector.

DV XX-2 MkII phono cartridge retains the benefit of the flux damper fitted to the XX-1 model, but features the Alnico-5 magnet and the similar rigid construction to the premium Te Kaitora Rua moving coil cartridge.

Alnico magnets exhibit high magnetic flux density, combining with a low coercive, therefore magnetic resistance is lower than other magnetic types, including rare earth and ferrite, providing the exceptional stability of the XX-2 MkII output voltage.

There is also the additional advantage of low magnetic and electrical resistance contributing to a unmistakeable improvement in sound quality.

XX-2 MKII also exhibits deep powerful bass, treble is clear and lively, possessing none of the hardness found in many moving coil designs.

The XX-2 MkII phono cartridge features a 6 mm solid boron cantilever, fitted with a Pathfinder Line contact stylus. PCOCC (pure copper ohno continuous casting process) copper wire is used for the coil. The output voltage of 0.28 mV is higher than that of the XX-2, and 6 ohms impedance are suited to most MC phono stages.

For rigidity of construction, the XX-2 MkII body is machined from 7075 aluminium - the hardest available - but with a total weight of only 8.9 g it is suitable for a huge variety of popular tonearms.

Dynavector Exchange Scheme

For those with an existing Dynavector XX-2 MKII cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Pathfinder line contact stylus.
• Solid boron cantilever.
• Powerful alnico magnets.
• Solid 7075 aluminium machined body.
• Available in Low Output only.

Specifications

• Type: Low output moving coil cartridge, with flux damper & alnico magnet.
• Output Voltage (Low): 0.28 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 30 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±2 dB）
• Compliance: 10 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (Low): 6 Ohms
• Recommended Load Impedance (Low): > 30 Ohms
• Cantilever: 6 mm length, solid boron
• Stylus Tip: PF Line contact shape, radius 7 x 30 microns
• Weight: 8.9 g
