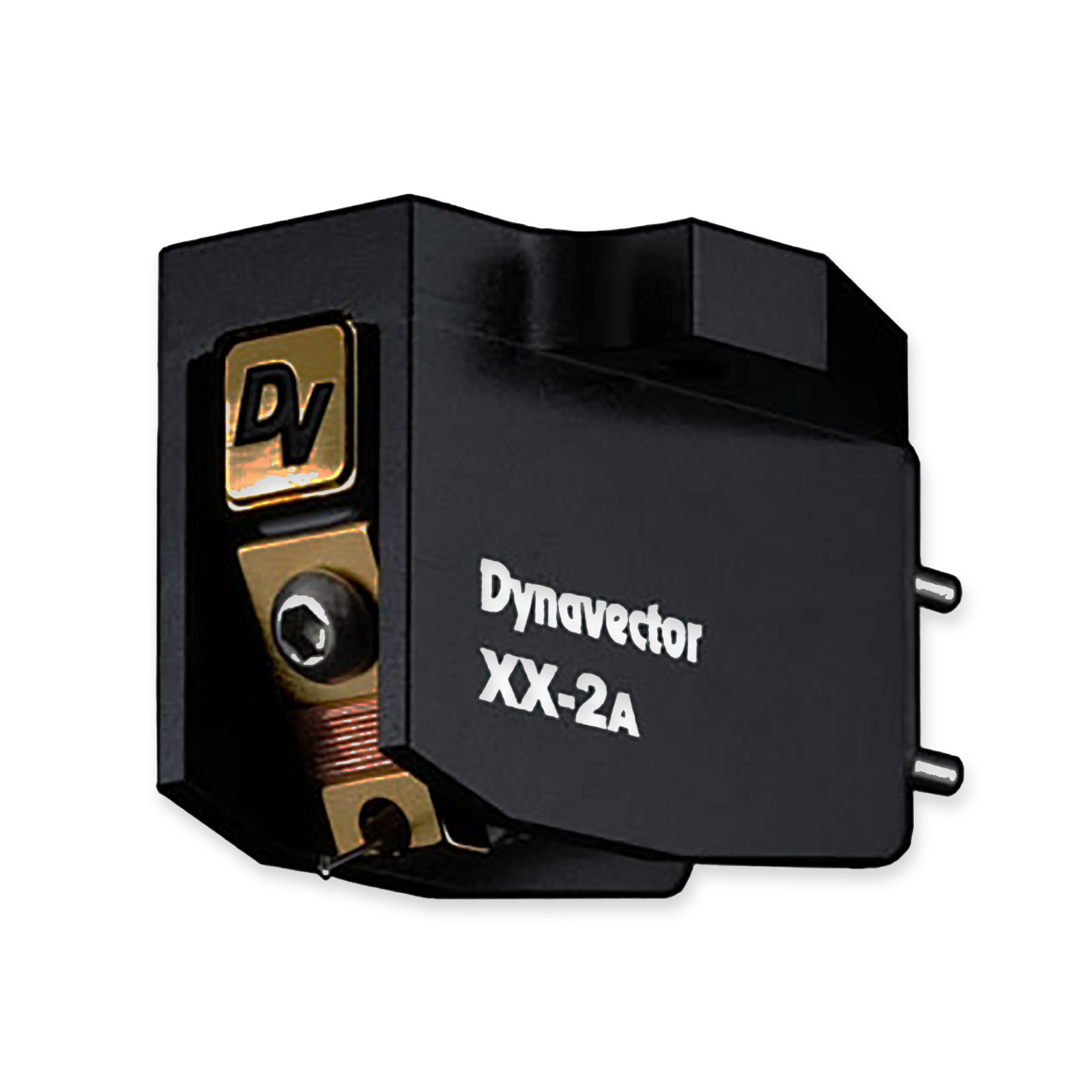

Dynavector XX-2A Moving Coil Cartridge

XX-2A Low Output Moving Coil Phono Cartridge, by Dynavector.

Experience the natural and dynamic sound of the Dynavector XX-2A phono cartridge, where an exceptional vibration system harmonises seamlessly with an optimised Special Annealed Magnetic Circuit.

Magnetic annealing, a process of heating and cooling processed parts, is crucial for restoring the distorted metal crystal structure and regenerating magnetic permeability. However, a generic magnetic annealing cannot fully restore distortions in the crystal structure.

The magnetic annealing conditions vary depending on material, size, shape, etc. Dynavector's recent development focused on finding the best magnetic annealing process, including temperature, environment, duration, and heating and cooling rates. This meticulous approach has enabled them to unleash the full potential of pure iron's unique magnetic performance.

The new magnetic circuit has significantly enhanced sound quality, delivering unrivalled resolution, smooth wide-range expression, and expansive sound field.

Crafted with stainless bolts securing the front and rear yokes along with the magnets, the XX-2A phono cartridge boasts a high-rigidity magnetic circuit. Skilled artisans meticulously adjust tightening torque during assembly, a process crucial for maintaining sound quality and ensuring optimal performance for each unit.

XX-2A phono cartridge is equipped with a 6 mm length solid boron cantilever, coupled with a PathFinder (PF) line contact stylus, creating a lightweight and rigid vibration system for enhanced playback accuracy.

Dynavector Exchange Scheme

For those with an existing Dynavector XX-2A cartridge, a like-for-like exchange scheme is available, which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Special annealing magnetic circuit design.
• Pathfinder line contact stylus.
• Solid boron cantilever.
• Powerful alnico magnets.
• Available in Low Output only.

Specifications

• Type: Low output moving coil cartridge, with flux damper & alnico magnet.
• Output Voltage (Low): 0.28 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 30 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±1 dB）
• Compliance: 10 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (Low): 6 Ohms
• Recommended Load Impedance (Low): > 30 Ohms
• Cantilever: 6 mm length, solid boron
• Stylus Tip: PF Line contact shape, radius 7 x 30 microns
• Weight: 8.9 g
