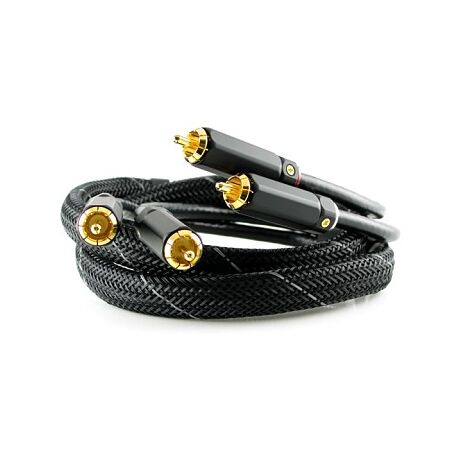

Graham Slee AgSat90 Analogue RCA Interconnect Cable (Stereo Pair)

The Graham Slee AgSat90 Interconnect Cable is for For hi-fi enthusiasts who prefer a little more accent to their music, whilst it not sounding over the top.

Subjectively, the higher conductivity of silver has the tendency to intensify the pronunciation of mid-to-high frequency sounds. According to Graham Slee testers, the AgSat90 interconnect cable adds just the right amount of silver for a truly satisfying sound.

Available in 1.00 metre length only, and dual mono for stereo (2 separate cables). Terminated with locking gold-plated RCA / phono connectors at both ends.

Features

• High-quality copper interconnect cable, with added 99.99 % purity silver.
• Terminated with gold-plated, locking RCA phono plugs.
• Shielded for excellent EMR rejection.
• Separated stereo pair (dual mono configuration).

Specifications

• Coaxial Cable Diameter: 6.5 mm
• Single Cable Sheathed Diameter: 10.00 mm
• Inner Conductor: 1.00 mm solid soft annealed copper, DC resistance: 0.026 Ohms / metre.
• Silver Conductor: 0.71 mm soft fine silver wire, 99.99% purity.
• Shield: Annealed copper braid over 100% copper foil wrap, DC resistance: 0.015 Ohms / metre.
• Jacket: PVC.
• Dielectric: 5-cell semi air-spaced.
• Dielectric Constant: 1.49
• Velocity Ratio: 0.82 (82 %)
• Capacitance: 90 pf / metre
• Impedance: 75 Ohms
• Shielding Efficiency: Better than 65 dB
• Configuration: Separated stereo pair (dual-mono) overall flexible PVC braided with welded ends.
• Min Safe Bend Diameter: 150 mm
• Terminations: Locking RCA phono plugs, with gold-plated contacts.

Included

• 2 x Mono Interconnect Cables, with Locking RCA Phono Connectors at each end.

More Information

• AgSat90 Interconnect Cable, by Graham Slee
