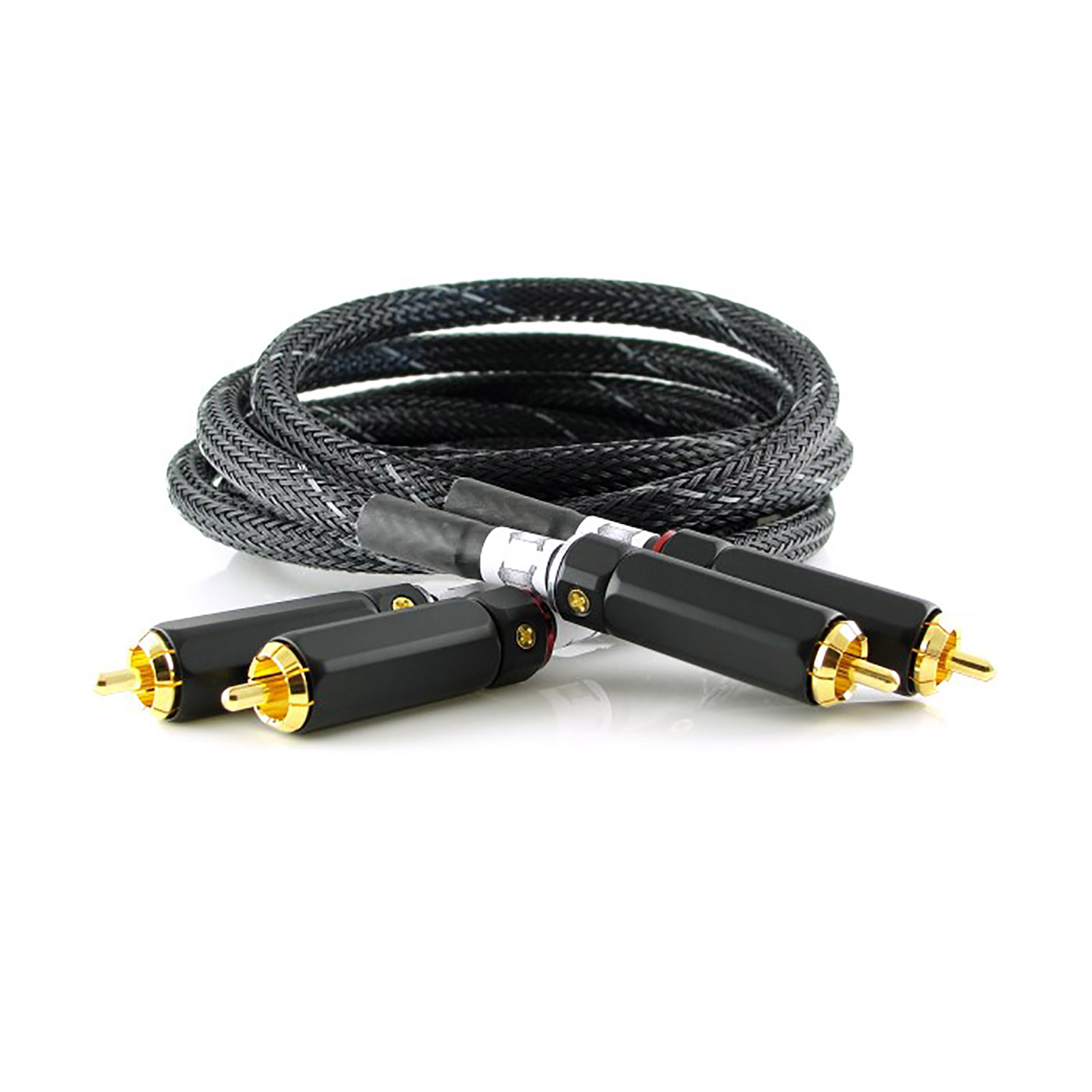

Graham Slee CuSat50 Analogue RCA / XLR Interconnect Cable (Stereo Pair)

CuSat50 interconnect cables by Graham Slee will shield out interference and add nothing of themselves to your music.

So often you will find that interconnect cables add signature, bringing their own sound to your music — these do not. So if you want to listen to your music in a pure and unadulterated way, you should choose CuSat50.

The CuSat50 uses ultra-low impedance shielding (the part of the cable responsible for keeping the grounds tethered) to bring the possibility of interference to an absolute minimum.

Shielding comprises a tightly-knit copper braid over, and in contact with, a copper foil which completely wraps around the inner signal cable.

Copper is the second most conductive metal known behind silver, and its DC resistance is a mere 15 mΩ/m making the CuSat50 a great choice for noisy EM environments.

Features

• High-quality stereo (dual-mono) interconnect cable.
• Premium shielding, with ultra-low impedance.
• Adds no sonic signature of their own to the audio signal.

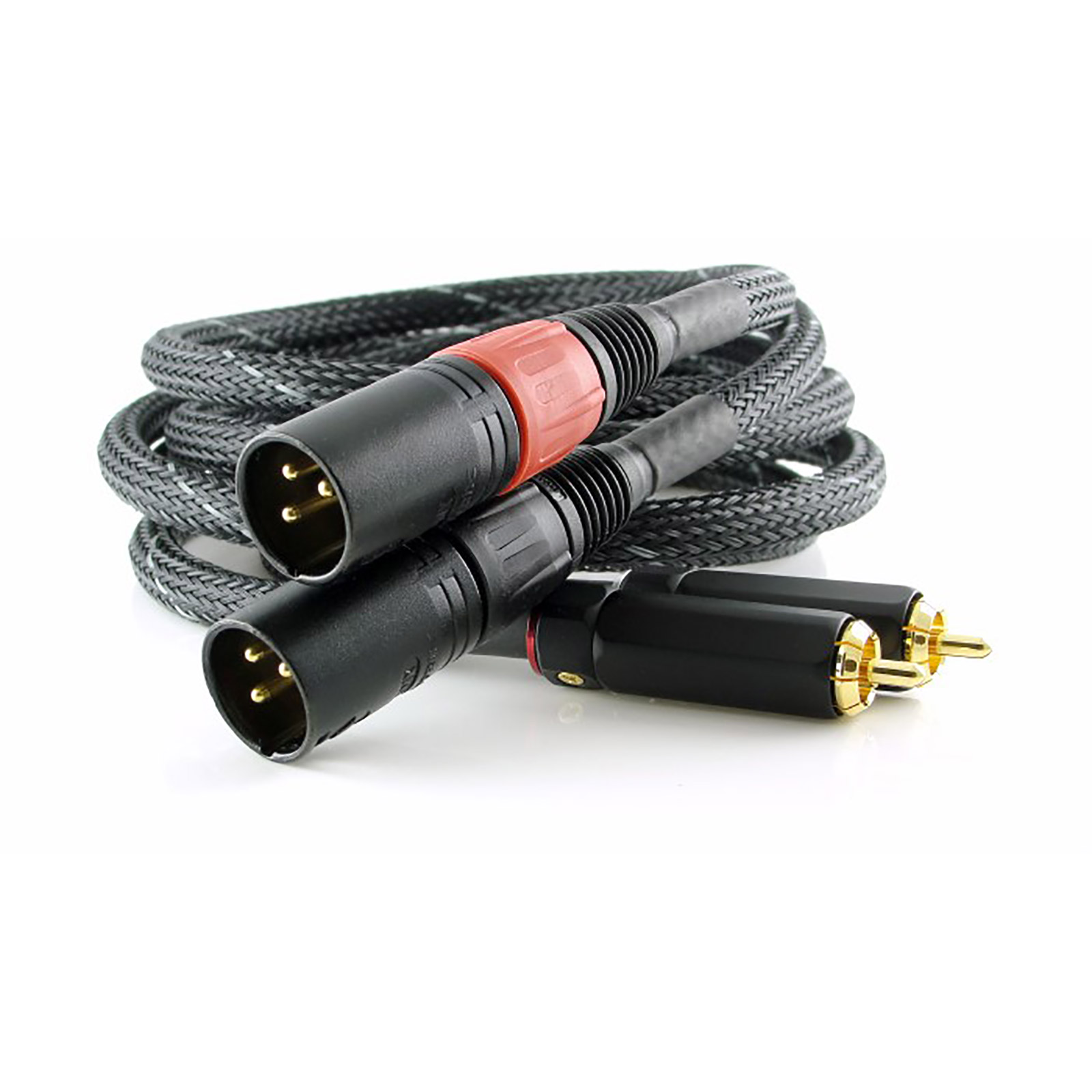

• Available with RCA / XLR or TRS Jack connectors.

Specifications

• Coaxial Cable Diameter: 6.50 mm
• Single Cable Sheathed Diameter: 10.00 mm
• Stereo Cable Sheathed Cross-Section: 16.00 mm x 10.00 mm
• Inner Conductor: 1.00 mm solid soft annealed copper.
• DC Resistance: 0.026 Ohms / metre.
• Shield: Annealed copper braid over 100 % copper foil wrap.
• DC Resistance: 0.015 Ohms / metre.
• Jacket: PVC.
• Dielectric: 5-cell semi air-spaced.
• Dielectric Constant: 1.49
• Velocity Ratio: 0.82 (82 %)
• Capacitance: 55 pf / metre
• Impedance: 75 Ohms
• Shielding Efficiency: Better than 65 dB.
• Min Safe Bend Diameter: 150.00 mm
• Terminations: Locking phono (RCA) plugs with gold-plated contacts.
