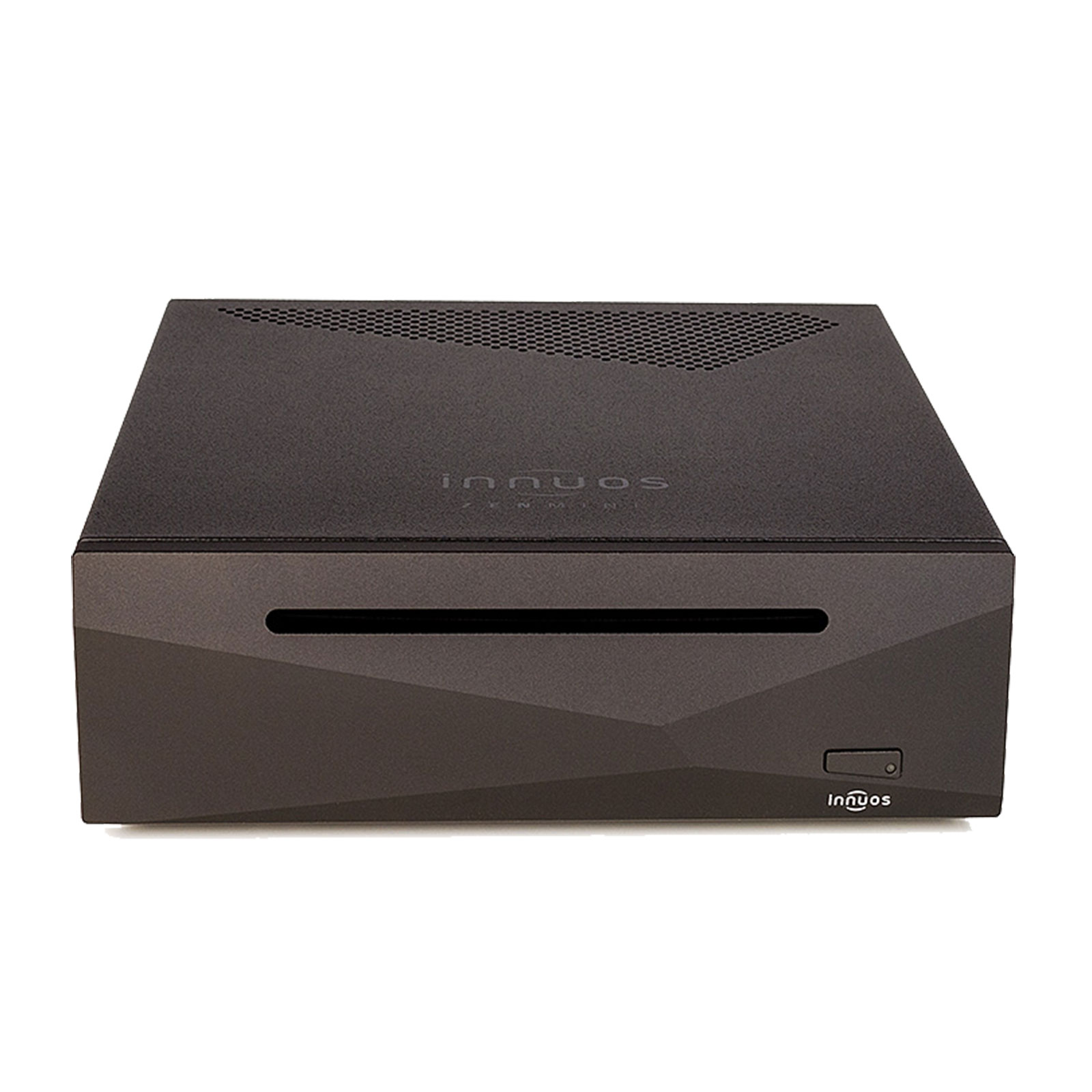

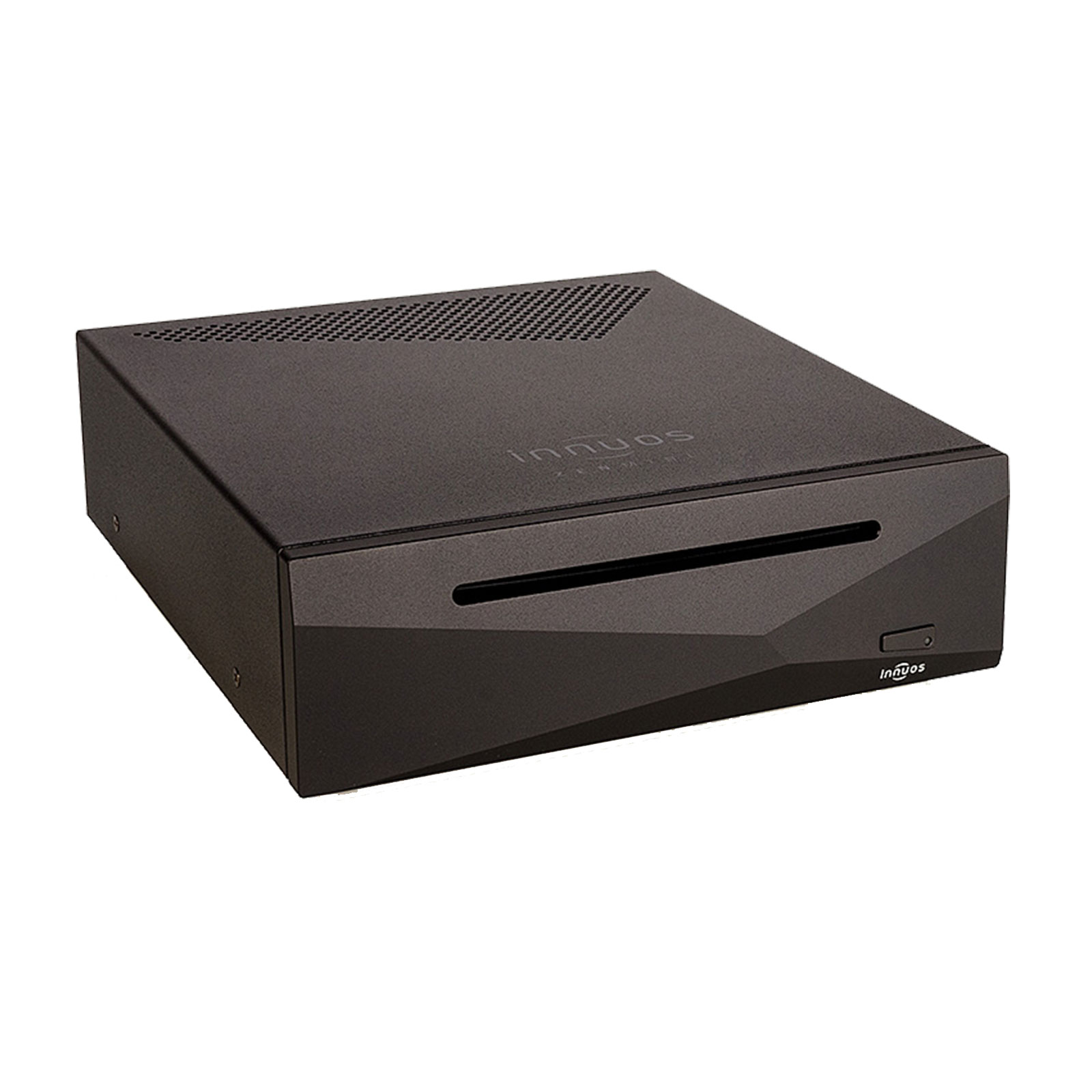

Innuos ZenMini Mk3 Music Server / CD Ripper

With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs - from CD ripping to purchased downloads, Internet Radio to Spotify Connect.

ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.

Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). The perfect CD player replacement, ZENmini allows you to connect directly to all your favourite devices such as soundbars, AV Receivers or integrated amplifiers the easy way.

Using the exclusive innuOS operating system, the ZENmini server is configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.

ZENmini S

The ZENmini S takes one of Innuos’s most popular music servers and replaces the hard drive with a quiet, lightning-quick Solid-State Drive (SSD). ZENmini S upgrades the RAM from 4GB to 8GB for additional performance benefits when searching for music or copying files. It even has a power-loss protection protection circuit so if you lose your power, you don’t lose your music.

Owners of the original ZENmini Mk2 and Mk3 will be able to upgrade to ZENmini S in early 2023.

Features

• CD Ripper, NAS and Streamer
• Compact design with quiet, fanless operation
• Versatile HiFi connectivity with analog and digital outputs
• Roon Core and Endpoint
• Custom audio treated components
• Upgradeable with Linear Power Supply
• Powered by innuOS - allowing complete Music Library management via tablet/smartphone

Specifications

• Digital Outputs: USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA, Coaxial S/PDIF up to 24bit/192KHz, Optical S/PDIF up to 24bit/192KHz
• Analogue Output: RCA Analogue up to 24bit/192KHz

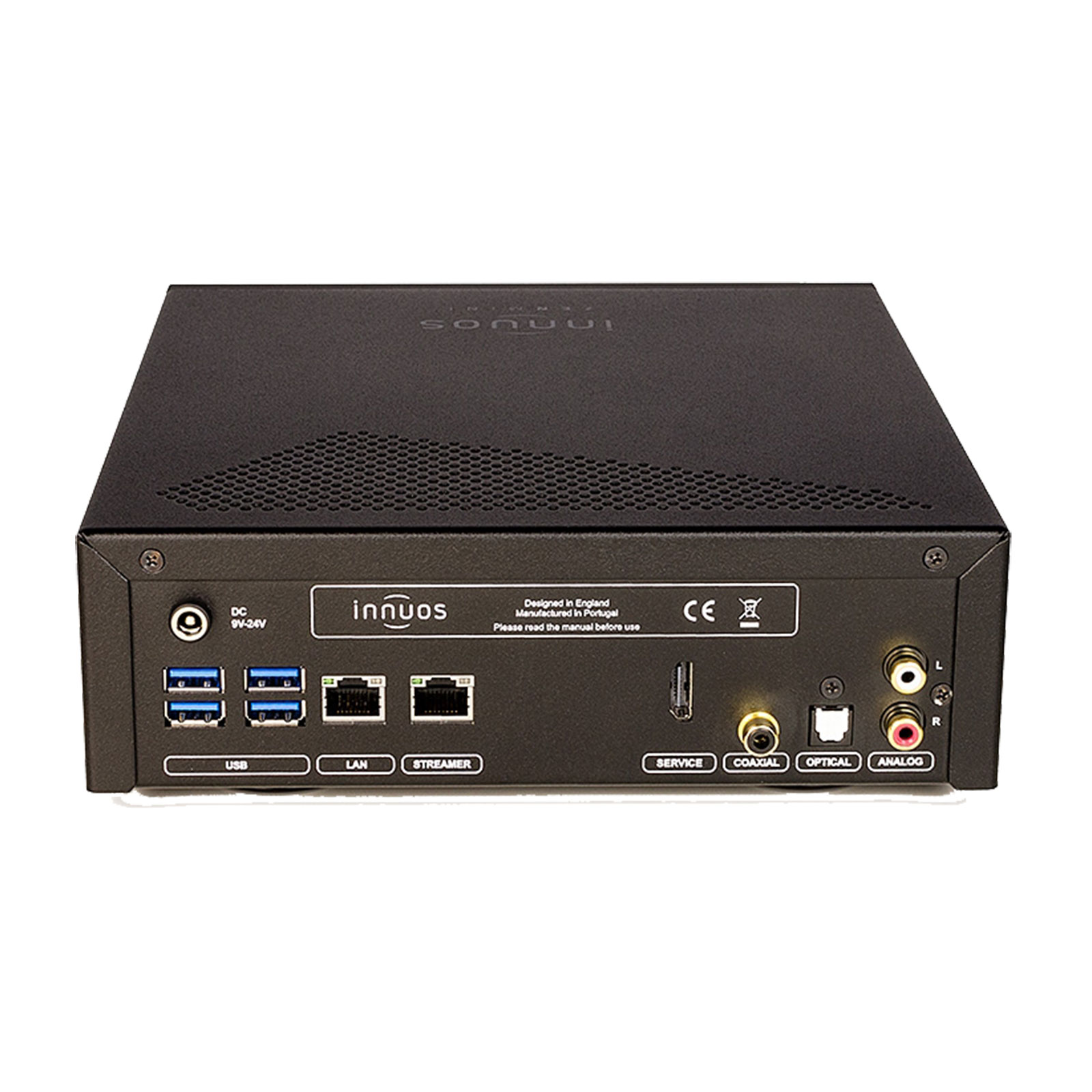

• Ethernet: 2x rear panel RJ45 – Bridged Gigabit Ethernet
• USB: 4x USB 3.0
• CD Formats: Red Book
• Disc Compatibility: CD, CD-R, CD-RW
• Audio format for stored CDs: FLAC (zero compression), WAV
• Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
• Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz, up to DSD128 via DoP, Native DSD on selected DACs
• Bit Depths: 16bit, 24bit, 32bit
• CD/DVD drive: TEAC Slot-loading drive
• Hard Drive: 1TB/2TB/4TB WD Red HDD (S Version: 1TB/2TB/4TB SSD)
• CPU: Intel Quad Core N4200
• Memory: 4GB DDR3 (S Version: 8GB)
• UPnP/DLNA: Integrated UPnP Server
• Streaming Services: Qobuz, Spotify Connect, Tidal, Internet Radio
• Roon Compatibility: Roon Core and Roon Bridge
• CD Metadata: FreeDB, MusicBrainz, Discogs, GD3
• Compatible Music Systems: Sonos Multi-room Wireless Music System
• DLNA/UPnP compatible streamers: USB DACs complying to USB Audio Class 2, USB DACs supporting DSD over DoP protocol, Selected USB DACs supporting Native DSD
