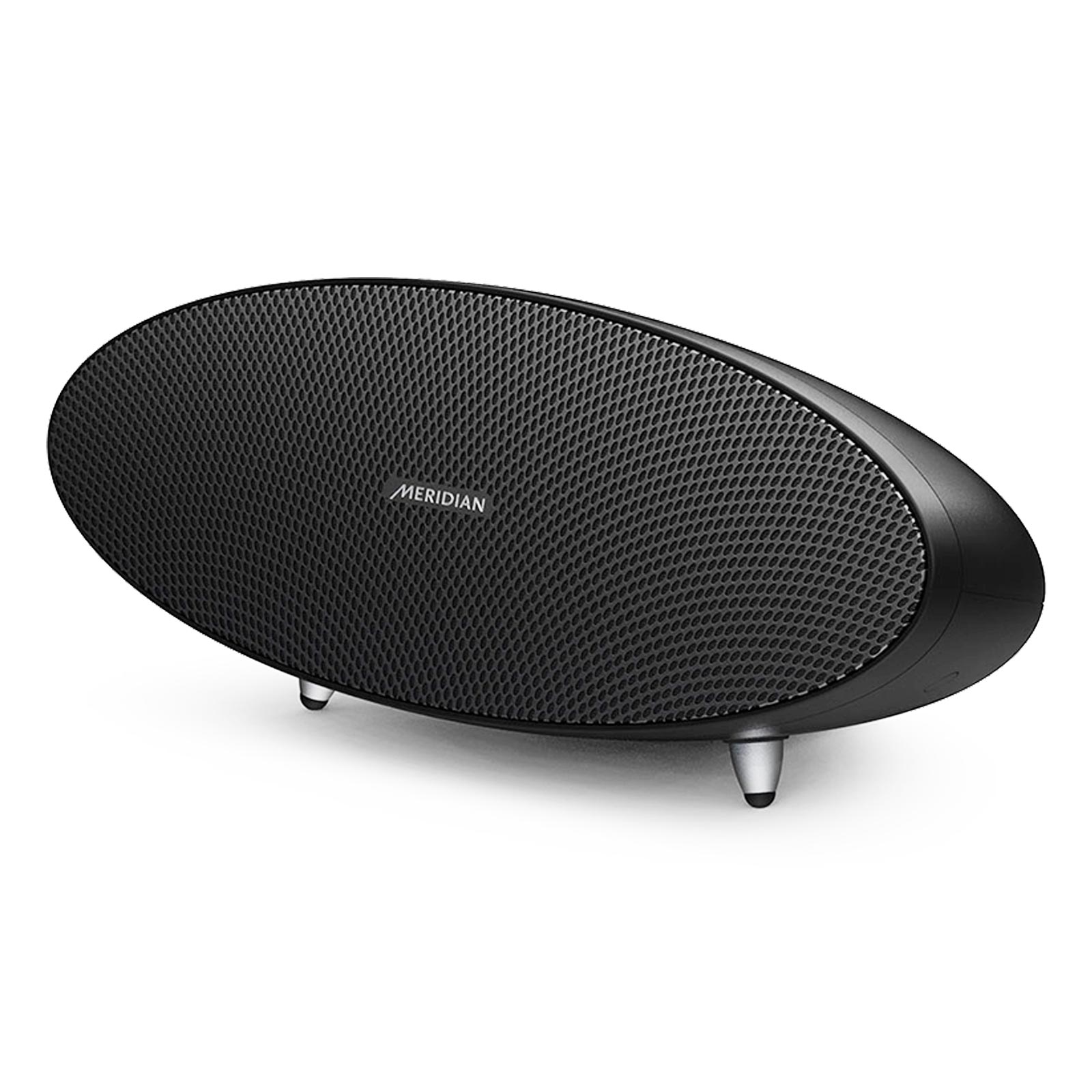

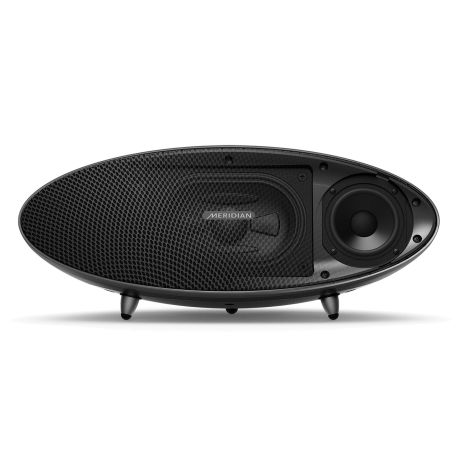

Meridian Ellipse All-In-One Streaming Bluetooth Speaker

Discover Ellipse - the first high-performance all-in-one streaming speaker from Meridian. Elegant, Simple, Powerful.

Ellipse is the third loudspeaker to emerge from the Meridian Extreme Engineering Programme, producing a natural, authentic and lifelike sound which is immersive and room-filling.

Designed for music enjoyment, Ellipse has a bass response usually associated with much larger speakers, and has complete control over the sound it plays. Your music is projected into the room with clarity and authority.

Meridian Ellipse is a complete system in a compact form-factor. It is a distillation of everything Meridian does, and it enables you to experience their renowned sound quality in any room. Made in Britain using premium craftsmanship, the design and detail is undeniably Meridian.

Twelve of Meridian’s unique DSP technologies make Ellipse capable of handling rooms of any size without compromise on sound quality.

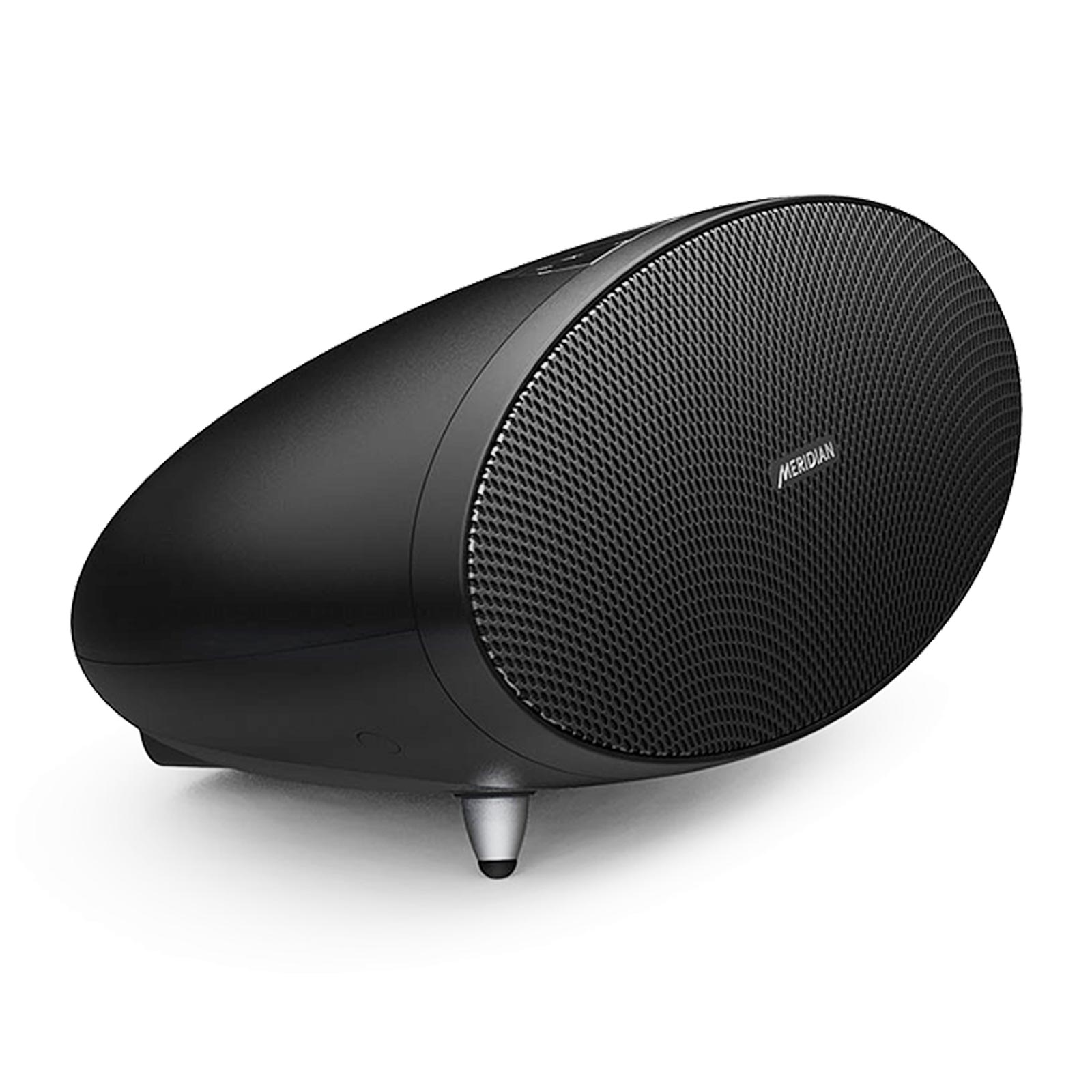

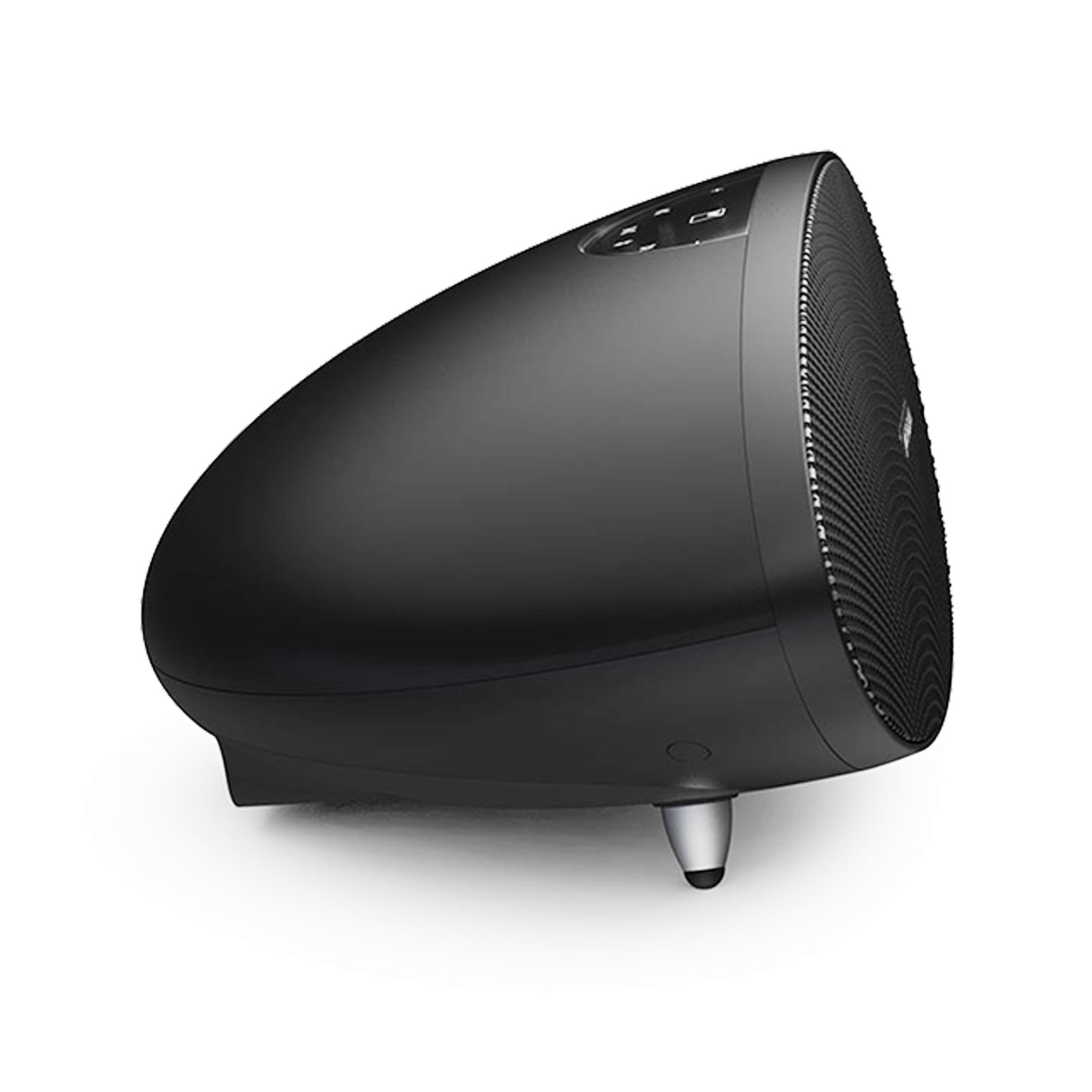

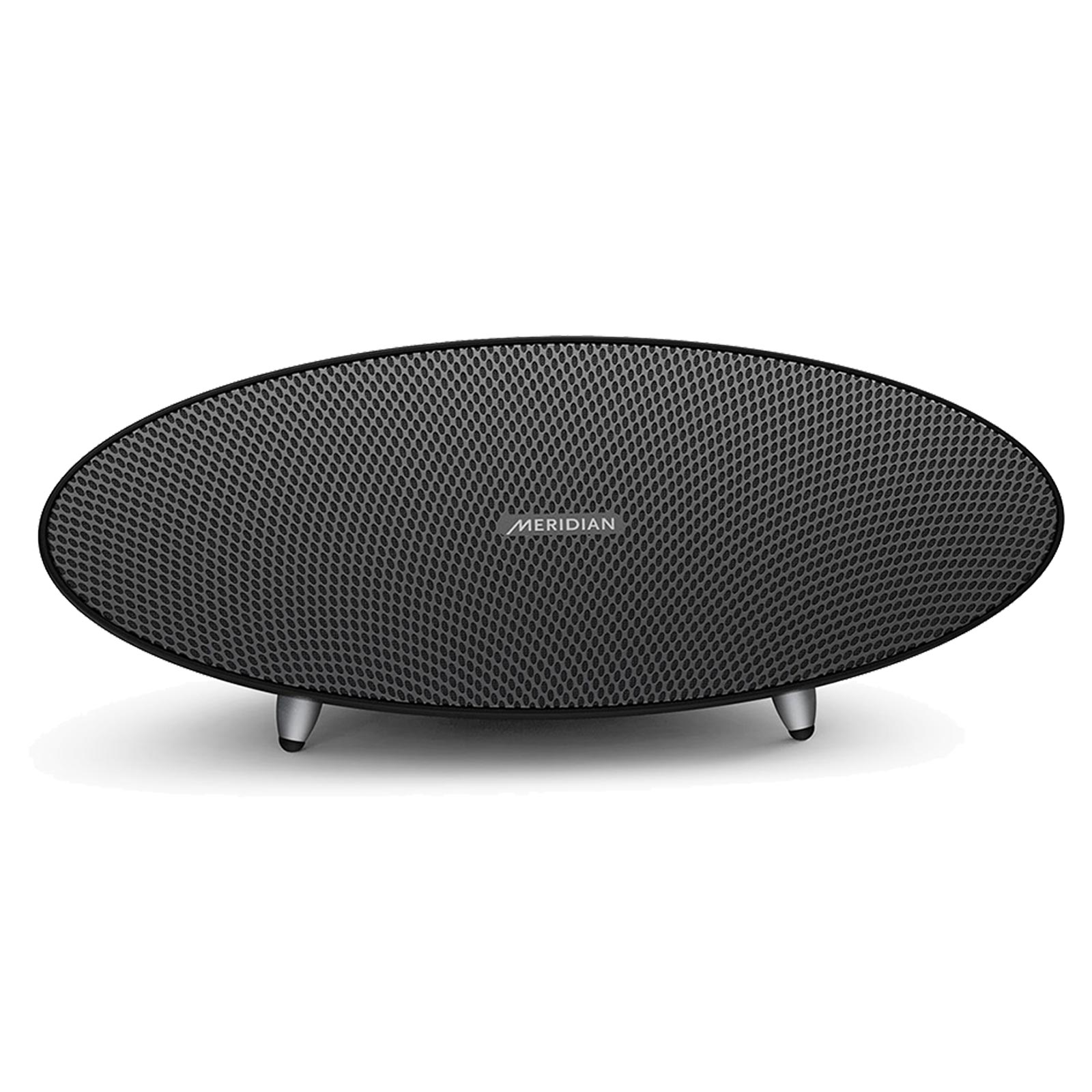

Beautiful to look at, Ellipse is designed to subtly elevate any space. Its elliptical design signature echoes the design of other Meridian products. In combination with its harmonious curves, Ellipse boasts a luxuriously smooth, pebble-like surface in a deep, non-reflective black.

The soft and subtle finish of Ellipse is inviting to the touch, adding an element of style and sophistication to any modern living space. A perfect synthesis of function and form, within a timeless aesthetic.

Each component has been meticulously specified for its acoustic benefits, aesthetic contribution, or both. Meridian Ellipse is rigorously engineered to deliver that Meridian signature sound performance in any room as well as being beautiful to look at and easy to use.

An incredibly inert, perfectly sealed cabinet encloses powerful drive units and sophisticated signal-enhancing technologies. Unique control options, including Image Elevation technology and the innovative Bass and Space feature, allow the listener to tailor the sound to listening preferences, background noise levels, room size, and speaker placement.

Features

• Compact, powerful, all-in-one streaming speaker.
• Immersive, room-filling sound with deep powerful bass response.
• Superb flexibility with Bluetooth® wireless technology and Wi-Fi streaming.
• Ethernet socket provides the option of a wired network connection.
• Supports AirPlay & Google Cast.
• Native streaming from Spotify Connect and TIDAL Connect.
• Roon-Ready device.
• Can be used as a UPnP renderer.
• Full control via Meridian Control app.
• Illuminated quick-access touch controls.

Specifications

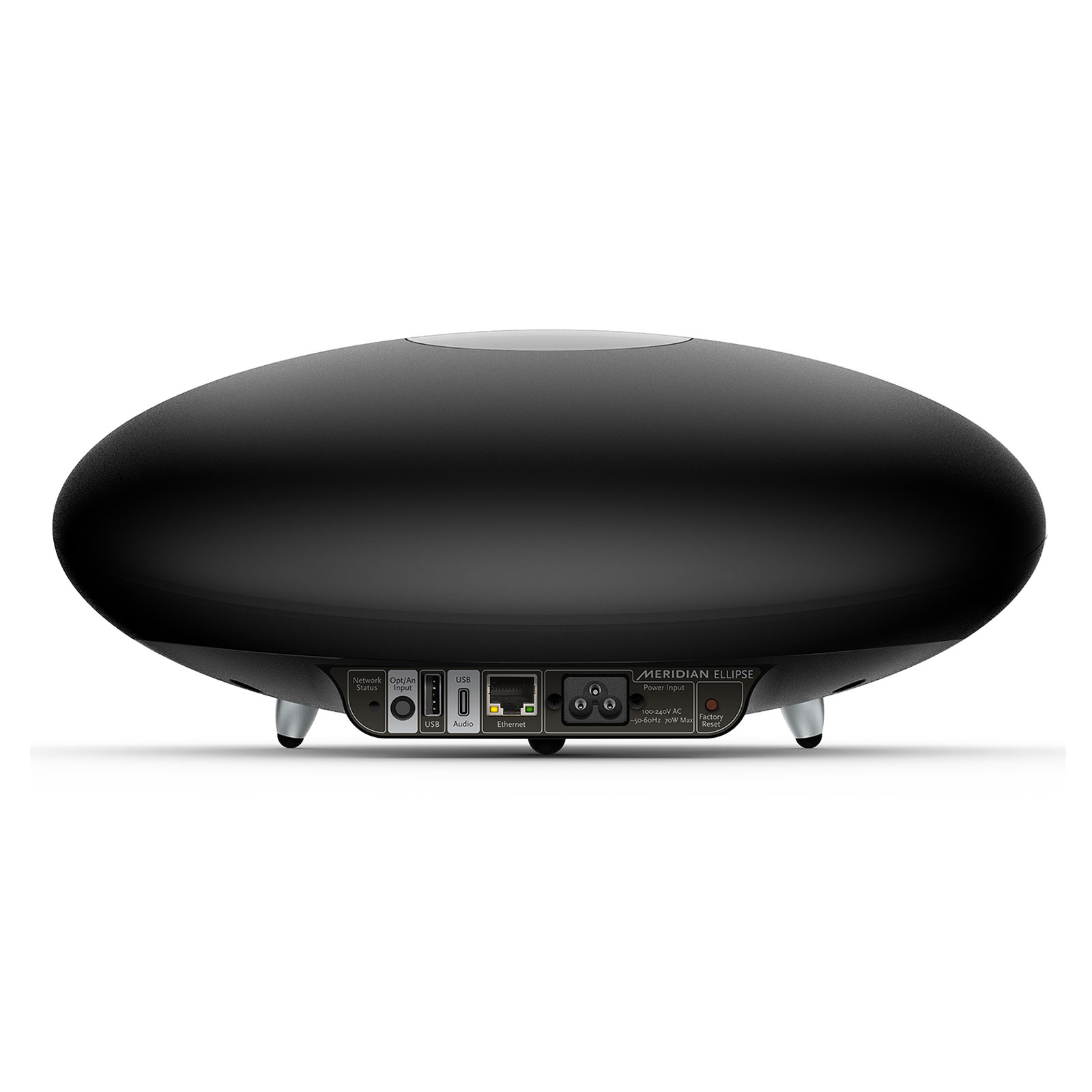

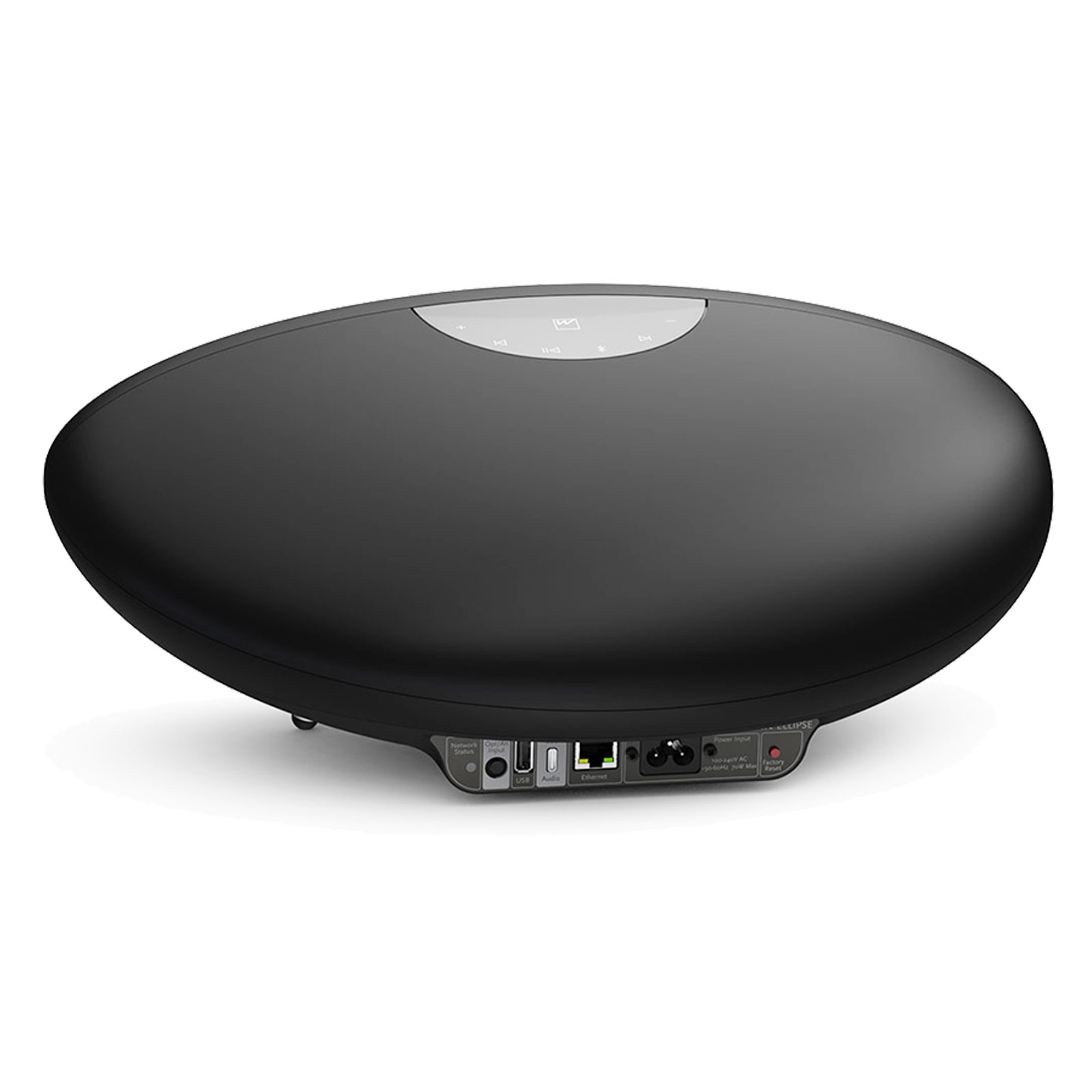

• Audio Inputs:
• Internal streaming source.
• 1 x USB-C, supporting sampling rates up to 192 kHz @ 24-bit.
• 1 x Mini-TOSLINK Optical, supporting sampling rates up to 96 kHz @ 24-bit.
• Stereo analogue with 88 kHz / 24-bit A/D conversion.
• NB: Optical & analogue share dual-purpose 3.5 mm minijack socket.
• Control Options:

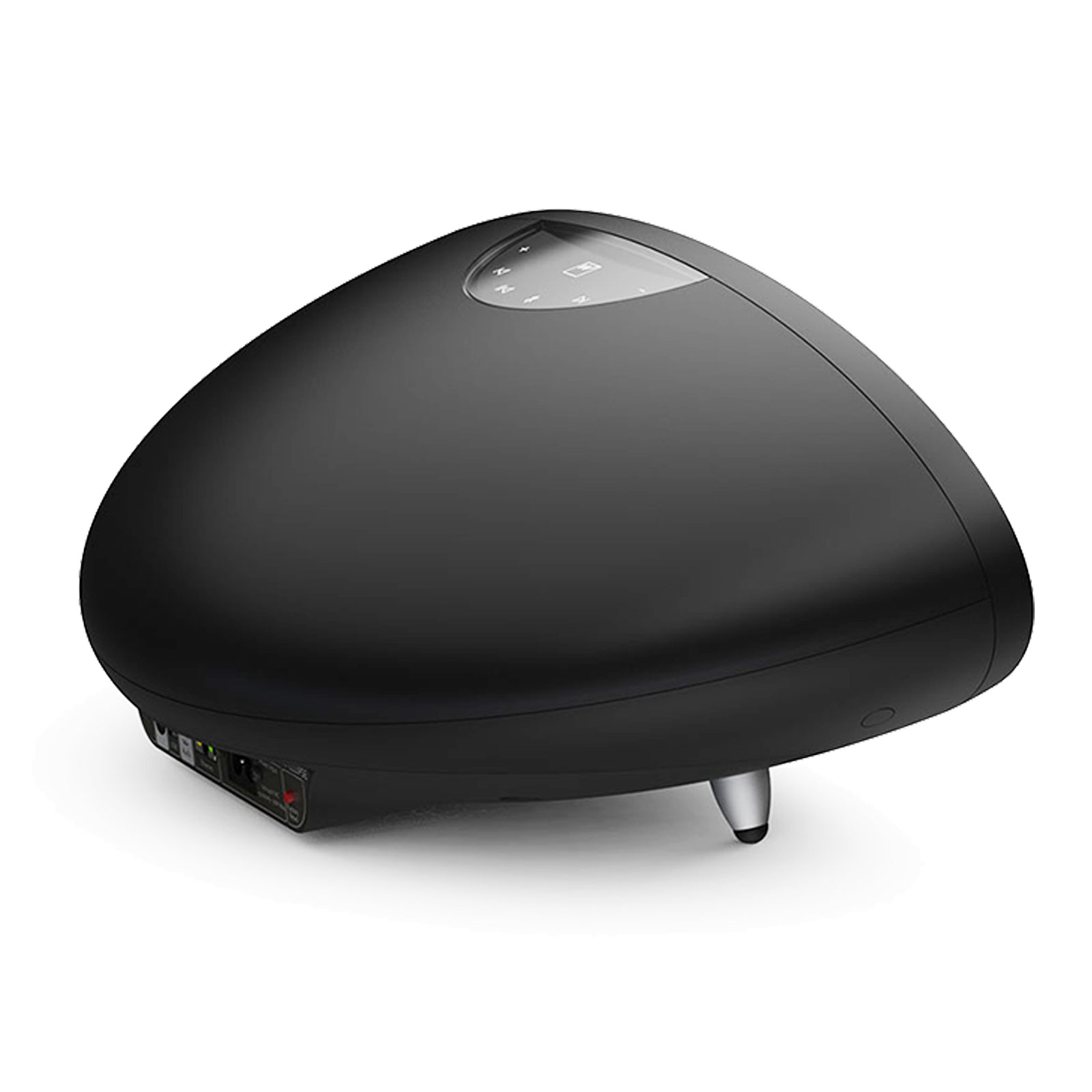

• Illuminated touch controls located on top of unit.
• Meridian Control app via Wi-Fi or Ethernet connection.
• IR receiver eye (MSR2 remote control available separately).
• Automation interface via Wi-Fi or Ethernet connection.
• Performance:
• SPL: 100 dB @ 1 m (pink noise source).
• Frequency Response: 40 Hz – 20 kHz (Volume @ 65).
• Amplification:
• 2 x 25 W, for full-range drivers.
• 1 x 30 W, for subwoofer driver.

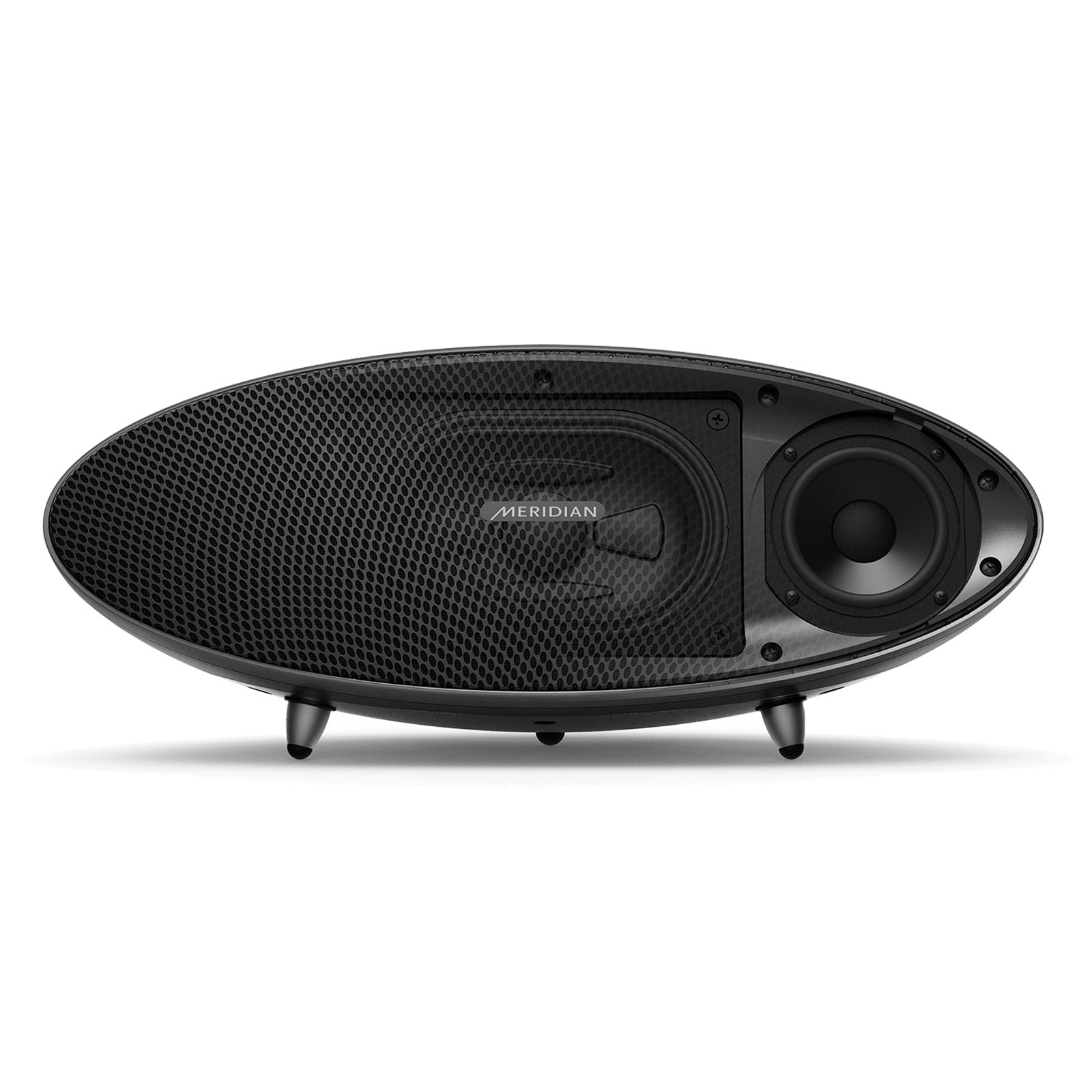

• Drive Units:
• 2 x 90 mm polypropylene wide-range drivers.
• 1 x 150 mm x 100 mm polypropylene long-throw racetrack subwoofer driver.
• Crossover Frequency: 180 Hz.
• Wi-Fi Operation: Dual-band 2.4 GHz / 5 GHz compatible.
• Dimensions (W x D x H): 412. x 223 x 171 mm.
• Weight: 3.9 kg.
• Power: 100 – 240 V AC, Max 80 W.

Included

• 1 x Meridian Ellipse.
• 1 x Power Cord.
• 1 x Documentation.

More Information

• Ellipse Streaming Speaker, by Meridian.
