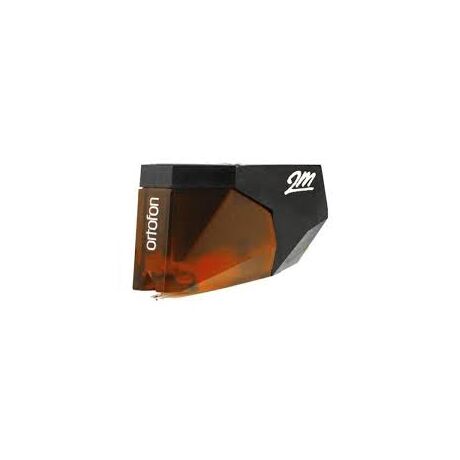

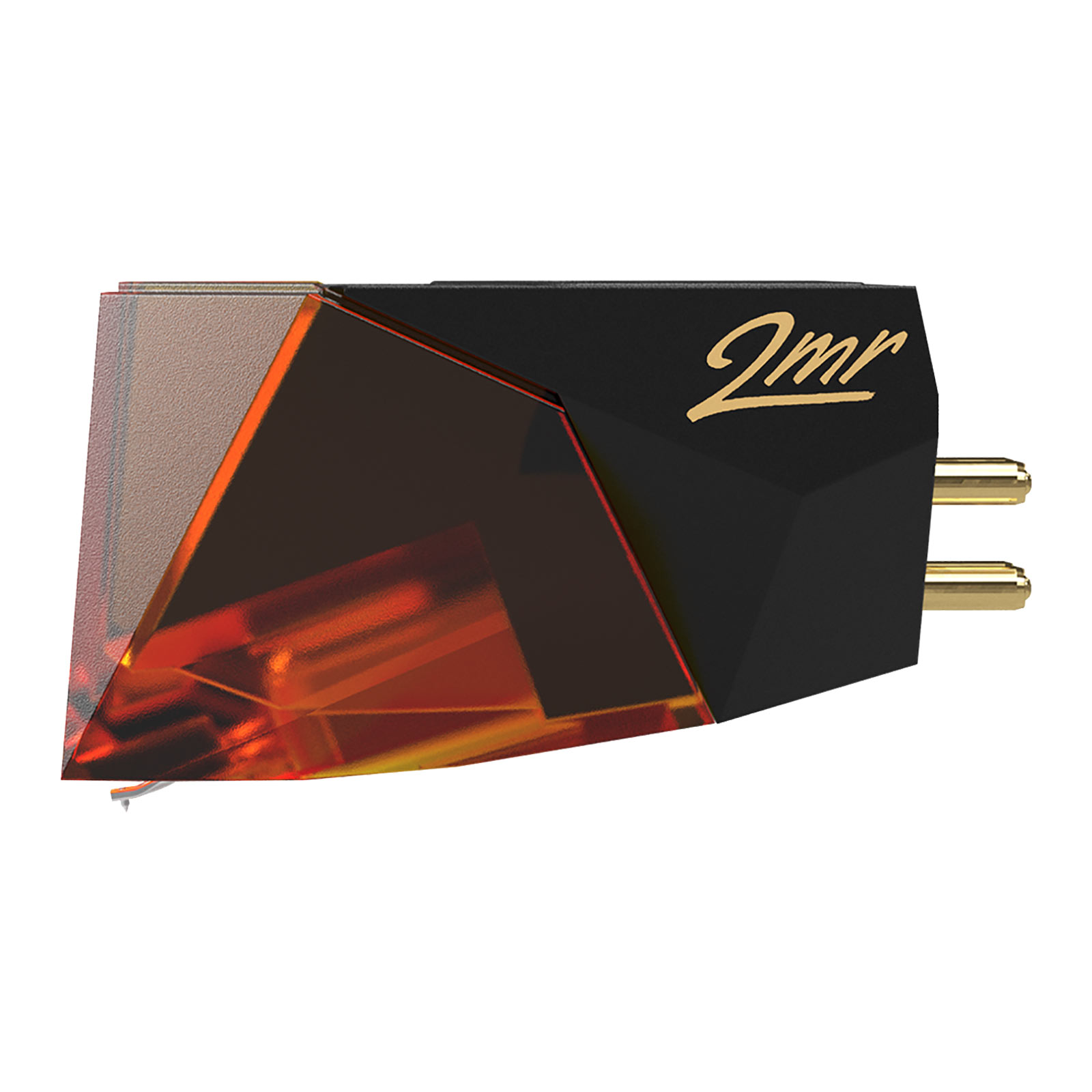

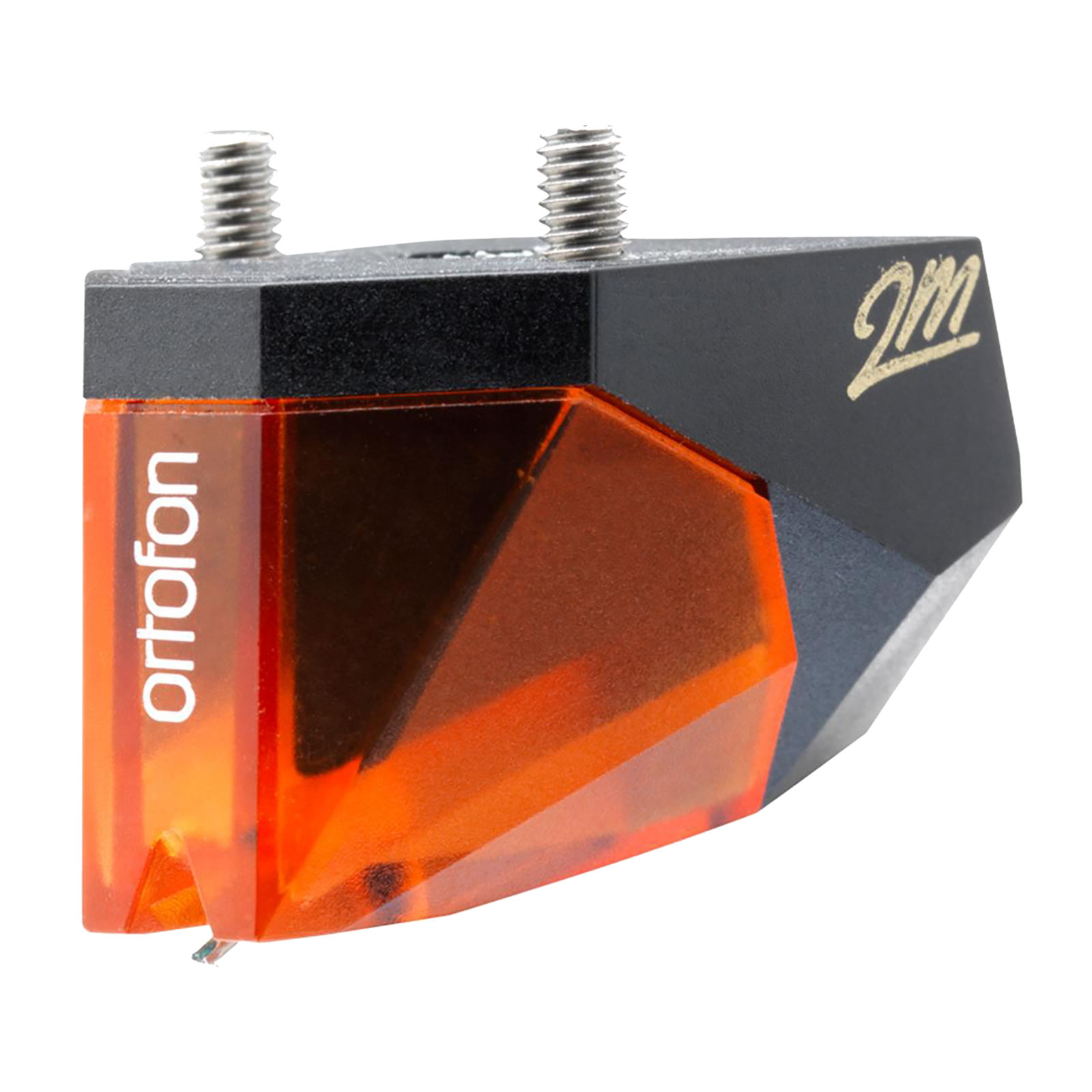

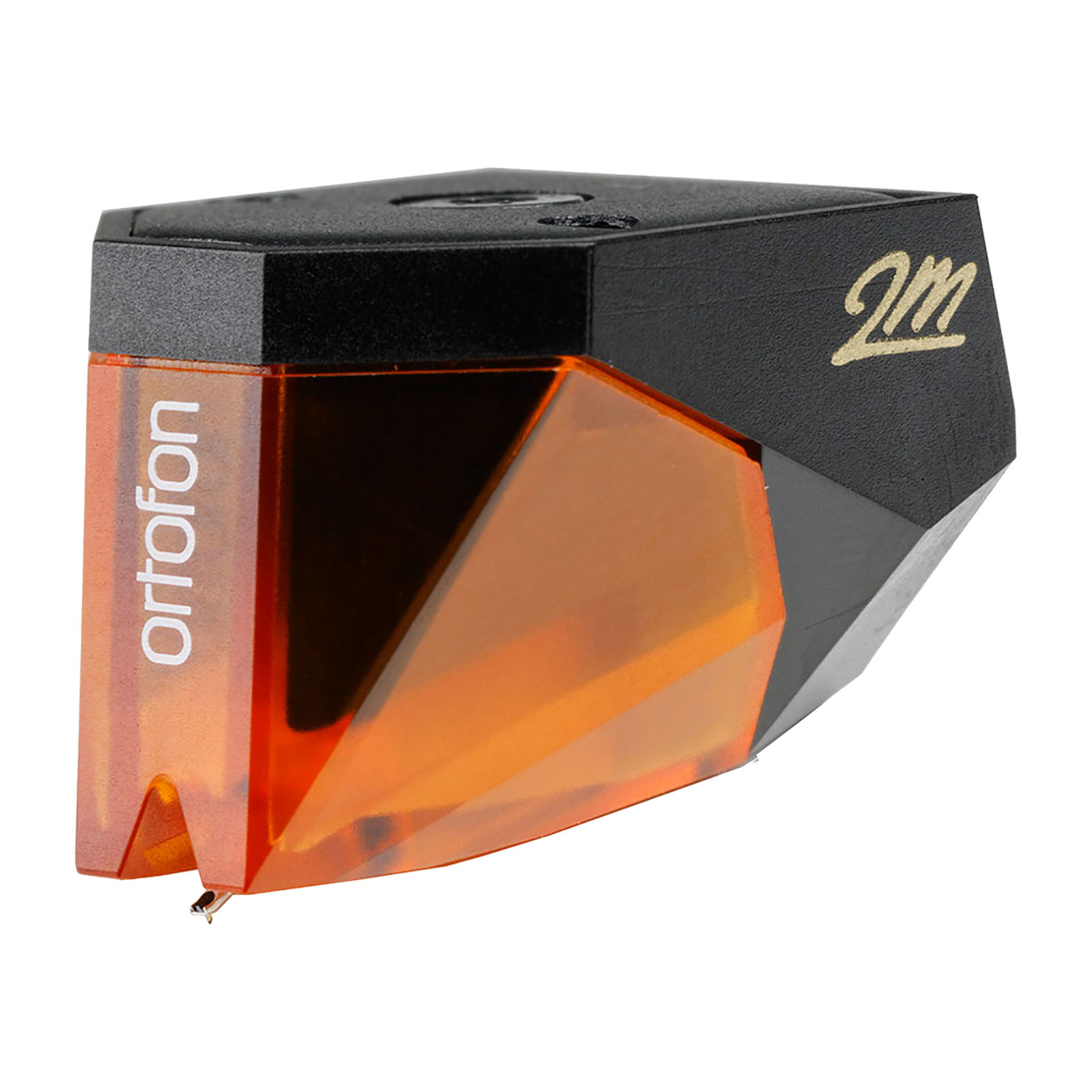

Ortofon 2M Bronze MM Cartridge

2M Bronze has a special upgraded engine, featuring split pole pins with a silver plated copper wire

Features:

• Nude Fine Line diamond
• Silver plated copper wire
• Reduced distortion and record wear
• Special upgraded engine
• Cartridge body manufactred from Noryl plastic/glass combination, ensures high rigidity while eliminating unwanted resonances
• For demanding applications

Technical data:

• Output voltage at 1000 Hz, 5cm/sec.: 5 mV
• Channel balance at 1 kHz: 1 dB
• Channel separation at 1 kHz: 26 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at - 3dB: 20-29.000 Hz
• Frequency response: 20-20.000 Hz + 2 / - 0 dB
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 22 µm/mN
• Stylus type: Nude Fine Line
• Stylus tip radius: r/R 8/40 µm
• Tracking force range: 1,4-1,7g (14-17 mN)
• Tracking force, recommended: 1,5 g (15 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 1,2 kOhm
• Internal inductance: 630 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF

• Cartridge colour, body/stylus: Black/Bronze
• Cartridge weight: 7,2 g
• Replacement stylus unit: 2M Bronze (interchangeable with 2M Black)

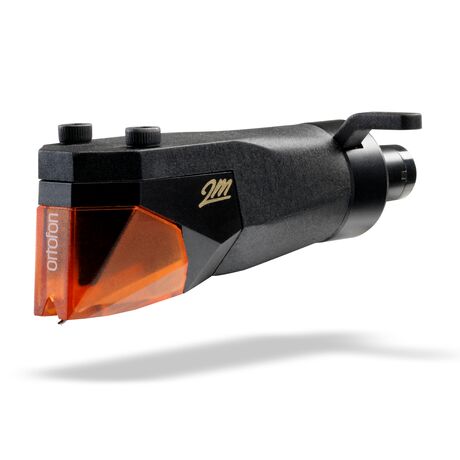

2M Headshell feautures:

• Universal mount fitting a wide range of tonearms
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with Ortofon TA-110/210, likewise with the major part of tonearms with universal mount
• Weight 16,9g, weight with a 2M cartridge pre-mounted 23g
