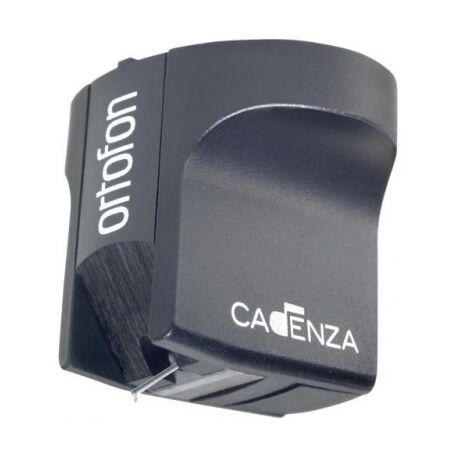

Ortofon Cadenza Black Moving Coil Cartridge
Description
The Cadenza Black model is using a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminium.
It also uses the WRD (Wide Range Damping-system), controlling the high and low frequency damping separately.
Cadenza Black is optimized for an amazing tonal neutrality, dynamics and purity of sound. It is high performing on areas like detail, consistency and sound staging.
|
Technical data |
|
| Output voltage at 1000 Hz, 5cm/sec. | 0,3 mV |
| Channel balance at 1 kHz | < 0,8 dB |
| Channel separation at 1 kHz | > 27 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at - 3dB | 20 - 60.000 Hz |
| Frequency response 20 Hz - 20 kHz | +1,5/0 |
| Tracking ability at 315Hz at recommended tracking force *) | 90 µm |
| Compliance, dynamic, lateral | 16 µm/mN |
| Stylus type | Nude Shibata, Boron cantilever |
| Stylus tip radius | r/R 6/50 µm |
| Tracking force range | 2,0-2,5 g (20-25 mN) |
| Tracking force, recommended | 2,3 g (23 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | > 10 Ohm |
| Cartridge body material | Stainless steel Aluminium |
| Cartridge colour | Black/Black |
| Cartridge weight | 10,7 gram |
Ortofon Exchange Scheme: A moving coil cartridge may be traded in against an equivalent (or superior) model and qualify for a 25% discount off the cost of the new cartridge (25% based upon the cost of the cartridge to be traded in or equivalent) *SPU Series NOT included. Simply contact us and we will get this arranged for you.
