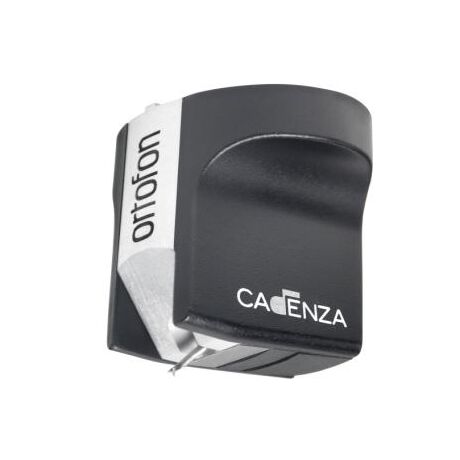

Ortofon Cadenza Mono Moving Coil Cartridge
Description
The Cadenza Mono model is made with a nude fine line stylus and a cylindrical aluminium cantilever. For easy use the pins are connected so you get the same signal from both pairs of connecting pins. The stylus radius is r/R 8/40 µm.
Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate.
Find your old records as well as new micro groove mono records and experience the Cadenza Mono.
| Technical data |
|
| Output voltage at 1 kHz 5 cm/sec | 450 μV |
| Frequency range at -3 dB | 20 Hz - 50 kHz |
| Frequency response 20 Hz - 20 kHz | -3 |
| Tracking ability at 315 Hz at recommended tracking force *) | 70 μm |
| Compliance, dynamic, lateral | 12 μm/mN |
| Stylus type | Nude fine line, Al. cantilever |
| Stylus tip radius | r/R 8/40 |
| Tracking force range | 2,2-2,7 g (22-27 mN) |
| Tracking force recommended | 2,5 g (25 mN) |
| Tracking angle | 20º |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | 50-500 Ohm |
| Cartridge body material | Stainless steel Aluminium |
| Cartridge colour | Natural/Black |
| Cartridge weight | 10,7 g |
Ortofon Exchange Scheme: A moving coil cartridge may be traded in against an equivalent (or superior) model and qualify for a 25% discount off the cost of the new cartridge (25% based upon the cost of the cartridge to be traded in or equivalent) *SPU Series NOT included. Simply contact us and we will get this arranged for you.
