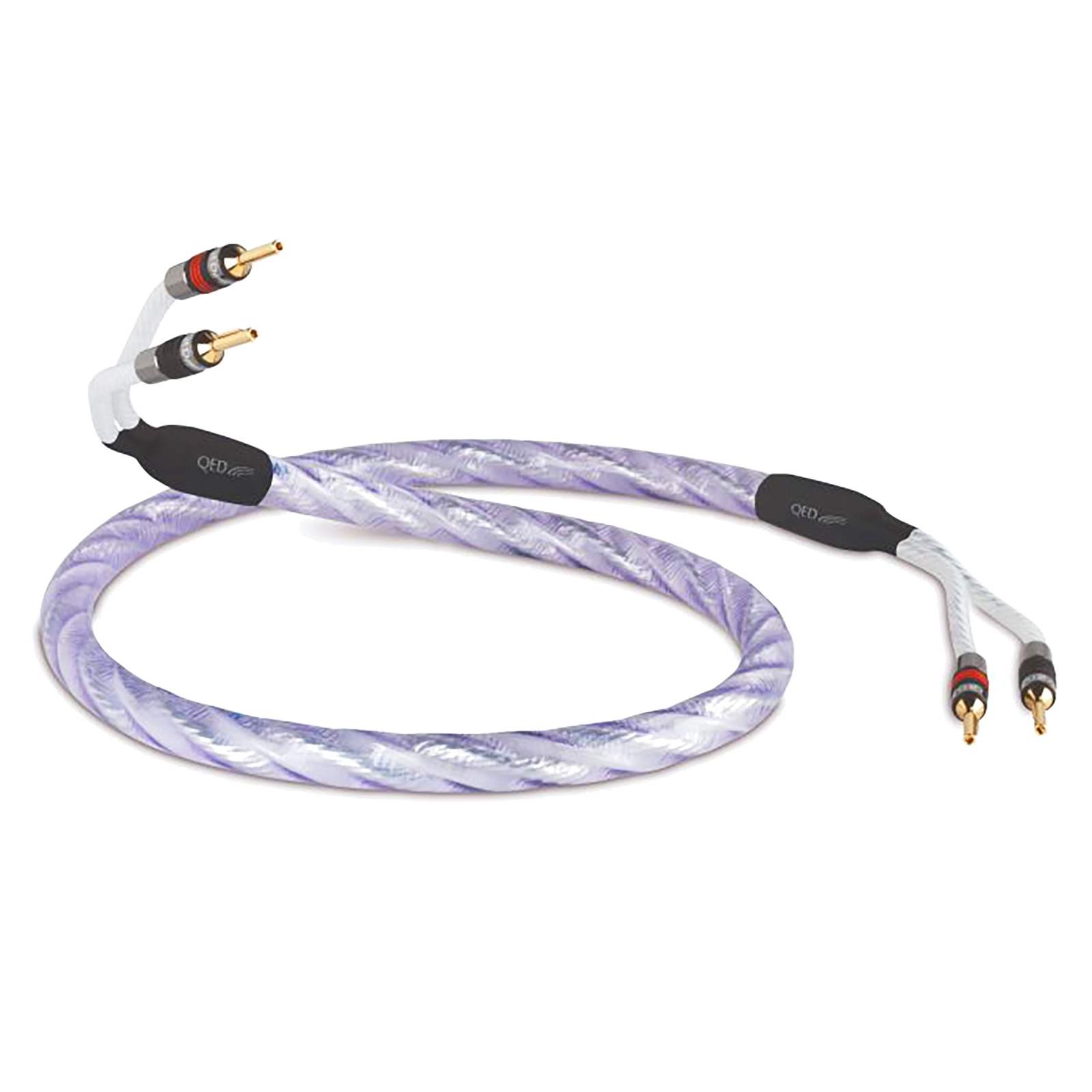

QED Signature Genesis Silver Spiral Speaker Cable (Per-Metre)

Audiophile-grade speaker cable, by QED. This award winning Signature Genesis Silver Spiral is the result of over 40 years of scientific research and development into loudspeaker cables.

Silver Spiral's exceptionally low resistance allows amplifiers to exert outstanding grip and control over the speakers they're driving, especially at low frequencies. This isn't just another speaker cable it is a high-performance audio component representing the culmination of QED research and development over the past 40 years.

QED cables above 2.5 mm2 cross sectional area utilise air core technology to obviate the skin effect by bundling several separately insulated smaller cores together to make up a larger CSA. If these conductors are arranged around a hollow central core of polyethylene, the self-inductance exhibited by the cable can be reduced to around half that predicted by calculation.

Features

• QED Aircore™ technology.
• Unique triple concentric spiral geometry.
• Concentric screen technology.
• 9 bunches of silver-plated 99.999% oxygen-free copper conductors.

Specifications

• Wire Gauge: 10 AWG
• Silver Plated 99.999% Oxygen Free Copper conductors
• Aircore™ Technology
• Jacket OD: 16.60 mm
• Cross-Sectional Area: 5.50 mm2
• Loop Resistance: 0.006 Ω/m
• Capacitance: 76 pF/m
• Inductance: 0.46 µH/m
• Dissipation Factor: 0.0070
• Recommended for high-end installations
• Stranded Diameter: 3.25 mm (min)
• Suitable for ABS, Metal, Maxi Airloc Connectors

Length Options

QED Signature Genesis Silver Spiral is available at £ 55.00 per-metre (ex-VAT), in any length up to 50.00 metres.

Lengths of 1.00 - 10.00 metres may be ordered directly using the purchase options above. For all other lengths please contact us to discuss your requirements.

Termination Options

QED Signature Genesis Silver Spiral can be supplied unterminated, or we can terminate each end of your cable with any of the following connectors:

• QED Airloc Banana Plugs (Pair)
• QED Airloc Spade Connectors (Pair)

Termination Cost

The price for our professional termination service includes the cost of your chosen connectors, plus labour and materials.

If you wish to terminate this cable yourself, please select "None / Unterminated" for your amplifier / loudspeaker termination options, and order your required connectors from our wide range of termination options.

More Information

• Signature Genesis Silver Spiral Speaker Cable, by QED
