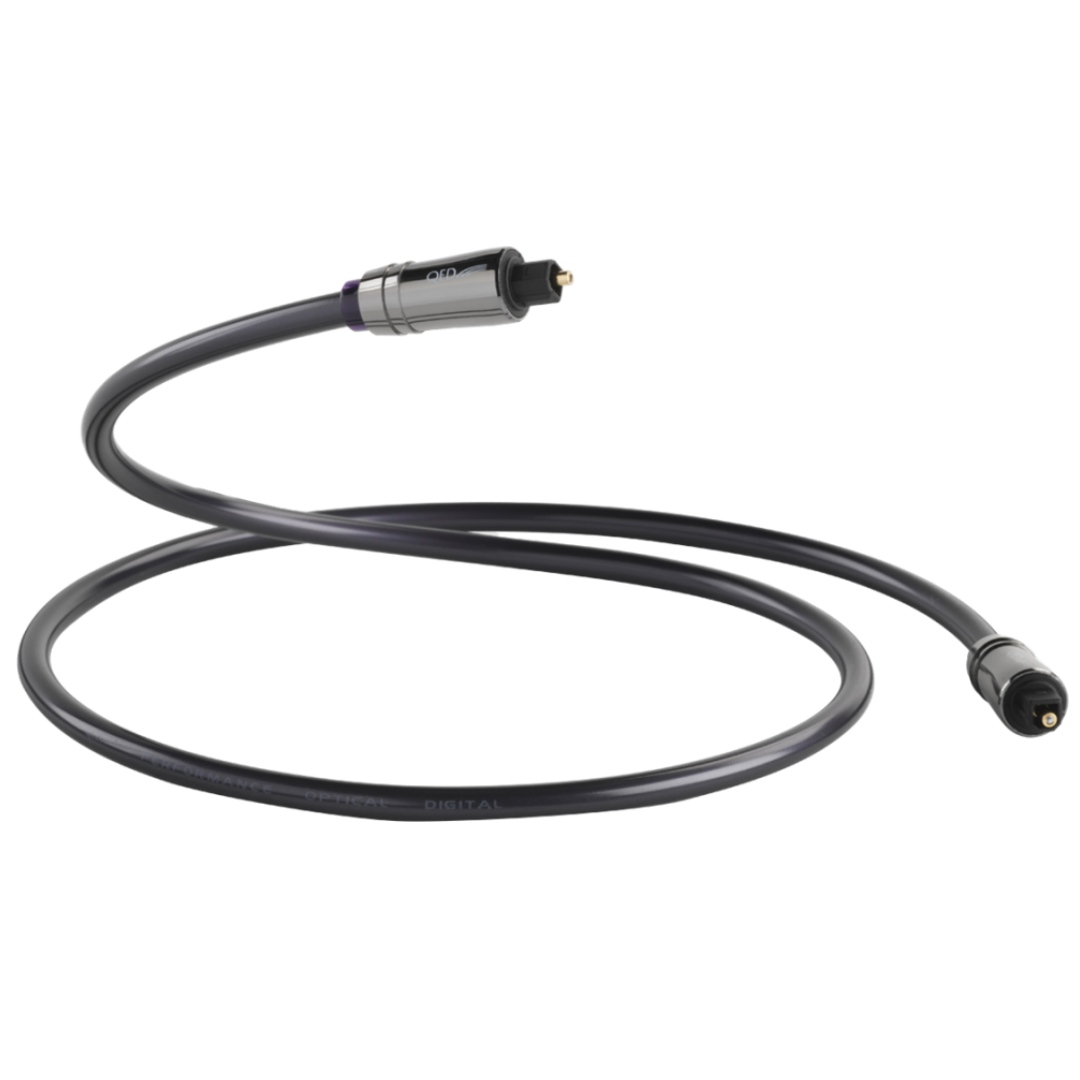

QED Performance Optical Graphite Digital Interconnect Cable

QED's multi-award winning Toslink Optical digital audio cable - Performance Optical Graphite Digital.

The award winning Performance Graphite Optical cable allows you to experience superior sound quality when connecting DAC's, TVs, CD players and Blu-rayTM players to amplifiers or receivers. Performance Optical uses a polymethyl methacrylate (PMMA) acrylic glass optical fibre to comfortably transmit the higher bandwidth signals demanded by today's multi-channel digital audio links. The cable is optimised for a very low jitter design to reduce digital errors, making for a cleaner audio data transmission.

Jitter or distortions caused by errors in the light transmission are a major factor in the deterioration of the audio signal. By incorporating precision cladding techniques, jitter is reduced enabling a cleaner signal with better dynamics and a wider sound stage.

The new optical fibre boasts half the signal attenuation per metre of the previous model, which means 'Performance Graphite comfortably transmits the higher bandwidth signals demanded by today's multi-channel digital audio links. The cable features a stepped refractive index core that together with precision cladding techniques minimises light absorption and modal dispersion of single mode optical signals at the fibre boundary. This reduces the angle of incidence at which total internal reflection occurs so that more rays can propagate along the cable, which in turn makes for decreased jitter and improved audio data transmission.

Features

• Polymethyl Methacrylate (PMMA) acrylic glass optical fibre.
• Very Low Jitter / Low Loss Design.
• Stepped refractive index core.
• Comfortably transmits all higher bandwidth signals.

Specifications

• Plastic Optical Fibre (POF) core of acrylic glass.
• Stepped refractive index.
• Fluorinated Polymer Cladding Material.
• 24K gold plated TOSLINK connectors.
• Precision engineered plug with integrated grip.
• Attenuation < 0.15 dB/m (650 nm)
• Numerical Aperture 0.5
• Minimum Bend Radius 9 mm
• Two-year QED warranty.

More Information

• Performance Optical Graphite Digital Interconnect, by QED
