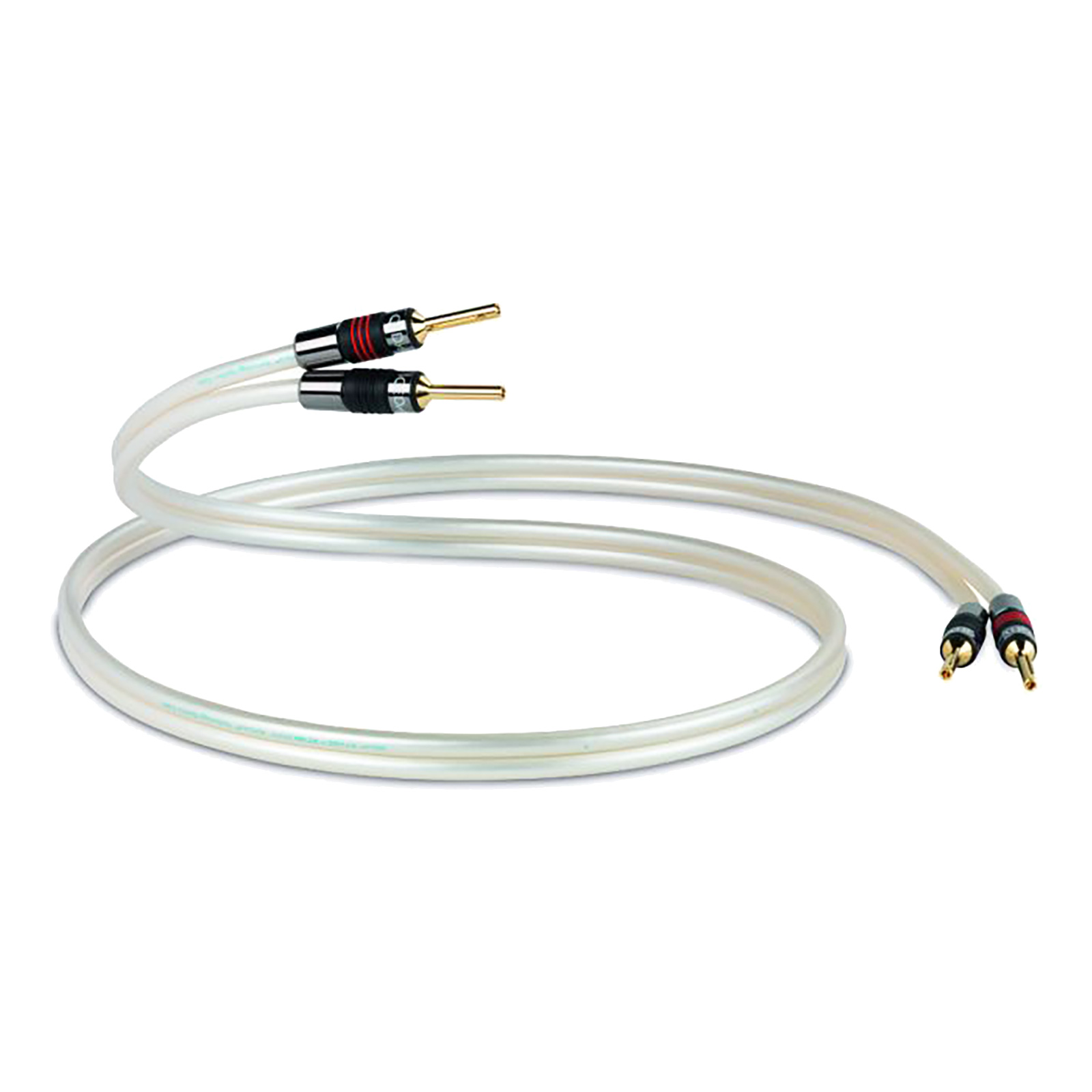

QED Reference XT400 Speaker Cable (Per-Metre)

Reference XT400 Speaker Cable, by QED Cables.

Reference XT400 is QED's multi-award winning XT400 speaker cable, utilising X-Tube™ technology. Silver-plated oxygen-free copper tubular conductor geometry. For use in the finest hi-fi and home theatre systems. This design delivers a massive cross-sectional area using X-Tube™ technology to eliminate the skin effect whilst maintaining a user friendly figure-of-8 geometry. This is QED's ultimate affordable upgrade for high end systems.

At low frequencies both X-Tube™ and conventional stranded/solid core speaker cables convey signals in a linear way. However, at high frequencies, X-Tube™ retains a near-linear signal transfer, whereas the conventional cable fails to conduct uniformly across the entire conductor area. The result is that X-Tube™ delivers greater fidelity across the audio spectrum which would other wise be lost in ordinary cables.

Please note this is a SINGLE WIRE cable. For a stereo pair (left / right), please order two (x2) units.

Specifications

• Brand: QED Cables
• Range: Reference XT400
• Wire Gauage: 12 AWG
• Jacket OD: 6.00 mm
• Cross-Sectional Area: 4.00 mm
• Loop Resistance: 0.008 Ohms/m
• Capacitance: 43 pF/m
• Inductance: 0.50 µH/m
• Dissipation Factor: 0.0400
• Stranded Diameter: 2.75 mm (min)

Length Options

QED Reference XT400 is available at £ 29.17 per-metre (ex-VAT), in any length up to 50.00 metres.

Lengths of 1.00 - 10.00 metres may be ordered directly using the purchase options above. For all other lengths please contact us to discuss your requirements.

Termination Options

QED Reference XT400 can be supplied unterminated, or we can terminate each end of your cable with any of the following connectors:

• CCS 4 mm Banana Plugs (Pair)
• CCS 8 mm Spade Connectors (Pair)
• QED Airloc Banana Plugs (Pair)
• QED Airloc Spade Connectors (Pair)

Termination Cost

The price for our professional termination service includes the cost of your chosen connectors, plus labour and materials.

If you wish to terminate this cable yourself, please select "None / Unterminated" for your amplifier / loudspeaker termination options, and order your required connectors from our wide range of termination options.
