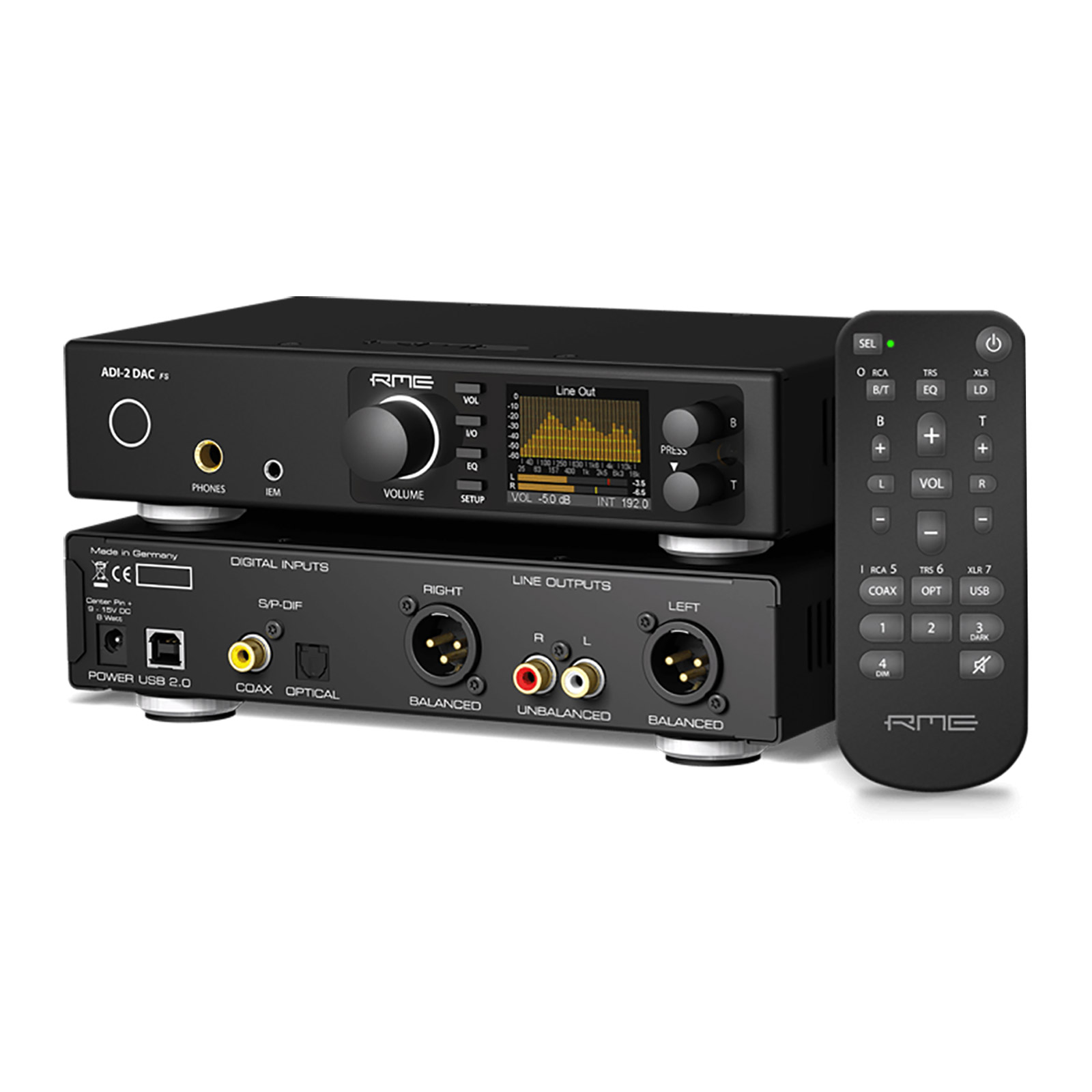

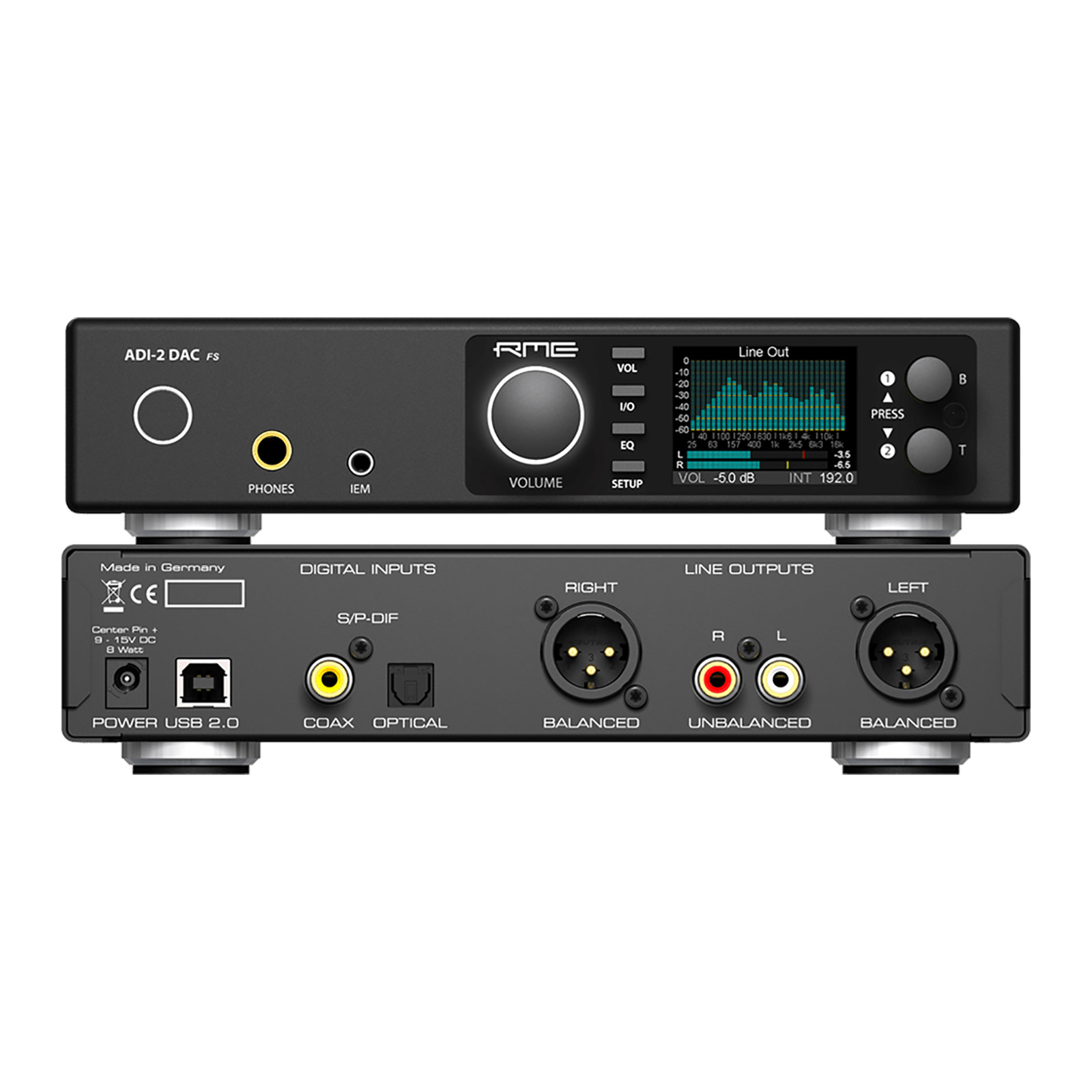

RME ADI-2 DAC FS Ultra-Fidelity DA Converter

ADI-2 DAC FS, Ultra-Fidelity Digital-to-Analogue Converter, by RME.

ADI-2 DAC is the home and hi-fi optimized version of the ADI-2 Pro, a studio AD/DA converter of the highest quality. With many fresh ideas, innovative features and numerous useful functions, the ADI-2 DAC quickly became the reference.

Thanks to its combination of high-end DA conversion with two exceptional headphone IEM outputs and a remote control, it has received countless enthusiastic reviews for its sound, flexibility, and technical capabilities.

The ADI-2 DAC includes an improved SteadyClock, a fine-tuned to perfection analog circuitry, new MRC remote control, Extreme Power headphone output and a very special IEM output. It has all the bells and whistles that made the ADI-2 Pro famous, including its perfectly transparent sound signature and full DSP processing with Bass, Treble, Loudness, 5 Band Parametric EQ, Crossfeed and much more. With its simplified operation and stunning design it is the ideal center piece from home listening up to studio reference playback.

The current version of the ADI-2 DAC comes with an extended remote control, a further improved DA conversion and an adapted analog output stage for even better noise and distortion values.

To address the home and HiFi users, RME exchanged some of the Pro's studio features with typical home and HiFi ones. With an adapted feature set and much simplified operation RME proudly presents the ADI-2 DAC.

Built on the technology, concept and features of the ADI-2 Pro, the DAC concentrates on DA conversion in top high-end quality, along with two exceptional headphone and IEM outputs.

Features

• Home audiophile / studio reference quality desktop DAC.
• SteadyClock FS - Reference class digital clocking.
• DigiCheck - Free software tool for analysing digital audio streams.
• ADI-2 Remote - Manage DAC parameters via the software controller.

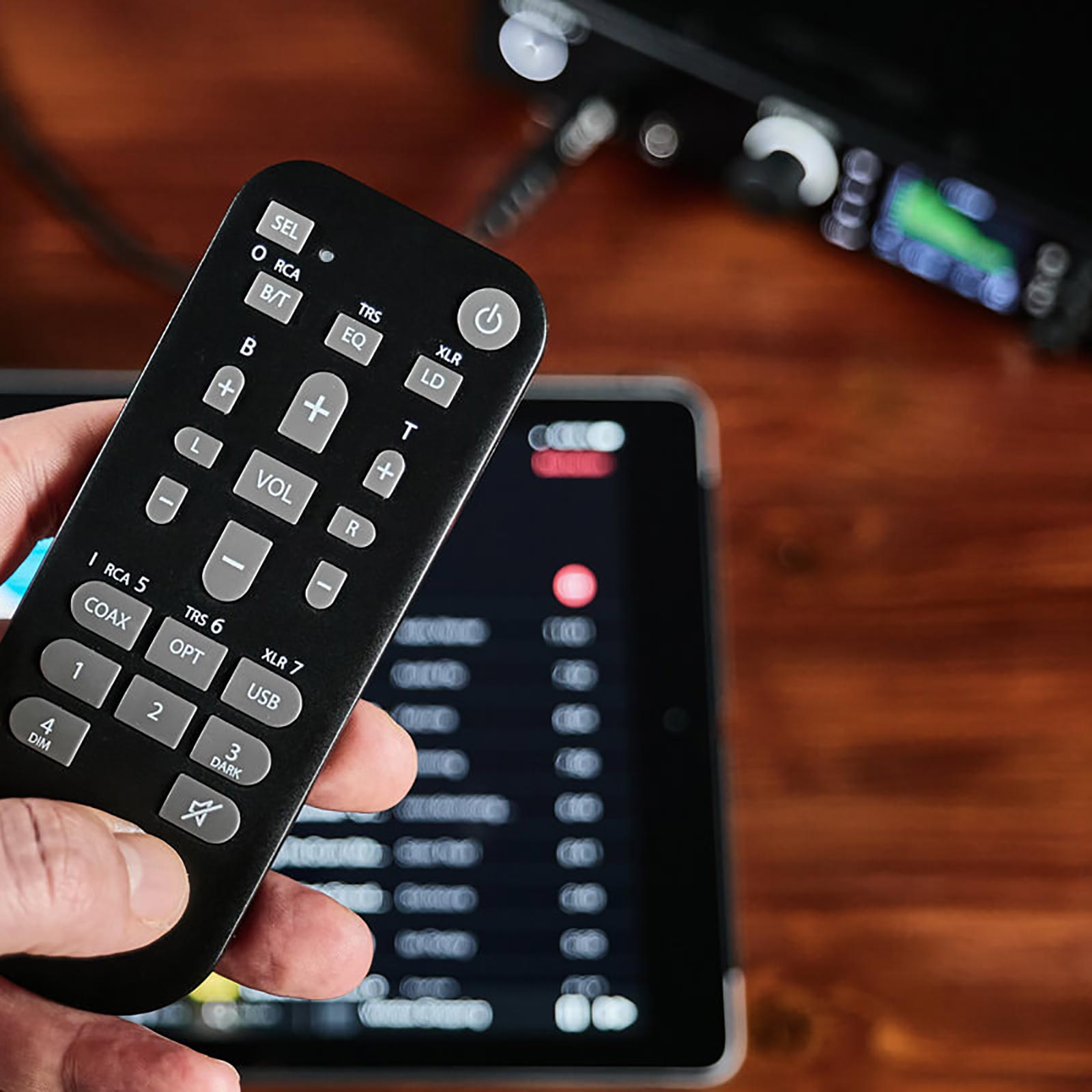

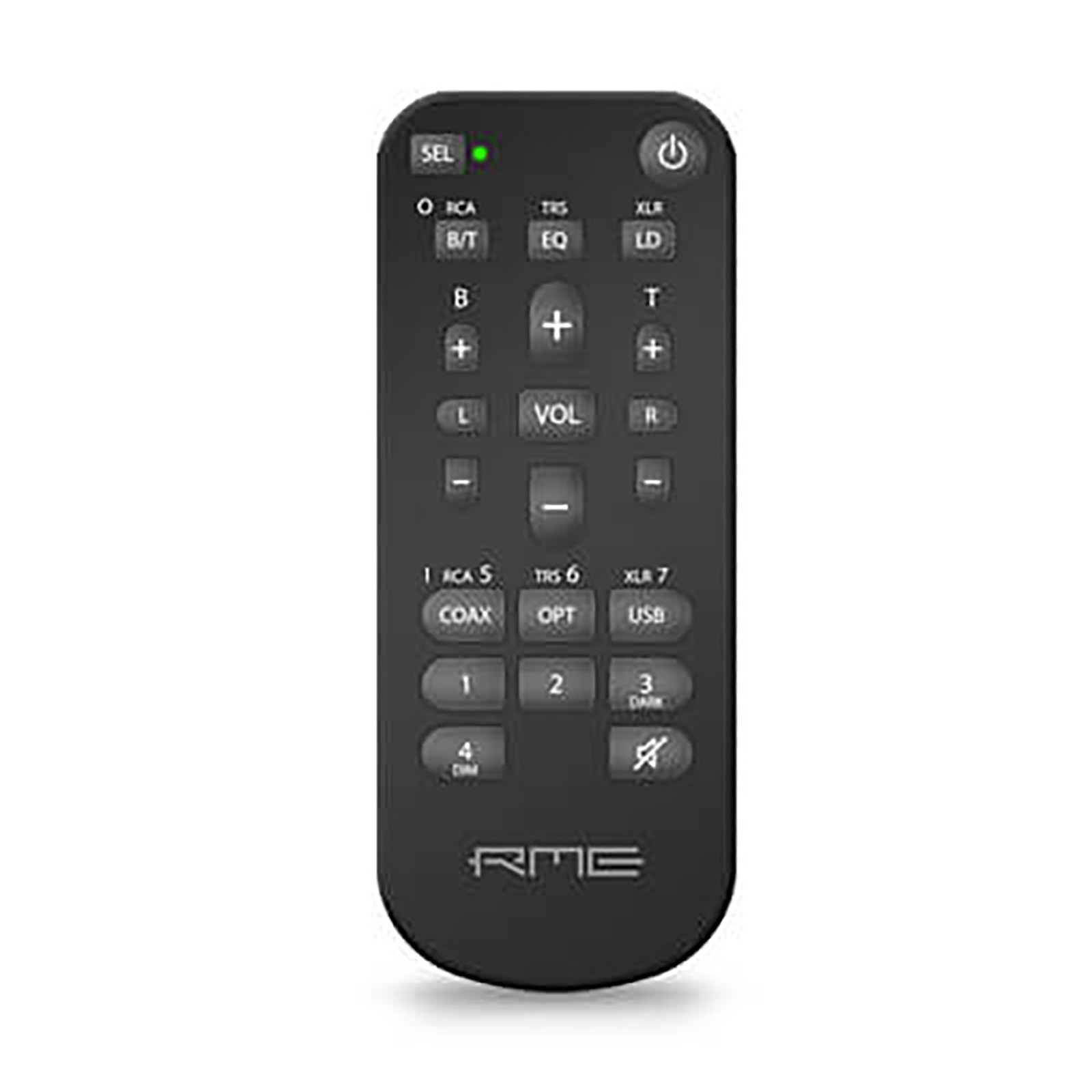

• Multi-Support Remote (MRC) - Handheld remote included, easy to use.

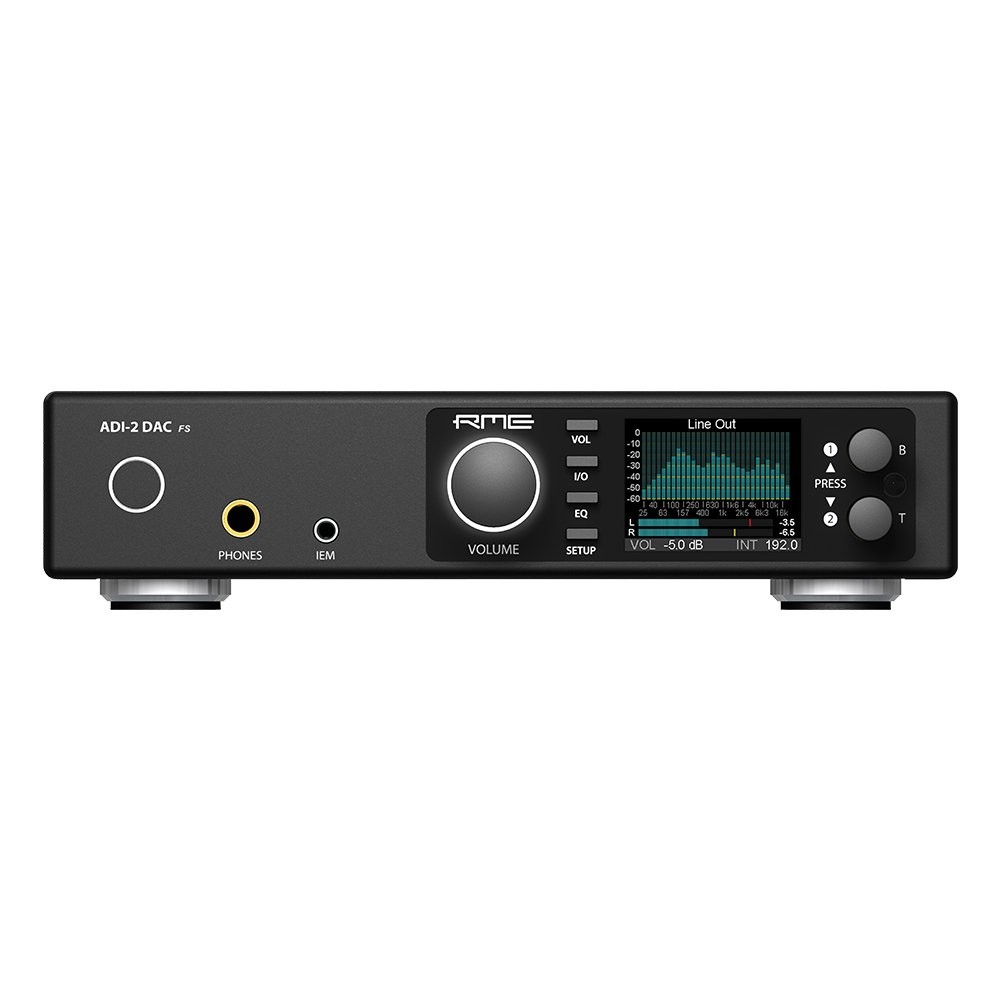

• Front Panel Headphone Outputs - For 6.35 mm / 3.5 mm headphones / IEMs.

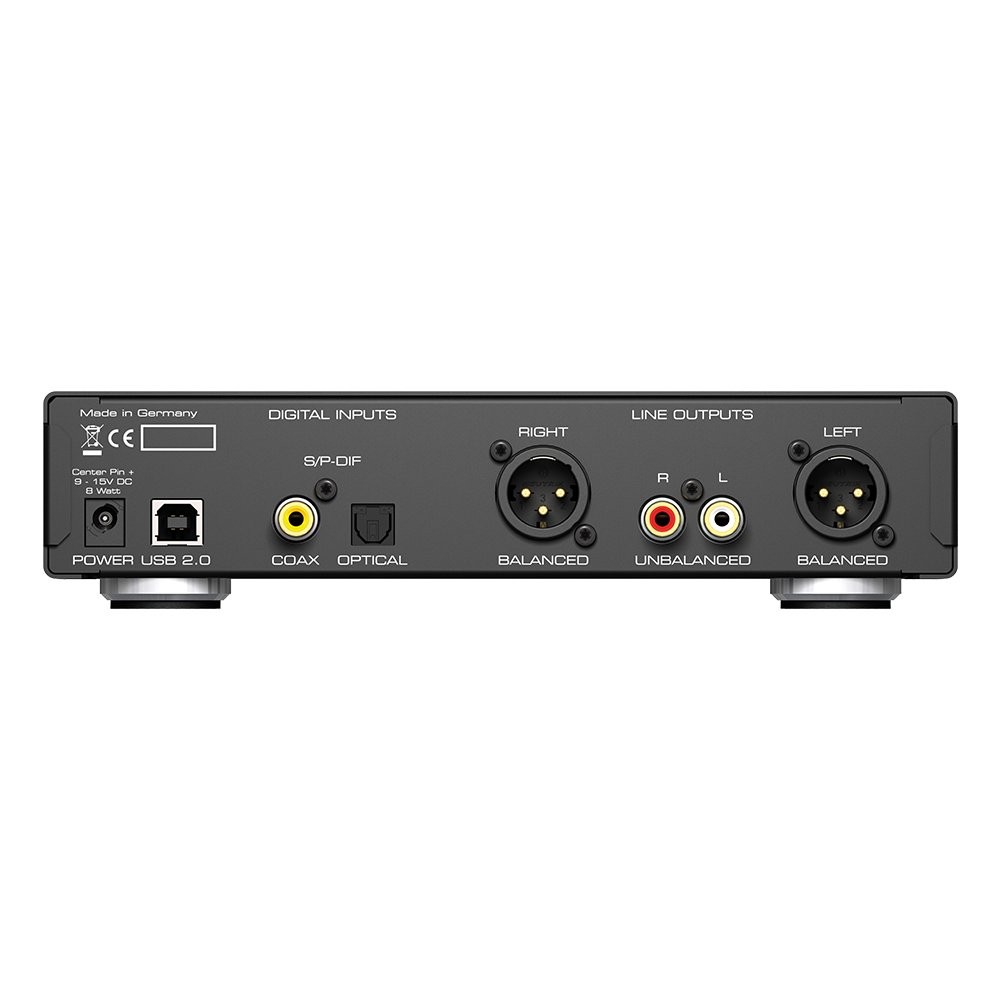

• Balanced (XLR) or Unbalanced (RCA) outputs.
• Wide range of digital inputs, including S/PDIF, Coaxial, Optical, USB 2.0.

Specifications

• Inputs: USB 2.0, S/PDIF Coaxial / Optical.
• Outputs: Balanced XLR, Unbalanced RCA.
• Headphone Outputs: 6.35 mm TRS, 3.5 mm Mini-TRS.
• DAC: ESS ES9028Q2M.
• Power Supply: External switching PSU, 100 - 240 V AC, 2 A, 24 W
• Standby Consumption: 120 mW (10 mA)
• Idle Consumption: 7 W
• Max Consumption: 18 W
• Idle Current @ 12 V: 570 mA (6.8 W)
• Dimensions (W x H x D): 215 x 52 x 150 mm
• Weight: 1.0 kg

Included

• 1 x ADI-2 DAC FS.
• 1 x Power Supply NT-RME-2.
• 1 x USB 2.0 Cable, 2.00 m.
• 1 x Remote Control.
• 1 x Documentation.

More Information

• ADI-2 DAC FS, by RME
