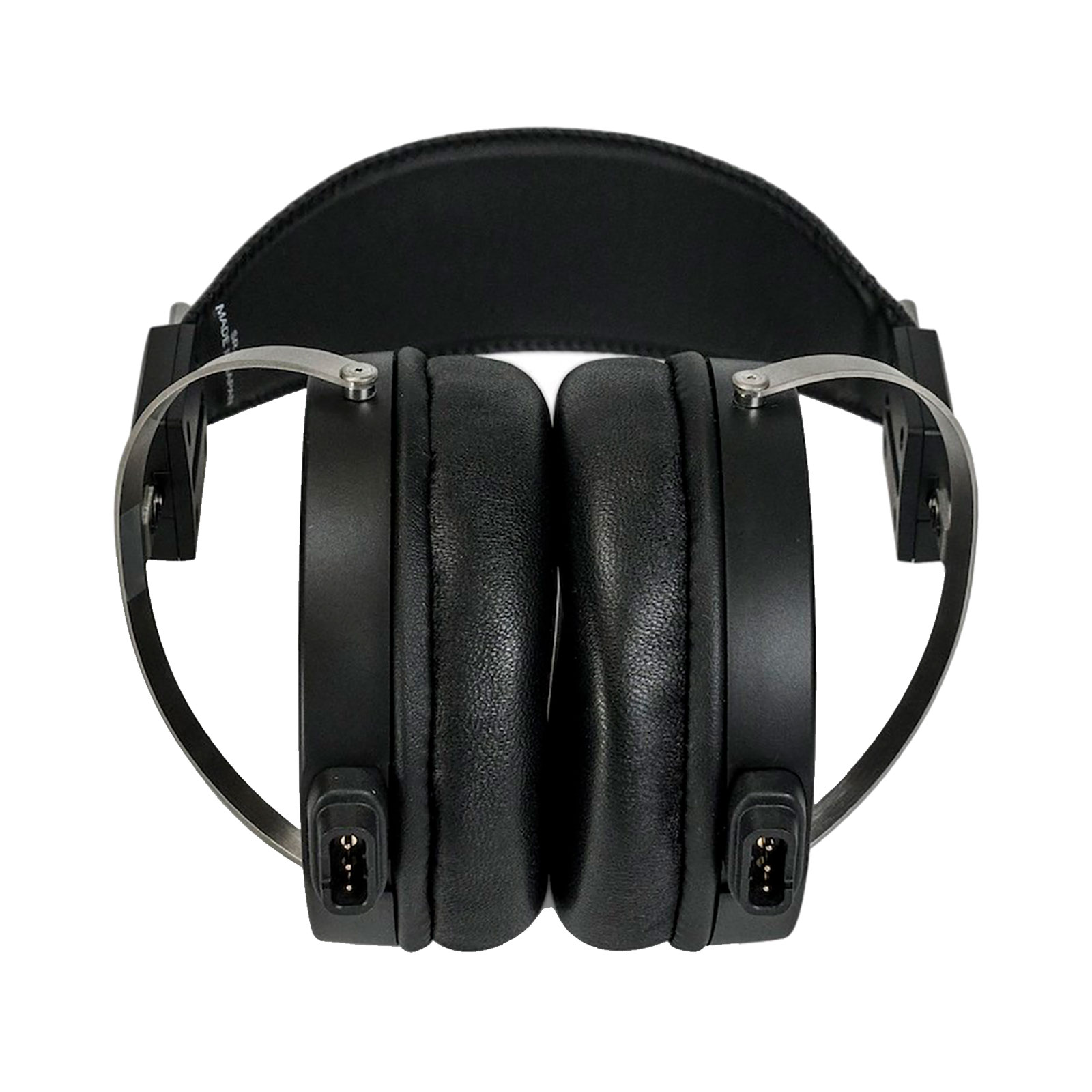

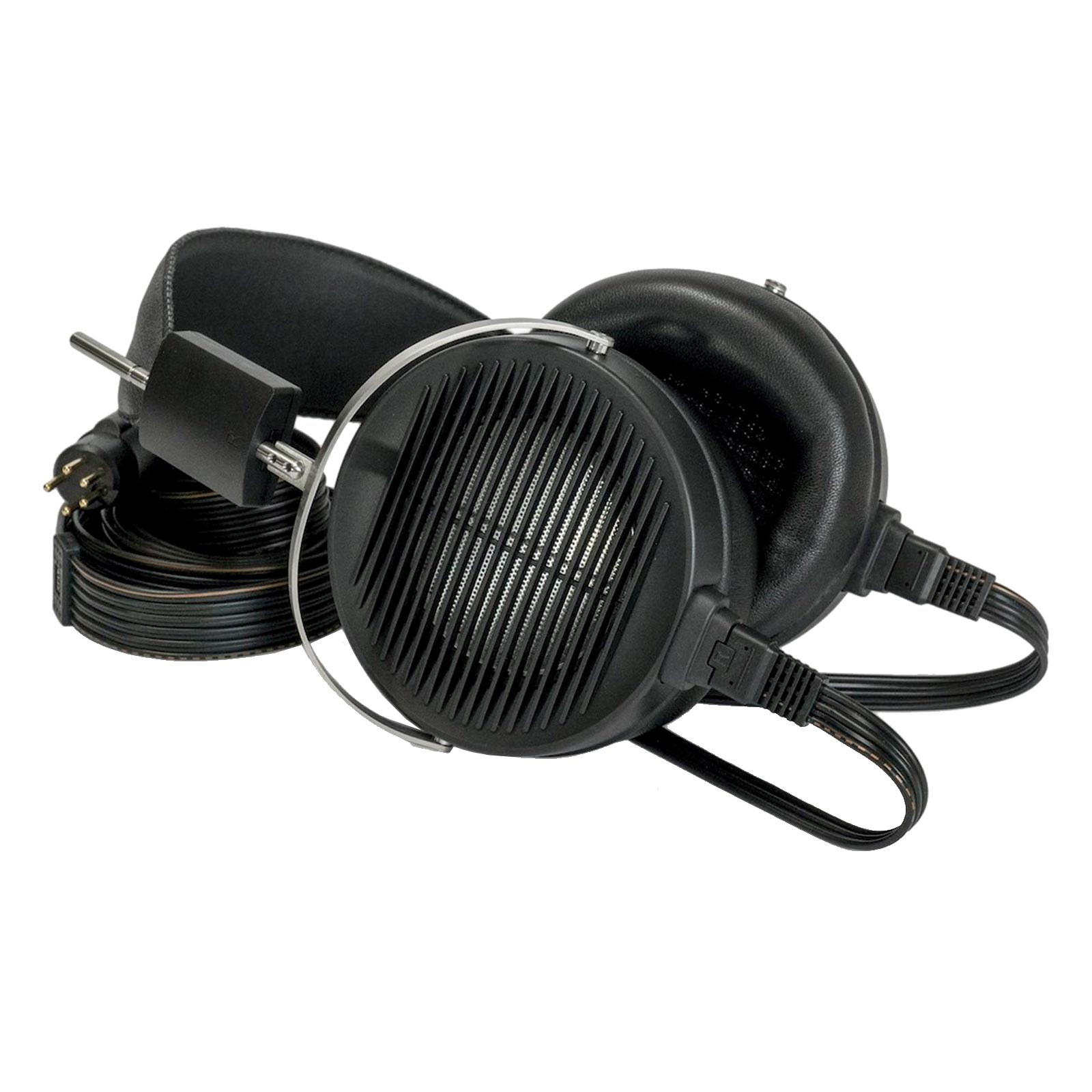

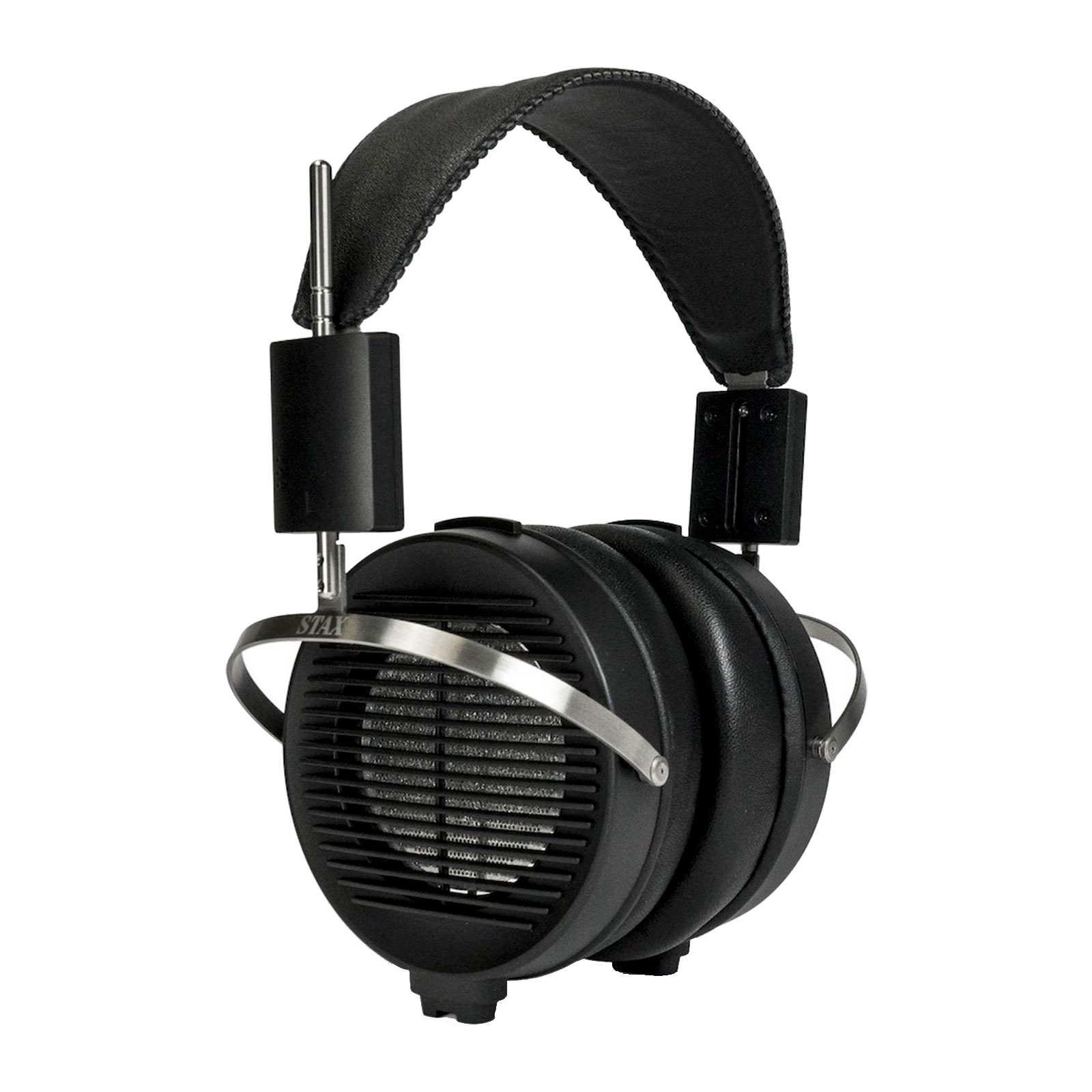

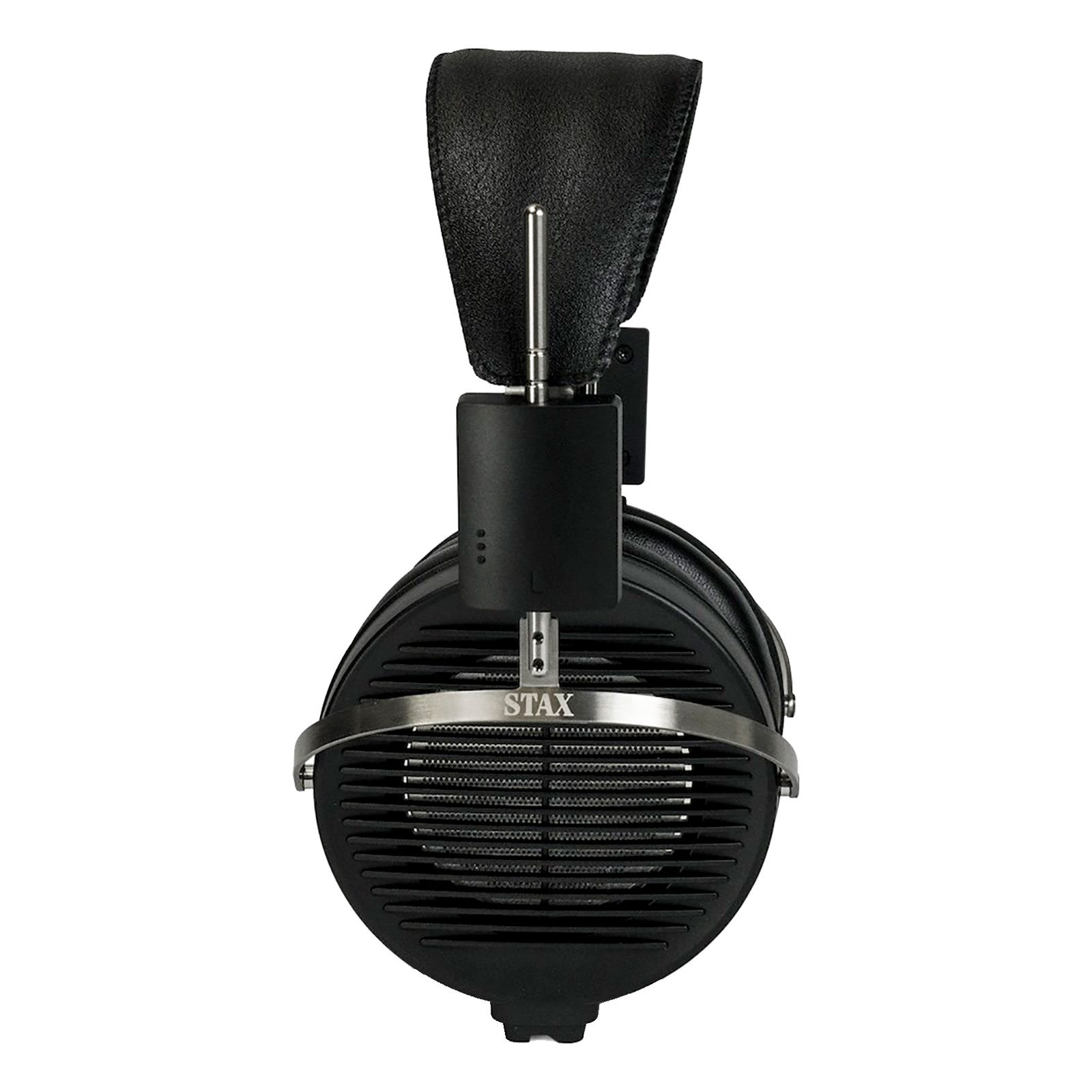

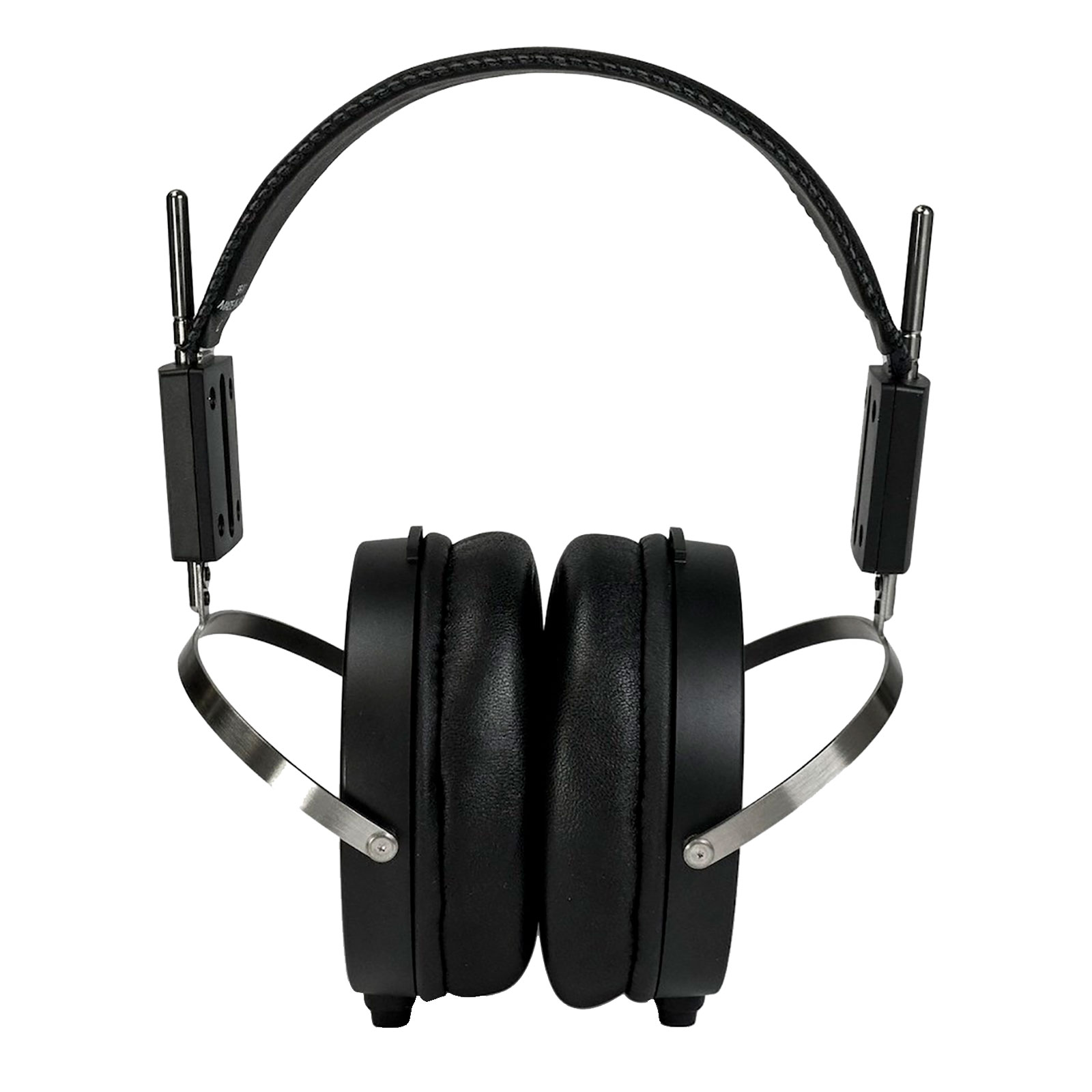

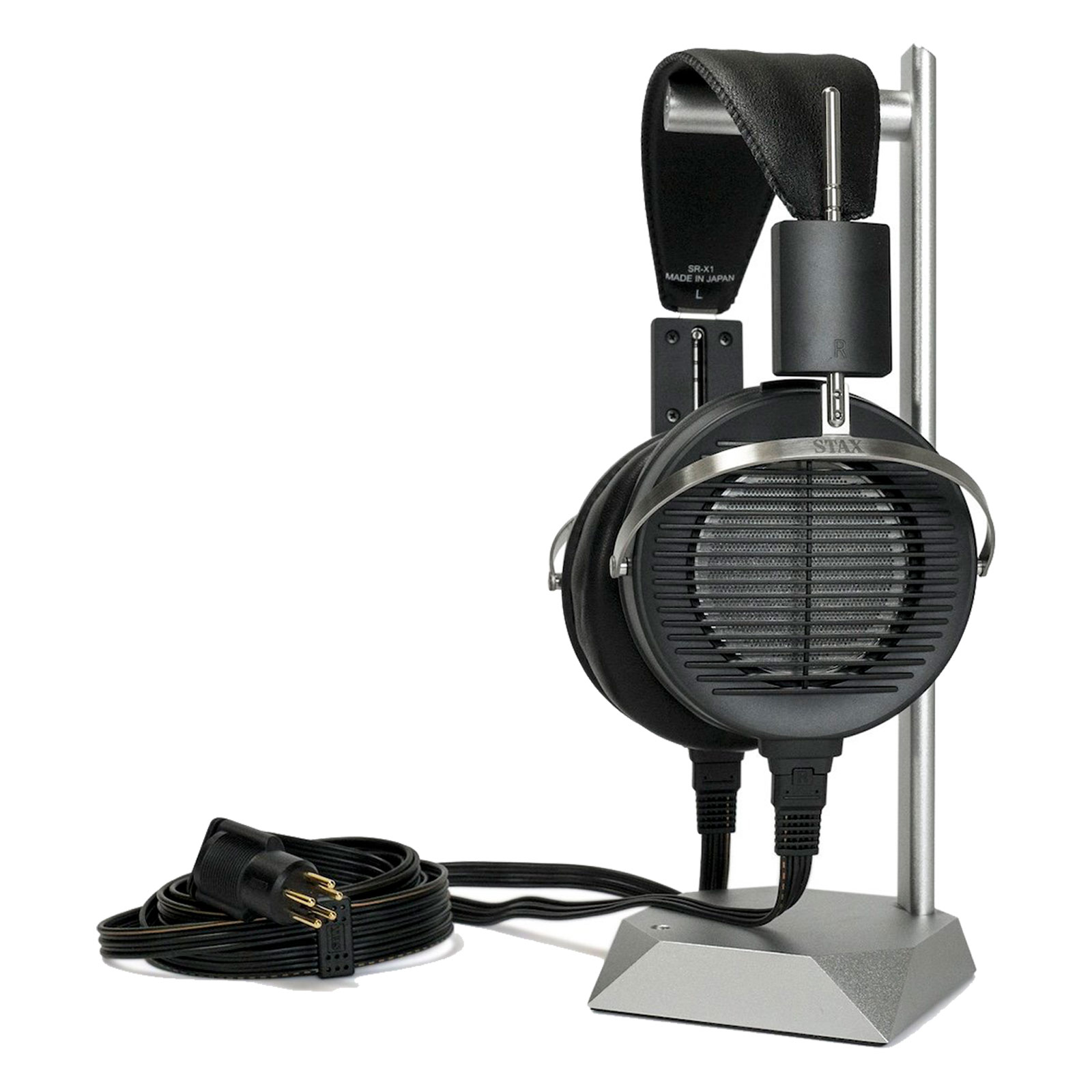

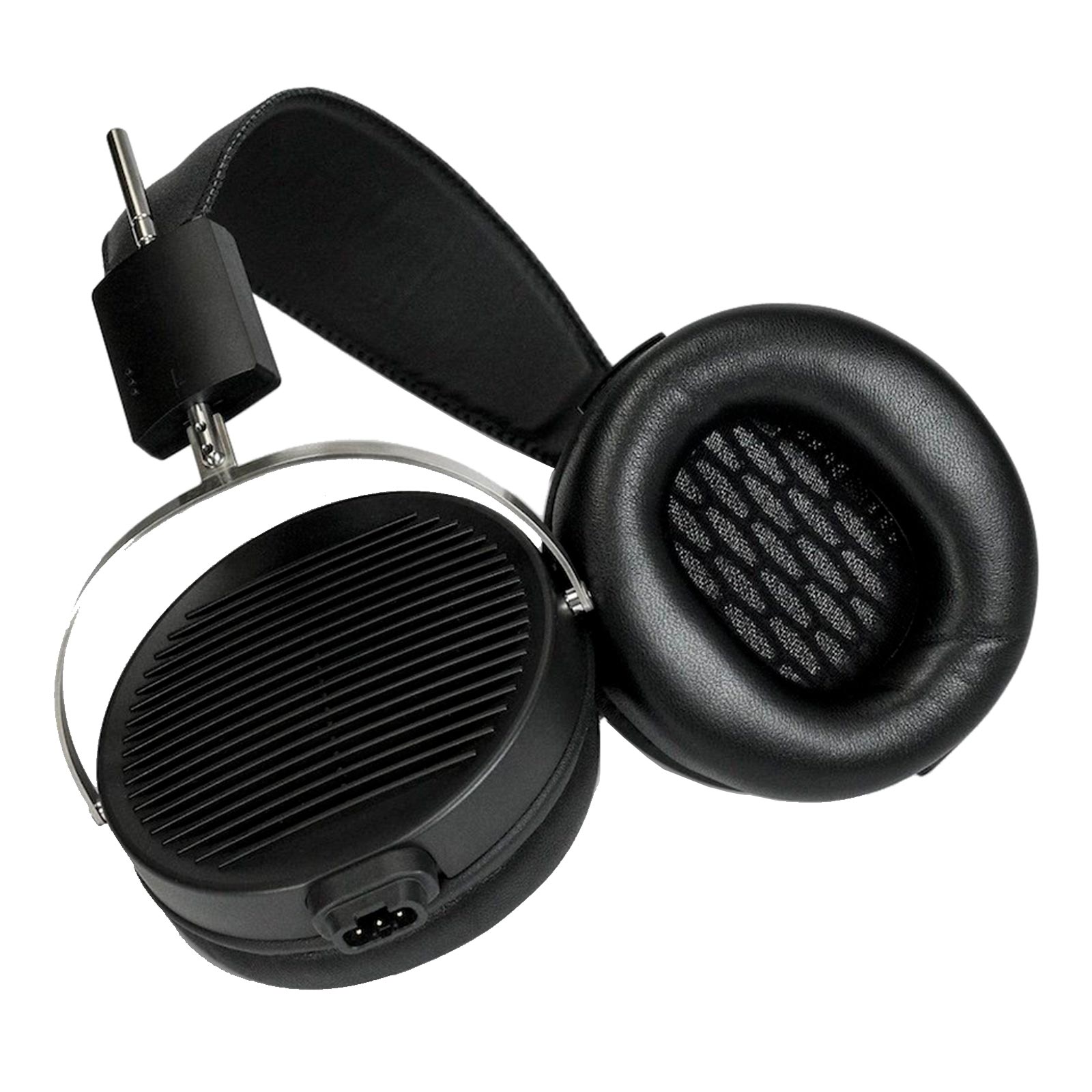

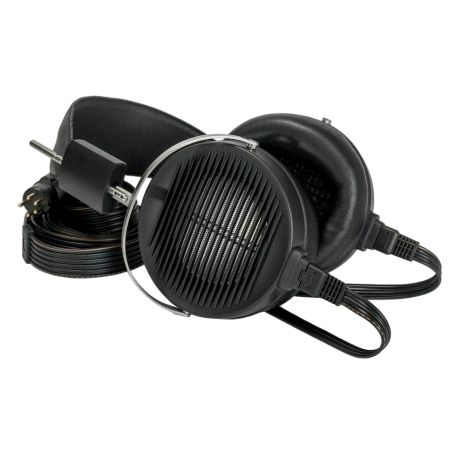

STAX SR-X1 Electrostatic Earspeakers

SR-1X Electrostatic Earspeaker, by STAX Audio. A new entry-level model that traces the roots of ear speakers.

Introducing the SR-X1, a new entry-level model that recreates the traditional circular ear speaker with modern design concepts. Delivering authentic electrostatic sound to the next generation. The heritage design, which is based on the motif of successive ear speakers, SR-1 and SR-X, incorporates such thoughts.

The sounding body, which is the basis of sound quality, is equipped with a newly designed medium-sized circular unit. It features flat and neutral reproducibility, which is a characteristic of electrostatic type. Compared to previous models, the sound production unit is placed directly inside the housing, and the seams between each part are minimized to achieve accurate and focused sound.

The open back slit structure has an uneven thickness and a smooth curved shape to allow sound waves to pass through smoothly and reduce distortion. Mechanically, it uses a re-cable structure. The rational design and thorough pursuit of minimization for high sound quality in various parts bring out the maximum performance from the SR-X1.

Using metal for the frame structure suppresses unnecessary resonance. The rigidity of the arc assembly, which was often overlooked in conventional entry-level machines, has also been updated.

By proactively using metal materials, the arc and head pad are integrated, making it lightweight enough to prevent listening fatigue even when listening for long periods of time.

The ear pads are made of soft sheepskin. The interior uses new memory foam to further improve the fit.

Oxygen-free copper (OFC) has been employed for the cable core wires. The entire cable is then arranged in a flat, wide format configuration to lower the capacitance between each wires and finished with the most suitable structure to drive the earspeaker.

Features

• Entry-level circular earspeaker, tracing the roots of electrostatic design.
• Flat and neutral sonic reproduction.
• Revamped arc design and improved fit.
• New low-capacitance wide OFC cable.

Specifications

• Format: Push-pull electrostatic circular sounding body, rear open enclosure.
• Unit shape: Medium-sized circular.
• Fixed Electrode: High-precision etching electrode.
• Frequency Response: 7 Hz - 41,000 Hz.
• Capacitance: 110 pF (including attached cable).
• Impedance: 145 kΩ (@ 10 kHz / 2.5 m including attached cable).
• Sound Pressure Sensitivity: 101 dB / 100 V rms, input / 1 kHz.
• Bias Voltage: DC 580 V
• Cable Conductor: OFC
• Cable Shape: 6 parallel cores, wide low capacity cable, 2.5 m
• Ear Pads: Genuine sheepskin facing, with artificial leather surround.
• Weight: 234 g (body only).
• Country of origin: Japan.
• JAN: 4996476001084

Included

• 1 x SR-X1 Electrostatic Earspeakers.
• 1 x Low Capacitance OFC Cable, 2.5 metre.
• 1 x Documentation.

More Information

• SR-X1 Earspeakers, by STAX Audio
