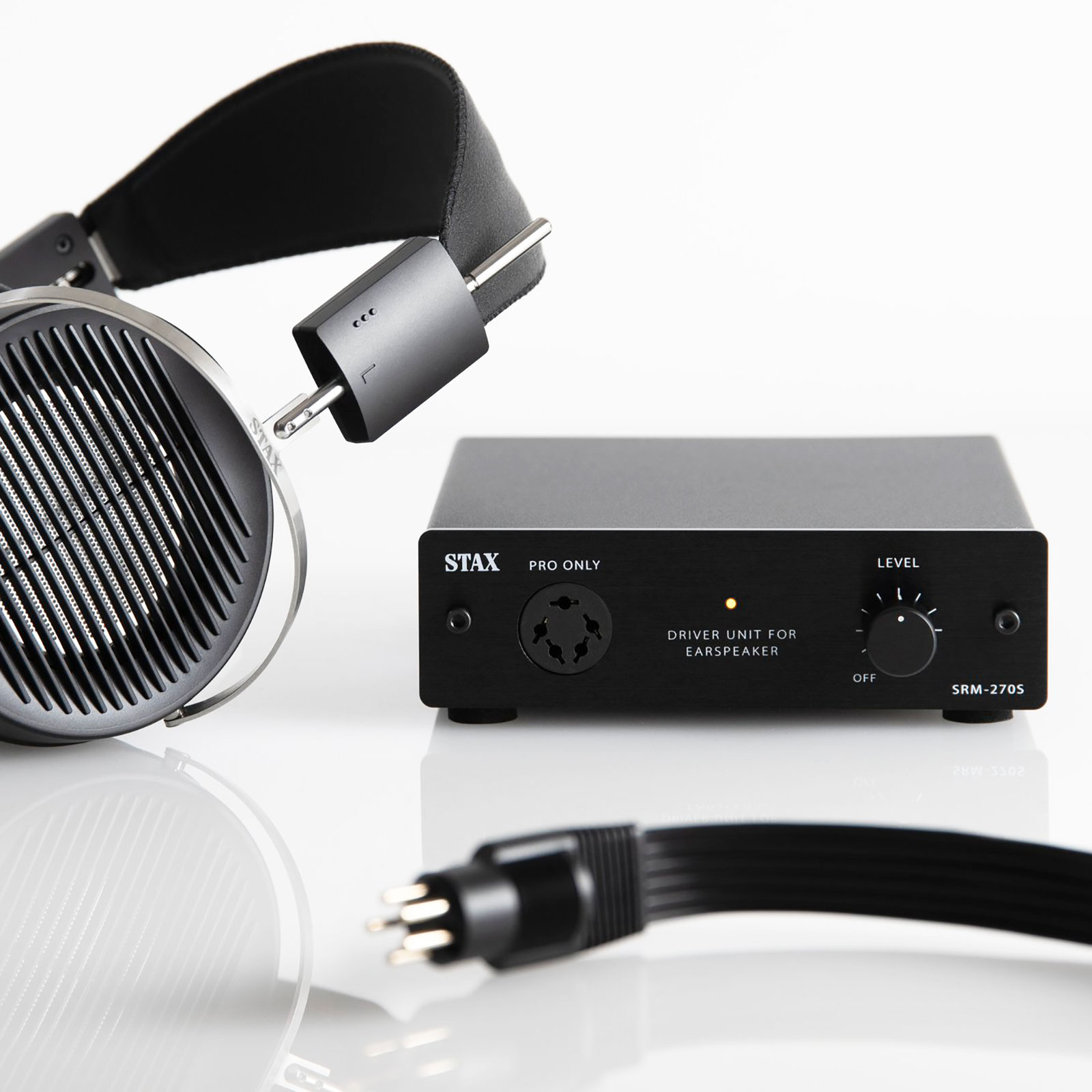

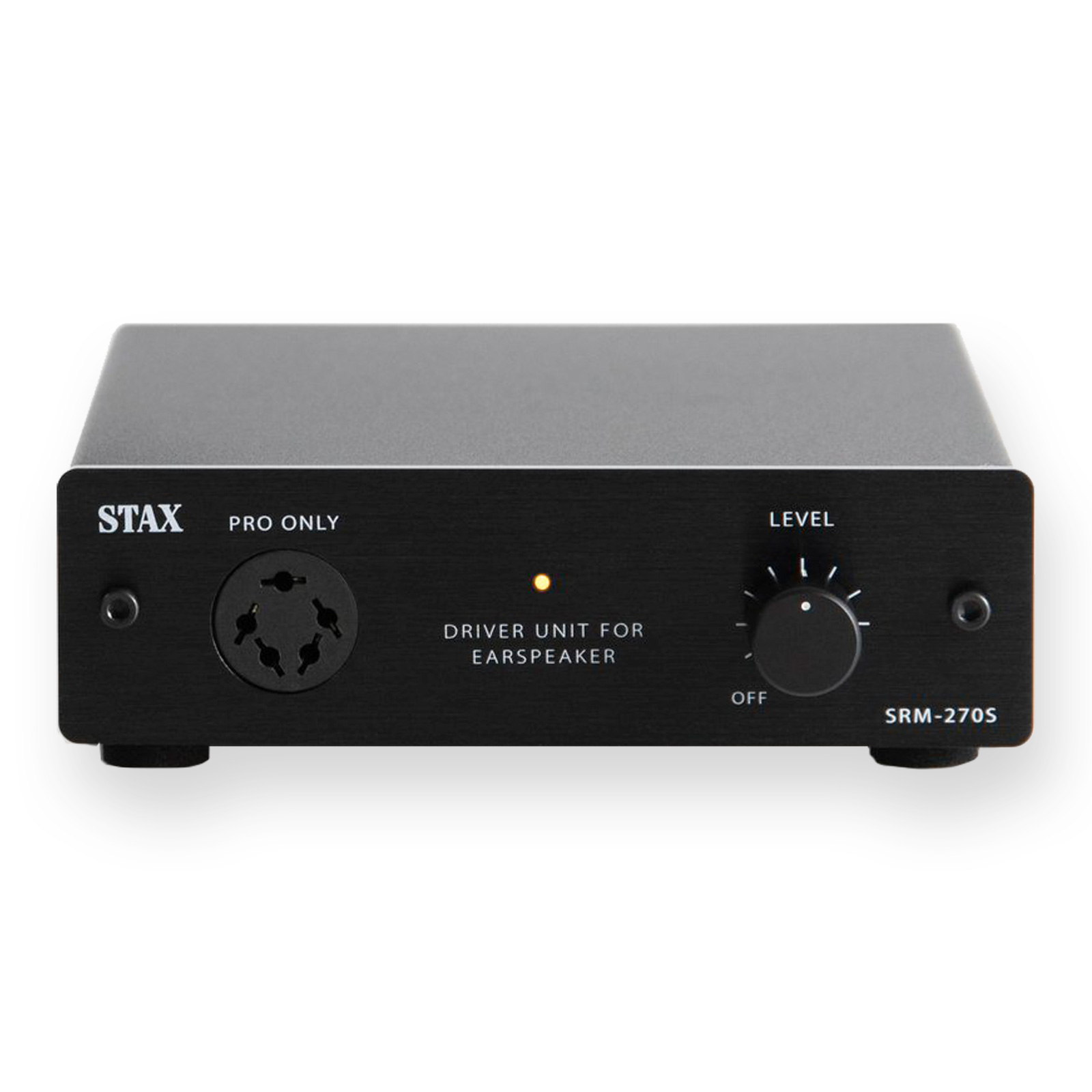

STAX SRM-270S Electrostatic Driver Unit

The newly developed SRM-270S Driver Unit by STAX Audio, setting a new benchmark for entry-level electrostatic audio system.

The SRM-270S has updated the design of the previous model (SRM-252S) by improving the quality of the RCA pin jack, adopting a 3 mm thick front aluminium panel, and adopting an aluminium extrusion case that has been enlarged and has improved heat dissipation.

The first stage of the amplifier is equipped with the latest low-noise FET, and the output stage is equipped with an improved emitter follower circuit.

This latest design know-how that follows the trend of driver development in recent years is condensed into a compact housing. Since the input and output are equipped with parallel out terminals, it can be easily combined with your current system.

Features

• Enhanced Heat Dissipation: 3 mm thick aluminium front panel, plus larger aluminium extrusion case for effective heat management.
• High-Grade Connectivity: RCA pin jacks ensure a pristine connection.
• Low Noise FET: Selected for the first-stage amplifier, paired with a refined emitter/follower circuit in the output-stage for unparalleled clarity.
• Compact Chassis: Easy for placement, transportability and aesthetic appeal.

Specifications

• Frequency Response: DC to 35,000 Hz / +0, -3 dB.
• Harmonic Distortion: 0.01 % or less / 1 kHz 100 V rms.
• Amplification: 58 dB (800x).
• Rated Input Level: 125 mV / 100 V rms output.
• Max Output Voltage: 280 V rms / 1 kHz
• Input Impedance: 25 kΩ
• Input Terminal: RCA x 1
• Output Terminal: Parallel out x 1
• Bias Voltage: DC 580 V
• Power Supply: AC (adapter included).
• Power Consumption: DC 12 V / 500 mA.
• Dimensions (W x H x D): 132 x 38 x 153 mm (excluding protrusions).
• Weight: 540 g
• Country of origin: Japan.
• JAN: 4996476001060

Included

• 1 x SRM-270S Driver Unit.
• 1 x AC Power Adaptor.
• 1 x Documentation.
