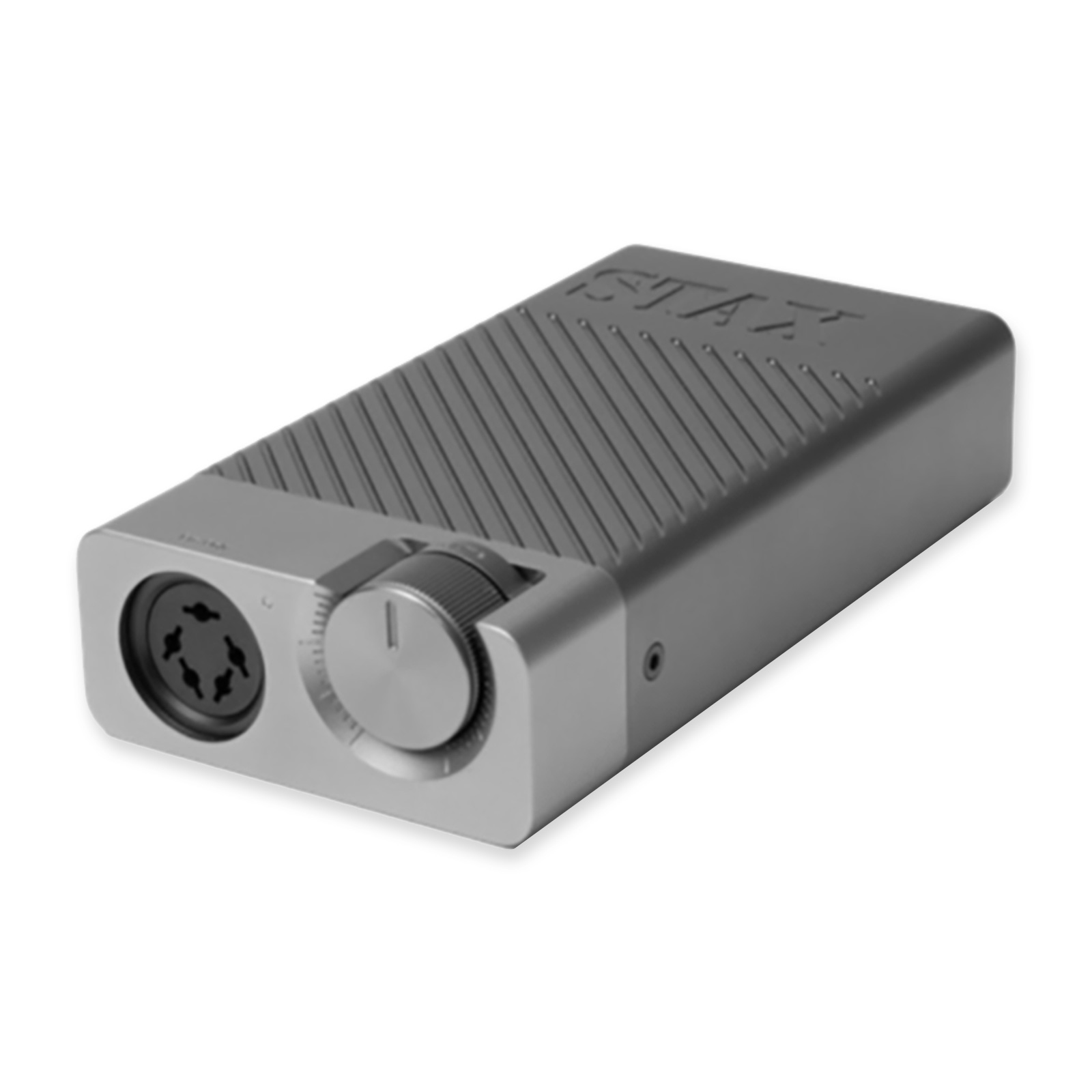

STAX SRM-D10 II Portable Electrostatic Headphone Amplifier / DAC

SRM-D10 II Portable Electrostatic Headphone Amplifier + DAC, by STAX Audio.

The new STAX SRM-D10 II electrostatic headphone amplifier redefines audio excellence by combining cutting-edge technology and superior craftsmanship.

Designed to provide audiophiles and professionals with the ultimate sound experience, the SRM-D10 II boasts a range of exceptional features, as follows:

Features

• Enhanced Sound Quality: SRM-D10 II utilizes hardware decoding and high-quality audio capacitors to deliver unparalleled sound quality, ensuring every note is crisp and every detail is vivid.
• High-Quality DAC: Using the AKM 4493 decoding chip.
• DSD + PCM Support: With support for DSD sampling rates up to DSD256 and PCM sampling rates up to 384 kHz / 32-bit, the SRM-D10 II can faithfully reproduce high-resolution audio formats, preserving the artist's original intention.
• High-Quality Power Amplifier: The SRM-D10 II is equipped with a high-quality power amplifier, providing outstanding performance and remarkable power, allowing you to experience music in its purest form.
• High Voltage Output: A robust DC 580V DC bias enhances the amplifier's output, resulting in a more dynamic and powerful soundstage.
• Rugged Aluminium Alloy Shell: Exudes a sleek, modern design but also offers higher strength and corrosion resistance, ensuring the SRM-D10 II is built to last.
• Versatile Connectivity: The SRM-D10 II supports both USB digital and 3.5 mm analog audio inputs, offering flexibility in connecting to a wide range of devices.

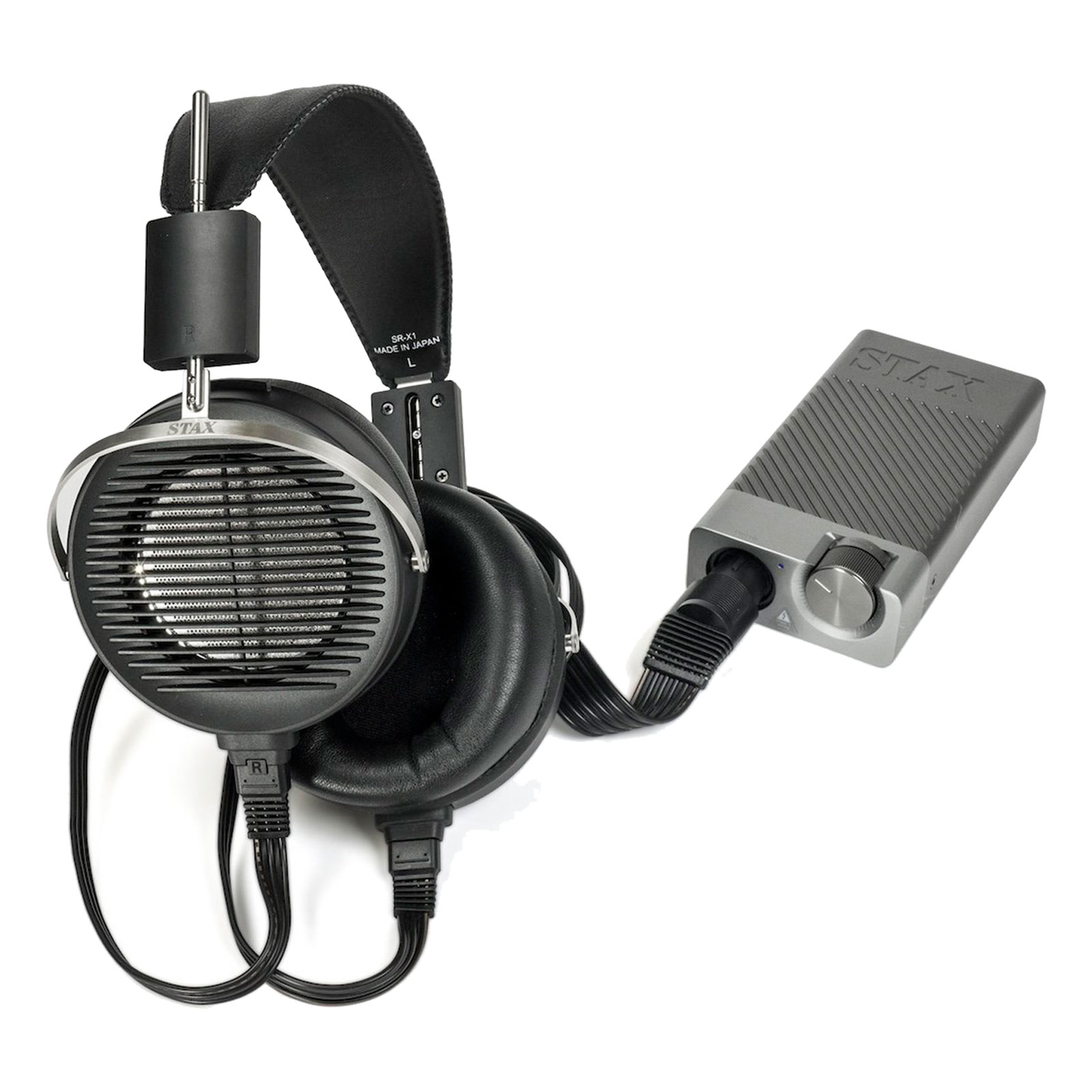

• Compatibility: Designed to complement all STAX PRO-type headphones, ensuring that you can enjoy the full potential of your Earspeakers.
• LUSB C 3.0 battery charging and USB C digital audio input.

Specifications

• Rated Input Level: 230 mV (100 V output)
• Max Input Level: 10 V (min volume at Line In input)
• Gain: 53 dB (450 x)
• Harmonic Distortion: Less than 0.025 % / 1 kHz - 10 kHz
• Input Impedance: 10 k&ohms; (Line In input)
• Max Output Voltage: 200 V rms / 100 Hz - 10 kHz
• Supply Voltage: DC 5 V / 9 V / 12 V / 15 V
• Power Consumption: 6.4 W (USB Input) / 5 W (Line In input)
• DSD Support: Up to DSD256.
• PCM Support: Up to 384 kHz / 32-Bit.
• Amplifier: High-Quality Power Amplifier.
• Output BIAS: DC 580 V
• Shell: Aluminium Alloy.

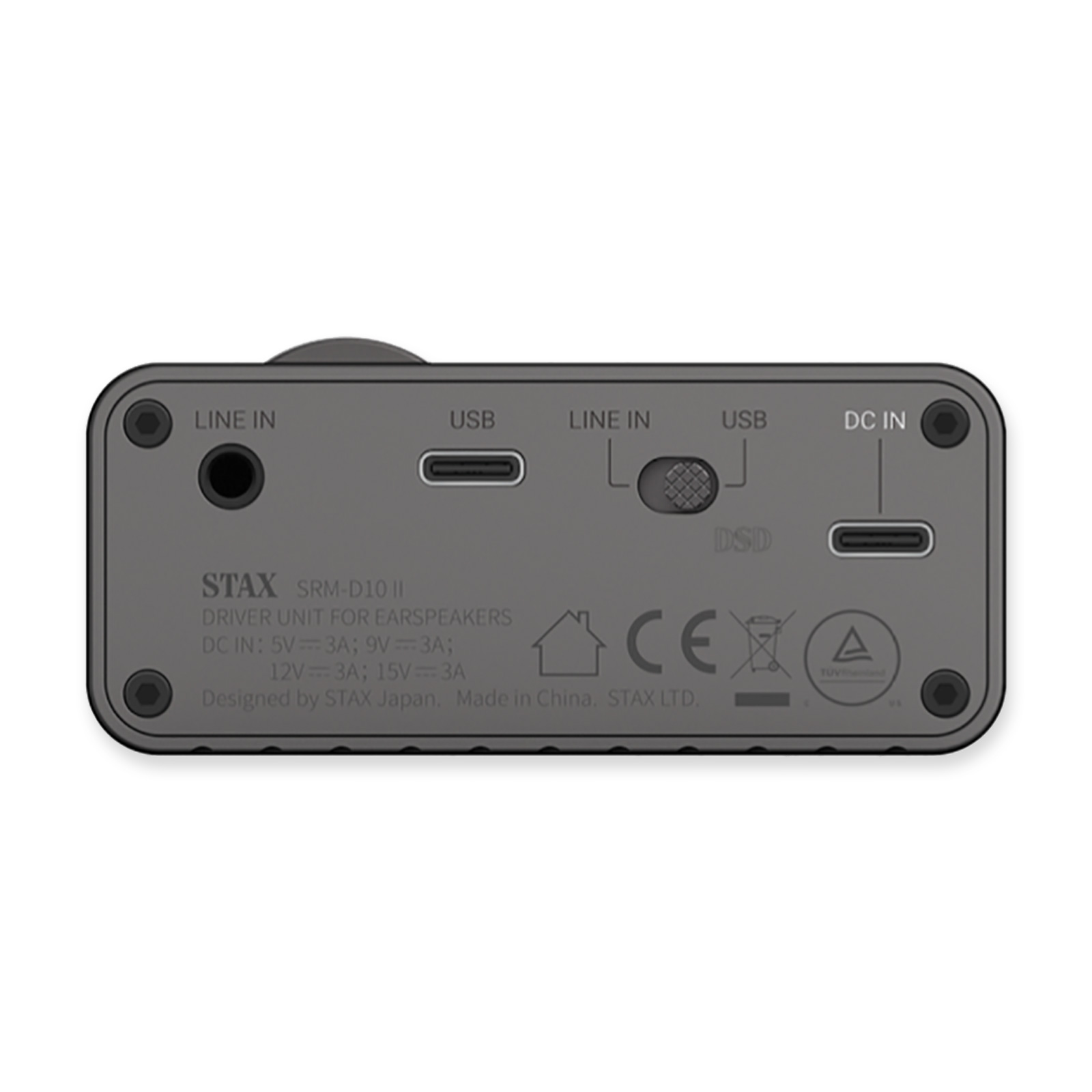

• Inputs: USB Digital / 3.5 mm Analogue.
• Compatibility: Suitable for all STAX PRO Type Headphones.

Included

• 1 x SRM-D10 II
• 1 x Mains Power Supply.
• 1 x Set of Plug Adaptors (UK / US / EU / AU).
• 1 x Audio Cable 3.5 mm - 3.5 mm
• 1 x USB-A - USB-C Cable.
• 1 x USB-C - USB-C Cable.
• 1 x Documentation.

More Information

• SRM-D10 II, by STAX Audio
