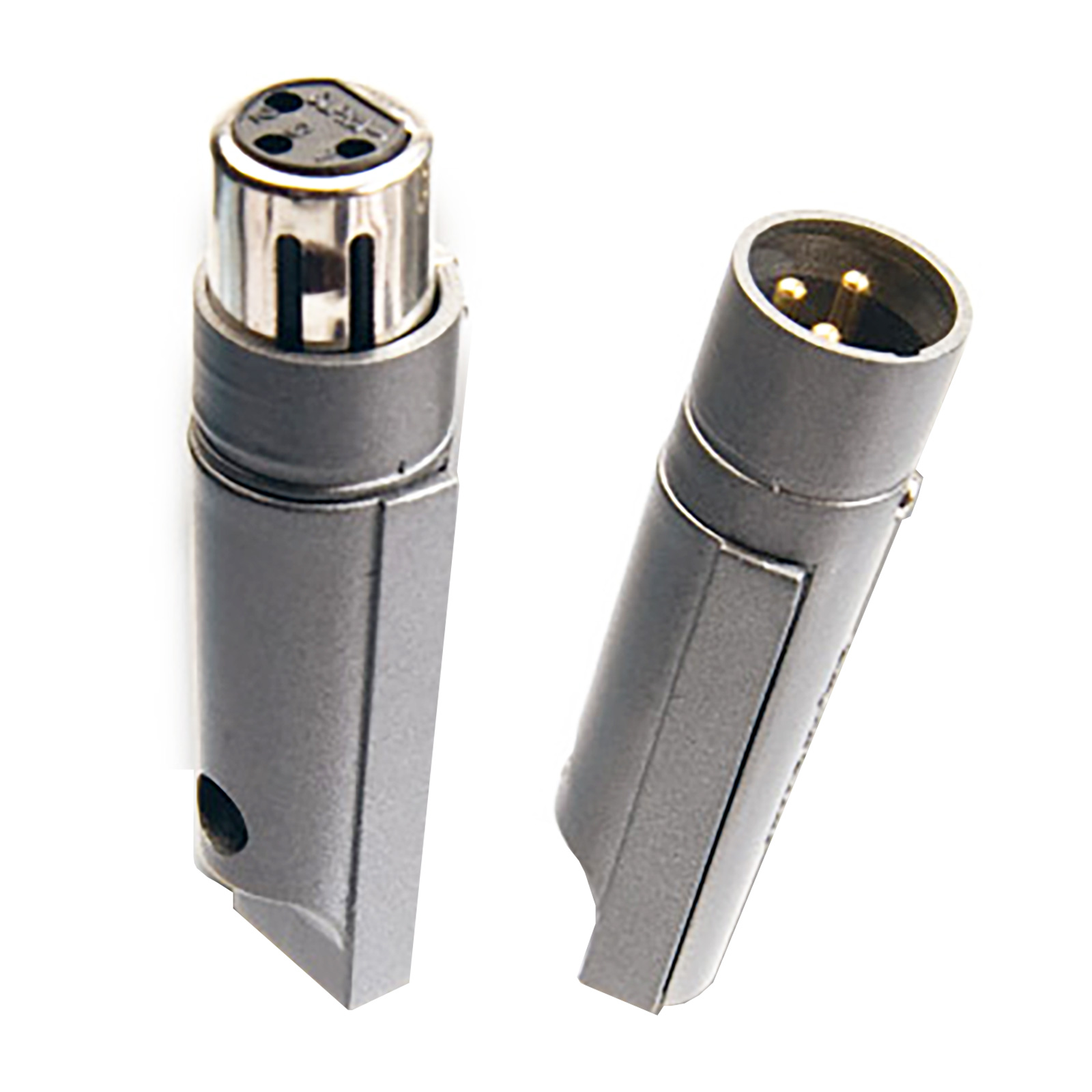

Supra Cables Swift XLR Connectors (Male / Female)

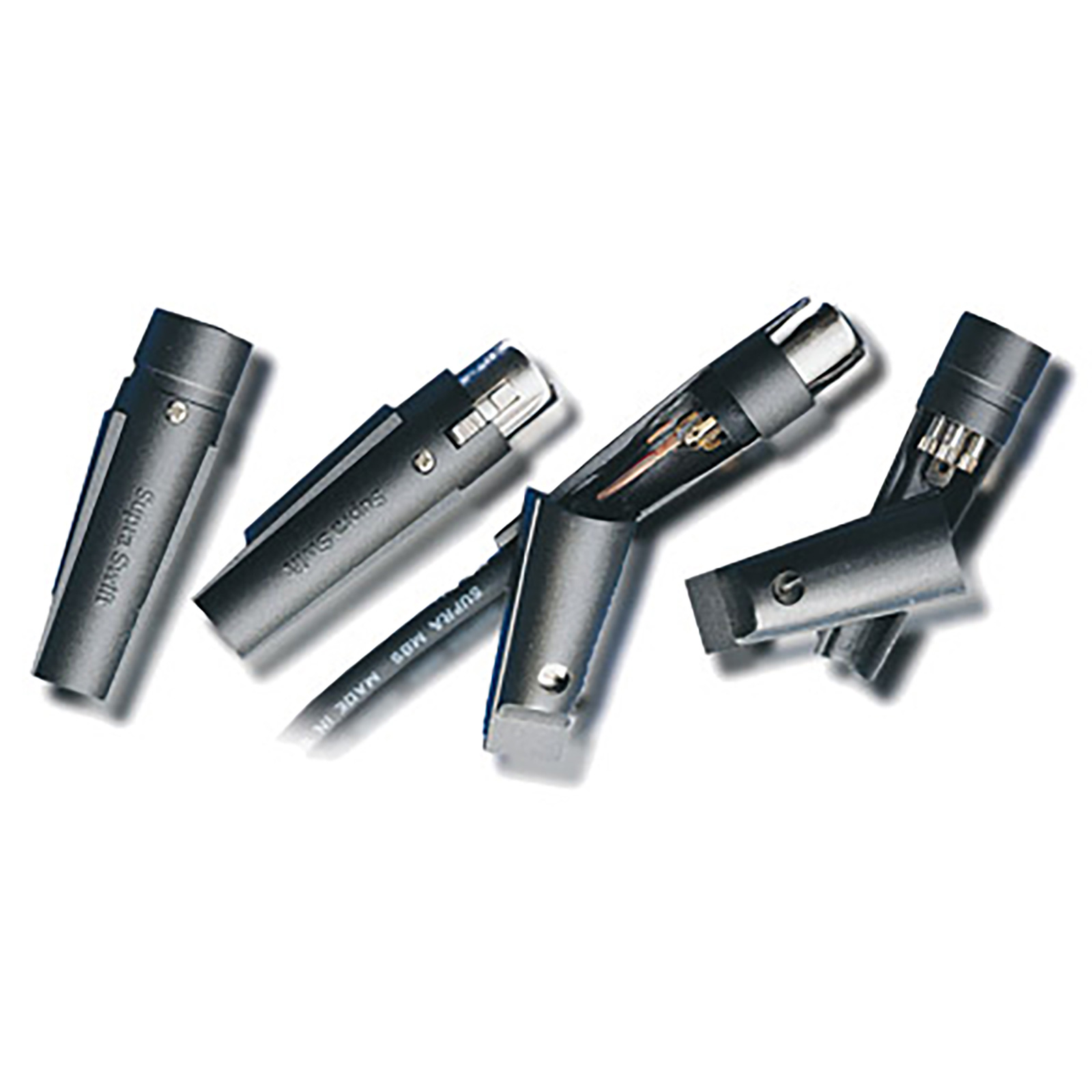

Supra Swift XLR is a patented XLR connector consisting of 24K gold plated pins for maximum conductivity and fully shielded housing for max RFI immunity. Furthermore, it is easy to assemble, there are no screws that may get lost and there are no shells or housing parts that must be pre-mounted prior to fixing the cable.

This is a very sturdy contact, aimed for the professional audio industry such as in-studio and on-stage usage, but will of course perform exceptionally good in high-end home hifi equipment as well. It is the standard connector for Supra pre-mounted top-of-the-line interconnects, e.g. The Sword.

NOTE: Two pairs (2 x Male / 2 x Female) are required to complete a pair of balanced stereo interconnects.

Specifications

• Contact Standard: Balanced XLR for cable mount, male/female

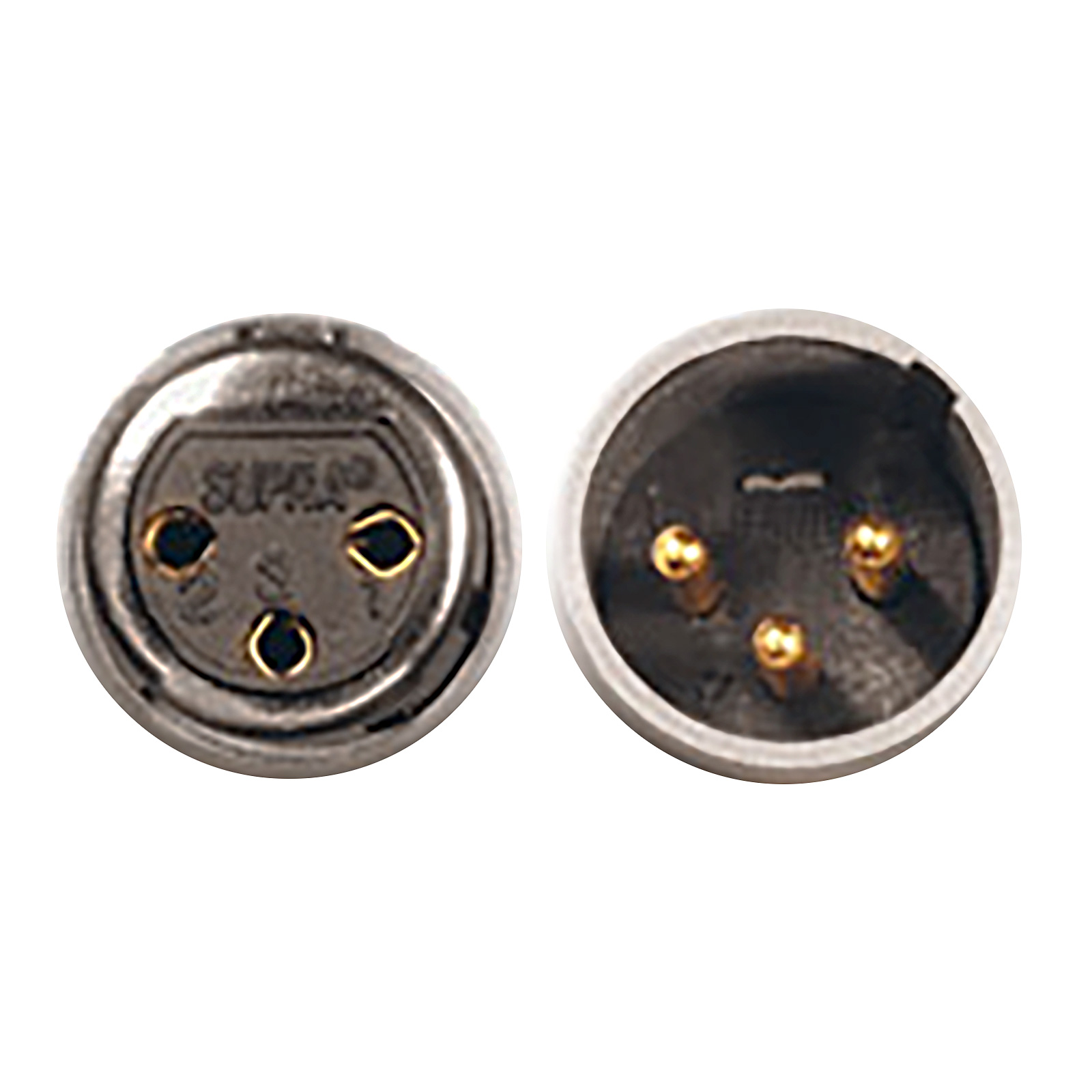

• Contact Pins: 24K gold plated copper
• Insulation: Noryl
• Cover (Patented): Shielding side mounted after cable fixing
• Fixing - Apparatus: Button release quick lock
• Fixing - Cable: Solder
• Strain Relief: Housing cover clamping force
• Maximum Cable Area (in solder slot and solder loop): 1.5 mm² and 1.0 mm² respectively
• Maximum Cable Diameter: 7.7 mm
• Dimensions (Diameter x length female and male): 19 x 75 (female) 70 (male) mm

Included

Depending on your choice of gender (above), each package will contain either:

• 2 x XLR Connectors (1 x Male, 1 x Female), OR
• 1 x XLR Connector (Male Only), OR
• 1 x XLR Connector (Female Only)

More Information

• Swift XLR Connectors, by Supra Cables
