Supra EFF-I Analogue Interconnect Cable (Terminated)

EFF-I Analogue Interconnect Cable (Factory Terminated), by Supra Cables.

Suitable for analogue transmissions both balanced and single-end in mid-to-high-end hi-fi applications. EFF-I is a multi test winner! A reinforcement of even the finest details is the goal of all cable design. A traditional cable can, however, not achieve that quality, due to the construction. A good interconnect must have low capacitance and low skin-effect.

The skin-effect has a dynamic and noticeable influence because an audio signal is nothing but variations of frequencies and sound levels. If we were to transfer only one stable frequency the skin-effect would not be any problem. The frequencies push the signal differently far out from the centre of the conductor. High frequencies travel on the surface whereas low frequencies travel inside the conductor.

Thus, the higher the frequency, the higher the resistance. In order to minimize the skin-effect the EFF-I is designed in accordance with Equalized Frequency Flow (EFF) Technique. It is based on tube shaped conductors with a wall thickness of 0.20 mm, which is well below the smallest skin depth within the Audio range. This allows the same resistance for all frequencies. The result is a transparent and exact reinforcement with clear room definition.

EFF-I is one of Supra Cables most awarded products, and not without good reason.

Specifications

• Brand: Supra Cables
• Range: EFF-I
• Type: Single Wire, 2 Core, Screened
• Construction: Silver-Plated OFC, PE Insulation
• Diameter: 7.2 mm

Length Options

Supra EFF-I is available in the following pre-terminated lengths:

• 0.75 Metre
• 1.00 Metre
• 1.50 Metre
• 2.00 Metre
• Custom lengths also available

Lengths of 0.75 - 2.00 metres may be ordered directly using the purchase options above. For all other lengths please contact us to discuss your requirements.

Termination Options

Supra EFF-I can be supplied factory terminated with any of the following connectors:

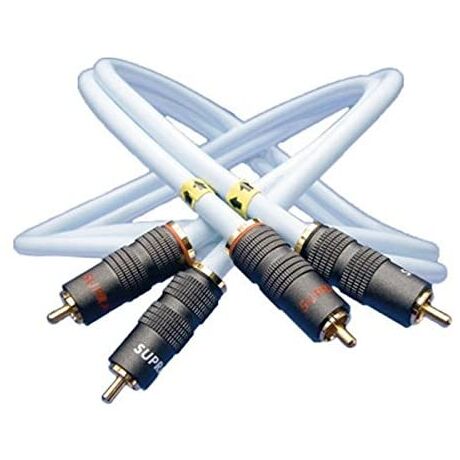

• EFF-IX: Supra Cables PPX Phono Connectors (x2 Stereo Pairs)

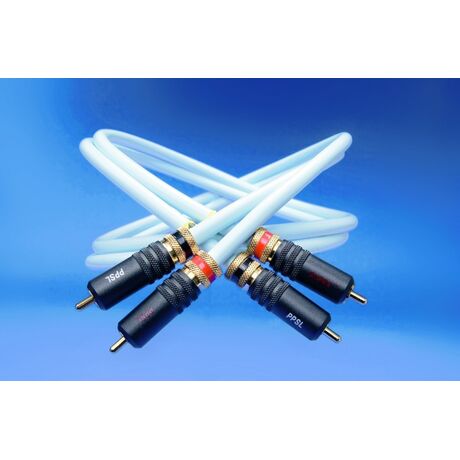

• EFF-ISL: Supra Cables PPSL Locking Phono Connectors (x2 Stereo Pairs)

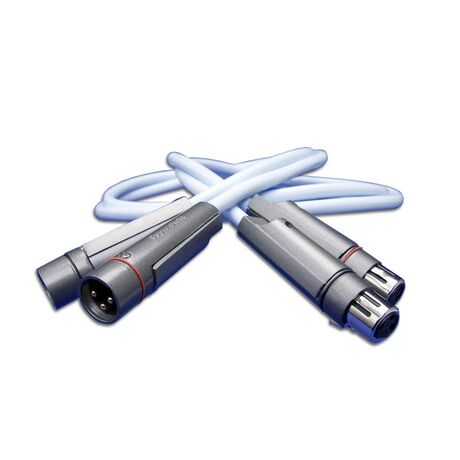

• EFF-IXLR: Supra Cables XLR Connectors (x2 Stereo Pairs)
