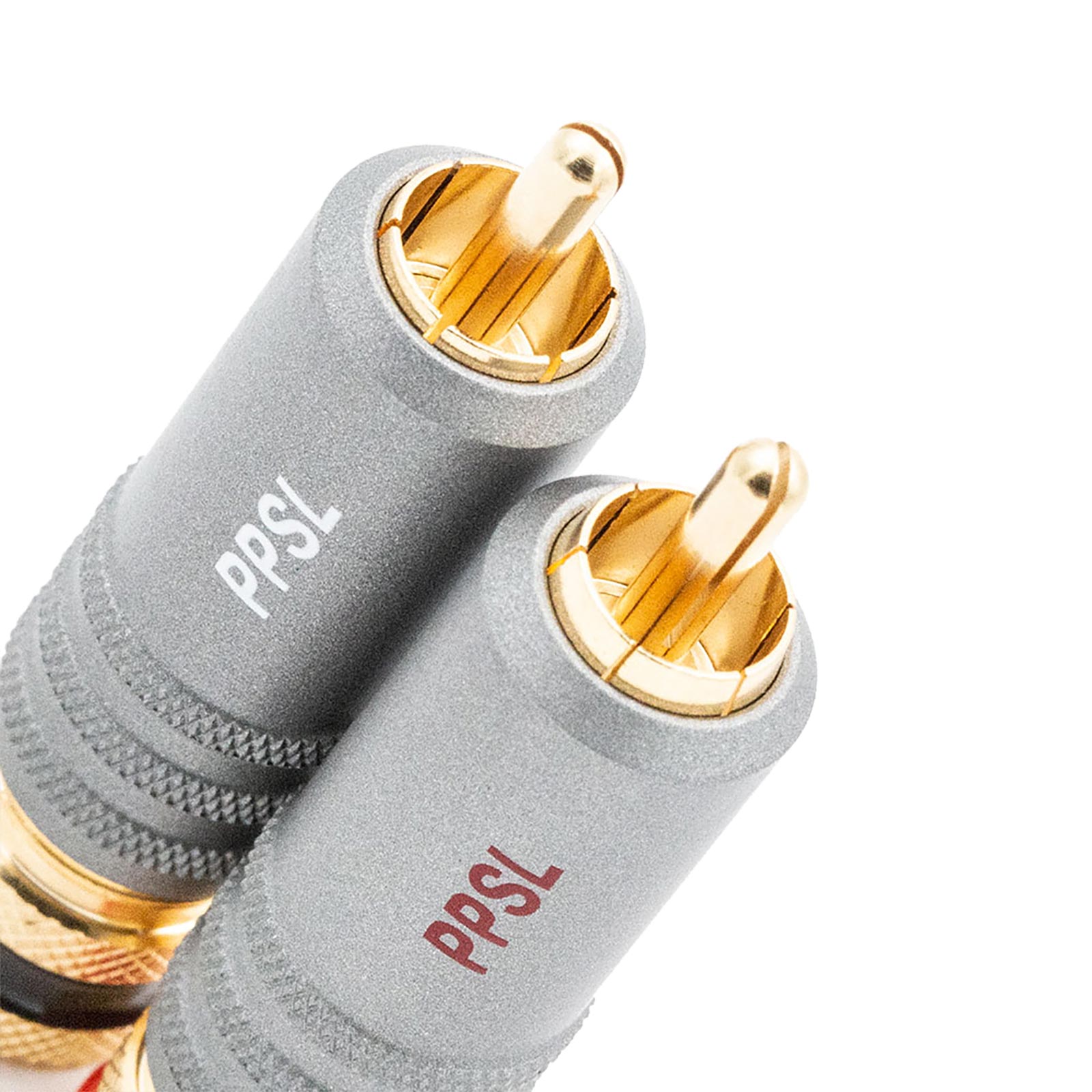

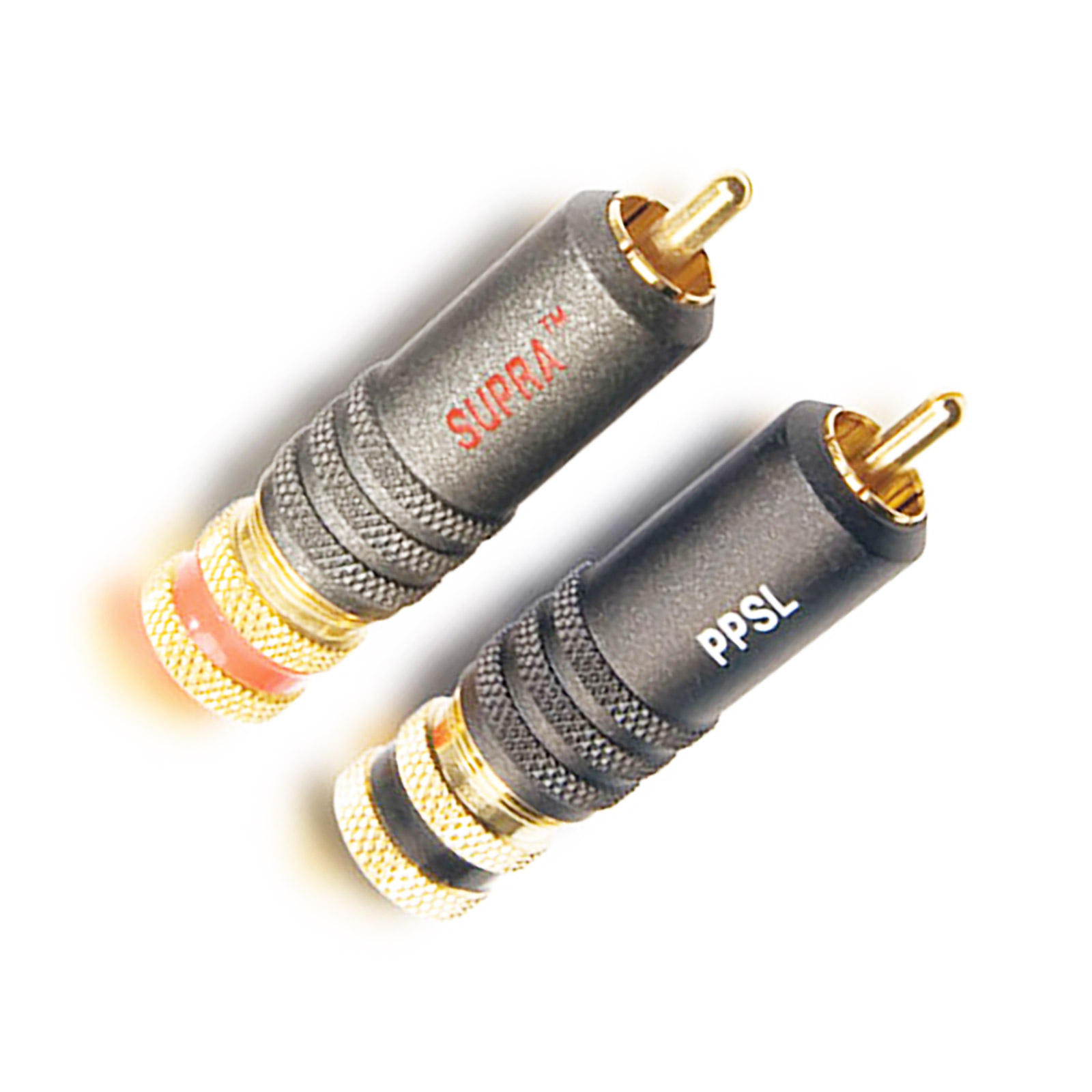

Supra PPSL RCA Plugs (Pair)

PPSL RCA Plugs, one pair, red / white, by Supra Cables.

24K Gold plated RCA (Radio Corporation of America) contact with exceptional electrical and mechanical properties. Fully shielded, RFI proof, robust design providing for cables up to 7.7 mm in diameter.

Mechanical cable strain relief, as well as fixation to female chassis contact, by means of chuck-locking - an extraordinary efficient fixation and gentle to both cables and connectors. Features a one-piece machined body, a soldering loop for 0 (minus) signal lead, also with screen drain wire, PTFE insulation for maximum heat resistance and an aluminium metal jacket that is front mounted and also an active part of chuck-locking system to the female chassis RCA.

This is Supra Cables top-of-the-line RCA contact. One pair per package, i.e. one red and one white / black.

Specifications

• Contact Type: RCA male
• Conductor: 24K Gold-Plated Copper
• Insulation: PTFE
• Jacket: Aluminium Front-Mounted
• Contact Fixation: Chuck locking
• Cable Fixation: Solder
• Strain Relief: Chuck locking
• Maximum Cable Diameter: < 7.7 mm
• Dimensions (Ø x L) 13 x 43 mm

Included

• x1 PPSL RCA Red
• x1 PPSL RCA White / Black

More Information

• PPSL RCA Plugs, by Supra Cables
