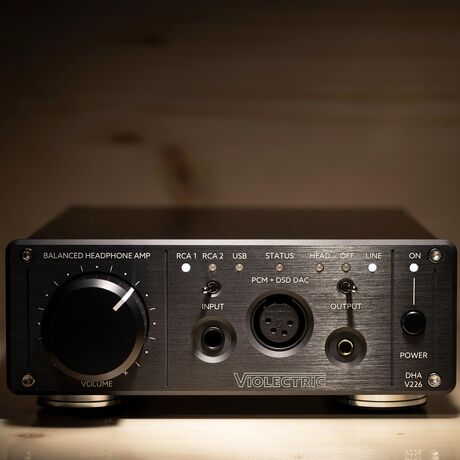

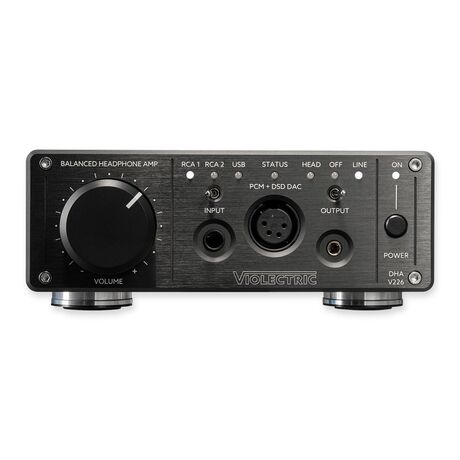

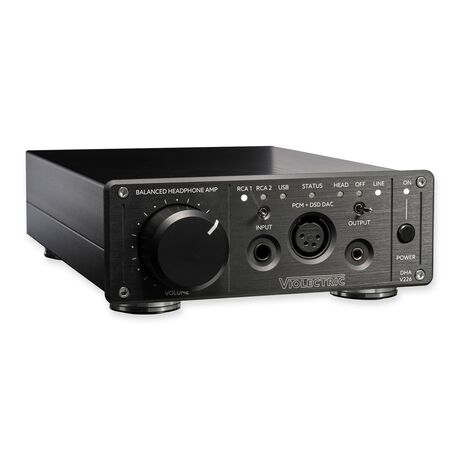

Violectric DHA V226 Headphone Amplifier + DAC + Preamplifier

The DHA V226 by Violectric is a competitive DAC, plus a balanced headphone amplifier with pre-amp function.

DAC? Headphone amplifier? Pre-amplifier? Any combination ? The headphone outputs or the rear line outputs can be activated / deactivated by a switch on the front. Connect not only your headphones to the DHA V226 but also your power amp or active speakers. Enjoy a compact and fantastic sounding headphone amplifier with topnotch DAC and a first-class preamplifier.

The DAC is based on Cirrus CS 43131 with typical 130 dB dynamic range, and THD as low as -115 dB. It comes with a USB-C terminal and supports PCM signals up to 32 bits and 384 kHz sample rate as well as DSD up to 256.

The roots of the headphone amplifier circuitry can be found in its praised and award-winning predecessors V200, V280 and V281. The DHA V226 features the similar natural-but-smooth, pleasing sound.

Because of its matchless technology, the DHA V226 not only offers a powerful headphone amplifier, but also:

LOWEST NOISE through a very small amount of internal gain. This makes the amplifier's self-generated noise inaudible.

HIGH OUTPUT VOLTAGE through 50 V internal operating voltage. Ideally suited for high-impedance headphones requiring high output voltage swing.

HIGH OUTPUT POWER thanks to powerful amplifiers that offer far more power even the most demanding headphones would need.So best suited for headphones with low impedances, and/or planar magnetic headphones.

HIGH DAMPING FACTOR due to lowest output impedance. An ideal match for difficult-to-drive headphones without negative side effects, and with the guarantee of an uncompromising frequency response.

Features

• 32-bit DAC with typical 130 dB dynamic range, -115 dB THD+N.
• ±18 dB Pre-Gain for a perfect match of the DHA V226 between source and headphones.
• Volume control with Alps RK 27 attenuator, big 38 mm aluminium rotary knob.
• Four powerful amps offering 3500 mW Pmax into 100 Ohm, 23 V RMS into 600 Ohm.
• Delayed coupling of headphones to amp, after power-on.
• Headphone path and line-out path individually switchable.

Specifications

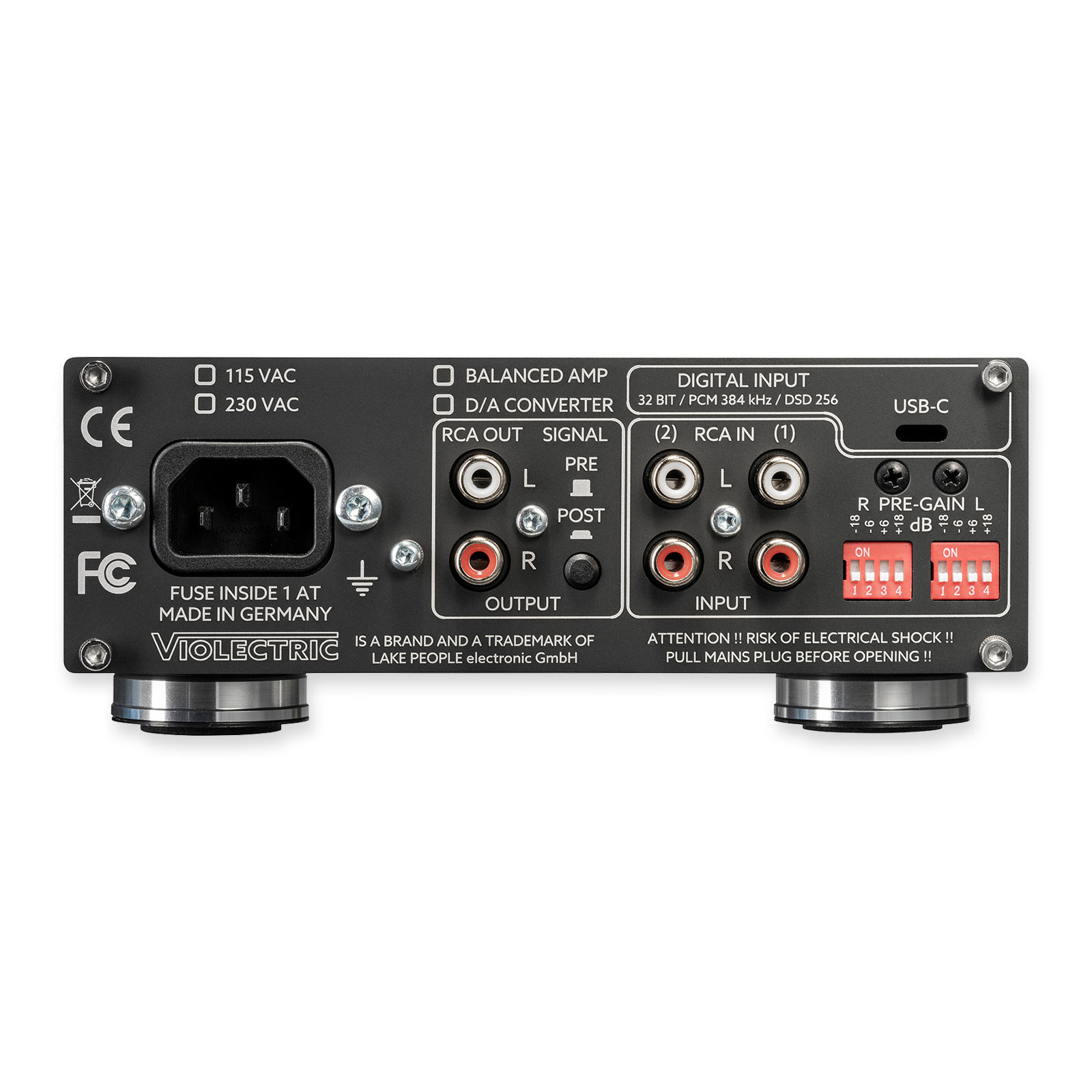

• Inputs: 1 x analogue stereo inputs (unbalanced via RCA), 1 x digital input (USB-C with up to 32 bit and up to 384 kHz for PCM signals, DSD 64 256)
• Headphone Outputs: 1 x 4-pin XLR, balanced / 1 x Pentaconn, bal. / 1 x 6.3 mm jack, unbalanced.
• Line Out: Stereo outputs (unbalanced via RCA).
• Transformers: 1 x toroidal, >22.000 uF filter capacity.
• Dimensions (W x H x D): 17 x 5.5 x 29 cm
• Weight: 3 kg

Included

• 1 x Violectric DHA V226.
• 1 x Power Cable.
• 1 x Documentation.

More Information

• DHA V226, by Violectric
