WiiM Pro Plus Music Streamer

WiiM Pro Plus is an audiophile-grade streamer which removes the need for a premium external DAC.

The WiiM Pro Plus manages to take all the impressive abilities of the WiiM Mini and WiiM Pro, and improves upon them. The upgraded DAC results in a highly-capable unit with top-of-the-range performance.

WiiM Pro Plus is a significant upgrade in terms of audio quality for analog audio input and output, total system cost, and system setup. These enhancements aimed to provide users with a more powerful, high-fidelity, and hassle-free music streaming experience compared to its lesser sibling, the WiiM Pro.

With a better ADC for line input, WiiM Pro Plus uses TI Burr-Brown Audio PCM1861 ADC, achieving up to 192kHz/32-bit digital output, 110 dB SNR. Thus, it provides high-fidelity analog to digital conversion for input from a record player, MP3 player, or TV.

The WiiM Pro Plus model also uses an ultra-low noise clock, power supply, and careful PCB layout to achieve less than –110dB THD+N performance for analog audio output.

Pro Plus features a new generation AKM 4493SEQ premium DAC that is able to achieve a leading level of low distortion and wide dynamic range thanks to AKM’s Velvet Sound Technology. It supports up to 768 kHz PCM, ideal for the latest high-resolution audio source. Achieve 120 dB (A-wt) SNR, THD+N of 0.00032% (-110 dB) from 44.1k to 192k.

Easily build your multi-room sound system with your existing AirPlay 2 speakers, Amazon Echo, and Google Home devices. Using your legacy audio devices, you can create a more flexible multi-room sound system with multiple WiiM Pro Plus's, WiiM Pros, WiiM Minis, or Linkplay-powered devices. WiiM Pro Plus supports multi-room from various audio source inputs, including WiFi, BT, Aux, and SPDIF input, making it versatile with almost every music listening option.

Features

• Hi-Res Audio certified.
• Spotify Connect device for easy playback from the Spotify app.
• Tidal Connect device for easy playback from the Tidal app.
• Digital outputs allow you to connect to an external DAC.
• Apple AirPlay 2 support.
• Multi-room playback compatible.

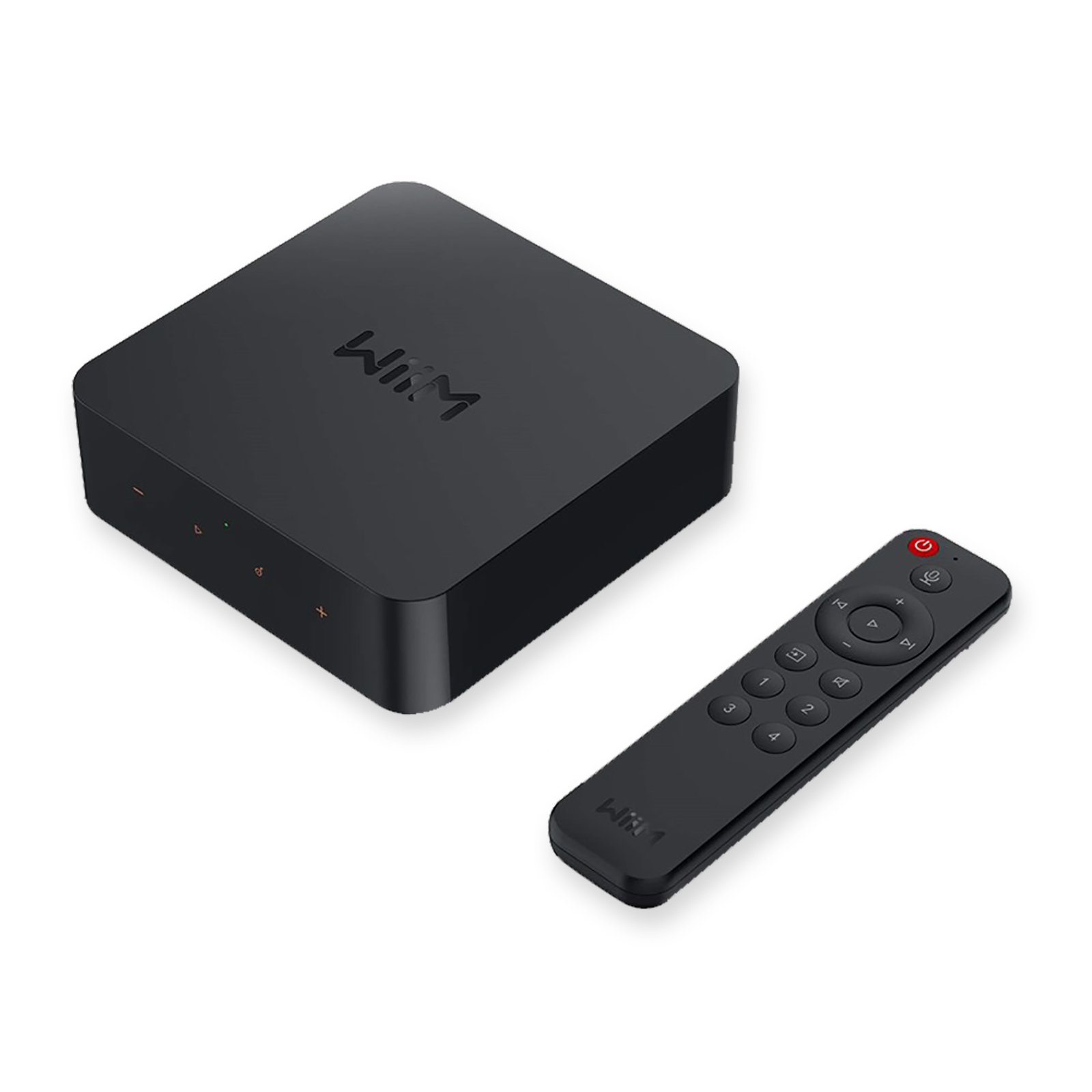

• Supplied with remote control.
• Roon Ready support planned (with future update).

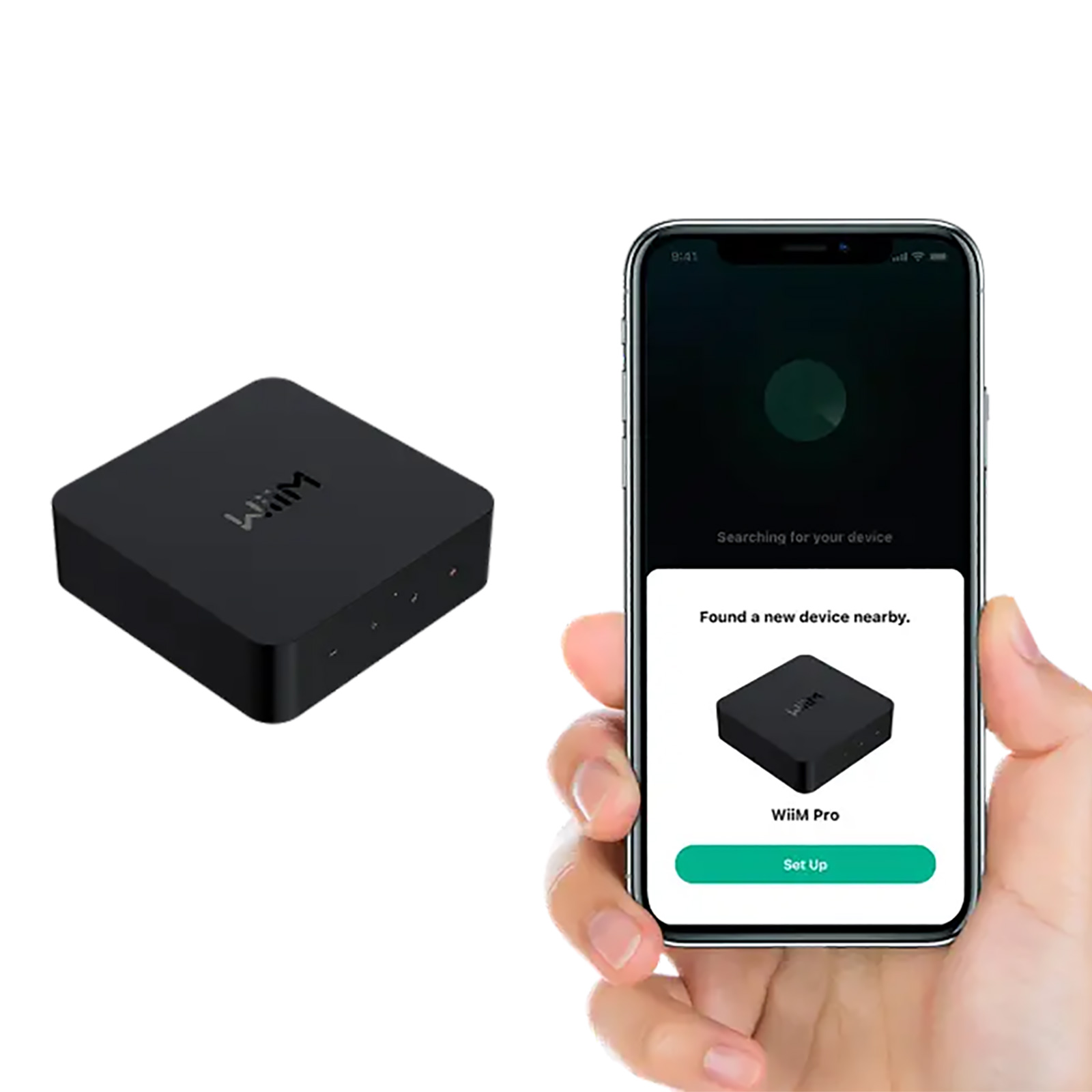

• WiiM Home application available.

Specifications

• THD+N: - 113 dB (0.00023 %)
• Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer and SoundCloud Supported
• Smart Home: Works with Chromecast Audio, Google, Siri and Alexa
• Internet Radio: TuneIn, iHeartRadio, vTuner and Radio Paradise
• Apple AirPlay: AirPlay 2
• MQA: MQA Renderer
• Roon: Roon Ready
• Network: Wi-Fi + Ethernet
• Audio Codecs: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, AIFF, OGG Supported
• Analogue Input ADC: Fixed 48k, 16bit
• CPU: Dual-core A53
• Memory: 512 MB Flash + DRAM
• Multi-Room Streaming: Multiple
• Tone Controls: Adaptive EQ and Graphic Equaliser built-in
• SNR: 121 dB

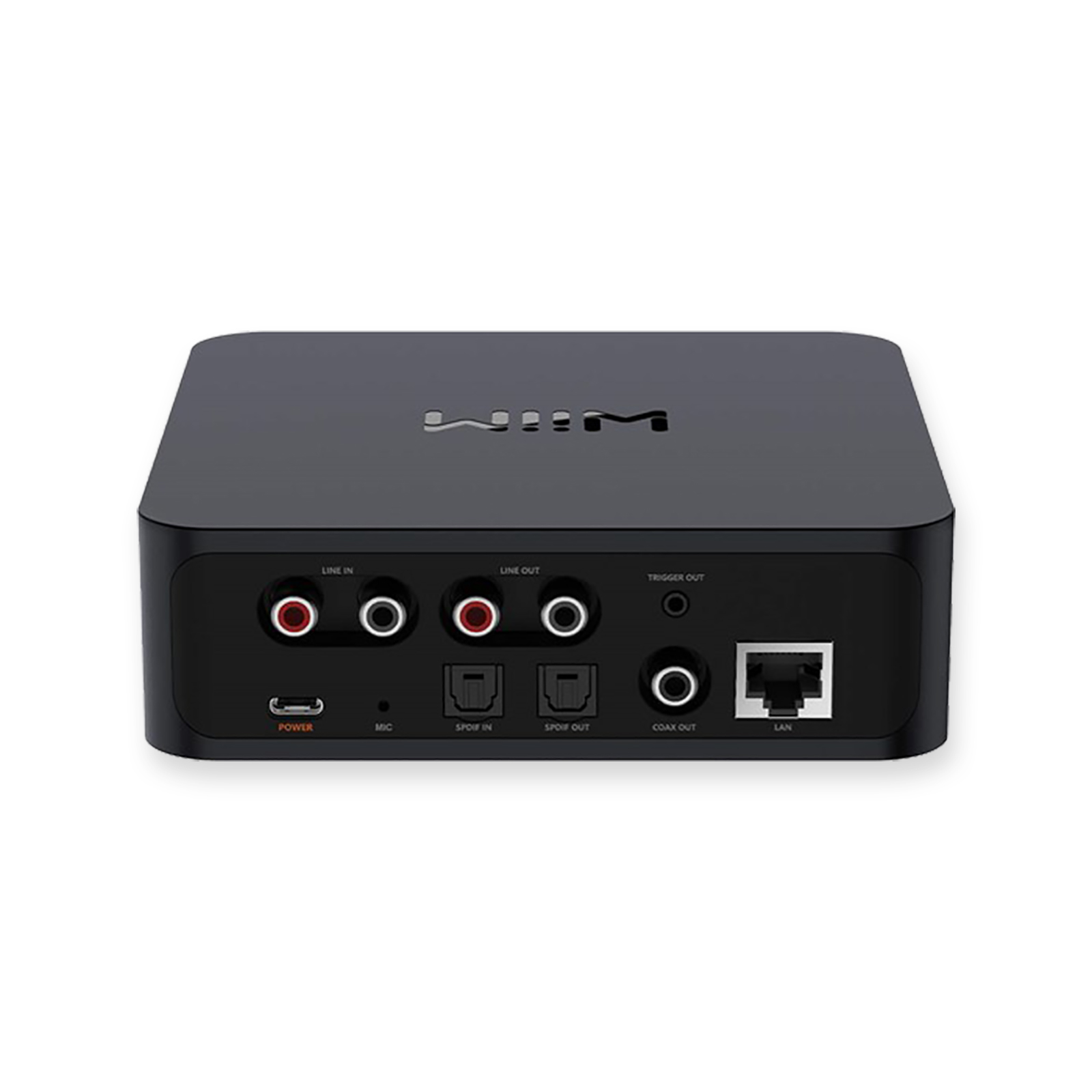

• Line Inputs: Stereo RCA x 1
• Bluetooth: Bluetooth 5.0
• DAC: AKM 4493SEQ
• Digital Outputs: Coaxial, Optical
• Output Options: Switch variable output to fixed level
• Analogue Outputs: Stereo RCA x 1
• App Control: via WiiM Home App
• External PSU: 5 V - 2 A DC
• Dimensions (W X H X D): 140 x 42 x 140 mm
• Weight: 0.33 kg
• Remote Control: Included

Included

• 1 x WiiM Pro Plus Streamer.
• 1 x USB Power Adaptor.
• 1 x USB Type-C Cable.
• 1 x Stereo RCA Cable.
• 1 x Digital Audio TOSLink Cable.
• 1 x Remote Control.
• 1 x User Guide.
