Wireworld Starlight 10 Twinax Ethernet Cable (Factory Terminated)

Starlight 10 Twinax Ethernet Cable, by Wireworld.

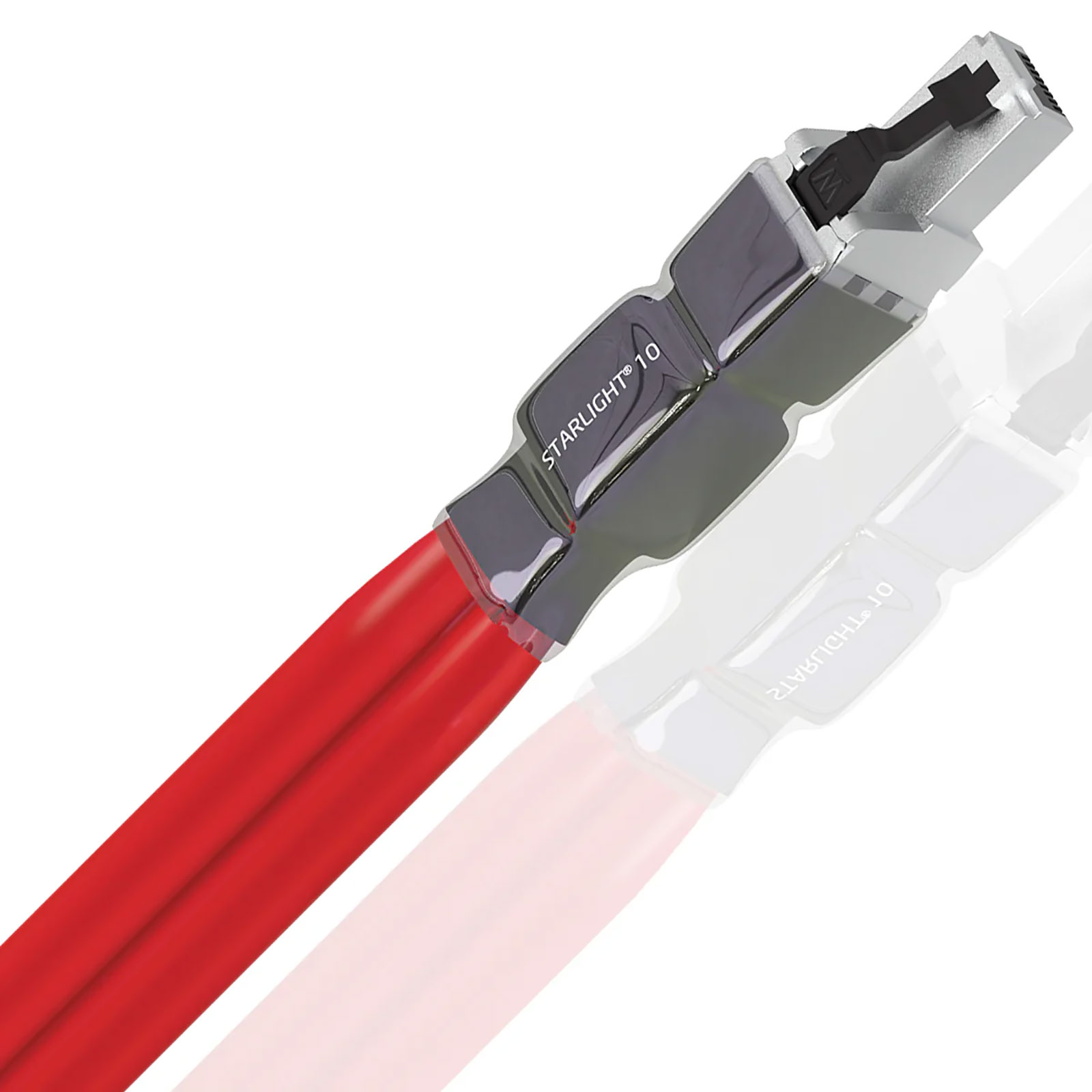

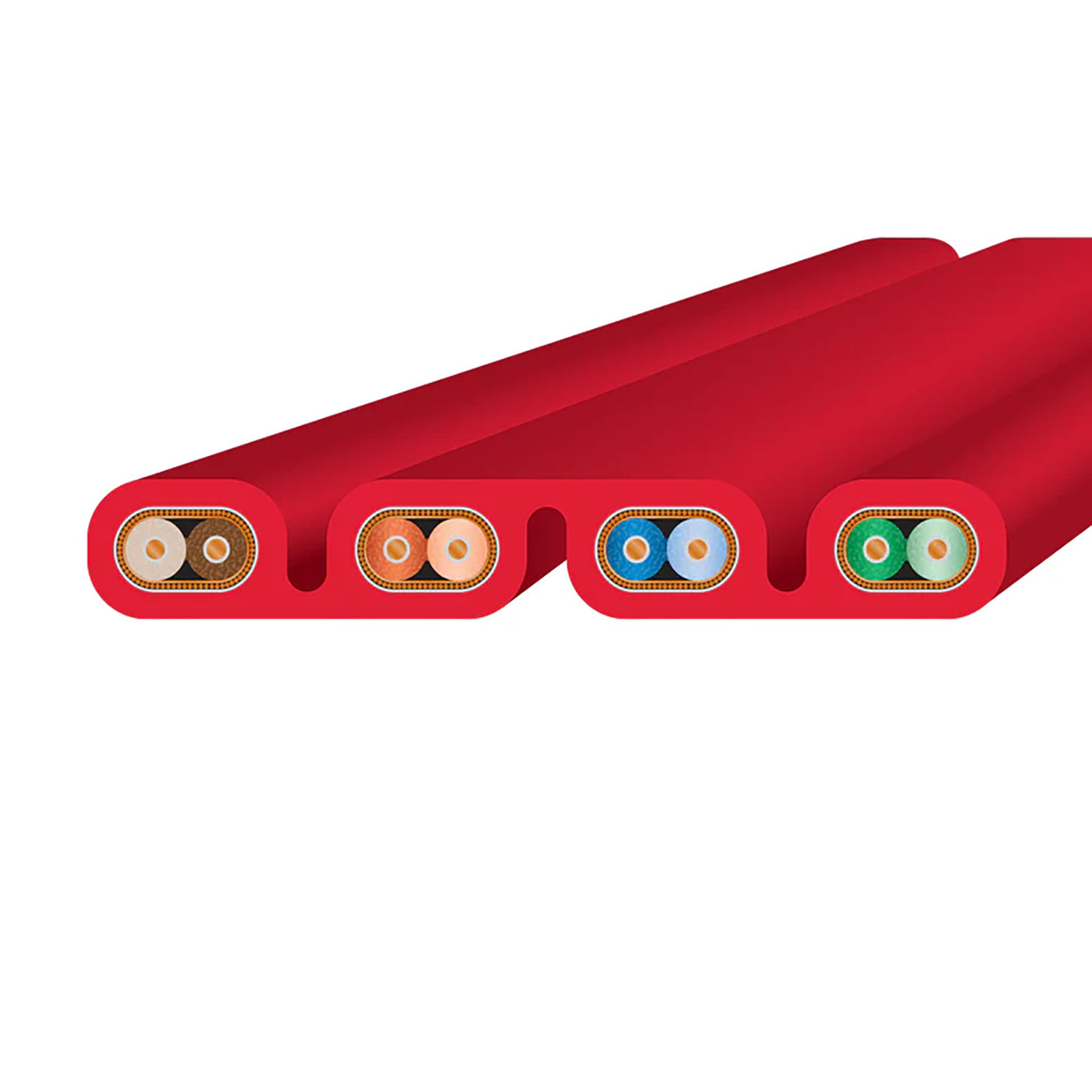

The Wireworld Starlight 10 Ethernet Cable utilizes silver-clad OFC conductors in an innovative flat and parallel twinax conductor geometry to isolate network noise for the most lifelike reproduction of streamed music and video.

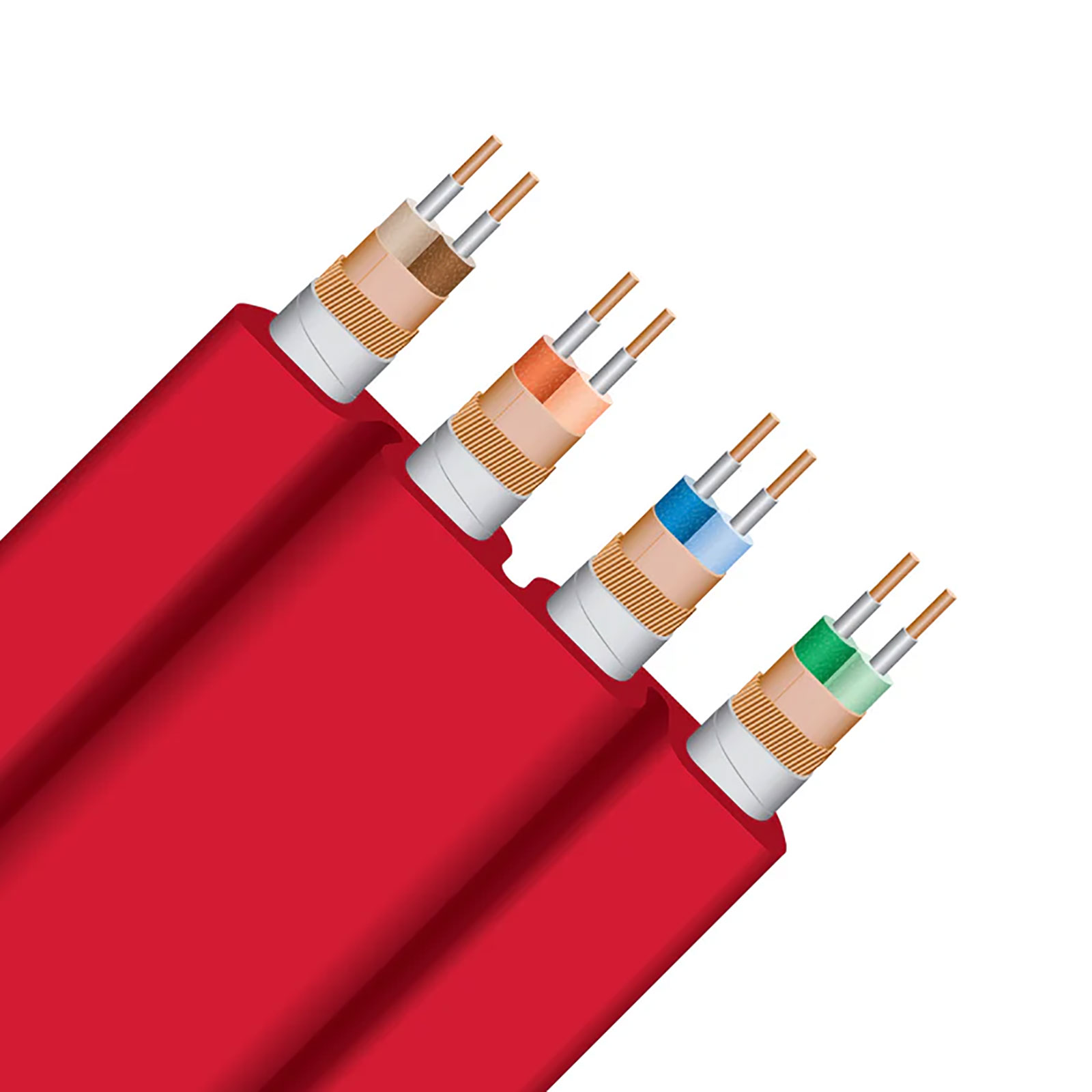

The patented Tite-Shield™ design has twelve internal shields that isolate noise for improved sound and video quality. With increased filtering over the previous Starlight 8, this cable outperforms all twisted pair designs, regardless of price.

The standard network cable categories (Cat 5/6/7/8) only include twisted pair cables, so these non-twisted twinaxial cables cannot be rated by those test specifications. However, it is interesting to note that the 100 Gb/s (QSFP+) cables used in internet server installations are also twinax designs.

Specifications

• Design: Tite-Shield™ Technology, 100 Ohms
• Conductors: 23AWG, 0.26 sq. mm
• Conductor Material: Silver-Clad Oxygen-Free Copper
• Insulation: COMPOSILEX 5
• Plug Contacts: 24k Gold-plated
• Part Code: STE10

Length Options

Wireworld Starlight 10 Twinax Ethernet is available in the following factory-terminated lengths:

• 1.00 Metres
• 2.00 Metres
• 3.00 Metres
• 5.00 Metres
• 10.00 Metres
• Custom lengths also available - please contact us for details.

Termination Options

Wireworld Starlight 10 Twinax Ethernet is available factory-terminated with the following connectors:

• RJ45 - RJ45

More Information

• Starlight 10 Ethernet, by Wireworld
